Rosco Cube Connect Transceiver

CubeConnect™: Wireless Control of Rosco Lighting Fixtures
Enhance the versatility of your Rosco Miro and Braq Cubes with CubeConnect™ Wireless control. The CubeConnect™ Transceiver accepts DMX, Serial, and Bluetooth* inputs, and transmits serialized data (mini-SSC) to Rosco Miro and Braq Cubes at distances up to 2000' (600m). The use of a second Transceiver allows wireless control of any fixture that accepts DMX.

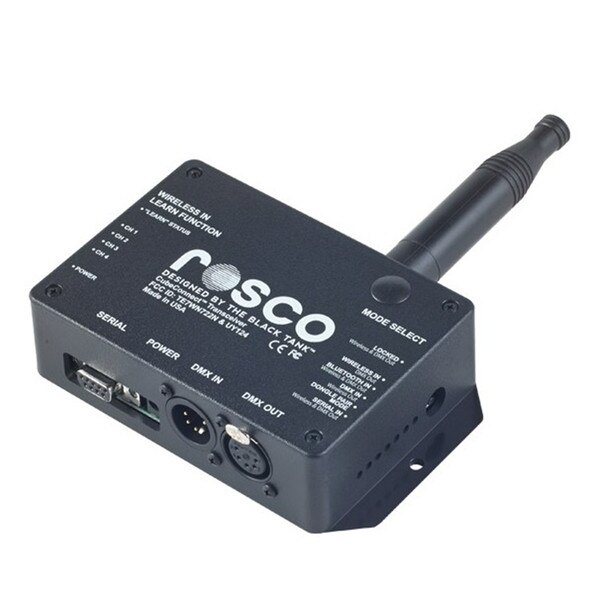

The compact CubeConnect™ Transceiver accepts lighting control commands (inputs) from DMX-512, BlueTooth Limited Energy (BLE), or Serial DB9 connections, and sends the data back out on either the wireless antenna or the DMX output.

Features:

• DMX, Serial, or Bluetooth inputs allow CubeConnect™ compatibility with a variety of control systems
• Universal power adapter (100 – 240 VAC In/5VDC Out)
• Compact size with multiple antenna configurations for optimal performance
• Locking feature to save configured scenes
• Up to 254 output channels can be controlled by a single Transceiver
• Master & Slave configuration when using multiple Transceivers in a common area

Specifications:

Power:

• Input Voltage: 5VDC
• (Input Power Adapter 100-240VAC In/5VDC Out)

Data:

• Input: DMX-512, Bluetooth Limited Energy (BLE), or Serial ASCII
• Output: DMX-512 or Mini-SSC (serial); up to 254 channels of control per Transceiver

Operating Range:

• Up to 2000' (600m) line-of-sight
• *Actual performance will vary by location and is affected by walls, partitions, and other rigid objects. See Application Notes for additional information.

Environment:

• Operating Temperature: -13° to 113° F (-20° to 45° C)
• Humidity: 0 - 95% non-condensing

Physical:

• Housing: Injection molded polycarbonate
• Dimensions: 6" x 3.5" x 1.6" (152mm x 89mm x 41mm)
• Weight: 0.5 lbs (0.23kg)

Approvals:

• FCC I.D. TE7WN722N & UY124
• CE
