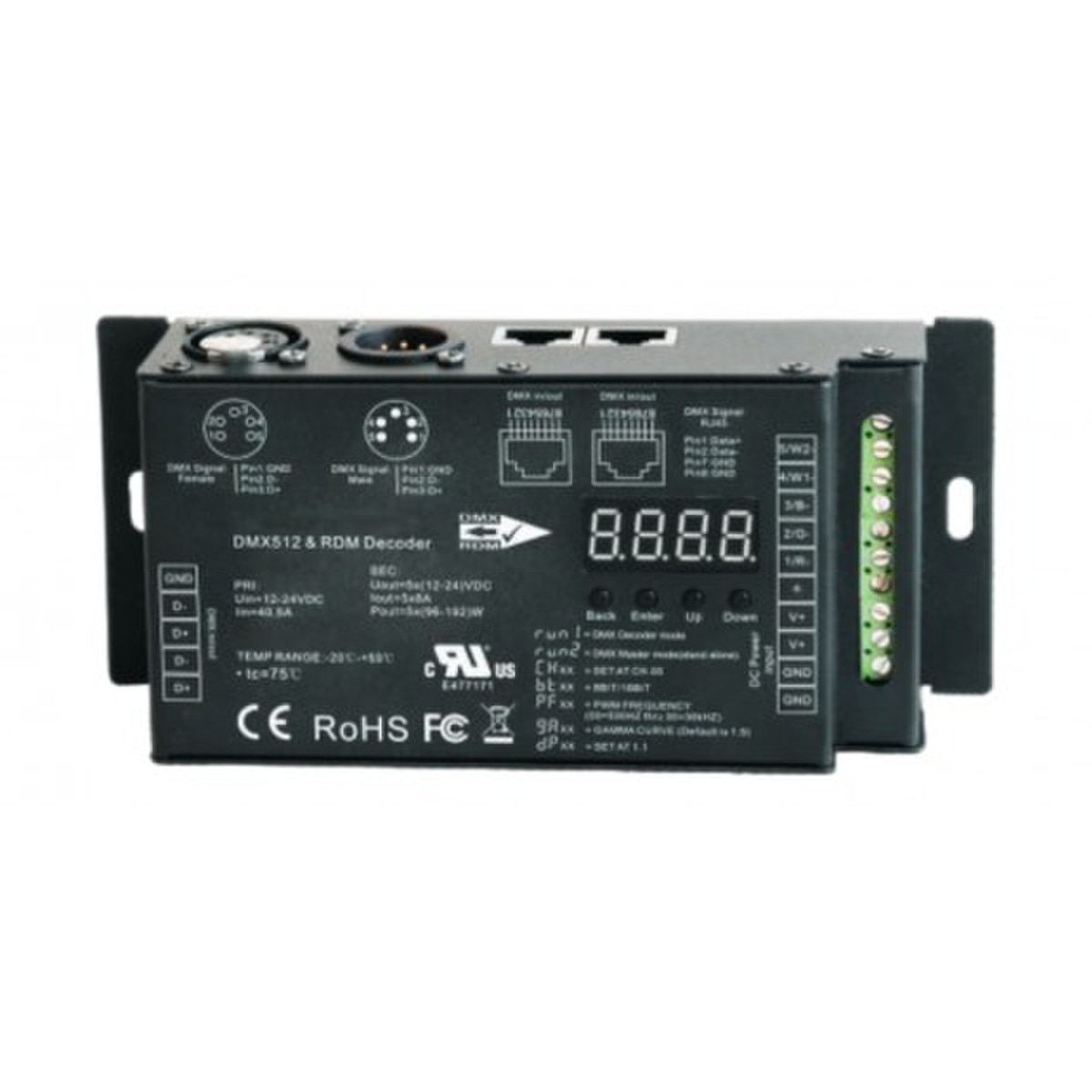

Rosco RoscoLED DMX Decoder 5 x 8A Var. PWM

This RoscoLED Variable PWM DMX Decoder 5 x 8A (Item Code: 293222610001) gives you control for vibrant, versatile lighting effects. This model is designed for the most demanding lighting applications, and offers both DMX and Stand-Alone Modes for controlling RoscoLED products – with or without a DMX console. RoscoLED DMX Decoders also provide lighting professionals the means to vary the Pulse Width Modulation and Gamma Curve of the unit for complete control of their RoscoLED products.

NOTES: When the RoscoLED Variable PWM DMX Decoder is in DMX Mode, DMX from a DMX512 console will be used as the data source for control. When in Stand Alone Mode, DMX is not required. The on board control panel can be used for dimming control or preprogrammed effects sequences. Remember, when changing between modes it will be necessary to cycle power to the device (disconnect power and re-energize).

RoscoLED Variable PWM DMX Decoder Features:

• 8-Bit and 16-Bit modes
• Adjustable Dimming curve Gamma: 0.1 to 9.9
• Easy-to-read digital display

RoscoLED Variable PWM DMX Decoder Specifications:

• Item Code: 293222610001
• Input Voltage: 12 ~ 24VDC
• Output Current: 5 x 8A
• Output Power: 5 x (96—192) W
• DMX In/Out: 5-Pin XLR, RJ45, Wire Terminals
• PWM Adjustment: 500Hz – 30kHz
• IP Rating: IP20
• Operating Temp: -4° to 122° F (-20° to 50° C)
• Dimensions: 6.5” x 2.9” x 1.5” (164mm x 73mm x 38mm)
