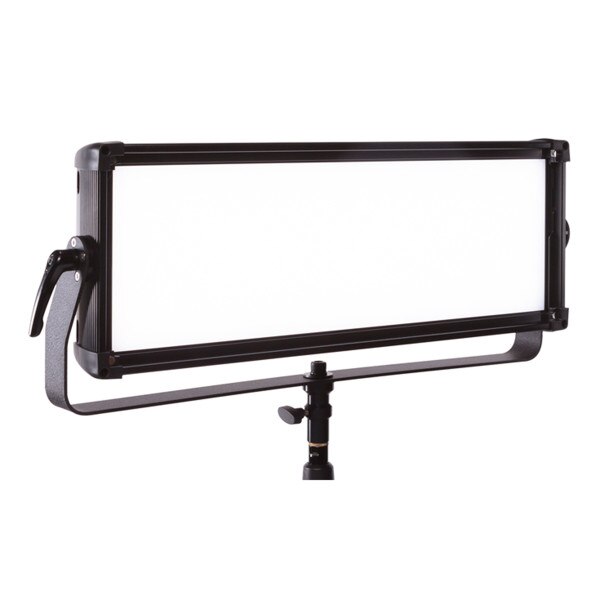

Rosco Silk 205 Kit

The Rosco Silk 205 LED soft light provides uncompromising light output for film and broadcast professionals. Designed to meet the requirements of the most discerning filmmaker, the Silk 205 LED light fixture has been specifically developed for film and video applications that demand extremely color-accurate, high-quality light.

Features:

Uncompromising Color Quality

• Utilizing proprietary, state-of-the-art, tungsten & daylight balanced LEDs, Silk 205 LED fixtures produce a high volume of broad-spectrum white light. With TLCI, CRI and R9 metrics in the high 90's, the fixture is capable of producing a high volume of light output at color temperatures ranging from 2800K - 6500K.
• The output from Rosco Silk 205 LED fixtures has been validated using TLCI test algorithms as a source of the highest quality. The resulting metrics indicate that Rosco Silk fixtures will require virtually no correction in post-production.
• The histogram, spectral power distribution and chip chart images were gathered using a Silk LED fixture at the 3200K and 5600K set points. The results display the remarkable color quality of this source.

Flattering Light

• Rosco Silk 205 LED fixtures create enticingly soft, diffused light that gently embraces its subjects. The unit features a non-glare diffuser to provide a uniform, single-source light. A full suite of optional accessories, including barn doors and magnetic egg crate louvers, are available.
• Ready to Work - Wherever and Whenever It's Needed
  • The fixture features precise, on-board dimming and color-temperature controls for maximum flexibility on location. It also has DMX on-board with four popular dimming curve options and three modes of DMX. The Silk LED fixture is a wireless-enabled device that is engineered to receive a LumenRadio antenna. It ships with a 100 /240 AC power supply for worldwide use. V-Lock, Anton/Bauer and 4-Pin XLR input are available to ensure maximum portability.

What's In The Box:

• Silk 205 LED Fixture with yoke
• 100-240VAC power supply
• 3m power cord
• 5/8" (16mm) light stand receiver
• Silk 205 Soft Case
• Silk 205 Egg Crate Louver 60°
• Programming cable

Specifications:

• Fixture Housing: Anodized Aluminum (Black)
• Dimensions (including yoke): 3.9"x22"x9.43" (LWH), 9.92 lbs. (4.5 kg)
• Color Temperature Range: 2800K - 6500K

Electrical Properties

• Input Voltage: 13V - 36V
• Low Voltage Warning: 13.5V
• Low Voltage Cut Out: 13.0V
• Power Supply: Universal 100-240 VAC, 50/60 Hz
• Power Consumption: 100 watts max (DC)

Data:

• DMX 512 via 5-pin XLR
• Wireless DMX via LumenRadio Antenna

Number of Channels:

• 8 bit mode: two DMX channels – dimming and color temperature
• 16 bit mode: three DMX channels – coarse/fine dimming and CCT

DMX Modes:

• Standard DMX
• Wireless DMX
• Silk is DMX master

Dimming Curves:

• Linear
• Square Law
• S-Curve
• Tungsten

Approvals:

• ETL/UL1573 and 8750
• CE
• RoHS
• IP20 Rated
• IEC 62471:2006, EN 62471:2008
