Rosco X-Effects LED projector, RGBW, IP65, Black

(0)No Reviews yet
SKU: Rosco 2970000RGBW1

Details

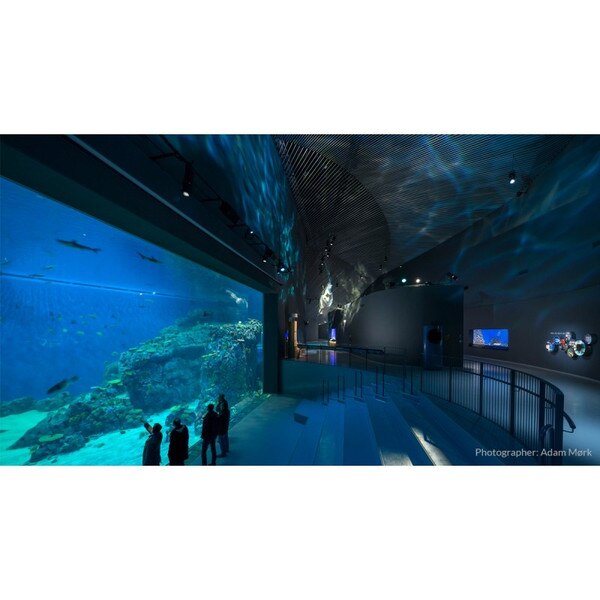

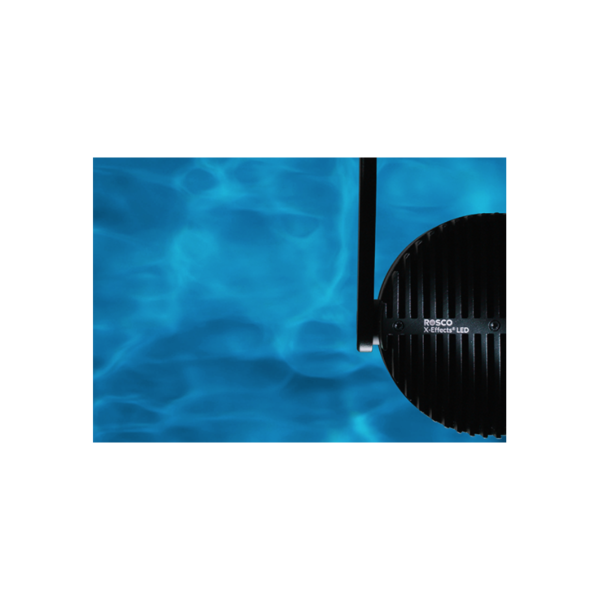

The X-Effects LED Projector RGBW creates dynamic lighting effects in a wide range of indoor or outdoor applications. The fixture’s effects are created by projecting white light through the edges of two rotating pieces of Effects Glass that are mounted off-center of the optical path. This results in a projection with linear motion for creating reflected water, blowing fire, cascading rain, northern lights and other vivid, animated lighting effects.

*Please note that the X-Effects LED Projector does not ship with a lens. Make sure to choose an X-Effects Lens accessory when ordering to achieve the beam spread your project requires. Lens options include: 19°, 30°, 50° and 70°.

Specifications:

  • Input Voltage: 100-240VAC
  • Power Consumption: 65 Watts at maximum output
  • Output: 4,000 lumens
  • Color Temperature: 5500K
  • Lumen Maintenance: 50,000 hours at 45C (LM-79-08)

Power/Data Connection:

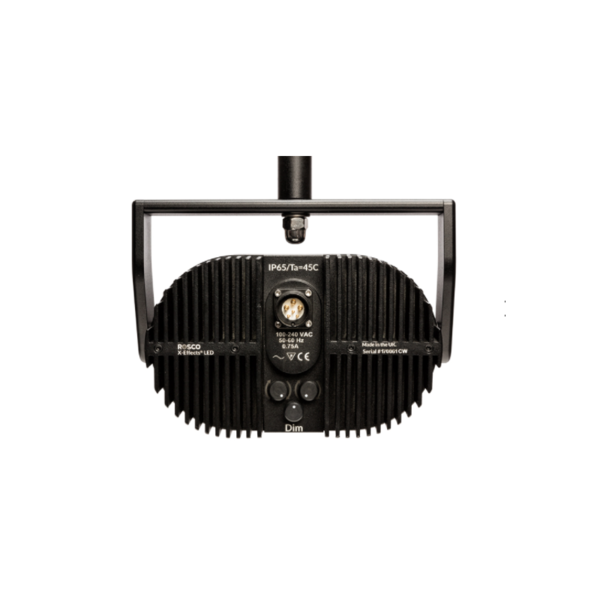

  • Male UTL Connector on rear panel
  • North America: 6' (2m) insulated cable harness with mating female UTL connector.
  • AC In, DMX 512 In/Out - unterminated
  • Number of DMX Channels: 5
  • RDM compatible
  • Operating Temp.: -13° to 113° F (-20° to 45° C)
  • IP Rating: IP65
  • Dimensions: 10.2"x9"x7.4" (26cmx22.9cmx18.7cm)
  • Weight: 9 lbs (4.1 kg)
  • Housing: Powder Coated Aluminum

Approvals:

  • ETL / UL Standards #1573 and # 8750
  • cETL / CSA C22.2 #166
  • CE

What’s In The Box:

  • X-Effects® LED Projector - 5500K
  • Power/Data Cable with UTL Connector
  • (2) Dynamic X-Effects Glass
  • User Manual

X-Effects Data Sheet
X-Effects Specification Language
X-Effects User Guide
