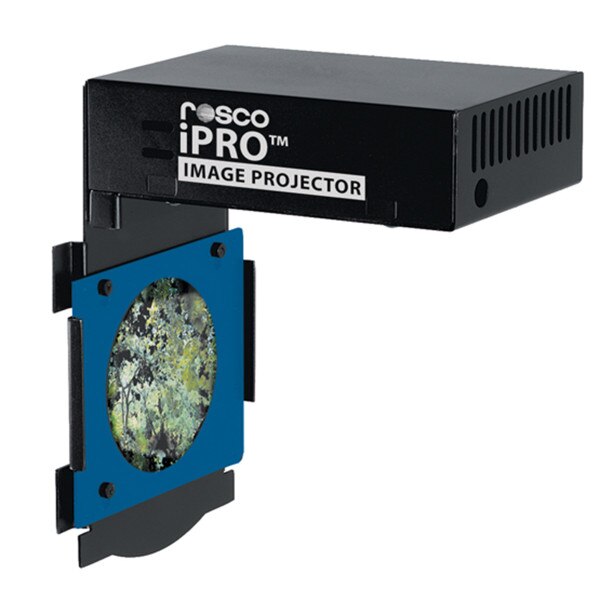

Rosco iPro Image Projector

A simple device provides an ingenious solution - In short, the iPro Image Projector projects an image created from a simple plastic slide. Attach an iPro Slide cartridge to the back plate of the iPro Image Projector and insert it into the iris slot of any one of several common luminaires. Then simply turn on the light to project anything from a dazzling full color panorma to a corporate logo, or even a last minute custom gobo texture. Even at 100% intensity, the iPro Slide will last from 15-50 hours with no fading or degradation. With a form factor similar to the Rosco Gobo Rotator, the iPro Image Projector is both elegant and simple in its engineering.

Using three different systems - cooling airflow, infrared reflection, and thermal barriers - the slides are well protected from the extreme heat of the luminaires. Unique toolings on the backplate allow the iPro Image Projector to fit snugly into the four most common luminaires: the Altman Shakespeare, ETC Source Four, Selecon Pacific and Strand SL.

IMPORTANT:

1. The ImagePro requires either a non-dim or dimmable circuit. Models are available for voltages from 100 - 240v. Please specify voltage when ordering.
2. Do not use the ImagePro with luminaires other than those which Rosco has certified as compatible without prior testing.
3. Do not use with an ETC Source Four with 750 watt lamp. Damage to the luminaire's reflector may result.

iPro_Projector_DataSheet.pdf
iPro_Kit_Instructions.pdf
imagepro_instructions.pdf
