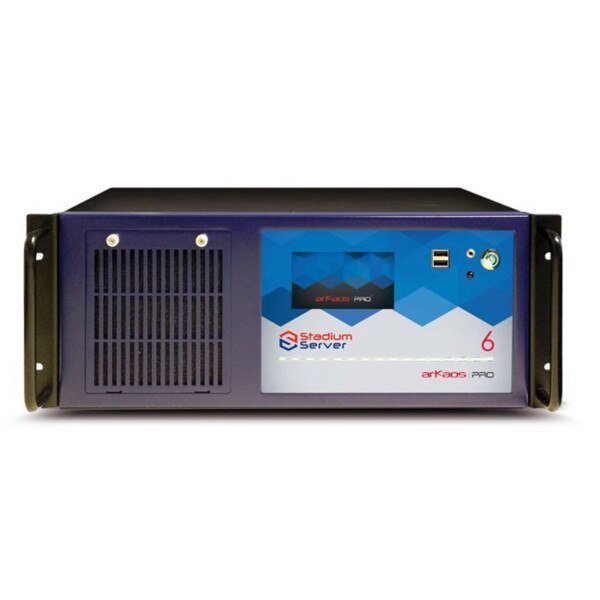

ADJ Arkaos STADIUM SERVER
Details
Features
- Plug and Play Simplicity
- Vast library of high quality digital media from world’s best visual content providers
- Comes installed with MediaMaster Pro
Smart Design
- Full-option media server
- Runs full HD video on up to six EDID managed outputs
- Two HD-SDI inputs and fast SSD drives as standard
- Large LED status strip for quick visual feedback on the server’s operation state
- Front display allows use of server without the need of additional screens
- Fast recovery system by Acronis allows extremely simple reset from the boot menu
- Pre-configured to work directly with all market-leading DMX lighting desks
Blistering Performance
- Shock-resistant up to 2G
- Easy access to fans and filters
- Thoroughly tested in structural strength, and toleration of heat and vibration
- Totally road-ready
Specifications:

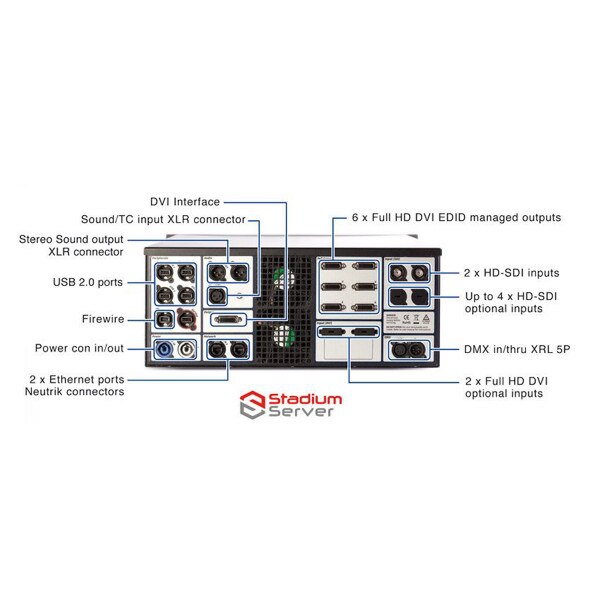

I/O:
- Interface Output: 1 (DVI)
- Output: 6 (DVI)
- EDID Management: Yes
- Input (Standard): 2x HD-SDI
- Input (Upgrade): Up to 4 x HD-SDI & 2 x DVI
- Output Resolution: 6 x Full HD
- DMX 5pin Connectors: Yes
- Genlock: No
- Framelock: No
- USB: 2 x USB 3.0 + 4 x USB 2
- Balanced Audio In/Out (XLR): Yes
- Network: 2
Storage:
- System Drive: SSD 128 GB
- Separate Drive: SSD 480 GB
Software:

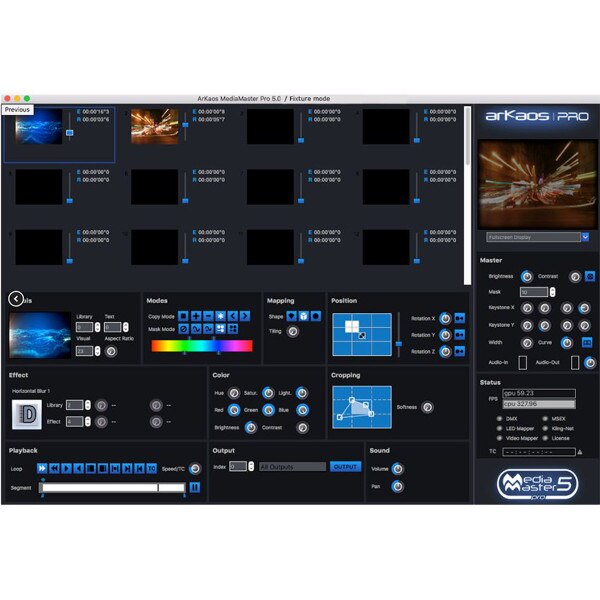

- MediaMaster: Pro

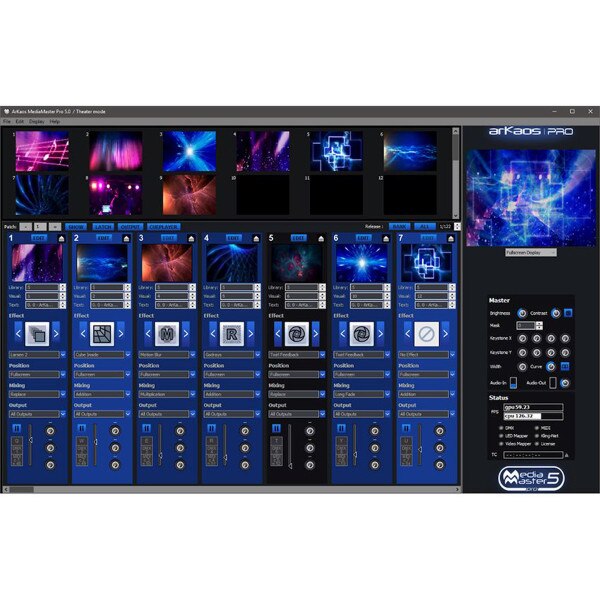

- CuePlayer (Theater mode): Yes

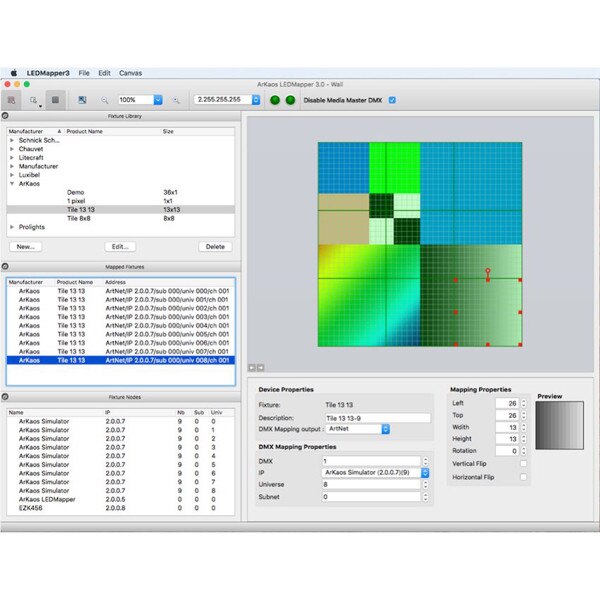

- LED Mapper: Yes
- Kling-Net Mapper: Yes

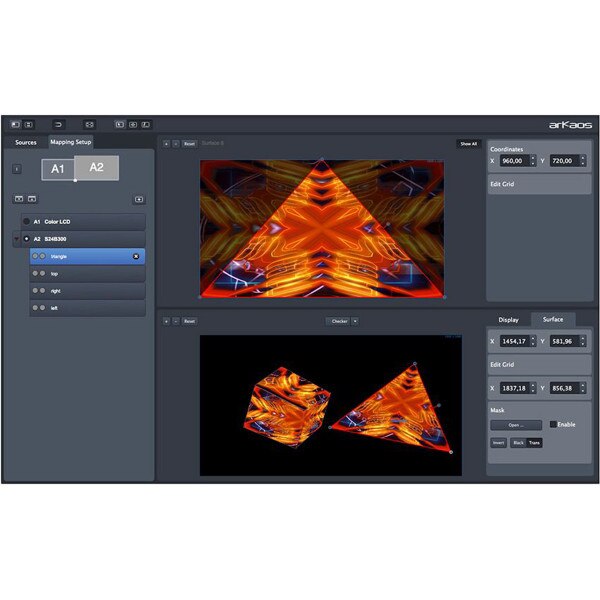

- Video Mapper: Yes
- Acronis Backup System: Yes
- Layers Full HD: Up to 12
- Layers HD: 12
- Soft-Edge / Geometrical Correction: Yes
Control:
- Control Display (Front Panel): Yes
- LED Strip (Front Panel): Yes
- DMX / MIDI / Keyboard: Yes
- ArtNet / MA-Net: Yes
- RDM (Remote Device Management): Yes
Hardware:
- Voltage: 107-240V Auto Switching
- Professional Connectors: Yes
Size / Weight:
- Height: 6.9” (176mm)
- Length: 16.8” (426mm)
- Depth: 20.0” (510mm)
- Unit Weight 55.1 lbs. (25kg)
- *Specifications and documentation subject to change without notice.
