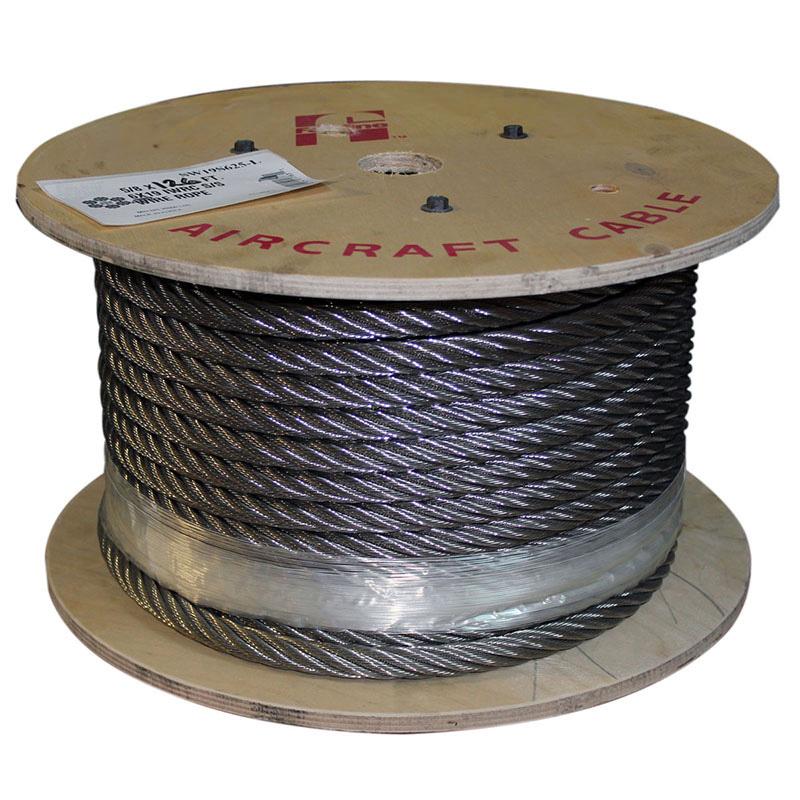

Stainless Steel T304 Wire Rope - 5/8 in X 6x25

The 6x19 class wire rope is known for flexibility as well as durability against abrasion. Independent wire rope core(IWRC) ropes have superior strength and crush resistance over fiber core wire ropes, but offer less flexibility. 6x19 Class wire rope is the most widely used for applications which demand a robust and abrasion resistant wire rope such a winch lines, slings, suspension cables, boom pendants, drill lines and chokers.

At A Glance:

• Product #: SW25S625-05000
• Finish: Type 304 Stainless Steel
• Size: 5/8 in
• Length: 5000 ft
• Weight: 0.72 lbs/ft
• Minimum Breaking Strength: 35000 lbs

Product Specifications:

• Code: SW25S625-05000
• Finish: Type 304
• Construction: 6X25
• Size: 5/8 in
• Length: 5000 ft
• Min Breaking Strength: 35000 lbs
• Wire Rope Type: IWRC

Safety Notice:

• Inspect regularly for visible damage, distortion, elongation, corrosion, cracks, nicks or abrasion, which may cause failure or reduce the strength of the Wire Rope
• Wire Rope and Steel Cable must be stored, used, lubricated and maintained in accordance with the normal safety standards
• Verify that replacement Wire Ropes are correct for your application and meet your specifications
• Avoid shock loads. Do not load Wire Rope to the breaking strength limits. End user must determine an appropriate safety factor for the application

SW25S625-05000 Federal Specification Wire Rope and Strand.pdf
