TRUSST Arc Section - 1.5 m (4.9')
Details
TRUSST® is comprised of modular aluminum components that are manufactured from high-grade and lightweight aluminum which is easy for transportation and setup. All TRUSST® items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum.

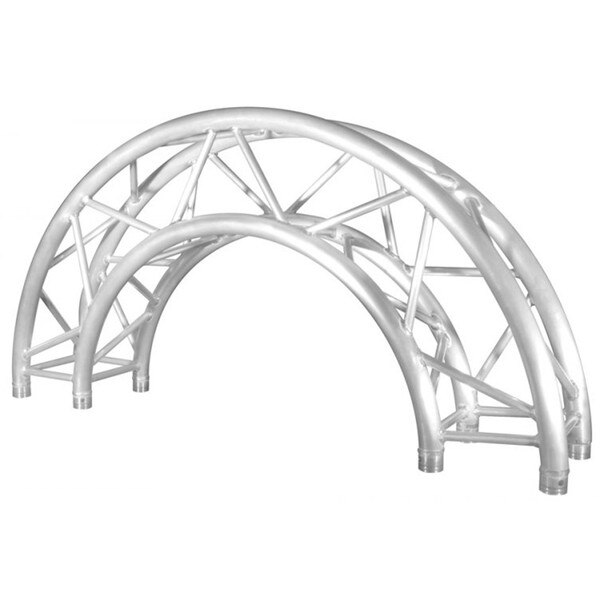

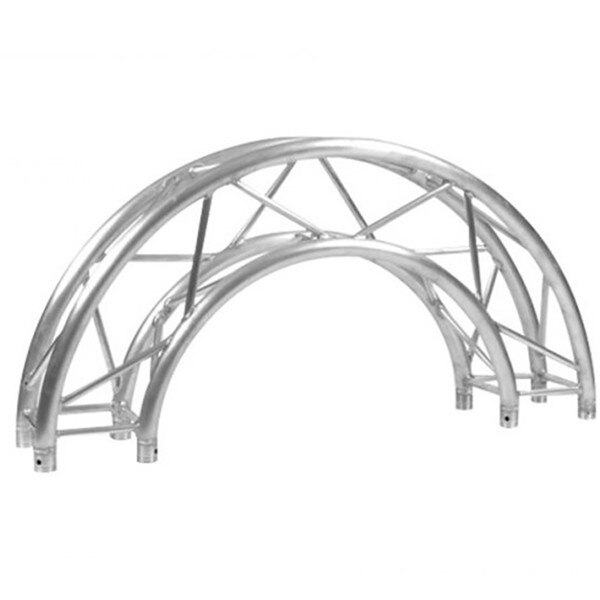

The CT290-415CIR-180 arc truss with an outside diameter of 1.5 meters (4.92 ft) and a 180°arc is compatible with many TRUSST® accessories and ideal for a multitude of applications and designs when used in combination with TRUSST® Sticks, Corners, Base Plates, Accessories and Clamps.
Features:
- Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
- Carefully crafted by SLV-certified welders
- Compatible with many TRUSST® accessories to create an astonishing and custom presentation
- Available in different sizes for mobile entertainers, productions, nightclubs and retail stores
- Includes connecting hardware
Specifications:
- Outside diameter: 4.92 ft (1.5 m)
- Inside diameter: 3.28 ft (1 m)
- Arc: 180°
- Outer diameter tube: 2 in (50 mm)
- Diagonal bracing: 0.75 in (20 mm)
- Wall thickness: 0.08 in (2 mm)
- Weight: 21.6 lb (9.8 kg)
- Approvals: SLV
CAD_89048.dwg
Load_Rating_Chart_89048_File_2.pdf
Reference_Guide_89048_File_1.pdf
