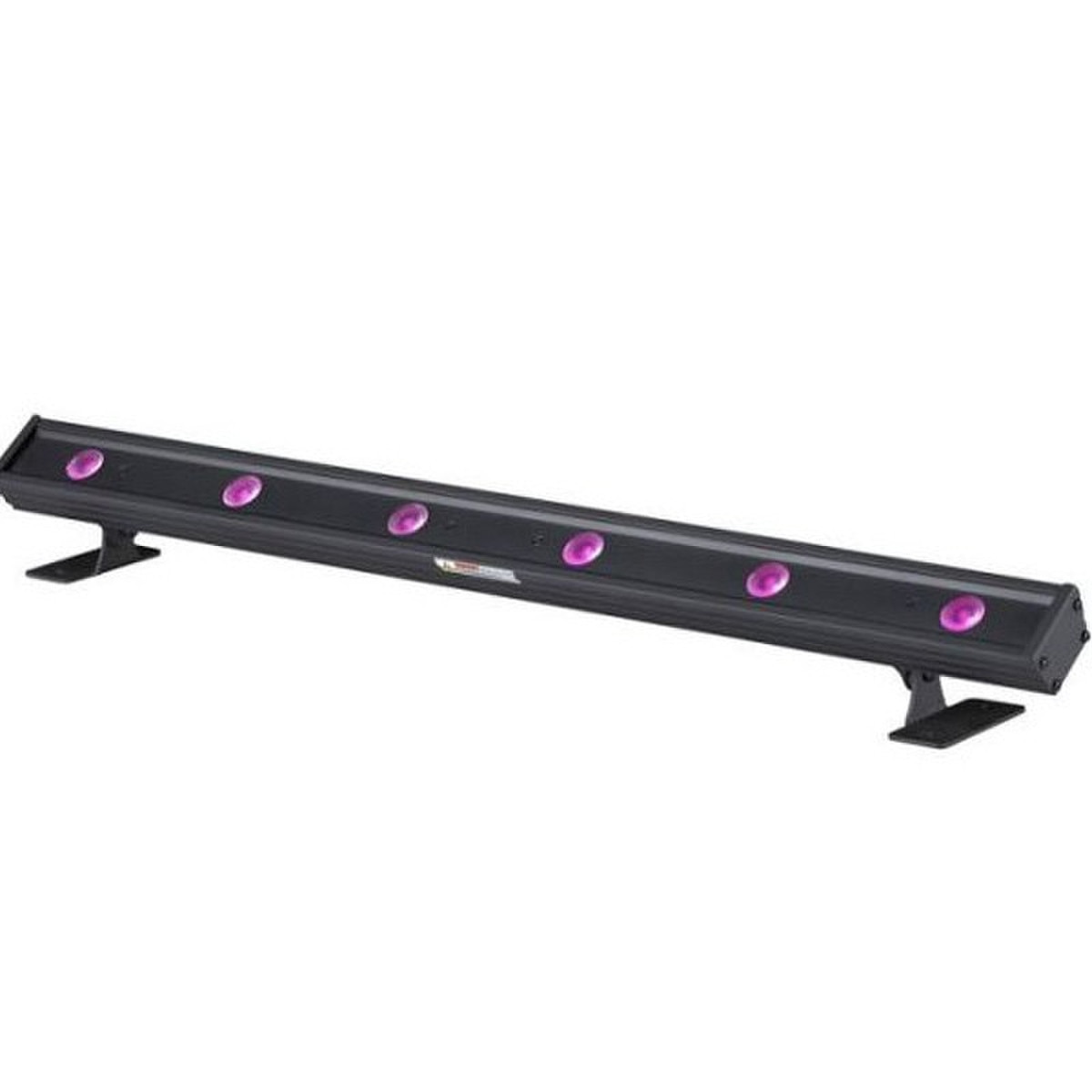

Antari DarkFX Strip 510 UV Fixture
Details
The Antari DarkFX Strip 510 is an efficient high-output, low-power consumption UV LED bar that delivers a peak wavelength of 365nm and radiant flux output of 4500mW at full intensity with minimum visible light. It features (6) 1.9W high-power UV LEDs, a 25 degrees narrow beam angle, special optics to prevent wear degradation from high UV exposure, flicker-free operation for TV and film, an IP20 rated (indoor use only) aluminum extruded housing, and comes with a 22AWG power/data bare wire end pigtail cable attached on the back. The Antari DarkFX Drive 4 fixture driver (sold separately) is required for power and DMX control.
Features:
- High-efficiency UV LED bar
- 25 degrees narrow beam angle
- Peak wavelength at 365nm
- Minimal visible light
- High-output 4500mW at full intensity
- Special optics to prevent wear degradation from high UV exposure
- Flicker-free operation for TV and film
Specifications:
Source:
- (6) 1.9W high-power UV LEDs
- Average LED Life: 20,000 hrs*
Photometric Data:
- Optics: 25 degrees
- Peak Wavelength: 365nm
- Radiant Flux Output: 4500mW
Control/Connections:
- DarkFX Drive 4 power/DMX fixture driver (sold separately)
- Cable Connection: 22 AWG bare-wire cable
Dimensions (L x W x H):
- Without mounting brackets: 23.4 x 1.78 x 1.15" (593.2 x 45 x 29.15mm)
- With mounting brackets: 23.4 x 2.91 x 2.85" (593.2 x 74 x 72.35mm)
- Dry Weight: 2.4 lbs (1.08kg)
Electrical/Thermal:
- DC 20-24V
- Maximum Power Consumption: 12W
- Approvals/Ratings:CE, IP20 indoor use only
*LED Life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (On-Off cycling), control, and dimming.
