Blizzard Colorise Quadra - Black
Details

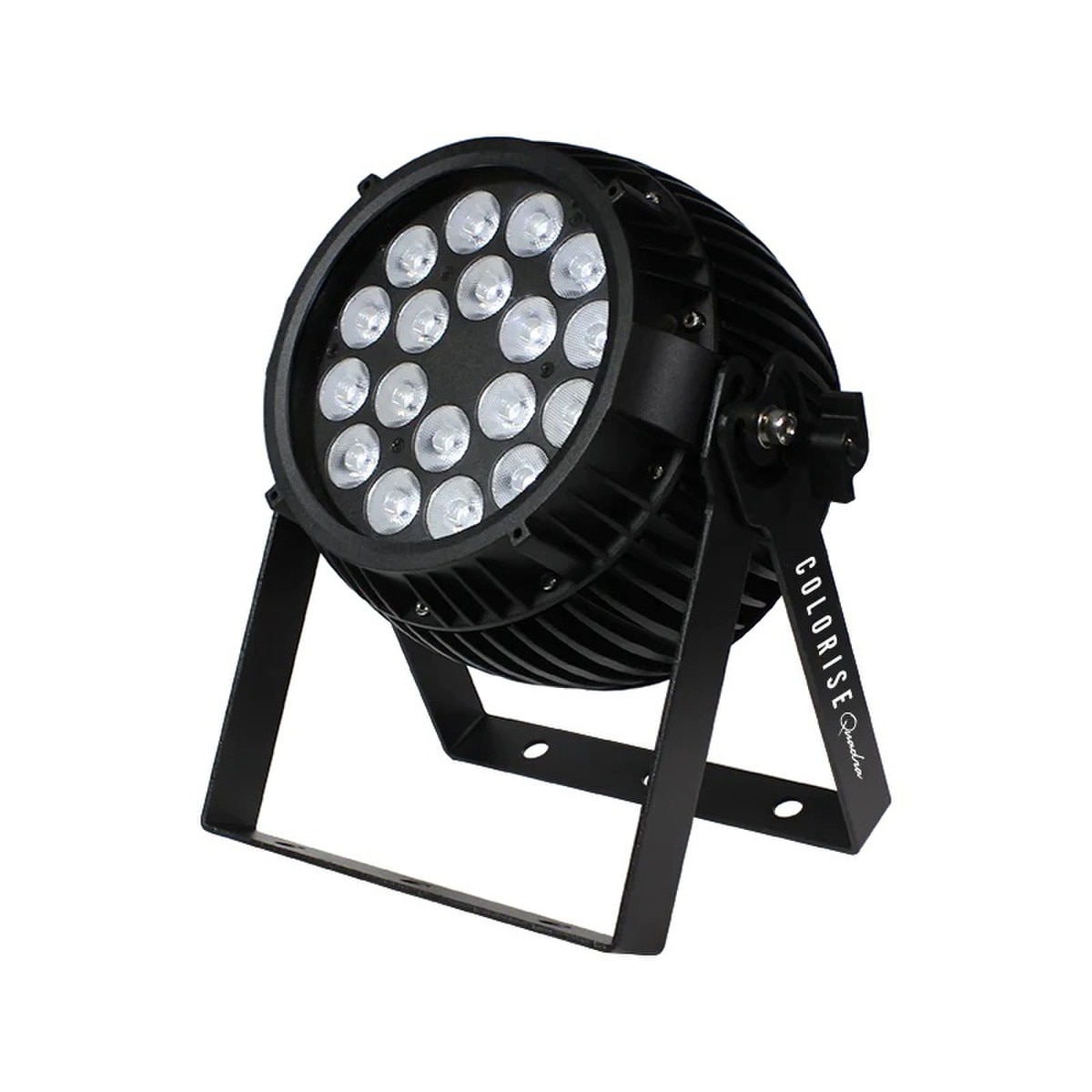

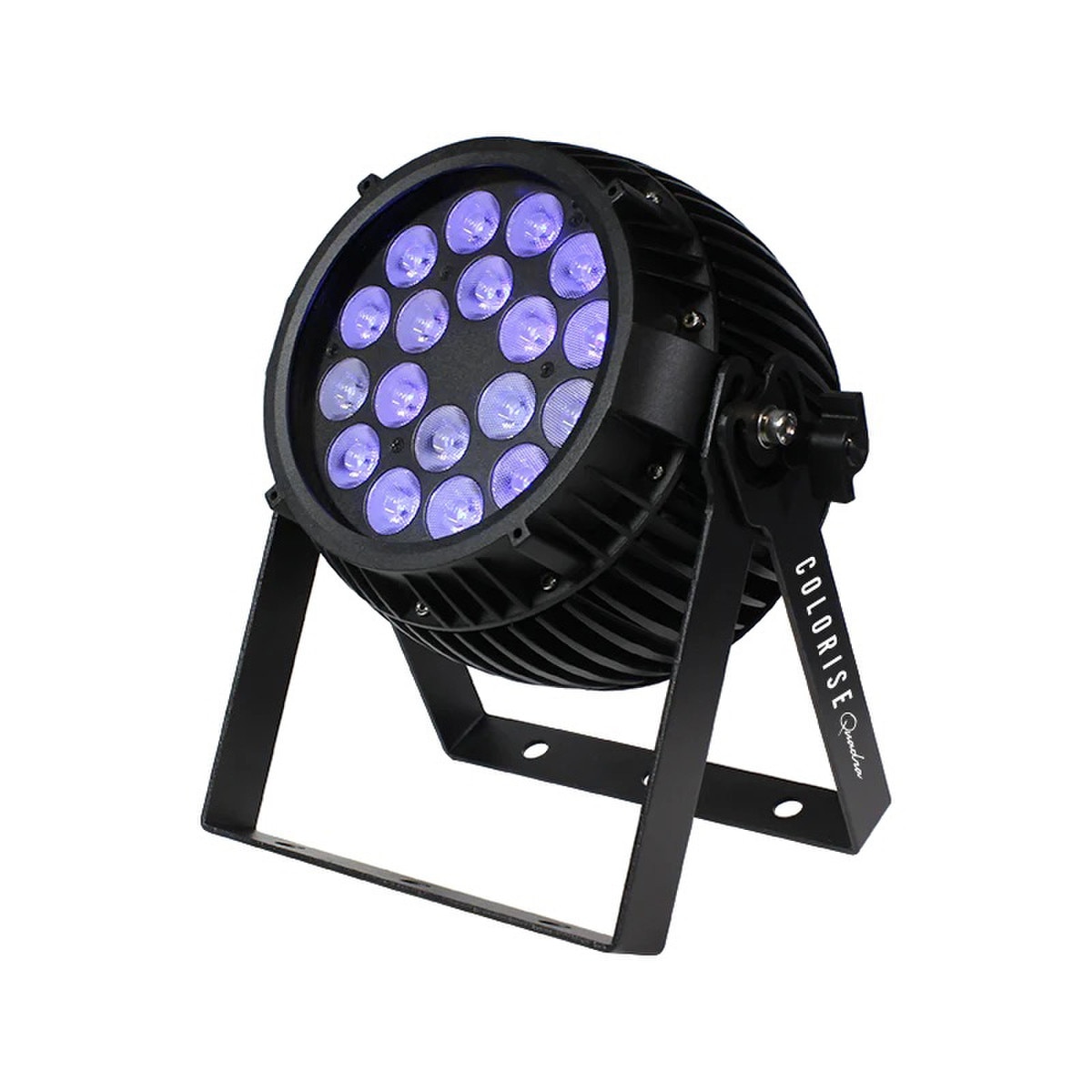

The Colorise Quadra fixtures come fitted with 18* 10W high output 4-in-1 RGBW LEDs with a 25 degrees beam angle, and also feature our new, built-in AnyFi wireless DMX receiver, which can flawlessly support both standard 2.4Ghz and W-DMX wireless DMX signal types for ultimate wireless DMX connectivity capability.
There are 5 built-in auto programs that can be accessed individually via the control panel, or in DMX mode with a separate speed control channel. Users can also program and store up to 3 of their own 20 scene programs, which can also be accessed in DMX mode. Scenes may consist of custom colors, strobe effects, color fades, or even insert any of its built-in programs with separate speed control settings.

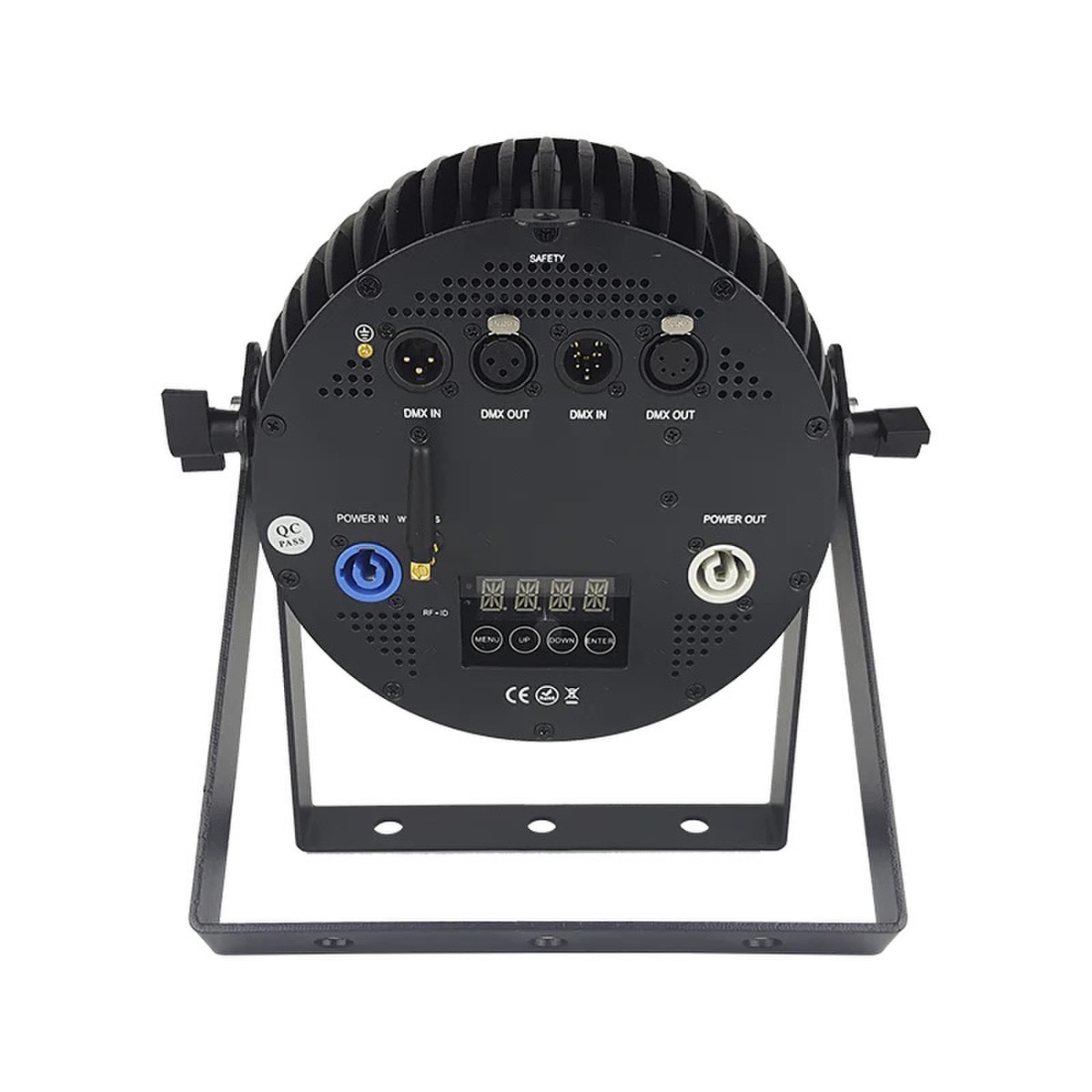

The Colorise Quadra fixtures also come equipped with dual mounting brackets, industry standard PowerCON compatible power input/output connections, 3/5-pin DMX in/out jacks, and are available in either black or white colored housing.
Features:
- Natural convection cooled, totally silent operation
- User selectable 32-bit dimming curves
- Variable electronic dimmer strobe
- Built-in color and chase macros via DMX
- Built-in auto programs and sound active in standalone and M/S
- Color mixing ability in standalone mode
- User selectable 3/4/5/7 or 10-channel DMX modes
- Flicker-free constant-current LED driver
- LED control panel with 4* touch sensitive buttons
- Control panel button lock/key
- 3/5-pin male input and 3/5-pin female output
- Operating Voltage: 100-264VAC, 47-63 Hertz
- Power Consumption: 131W, 1.65A, PF: .67
AnyFi Wireless Receiver:
- Frequency Hopping W-DMX Protocol
- 2.4Ghz ISM (2.402-2.48Ghz), 512 channels, 7 frequency groups
- Less Than 5ms Latency
- Receiver sensitivity: -94dBm
- 10.7” (272.1 mm) x 5.7” (144 mm) x 11.2” (284.1 mm)
- Weight: 11.5 lbs. (5.2 kg)
- 2-year limited warranty, does not cover malfunction caused by damage to LEDs
