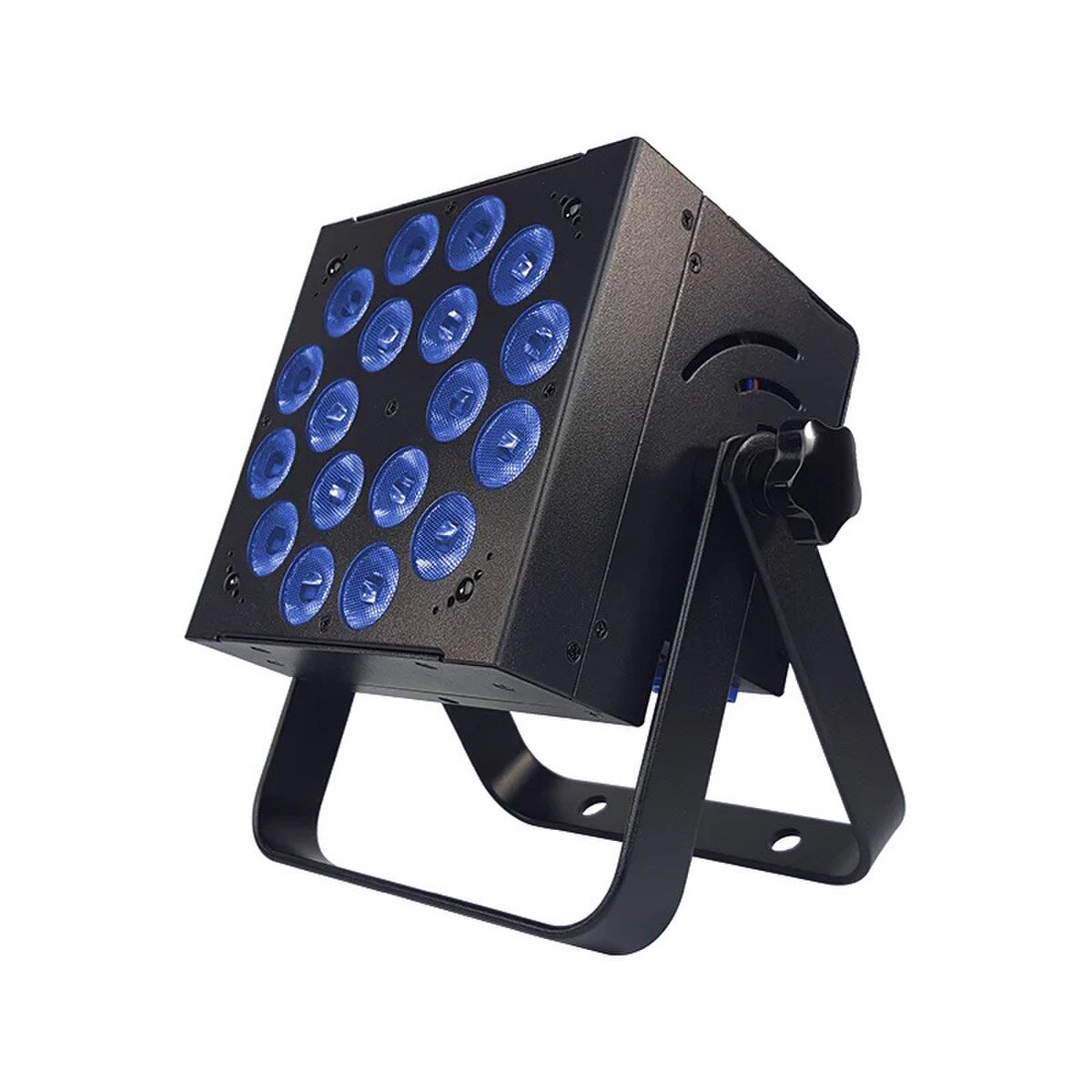

Blizzard RokBox EXA LED RGBAW+UV Par with Dimmer Strobe and DMX
Details
The RokBox has 18x 15-watt RGBAW+UV 6-in-1 LEDs, advanced electronics, a rugged cast aluminum housing, and the flexibility of secure mounting with dual hanging brackets.
Features:
- Color mixing via 18x 15W (6 x 2.5w) Red/Green/Blue/Amber/White/UV 6-in-1 LEDs
- 395-400nM ultraviolet light output
- 5 user-selectable 32-bit dimming curves
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via master/slave
- Built-in sound active programs
- RGBAW+UV color mixing ability in standalone mode
- Super-quiet variable-speed internal fan cooling
- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400hz LED driver
- 3-pin male input and 3-pin female output
- PowerCon compatible AC power In/Out connectors
Specifications:
- Operating Voltage: 100-264VAC, 47-63 Hertz
- Fuse: 3A 250V
- Power Consumption: 147W
- LED: 18x 15W 6-in-1 LEDs 100,000 hours
- Beam Angle: 25 degrees optics standard, 26 degrees beam, 30 degrees field
- Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
- Protocol: USITT DMX-512
- DMX Channels: 3/6/8/10/11
- Input: 3-pin XLR Male
- Output: 3-pin XLR Female
- HSV (3-Ch), RGBAW+UV (6-Ch), RGBAW+UV/Dim/Strobe (8-Ch), Extended (10-Ch), and Extended with 32-bit Dimmer (11-Ch) DMX Profiles
- Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset
- Length: 9.02" (229 mm)
- Width: 6.5" (165 mm)
- Height: 8.98" (228 mm)
- Weight: 9.92 lbs (4.5 kg)
- 2-year limited warranty, does not cover malfunction caused by damage to LED's
Data_Sheet_89577_File_1.pdf
User_Manual_89605_File_2.pdf
