Blizzard RokSpot RGBW LED Pin-Spot Ultra-Compact

(0)No Reviews yet
$169.99
SKU: Blizzard ROKSPOT RGBW

Details

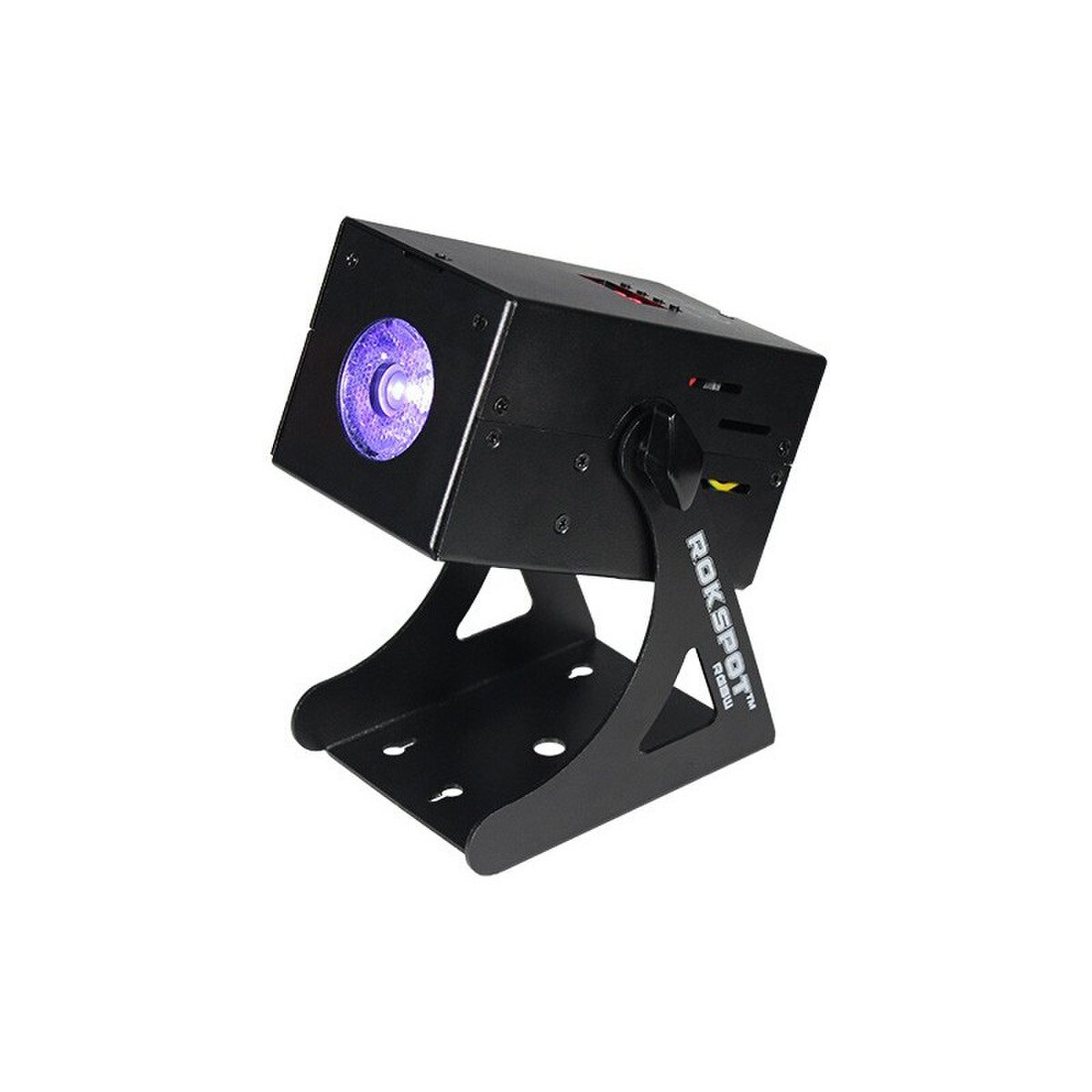

The RokSpot RGBW is an LED pinspot fixture with a super-sharp 8 degrees beam angle that's driven by only a single brilliantly bright 15W state of the art 4-in-1 RGBW OSRAM LED.

Solid, yet sleek in appearance, the cast aluminum housing of the RokSpot RGBW helps dissipate any heat. Plus, you can mount it anywhere via any standard truss clamp, use it free-standing, or permanently install it with the screw mounting holes found on the bottom of the mounting bracket.

Features:

  • Color mixing via 1x 15W OSRAM Red/Green/Blue/White 4-in-1 LED
  • Variable electronic dimming and strobe
  • Built-in color and chase macros via DMX
  • Built-in automated programs via master/slave
  • Built-in sound active programs
  • RGBW color mixing ability in standalone mode
  • Narrow 8 degrees beam angle
  • Natural convection cooling
  • Secure bracket for positioning flexibility
  • Flicker-free constant-current 400hz LED driver

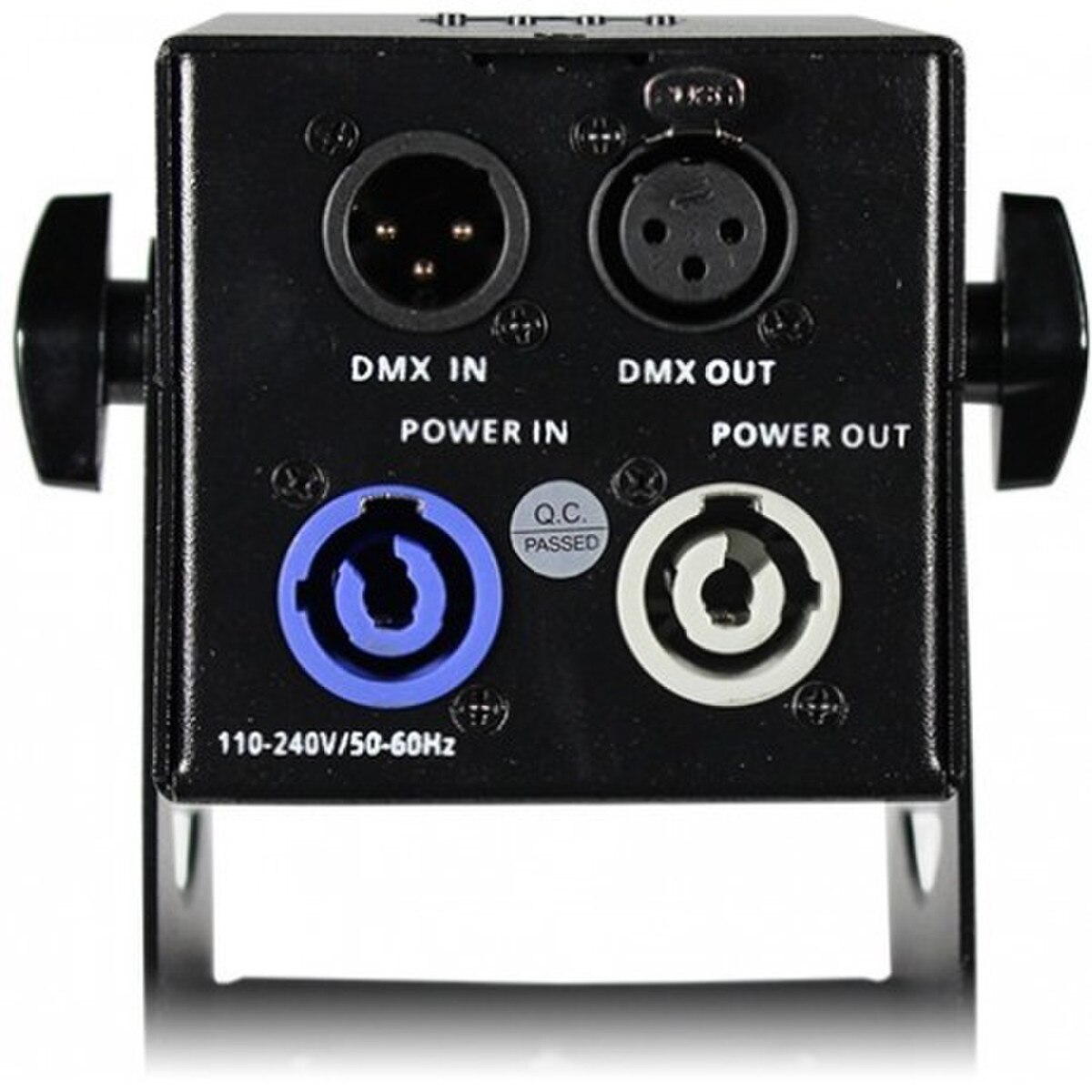

  • 3-pin male input and 3-pin female output
  • PowerCon compatible AC power In/Out connectors
  • HSV (3-Ch), RGBW (4-Ch), RGBW + Dim (5-Ch), Extended (8- Ch), and Extended + 32-bit dimming (9-Ch)

Specifications:

  • Operating Voltage: 100-264VAC, 47-63 Hertz
  • Fuse: 2A 250V
  • Power Consumption: 15W, 2a, pf.: .64
  • LED: 1x 15W 4-in-1 OSRAM LED 100,000 hours.
  • Beam Angle: 8 degrees optics standard
  • Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
  • Protocol: USITT DMX-512
  • DMX Channels: 3/4/5/8/9
  • Input: 3-pin XLR Male
  • Output: 3-pin XLR Female
  • HSV (3-Ch), RGBW (4-Ch), RGBW + Dimmer (5-Ch), Extended (8-Ch), and Extended + 32-bit dimming (9-Ch) DMX Profiles
  • Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset
  • Length: 5.8" (146.5 mm)
  • Width: 5.2" (130 mm)
  • Height: 6.7" (169.6 mm)
  • Weight: 1.8 lbs (.8 kg)
  • Warranty: 2-year limited warranty, does not cover malfunction caused by damage to LED's
