SLS Chauvet COLORdash Par-Hex 12 Lighting Package - 4 Pack
Details
Call for special pricing!
This LED Lighting Package includes 4 Chauvet COLORdash Par-Hex 12's, 1 ADJ LTS-6 Lighting Stand, 1 Chauvet Stage Designer 50, 3 PowerCON Extension Cables, and 5 3-pin DMX Cables.
Cable Details:
These cables are made specifically for lighting and meet stringent standards of suitability and quality to provide safety, shielding and prevent transmission interferences.
DMX Cable Specifications:
The Chauvet Stage Designer™ 50 takes the size of a 24-channel dimming console and the functionality of a 48- channel console and combines the two into one powerful dimming unit. The Stage Designer™ 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.
Features:
This low cost, black tripod stand is ideal for hanging several types of par cans or pin spots. It's also great for mounting lighting fixture on top of the tripod, such as: Follow Spots, lighting effects, par cans, etc.
Specifications:
Powered by 12 hex-color RGBAW+UV LEDs, the ultra-compact COLORdash™ Par-Hex 12 satisfies the need for bright ultraviolet light without a separate UV fixture. The 12 LEDs project deeply saturated colors, any variation of white, and bold UV, all without multicolored shadows. A split-yoke bracket eliminates the need for floor stands. Power linking, a locking powerCON® power input and 3- and 5-pin DMX connectors make the fixture a great addition for tours, broadcast, and live production. The COLORdash™ Par-Hex 12 also includes a built-in gel frame holder.
This LED Lighting Package includes 4 Chauvet COLORdash Par-Hex 12's, 1 ADJ LTS-6 Lighting Stand, 1 Chauvet Stage Designer 50, 3 PowerCON Extension Cables, and 5 3-pin DMX Cables.
Cable Details:
These cables are made specifically for lighting and meet stringent standards of suitability and quality to provide safety, shielding and prevent transmission interferences.
DMX Cable Specifications:
- 2 - 25', 3-Pin DMX Cables
- 3 - 5', 3-Pin DMX Cables
- Connector: DMX
- AWG: 24
- Impedance: 117Ω

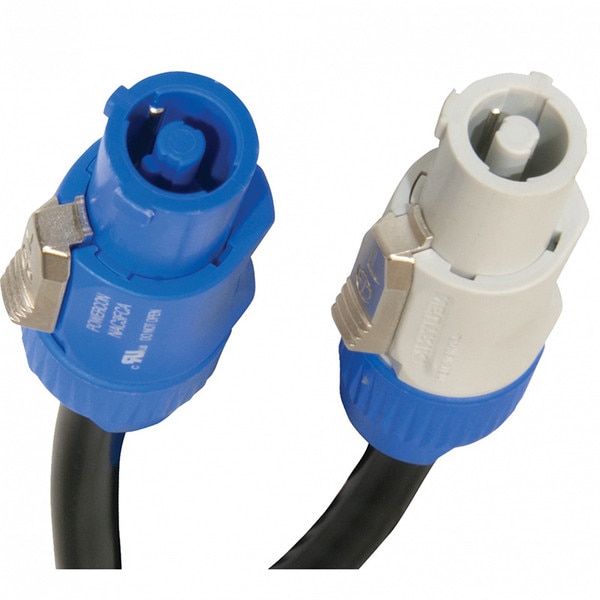

- Connector: Neutrik powerCON® in and out
- Length: 18" (25mm)
- Cable gauge: 14 AWG
- Maximum amperage: 15 amps
The Chauvet Stage Designer™ 50 takes the size of a 24-channel dimming console and the functionality of a 48- channel console and combines the two into one powerful dimming unit. The Stage Designer™ 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.
Features:
- 48-channel DMX-512 dimming console
- 8 pages with 12 scenes each yields 48 total playback faders (simultaneous playback)
- 96,000 programmable steps
- 2 programmable aux buttons
- Adjustable chase and fade times
- Re-assignable channels
- 3-pin and 5-pin DMX connections
- Built-in cross fader, dark and kill buttons
- MIDI in, out and thru (with file dump)
- Direct audio input
- Sequential linking or simultaneous playback of chases
- Override chases on the fly
- Beat-activation, tap sync, auto run, midi in/out
- 6-space (6U) rack mount
- Polarity selector
- Power: 12VDC 500mA (external power supply: 100-240VAC 50/60Hz)
- Weight: 9.9lbs (4.5kg)
- Size: 19" x 10.5" x 3.5" (483 x 267 x 89mm)
This low cost, black tripod stand is ideal for hanging several types of par cans or pin spots. It's also great for mounting lighting fixture on top of the tripod, such as: Follow Spots, lighting effects, par cans, etc.
Specifications:
- Extends up to 9 ft.
- Stand collapses easily for transport and is ideal for mobile DJs, bands or small stage productions
- LTS-6 comes with T-bar with 8 hanging point bolts
- Includes FS-Adapter - designed to mount one light at a time at the top of the stand
- Weight: 11 lbs.
Powered by 12 hex-color RGBAW+UV LEDs, the ultra-compact COLORdash™ Par-Hex 12 satisfies the need for bright ultraviolet light without a separate UV fixture. The 12 LEDs project deeply saturated colors, any variation of white, and bold UV, all without multicolored shadows. A split-yoke bracket eliminates the need for floor stands. Power linking, a locking powerCON® power input and 3- and 5-pin DMX connectors make the fixture a great addition for tours, broadcast, and live production. The COLORdash™ Par-Hex 12 also includes a built-in gel frame holder.
Features:
- Intensely bright LED PAR wash fixture for a wide array of lighting applications
- 12 hex-color (RGBAW+UV) LED chips for ultimate color mixing
- Simple and complex DMX channel profiles for programming versatility
- Four distinct dimming modes for easy incandescent replacement
- Lightweight for easy installation
- Silent, flicker-free operation
- Neutrik® powerCON® power input/output connections
- DMX Channels: 3, 6, 8, 12 or 13
- Data Connectors: 3-pin and 5-pin XLR
- Light Source: 12 LEDs (hex-color RGBAW+UV) 10 W, (2.3 A), 50,000 hours life expectancy
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
- Accessory Holder/Gel Frame Size: 9.5" (241 mm)
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Stand-Alone Color Mixing: Yes
- Color Temperature Presets: No
- Installed Optics: 25°
- Beam Angle: 20°
- Field Angle: 30°
- Dimming Modes: 4
- Illuminance: 927 lux @ 5 m
- Color Temperature (range): 2800 to 10000K
- IP Rating: IP20, indoor use
- Cable Length: 5' (1.5 m)
- Power Connection: Edison plug to Neutrik® powerCON®
- Power Input: Neutrik® powerCON®
- Power Output: Neutrik® powerCON®
- Power Linking: 17 units @ 120 V; 27 units @ 208 V; 30 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 96 W, 0.80 A @ 120 V, 60 Hz
- Power and Current: 95 W, 0.49 A @ 208 V, 60 Hz
- Power and Current: 95 W, 0.44 A @ 230 V, 50 Hz
- Weight: 10 lb (4.54 kg)
- Dimensions: 4.41" x 11.73" x 12.72" (112 x 298 x 323 mm)
- Approvals: CE, MET
