1 / 2 Galvanized Big Grip Dead Ends (Blue)

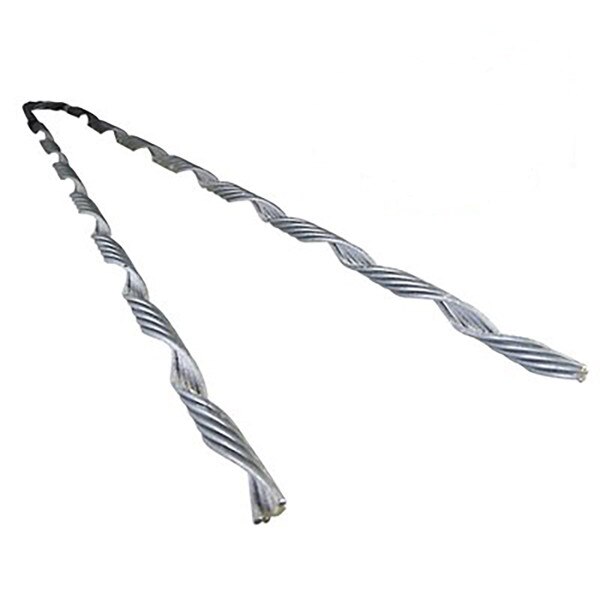

Preformed Line Products 1/2" BIG-GRIP™ Dead-end:

• Galvanized.
• Used to form a termination on the end of guy strand.
• For use with 1 x 7 Guy Strand only.
• Breaking Strength 26,900 lbs.
• Weight 3.15 lbs/ea

Product Information:

• Product: BG500
• Brand: Preformed Line Products
• Type: Big-Grip Dead-ends
• Color Code: Blue
• Overall Length: 49"
• Weight: 3.15 lbs
• Box Quantity: 20
• Breaking Strength: 26.900 lbs.

Safety Notice:

• Do not modify this product under any circumstances.
• This product is intended for use by trained technicians only. This product should not be used by anyone who is not familiar with, and not trained to use it.
• When working with energized lines, extra care should be taken to prevent accidental electrical contact.
• Be sure to read and completely understand PLP installation procedures before applying product.
• Be sure to select the proper size Preformed dead-end product before application.

BG500 User Manual.pdf
