1/8 Aluminum Sleeves - Black

(0)No Reviews yet
$0.22
SKU: ASL125-BLK

If you add this item, you're only $249 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Back

Details

Product Information:

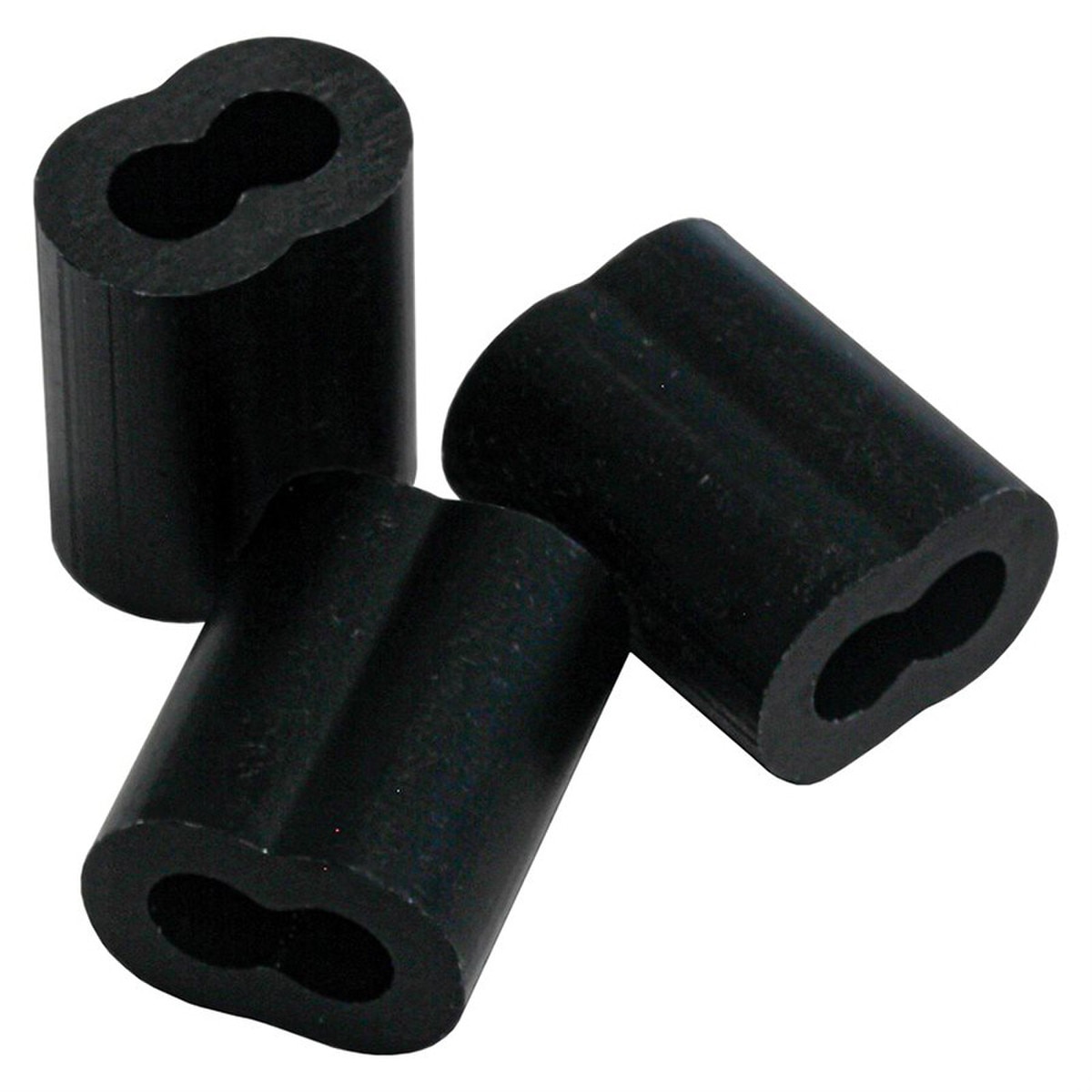

  • Black E-coated aluminum duplex style swage sleeve, black finish remains even when machine swaged.
  • Length before swage 5/8"/ 15.8mm
  • Sleeves or ferrules are used to create loop ends on cable assemblies, but they can also be used to attach two assemblies together. Our hourglass (duplex) shaped sleeves allow for the smoothest swage (crimp). Extruded and Heat Treated for best cold-forming properties.
  • Sleeves size must match the cable diameter for proper installation.
  • Always crimp with appropriate swaging tool.

Specifications:

  • Inside Width: 3.97mm
  • Inside Height: 7.94mm
  • Outside Height: 12.7 mm
  • Outside Width: 8.7mm
  • Overall Length: 15.8mm

Safety Notice:

  • Do not use Aluminum Sleeves with Stainless Steel Cable
