Lex 200A 3 Phase Hammerhead to Locking Receptacles - Reverse Ground & Neutral

(0)No Reviews yet
$6,447.49
SKU: Lex DB200N1J10DM-63-RGN

Details

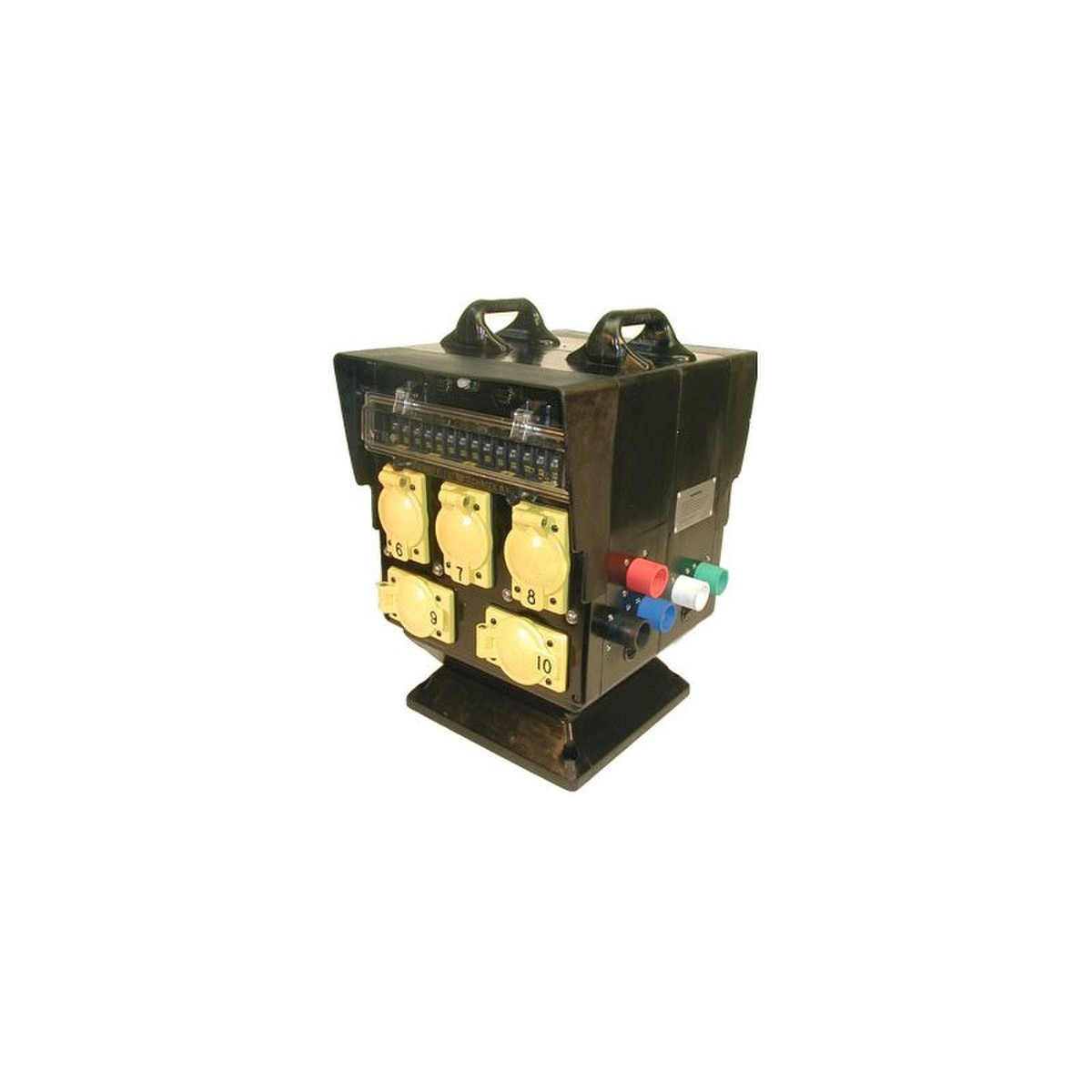

200 Amp 3 Phase Hammerhead to Locking Receptacles

Description:
200 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Hammerhead Enclosure, (1) set of (5) 16 Series Cam-type color-coded panel mount inlets to (10) NEMA L21-20, 20 Amp locking receptacles, NEMA 3R Weather Resistant.

Application:
Separates a 200 Single Amp, 3 Phase circuit into (10) L21-20, 20 Amp receptacles. The locking mechanism ensures positive connection and prevents disconnecting under load. The 20 Amp circuits are used to power fans, pumps, lights, light portable tools and NEMA 5-20, 20 Amp Edison quad stringers.

Features & Benefits:

  • Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather.
  • Circuit breakers are mounted under hinged window for easy access and enhanced safety.
  • Elevated base keeps receptacles above ground level.


Specifications:

  • Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 3R Weather Resistant
  • Input: (1) set of (5) 16 Series Cam-type color-coded mount inlets
  • Output: (10) NEMA L21-20, 20 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC locking receptacles
  • Feed Thru: None
  • Overcurrent Protection: (10) 20 A, 3-Pole branch-rated circuit breakers
  • Dimensions: 15” x 18” x 22”
  • Weight: 75 lbs.
