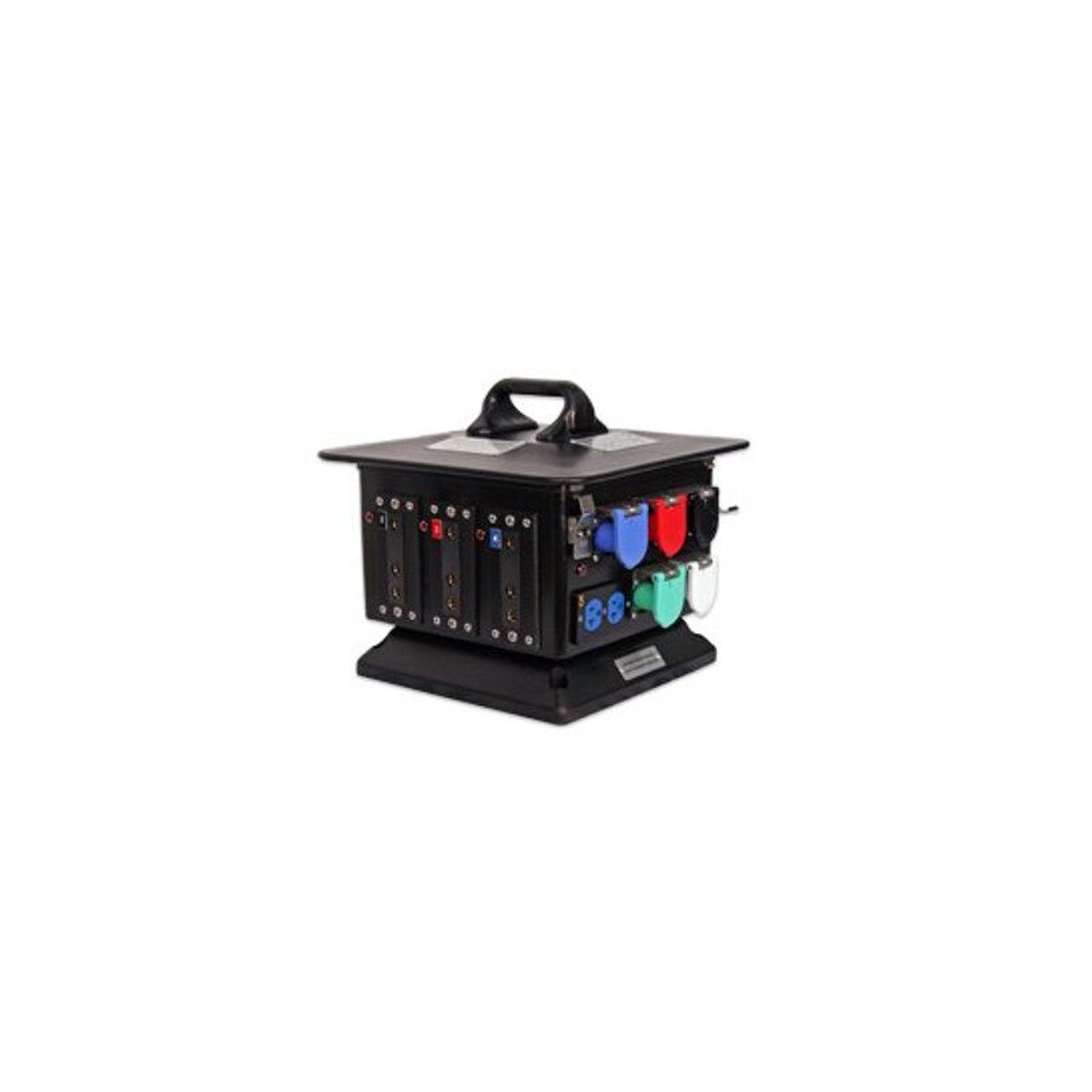

Lex 200 Amp 3 Phase Motion Picture Box Feed Thru

(0)No Reviews yet
$3,181.53
SKU: Lex DB200A-A4061FT

Add this item to get free shipping! (Motor Freight Excluded)

Details

This box provides 100 Amp stage pin receptacles for high power lighting effects, or to distribute power further down stream. The feed thru feature allows multiple boxes to be placed along the same feed.

Features:

  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, and corrosion
  • Breakers mounted under hinged lid for enhanced safety
  • Stackable and compact for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level
  • Reverse neutral and ground options prevent mismatching for enhanced safety

Specifications:

  • Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
  • Output: (6) 100 Amp, 2 Pole, 3 Wire, 120 VAC stage pin receptacles (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
  • Feed Thru: (1) set of (5) 16 Series Cam-type color-coded panel mount receptacles
  • Overcurrent Protection: (6) 100 Amp, Single Pole branch-rated circuit breakers (2) 20 Amp, Single Pole branch-rated circuit breakers
  • Enclosure Type: Pagoda
  • Overall Dimensions: 14.25” L x 14.25” W x 14.15” H
  • Approximate Weight: 42 lbs

Specifications_Sheet_97187_File_1.pdf
