200w RGBW (W=3200K). Ellipsoidal Light Engine & Barrel

The elektraLite Stingray Profile 4‐color brings deep, saturated light in an incomparable level of intensity for its range. At the heart of the Stingray Profile 4‐color is a newly designed 200 watt COB LED. With a rich, vibrant RGBW color mix, the ellipsoidal provides the same clean, rich, beautiful light audiences have grown accustomed to, making the Stingray Profile 4‐color perfect for any show or event. The built‐in accessory clip and included color frame allow for diffusion and color media to be used.

The Stingray Profile’s sophisticated, proprietary diffraction lensing system provides a packed punch of light in a variety of beam spreads. The interchangeable lens tube give the user 5°, 10°, 19°, 26°, 36°, or 50° beam spreads. Four independent shutter blades give perfect in‐focus cuts to the
beam.

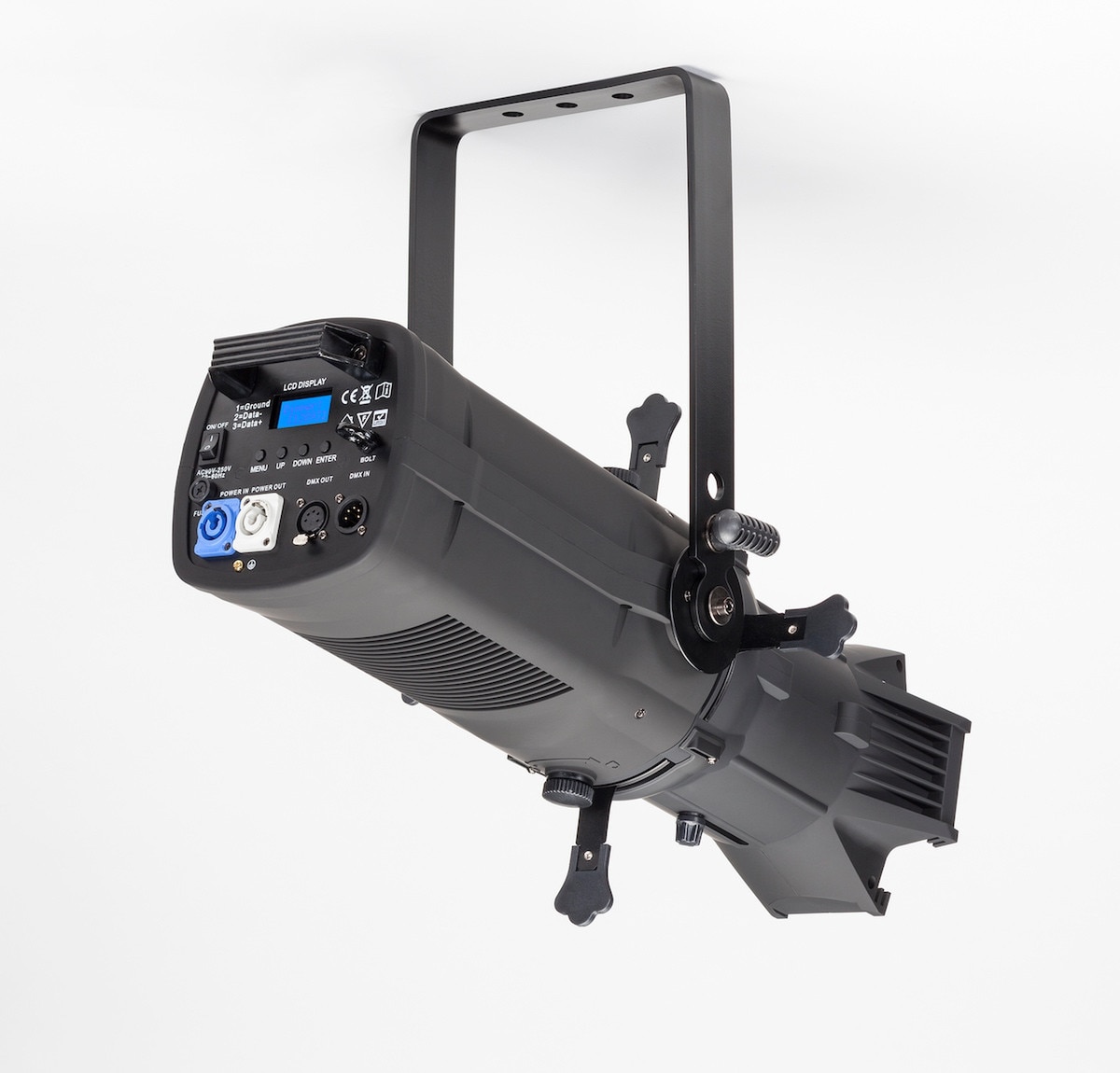

A very simple to use onboard control interface allows for easy control by either DMX or console‐free static operation. The Stingray Profile has 5‐pin XLR DMX connectors (both in and thru). A single yoke and safety eye bolt is included. Power is via industry standard Powercon in and out connectors allowing for quick daisy chaining of the fixtures. A quick 360° rotating barrel provides perfect shutter positioning. Release of the barrel, allows lens and shutters to be easily cleaned. Exclusive “cool to touch” housing features rear handle, pattern holder slot, and four shutter blades for perfect in‐focus beam cuts.

Specifications:

• Power Consumption:
  • 400 watts (1.9A)
  • Maximum five fixtures per 20A circuit
• Electrical- Multi‐voltage; AC 100‐250V – 50/60Hz
• Housing- Aluminum monocoque design with high‐impact ABS exterior
• Materials- Corrosion resistant hardware
• Yoke- Eigid flat steel
• Light Engine: Single 300W COB LED emitter
• Refresh Rate- Variable
• CRI- 95
• Optics / Lensing(s)- Variable PC lensing
• Control- DMX‐512 (in and thru) via 5‐pin XLR

Includes:

(1) single yoke
(1) 24” Edison male to Powercon female power cable
(1) Powercon male power connector
