3/32in Type 316 Stainless Steel Sleeves

(0)No Reviews yet
$0.89
SKU: SSL093-T316

If you add this item, you're only $248 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Back

Details

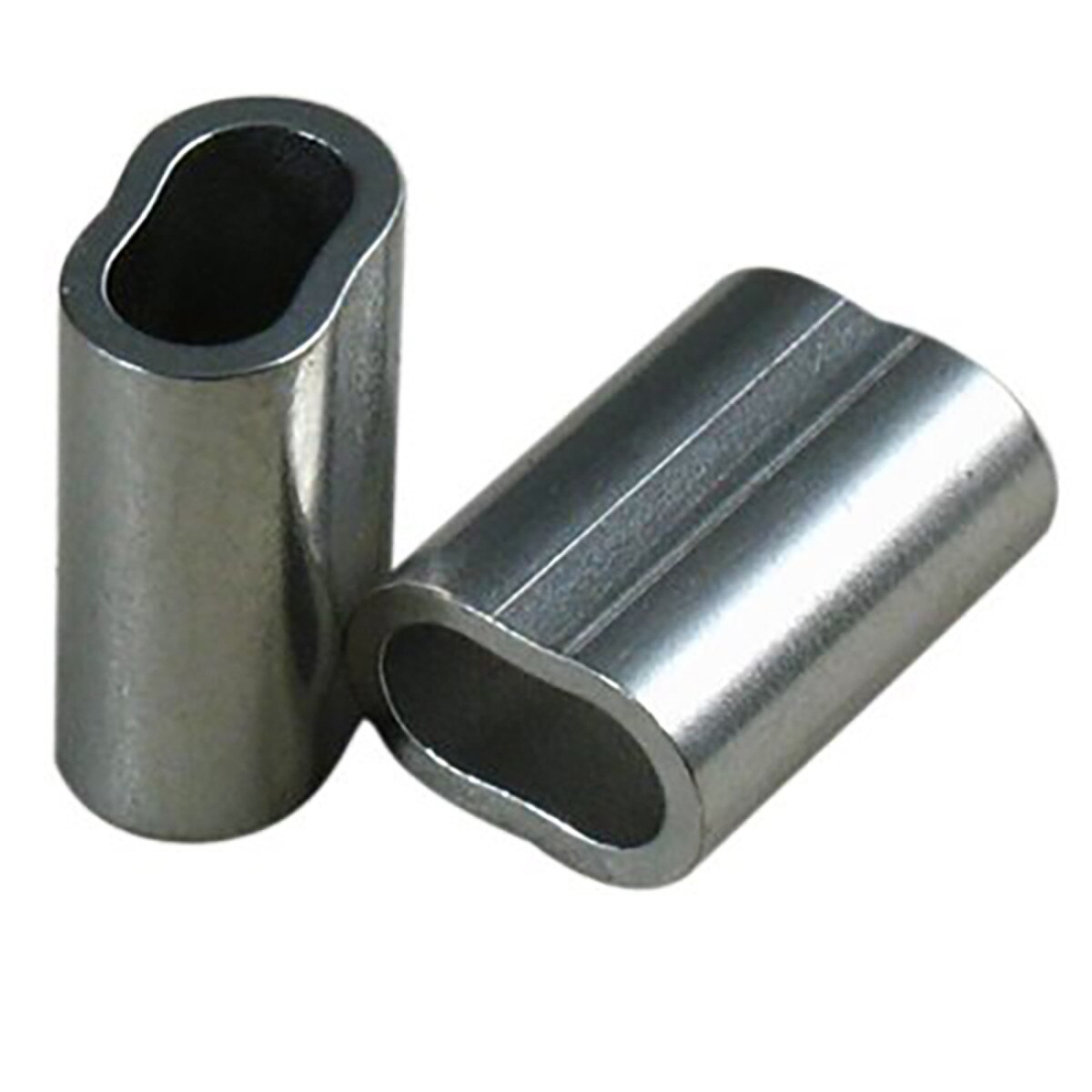

3/32" Stainless Steel Oval Swage Sleeves:

  • Type 316 - For Use with 3/32" Cable
  • Length: .372"
  • Height: .27"
  • Width: .165"
  • Inside W x H: .10" x .21"
  • Sold in single piece quantities
  • Weight .27 lbs/Hundred
  • Approximate Pre-Swage Dimensions

Product Information:

Sleeves or ferrules are used to create loop ends on cable assemblies, but they can also be used to attach two assemblies together. Our hourglass (duplex) shaped sleeves allow for the smoothest swage (crimp). Extruded and Heat Treated for best cold-forming properties.


Sleeves size must match the cable diameter for proper installation.


Always crimp with appropriate swaging tool.
