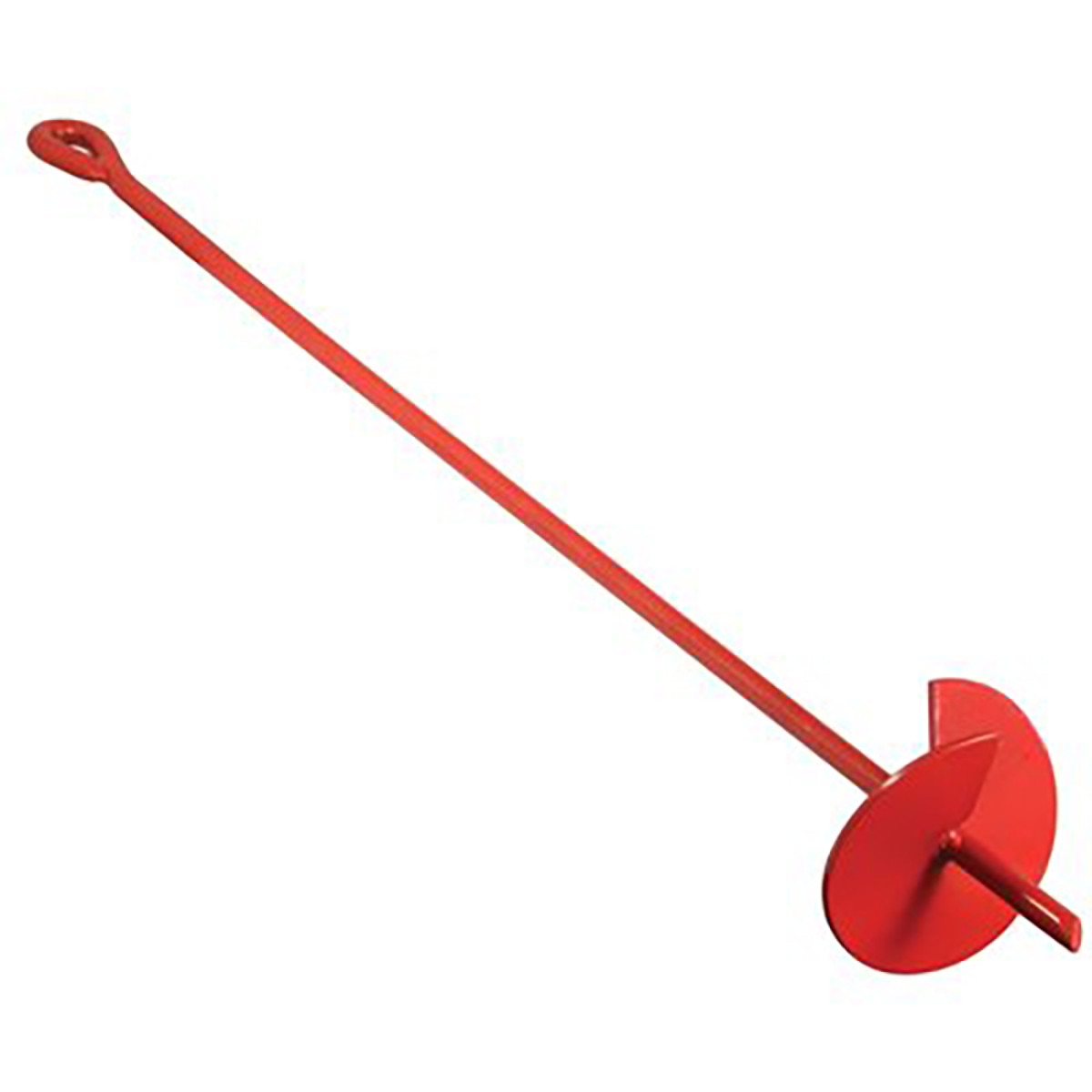

40in. Auger Earth Anchor with 6in. Helix Painted 5/8in. Rod
Details
One piece earth anchor with eye ring for installation and tie off, with a firmly welded helix. Can be installed by hand or machine with an Angled point for easier installation.
Holding Capacity: *Earth Auger Anchors correctly installed in normal soils. Holding capacity is dependent on soil conditions and density. Special installation consideration must be taken in rocky soils. To achieve optimal holding capacity auger anchors must be screwed deeply into the ground. After inserting a metal rod through the anchor eye, screw the anchor into the ground or use a power driver. Anchor must be installed in line with the direction of the guy load. Anchor can also be imbedded in concrete for a more permanent installation.
Auger_Anchors_95424_File_2.pdf
Holding Capacity: *Earth Auger Anchors correctly installed in normal soils. Holding capacity is dependent on soil conditions and density. Special installation consideration must be taken in rocky soils. To achieve optimal holding capacity auger anchors must be screwed deeply into the ground. After inserting a metal rod through the anchor eye, screw the anchor into the ground or use a power driver. Anchor must be installed in line with the direction of the guy load. Anchor can also be imbedded in concrete for a more permanent installation.
Specifications:
- Helix OD: 6"
- Length: 40"
- Rod OD: 5/8"
- Finish: Painted
- Approx. Holding Capacity (see notes): 3,500 lbs.*
- Shipping Weight: 4.5 lbs.
- Solid steel/ reusable
