48in. Auger Earth Anchor with 6in. Helix 5/8in. Rod

(0)No Reviews yet
$23.01
SKU: HELIX6-48

If you add this item, you're only $226 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Back

Details

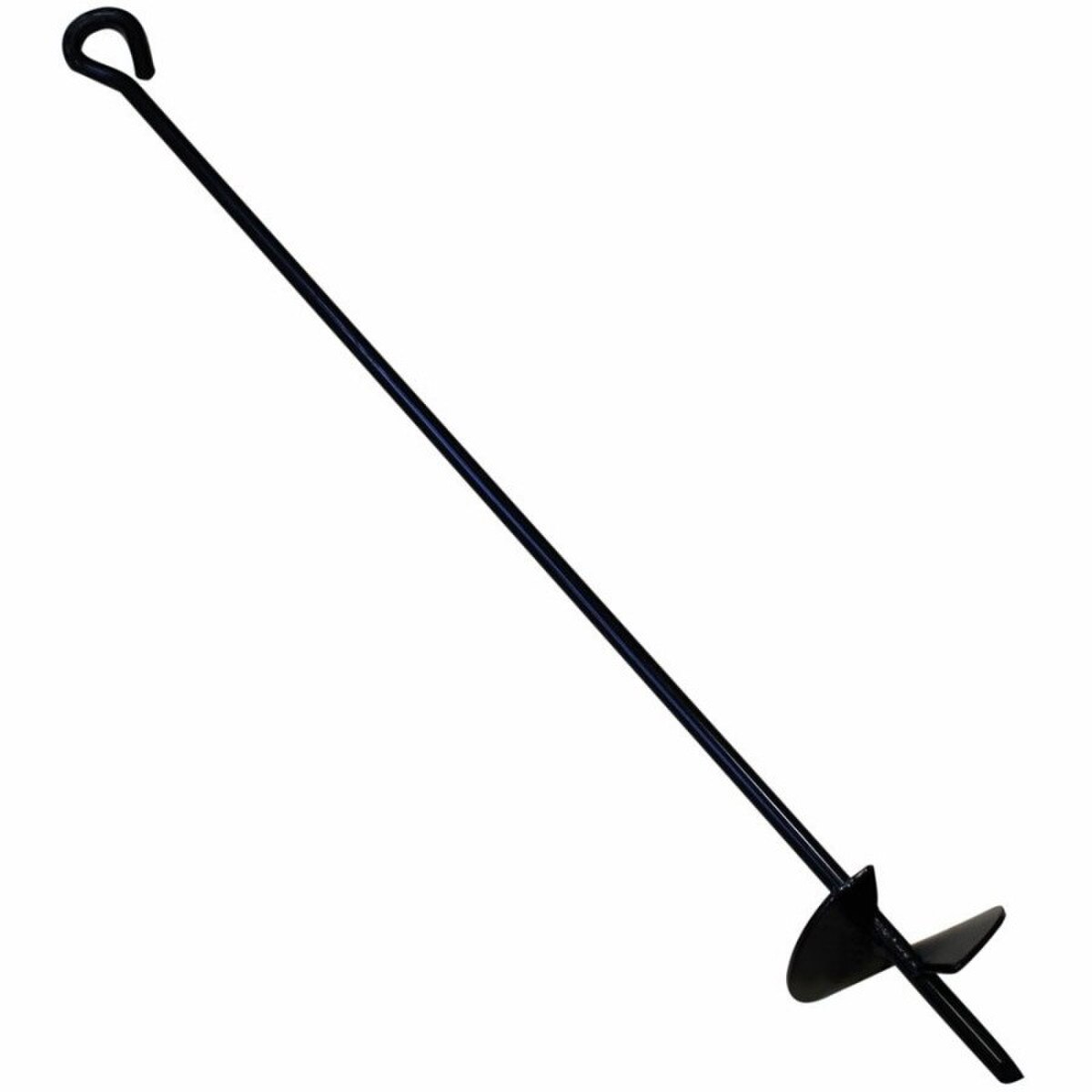

One piece earth anchor with eye ring for installation and tie off, with a firmly welded helix. Can be installed by hand or machine with an Angled point for easier installation.

Holding Capacity: *Earth Auger Anchors correctly installed in normal soils. Holding capacity is dependent on soil conditions and density. Special installation consideration must be taken in rocky soils. To achieve optimal holding capacity auger anchors must be screwed deeply into the ground. After inserting a metal rod through the anchor eye, screw the anchor into the ground or use a power driver. Anchor must be installed in line with the direction of the guy load. Anchor can also be imbedded in concrete for a more permanent installation.

Specifications:
  • Helix OD: 6"
  • Length: 48"
  • Rod OD: 5/8"
  • Finish: Painted Black
  • Approx. Holding Capacity (see notes): 4,000 lbs.*
  • Shipping Weight: 2.5 lbs.
  • Solid steel/ reusable

Auger_Anchors_95424_File_2.pdf
