5 / 16 Galvanized Big Grip Dead Ends (Black)

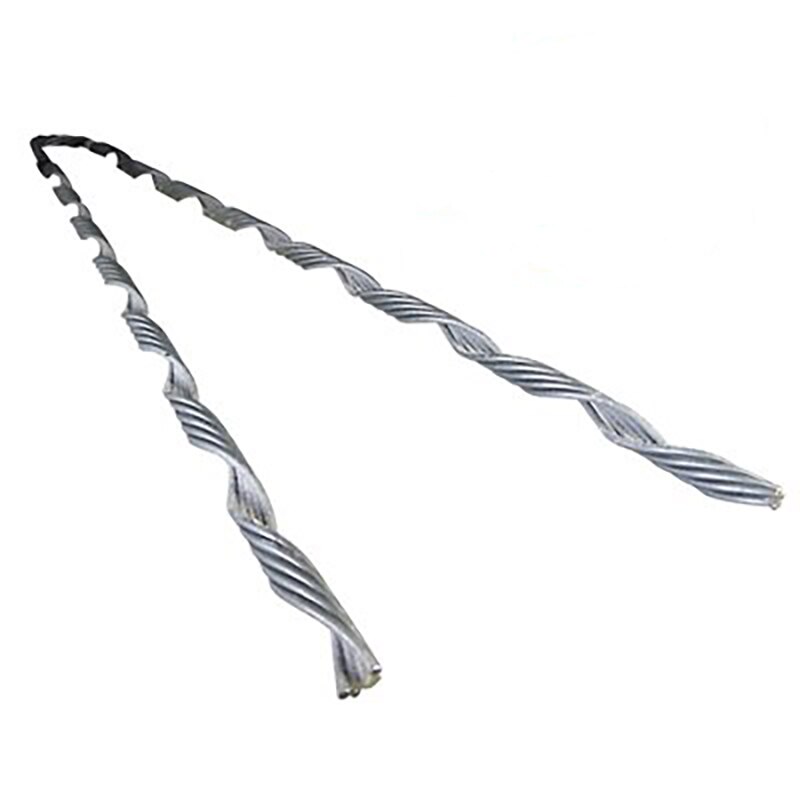

Preformed Line Products 5/16" BIG-GRIP™ Dead-end:

• Galvanized.
• Used to form a termination on the end of guy strand.
• For use with 1 x 7 Guy Strand only.
• Breaking Strength 11,200 lbs.
• Weight .86 lbs/ea

Product Information:

Big-Grip™ Dead-ends are designed for use on Transmission, Antenna, Communications, and other types of guyed structures that require use of 1x7 EHS guy strand.

Wraps around EHS guy strand and creates a loop end that--provided the grips are properly installed--achieves 100% of the cable's Breaking Strength.

Specifications:

• Product: BG312
• Brand: Preformed Line Products
• Type: Big-Grip Dead-ends
• Color Code: Black
• Overall Length: 33"
• Weight: .86 lbs
• Box Quantity: 50
• Breaking Strength: 11,200 lbs.

Safety Notice:

• Do not modify this product under any circumstances.
• This product is intended for use by trained technicians only. This product should not be used by anyone who is not familiar with, and not trained to use it.
• When working with energized lines, extra care should be taken to prevent accidental electrical contact.
• Be sure to read and completely understand PLP installation procedures before applying product.
• Be sure to select the proper size Preformed dead-end product before application.
