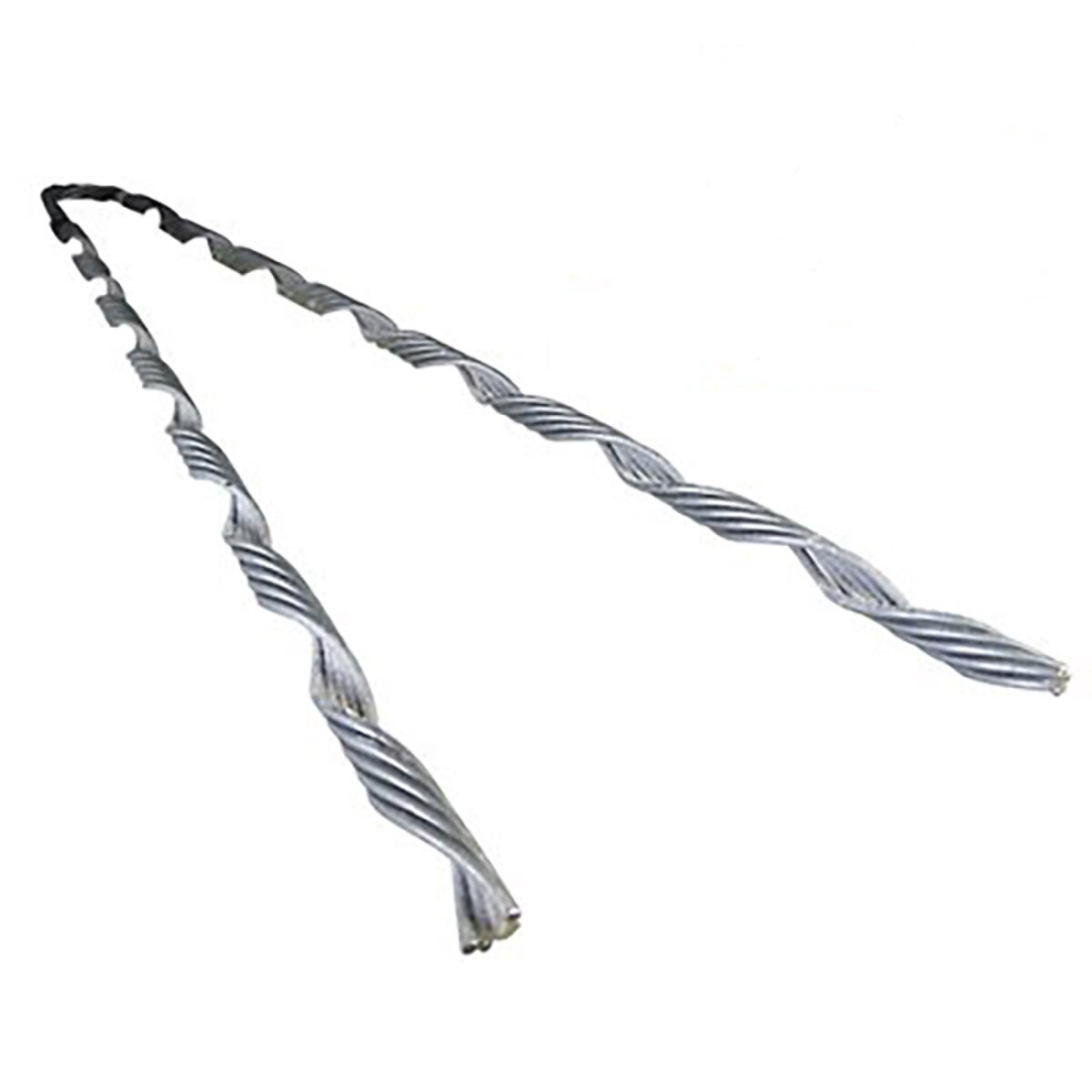

5 / 16 Galvanized PLP Tree-Grip Dead Ends (Black)

Preformed Line Products 5/16" TREE-GRIP™ Dead-end:

• Designed for use in Tree Cabling Systems.
• Used to form a termination on the end of guy strand.
• Use of heavy duty thimbles with Dead Ends is recommended.
• For use with 1 x 7 Guy Strand only.
• Weight .55 lbs/ea

Product Information:

TREE-GRIP™ Dead-ends from Preformed Line Products are designed to eliminate the costly labor and time consuming hassle of cable splicing. TREE-GRIP™ Dead-ends wrap quickly around left hand lay extra high strength (EHS) galvanized strands, eliminating the process of splicing common grade galvanized strand. The end result is a labor saving application accomplishable in under 60 seconds. Tree-Grip Dead Ends are designed to develop 100% of the published rated breaking strength of EHS strand. Available in several thicknesses. Choose your size based on the diameter of cable you will be using.

Specifications:

• Product: TG312-PLP
• Brand: Preformed Line Products
• Type: Tree-Grip Dead-ends
• Color Code: Black
• Overall Length: 23"
• Weight: .55 lbs
• Box Quantity: 50
• Breaking Strength: 11,200 lbs.

Safety Notice:

Make sure diameter of Tree Grips is the same as the diameter of the cable they are being used with.
