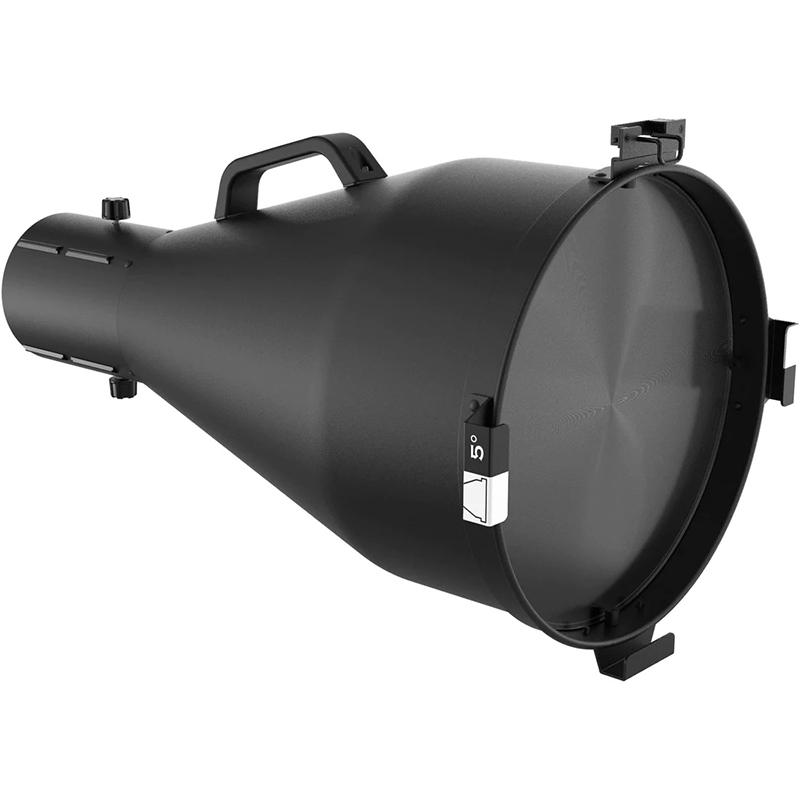

5 Degree Ovation Ellipsoidal HD Lens Tube

Ovation Ellipsoidal HD Lens Tubes are designed to fit all ellipsoidal fixtures as well as my other standard ERS-style fixtures. Lens tubes are constructed using high-precision HD optics encased in rugged housings designed to survive the rigors of touring, broadcast and theatrical production. Each lens tube ships with a standard size gel frame.

Features:

• Fixed focal length lens tube for the Ovation ellipsoidal fixtures
• Dual aspheric lenses provide precise focus for crisp gobo projection
• Integrated gel frame holder and gel frame included

Specifications:

• Installed Optics (5°): 5°
• Dimensions (5° lens): 24.5 x 14.17 x 14.48 in (622.4 x 360 x 368 mm)
• Weight (5°): 5.8 lb (2.7 kg)
• Accessory Holder/ Gel Frame Size (5° lens): 14 in (356 mm)
• IP Rating: IP65, outdoor/wet
• Included: OHDLENS5
