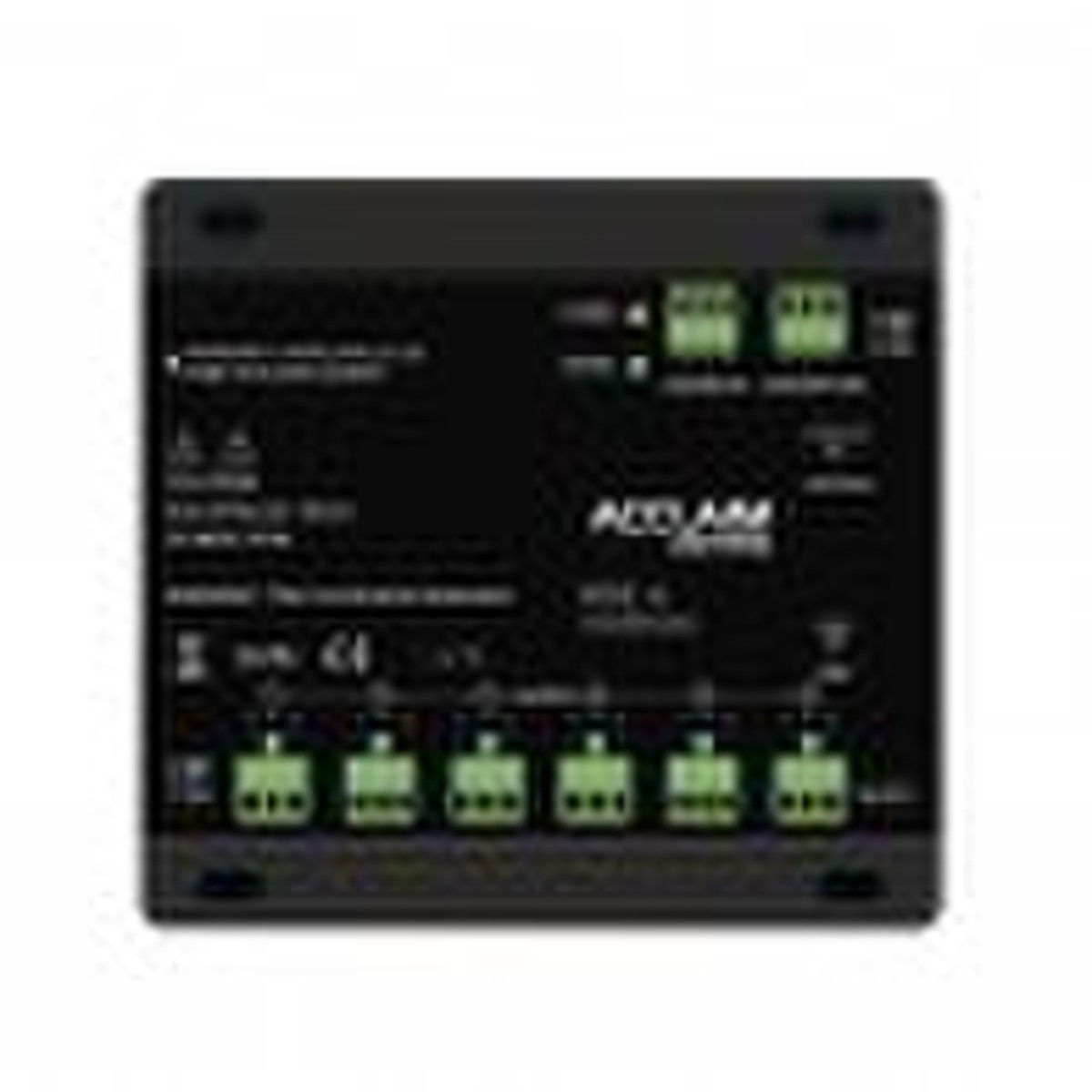

6-Way RDM DMX Splitter

The RDS 6 is an RDM/DMX splitter and optimizer. It features one RDM/DMX input and six outputs, allowing for flexible configuration of your RDM/DMX signal. Each port is electrically isolated to ensure you get the maximum total run of 3,900 foot for each signal line.

Specifications:

• Operating Voltage: 100-240VAC, 50/60Hz
• RDM/DMX Inputs: 1
• RDM/DMX Outputs: 6
• RDM/DMX Thru Link: 1
• Power Consumption: 0.12A, 14.4W @ 120VAC
• Finish: Black
• Housing Material: Sheet Metal
• IP Rating: IP20, Dry Location
• Operating Temperature: 14ºF to 112ºF (-10C to 50ºC)
• Connectors: 3 pin terminal blocks for RDM/DMX, Bare wire 3 conductor for AC input
• Warranty: 3 Year
• Weight: 1.25 lbs (0.57 kg)
• Dimensions (L x W x H): 5.27" x 4.92" x 1.57" (134 x 125 x 40 mm)
• Certifications: cETLus, CE, RoHS

Specifications_Sheet_96642_File_1.pdf
