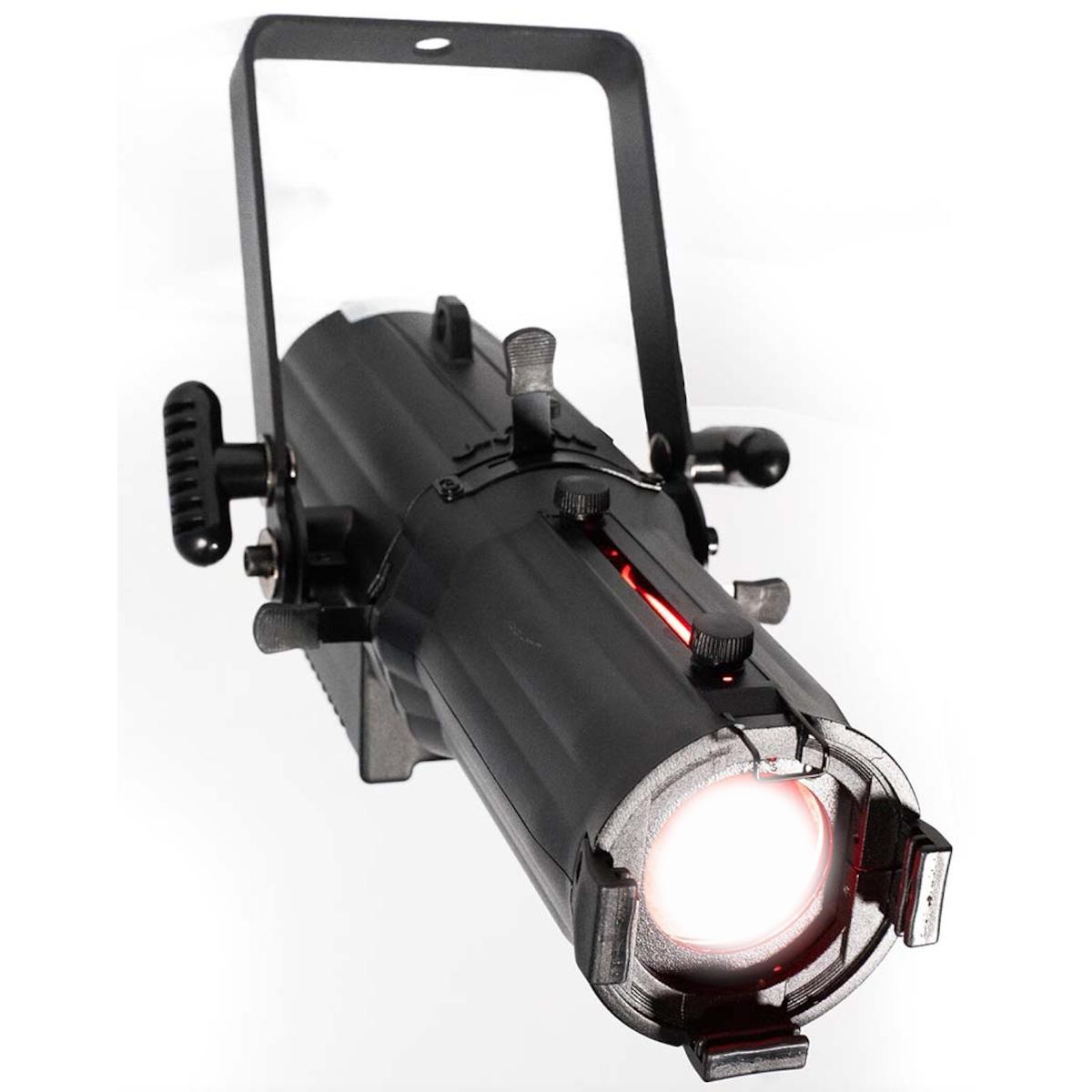

60w Variable White LED Ellipsoidal Mini Spot w/ DMX & 20° - 40° Zoom Black Finish

(0)No Reviews yet
SKU: ElektraLite SRAYM VW 60W


The elektraLite Stingray Mini 60w is the latest line of “Mini” products and brings color mixing to this compact yet powerful line.

The Stingray Mini  60w Line utilizes a 60 watt COB LED which provides a clean and rich mixing of color or white light output.  The Stingray Mini 60w is thus perfect for any show, event or even for displays in a museum or gallery.

The Stingray Mini 60w’s sophisticated, zoom lensing system provides a packed punch of light in beam spreads from 20° to 40°. Four independent shutter blades give perfect in-focus cuts to the beam.

This powerful, well‐rounded LED fixture has a rugged all-metal design and its on-board display and programming makes it easy for anyone to bring vibrant colors to a wide variety of public spaces. The front barrel and zoom assembly rotates 360° allowing for the shutters to be in any position. The barrel can also be removed for cleaning of the shutters and lenses. The fixture has a slot for a pattern holder and a double slot a gel/color frame holder is at the front for diffusion, color correction or any other medium. Control of the Stingray Mini 60w is via DMX or the fixture can be set to run manually or even automatically


  • Single COB 60 watt LED (Warm White, Cool White, Variable White, or RGBW)
  • 100% dimming via DMX or can be set manually for each color.
  • In-built zoom mechanism with no chromatic aberration.
  • Double slot gel/color frame holder with safety clip for accessories and gel frame (not included)
  • Housing features rotating barrel assembly, pattern holder slot, and four shutter blades for perfect in‐focus beam cuts


  • Electrical‐ multi‐voltage; AC 100‐250V – 50/60Hz
  • Housing‐ aluminum monocoque design
  • Materials‐ corrosion resistant hardware
  • Yoke‐ rigid flat steel
  • Light Engine‐ single 60W COB LED emitter
  • Refresh Rate‐ variable
  • Optics / Lensing(s)‐Zoom lensing from 20° to 40°
  • Physical – L 13.75″ W 8″ H 6″
  • Weight – 6.0 lbs / 2.75 Kgs

Each fixture includes the following accessories:

  • (1) single yoke
  • (1) adjustable Zoom lens tube

Stingray Mini VW 60w User Manual.pdf
