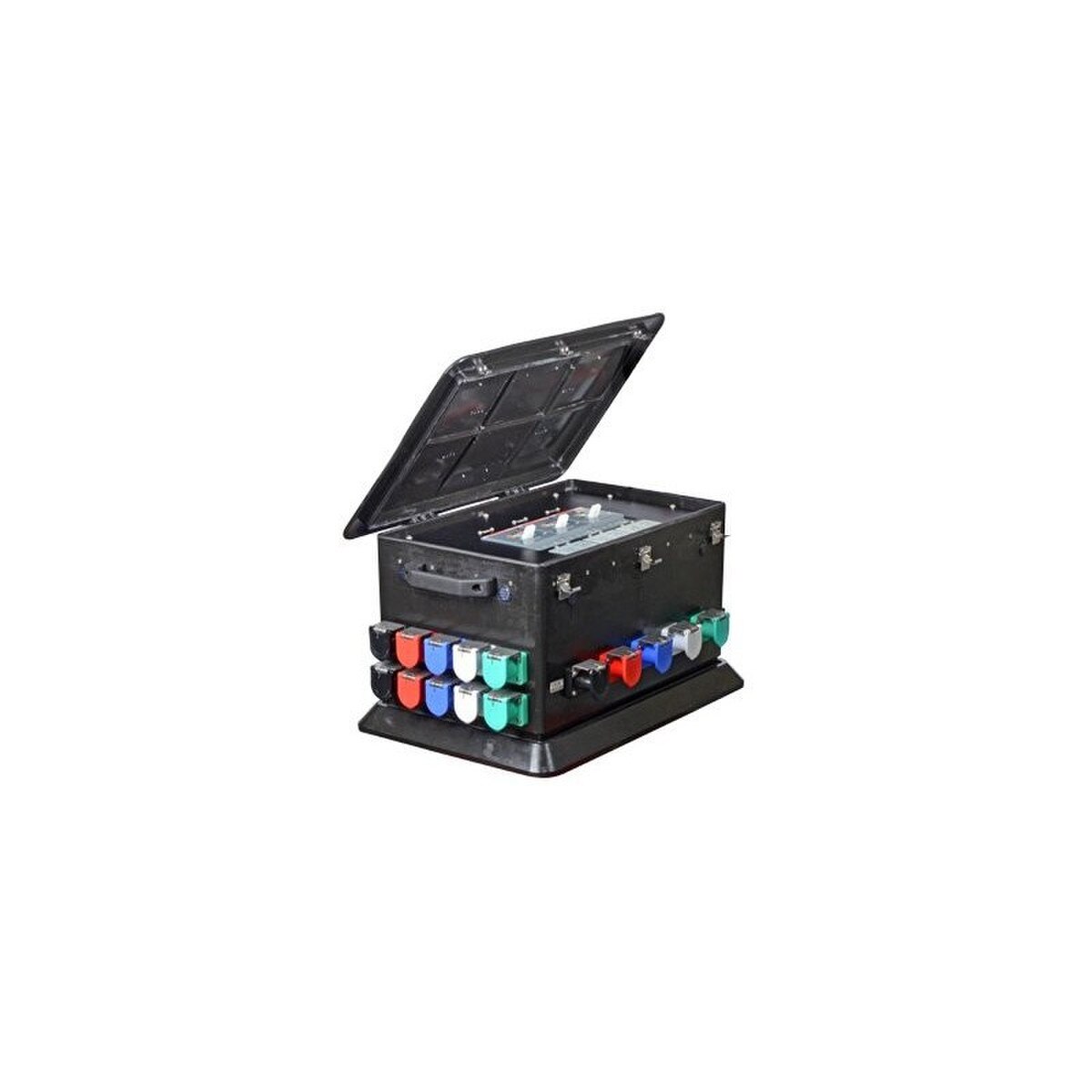

Lex 800 Amp Load Master with 3 Adjustable Output Circuits
The first portable power distribution box featuring outputs with adjustable current ratings to match the specific application load.
Typical applications include installations requiring a main disconnect for a range of varying downstream electrical loads such as portable kitchens, environmental control units, machinery, motors, tools and more. Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power
distribution box distributes up to 800 Amps of 3 Phase power into (3) circuits.
Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.
Features:
600 Amp Load Master Brochure
800 Amp Load Master Data Sheet
Load Master User Manual
The first portable power distribution box featuring outputs with adjustable current ratings to match the specific application load.
Typical applications include installations requiring a main disconnect for a range of varying downstream electrical loads such as portable kitchens, environmental control units, machinery, motors, tools and more. Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power
distribution box distributes up to 800 Amps of 3 Phase power into (3) circuits.
Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.
Features:
- Exceptional flexibility. The cULus Listed Load Master can handle a broad range of power distribution applications due to adjustable circuit breakers that enable overcurrent protection to be changed easily, matching specific output loads
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion.
- Easy to set up. Does not require on-site wiring by a licensed electrician
- Unit is 2-man portable; no forklift needed.
- The adjustable electronic circuit breakers will not nuisance trip due to high ambient temperatures.
- Adjustable circuit breakers are mounted under a hinged lid for easy access and enhanced protection.
- Elevated base keeps receptacles above ground level.
- Rating 800 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating TYPE 3R Rainproof
- Input (2) sets of (5) 16 Series Cam-type colorcoded panel mount inlets
- Output (3) sets of (5) 16 Series Cam-type colorcoded panel mount receptacles protected by adjustable circuit breakers
- Feed Thru None
- Overcurrent Protection (3) 100-250 Amp electronic circuit breakers with adjustable settings
- Enclosure Power Station
- Dimensions 27.5" x 18.5" x 18"
- Weight 143.5 lbs.
