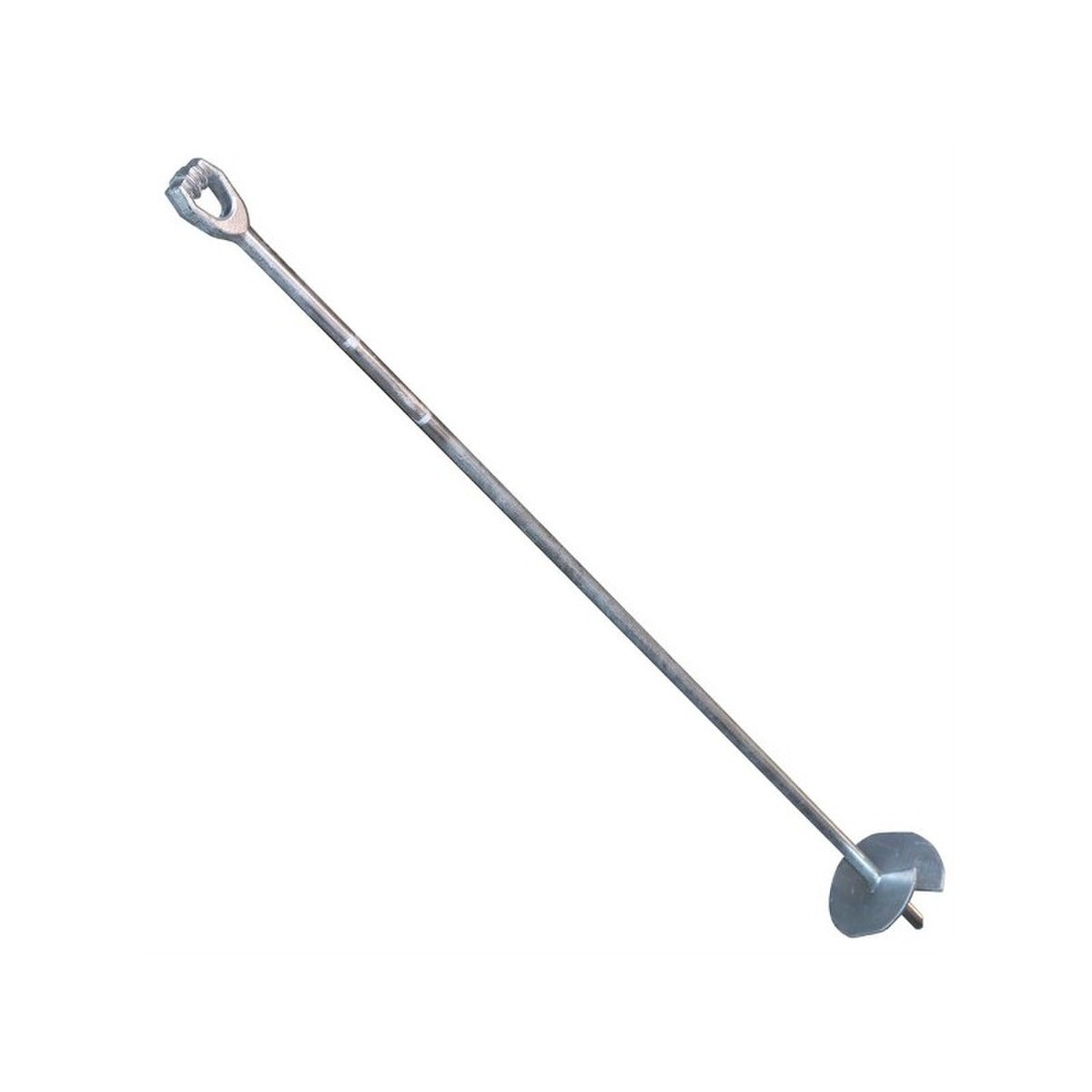

96in. Earth Anchor with 10in. HELIX 1-1/4in. ROD HG

Heavy Duty Earth Anchors for securing guying wires, security, and or structure securement. Anchors are installed by simply turning the anchor into the ground, utilizing a turning bar placed through the anchor's forged eye. No Wrench Utility Anchors can be installed by hand or by machine.

Screw Anchors consist of a forged triple eye rod with an angled point, and a firmly welded helix.Ground Anchors are hot dipped galvanized to meet ASTM Specification A153, Class C for long resistance to rust.

Specifications:

• Helix OD: 10"
• Length: 96"
• Rod OD: 1-1/4"
• Finish: Galvanized corrosion resistance
• Weight: 42 lbs.
• Must be sent LTL due to length

Approx. Holding Capacities (see Soil Classifications):

• Class 5: 13,000 lbs.
• Class 6: 10,000 lbs.
• Class 7: 7,000 lbs.
