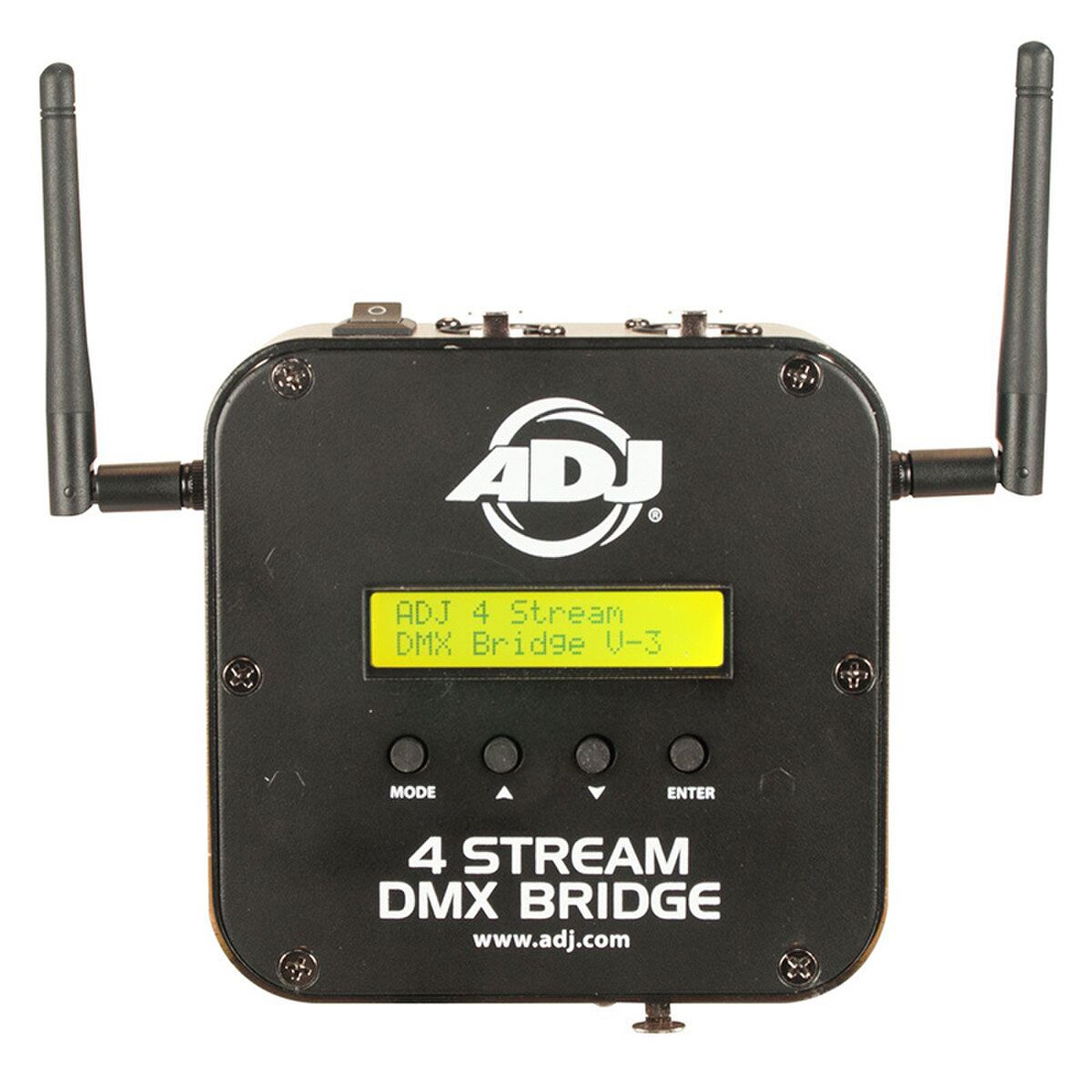

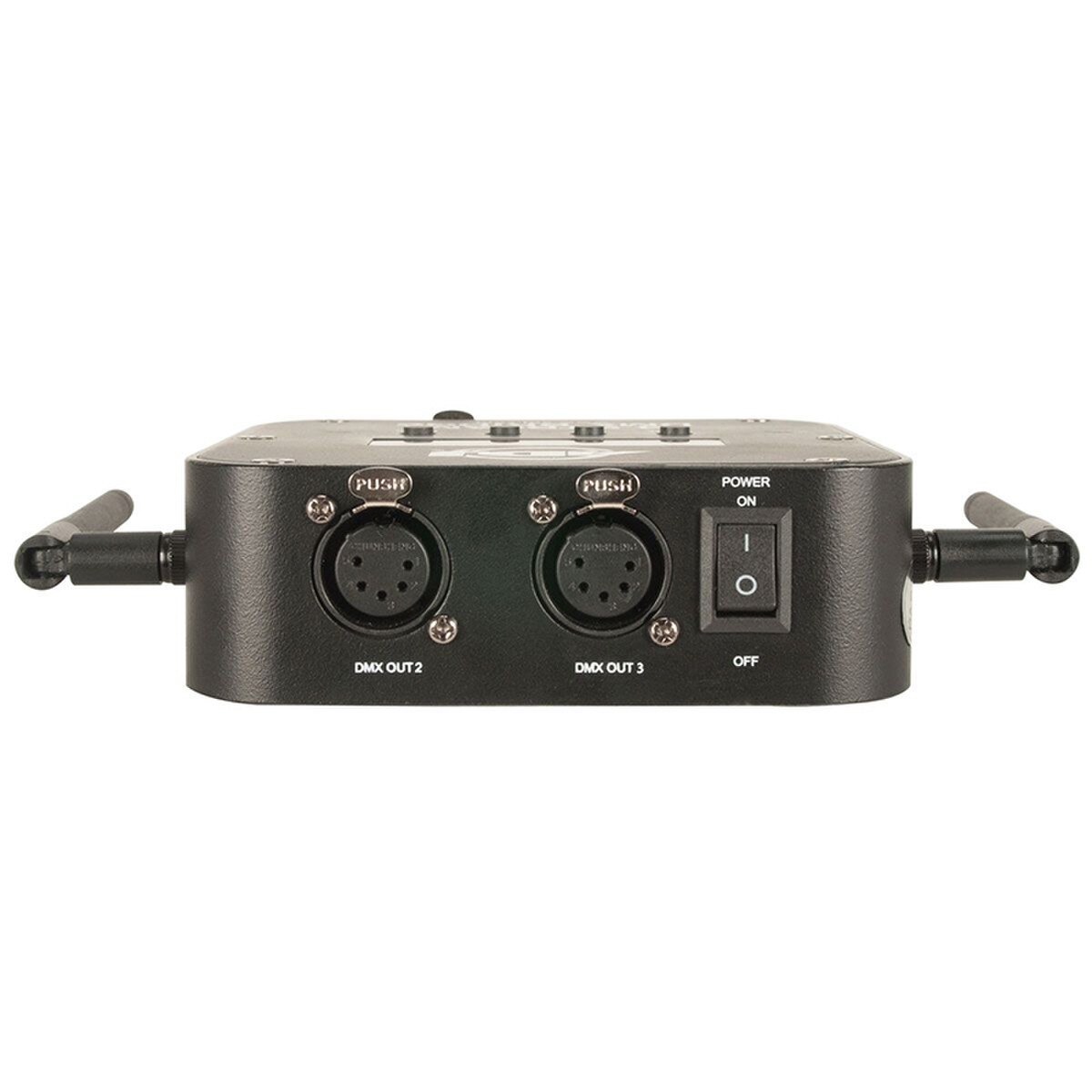

ADJ 4 Stream DMX Bridge
4 STREAM DMX Bridge is a compact 4-universe wireless device which seamlessly bridges WiFi, Art-Net, sACN, and WiFLY (ADJ wireless DMX solution) signals to wirelessly control compatible DMX devices with control from the Airstream DMX Pro App for iPad. 4 STREAM DMX BRIDGE creates a private standalone 2.4 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network, which coexists in busy RF environments alongside other wireless technologies. No existing network infrastructure is required, or it connects to an external network. 4 STREAM DMX BRIDGE sends constant and reliable wireless DMX signals to compatible DMX devices via DMX-512, Art-Net, sACN, or WiFly.
- Seamless Wireless Bridge To DMX Compatible Devices
- Supports Standard Network Protocols, Art-Net, sACN and WiFly
- Private Standalone 2.4 GHz DSSS WiFi Network
- No Existing Network Needed or Connect to External Network

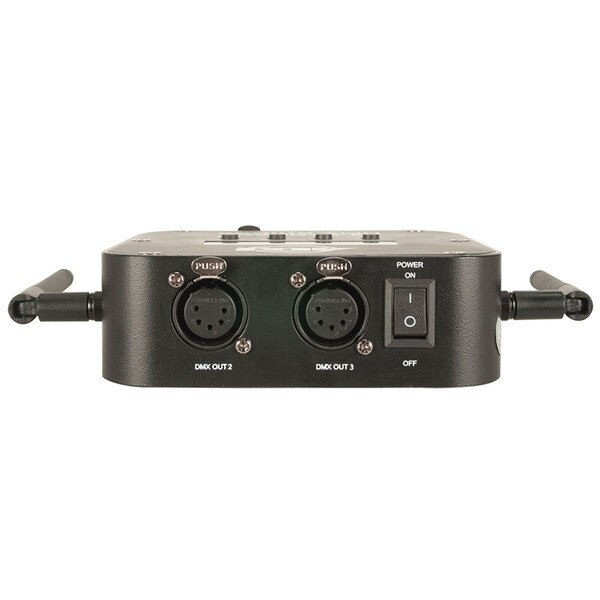

- Supports up to 4 DMX Universes (3 wired and 1 WiFLY wireless)
- Control Compatible WiFly Devices up to 2,500 Feet Away
- 14 WiFly Wireless Channels

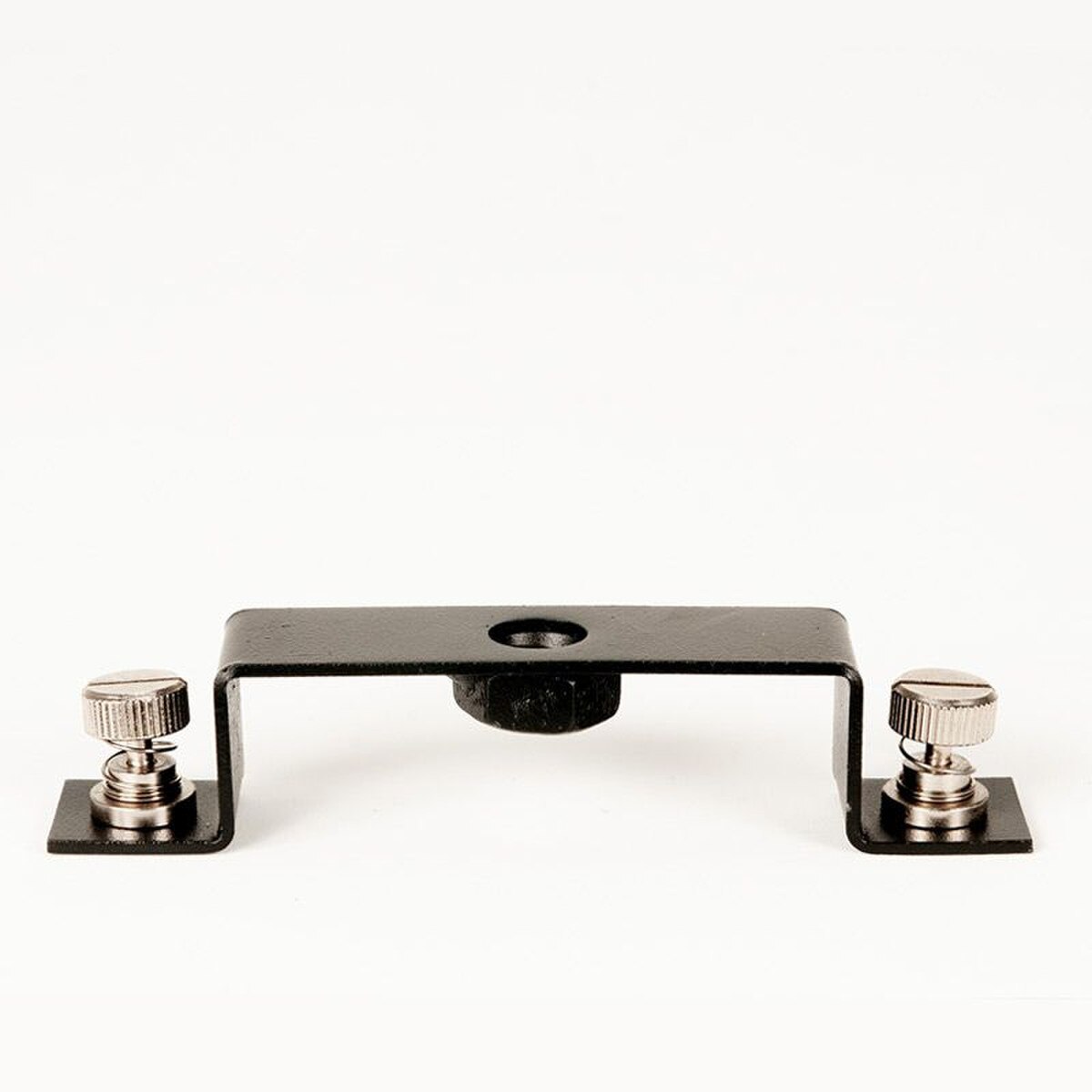

- Easy Clamp/Truss Mounting

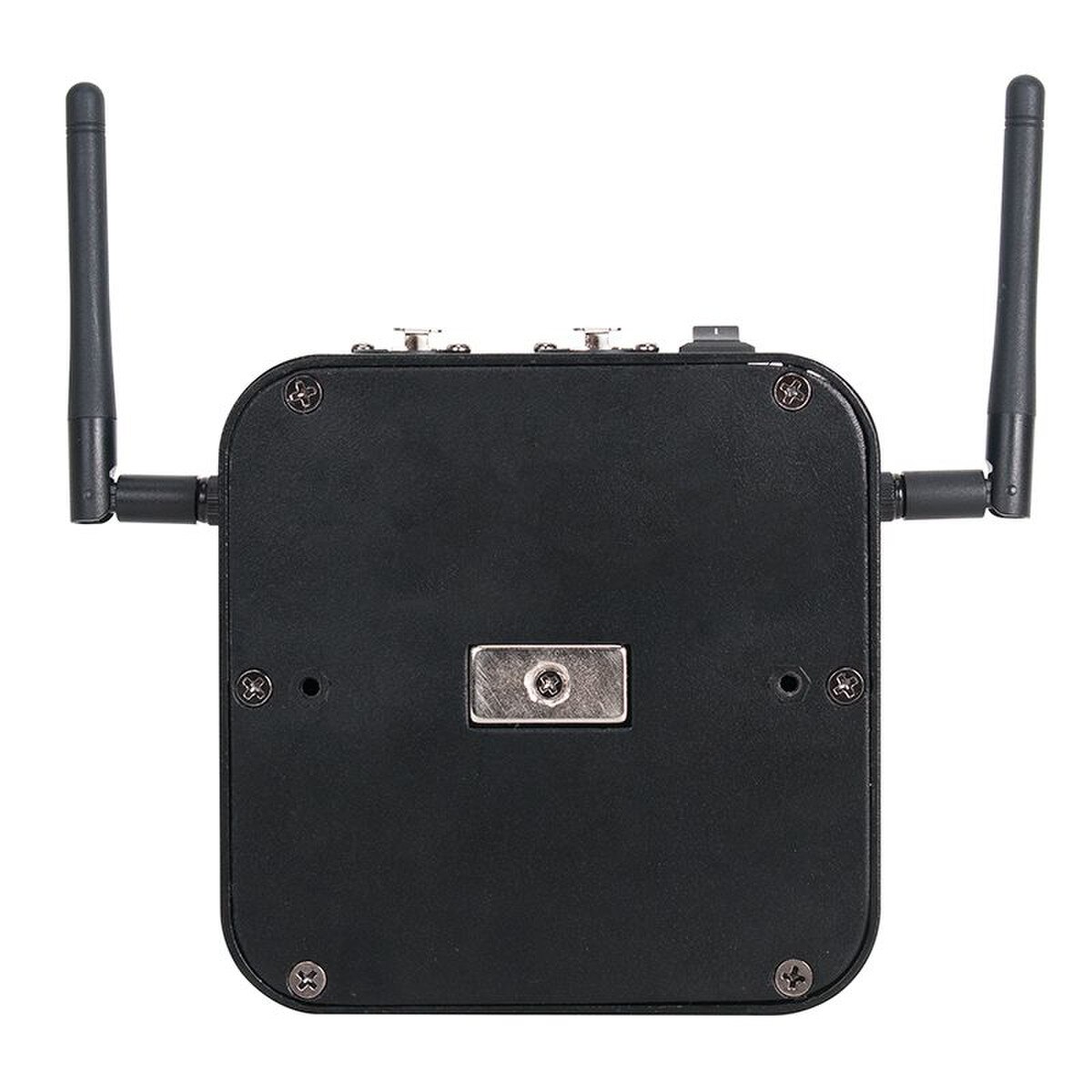

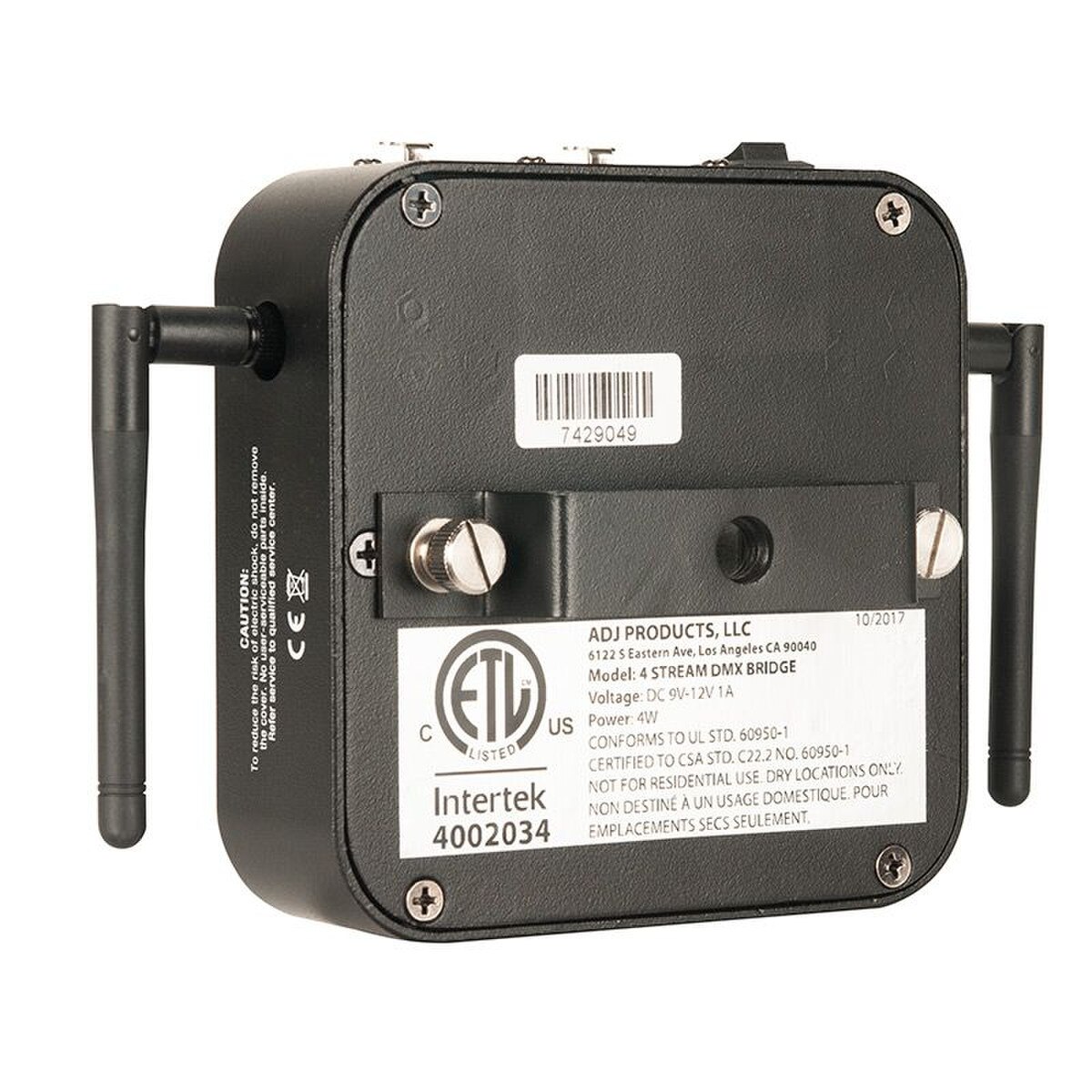

- Magnetic Back for Easy Attachment to Metal Surfaces
- Easy Configuration using iOS App
- Dedicated control APP with 4 DMX universes available in the Apple APP Store
Airstream DMX Pro App compatibility:
- Compatible with iPad only. Requires iOS 11.0 or later.
- Length: 4.92" (125mm) x Width: 6.88" (175mm) x Vertical Height: 2.44" (62mm)
- Weight: 1.06 lbs. (0.48kg)

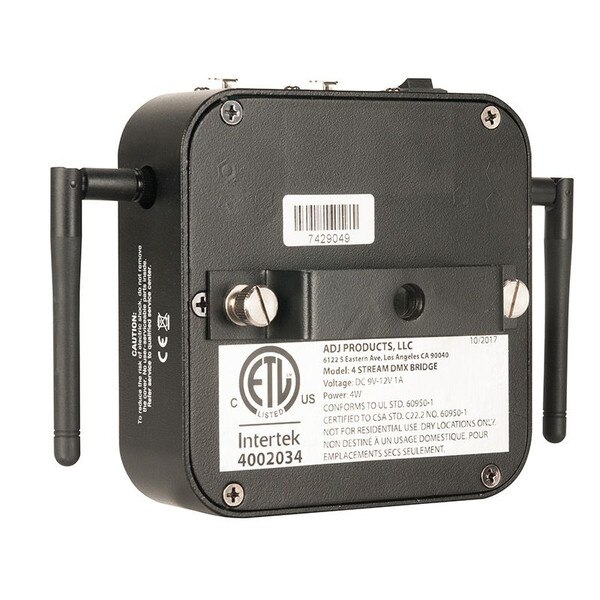

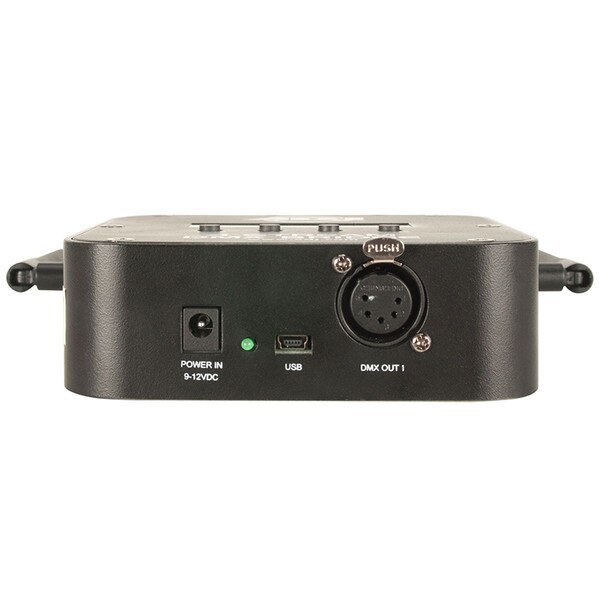

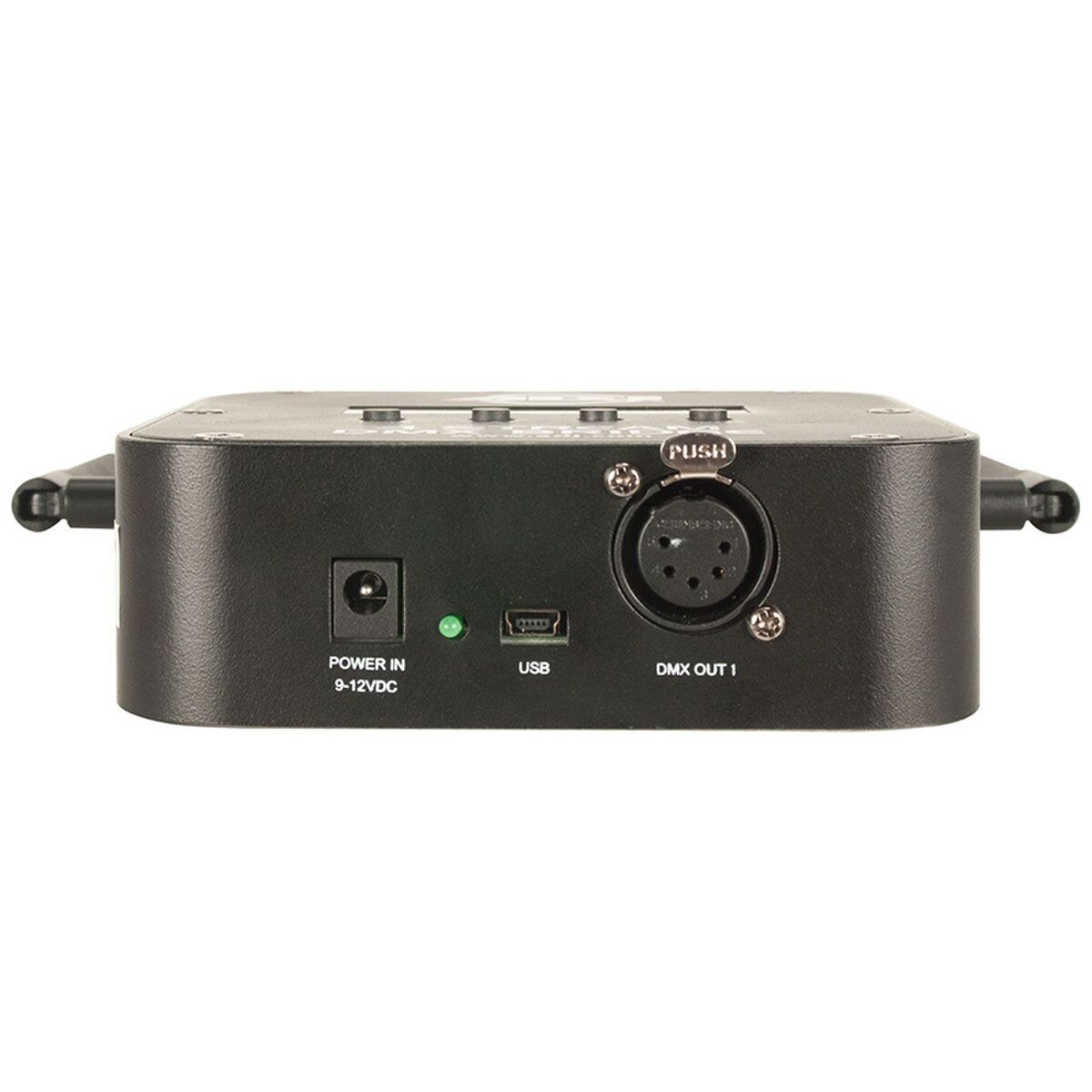

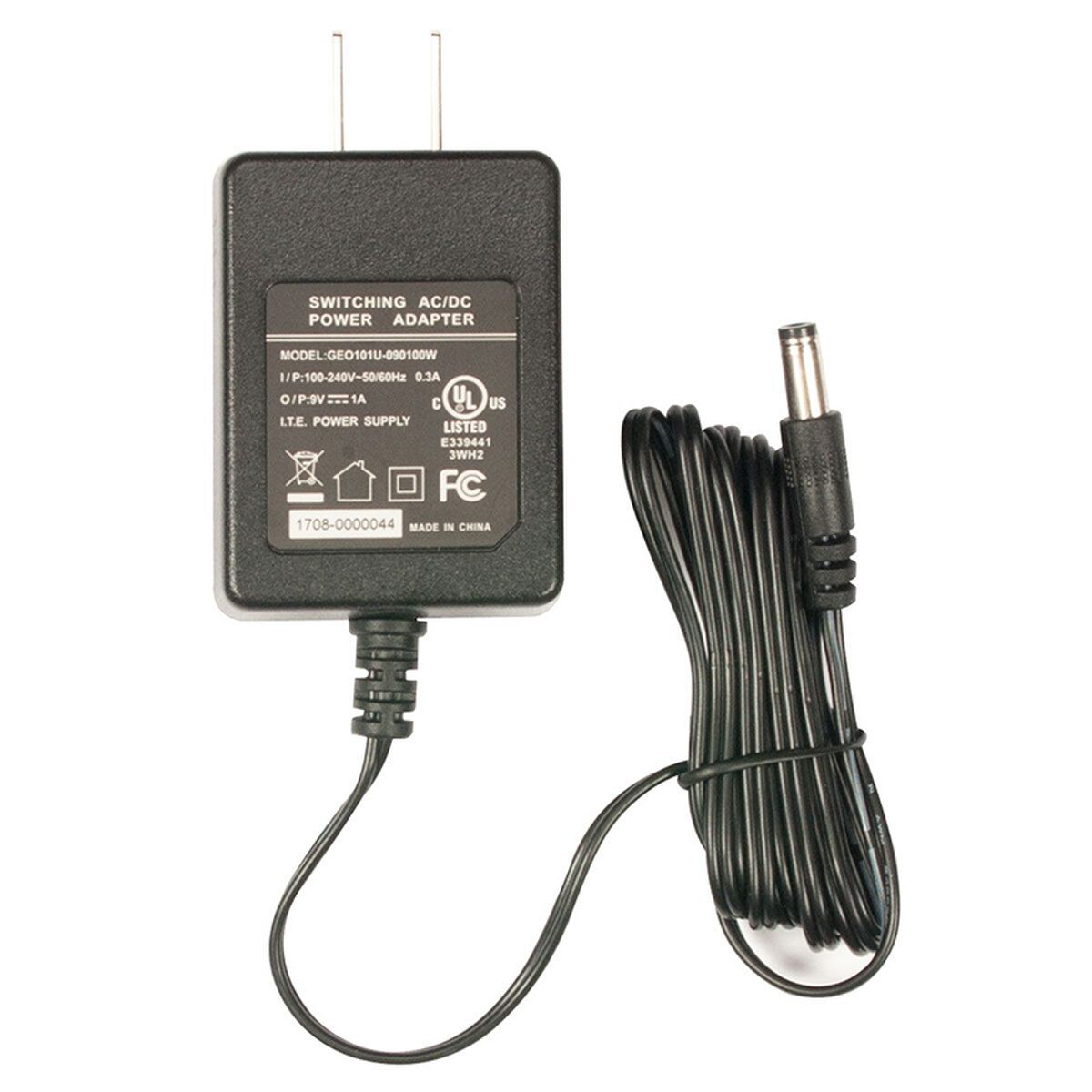

- DC 9-12V 1Amp
- CE | cETLus
*Compatible with 4 Stream DMX Bridge and Airstream DMX Bridge only.
ADJ 4 STREAM DMX BRIDGE USER MANUAL.pdf
