ADJ 40 HEX Panel IP

At A Glance:

40 HEX Panel IP is a versatile IP65-rated fixture designed for indoor and outdoor use, functioning as a wash, blinder, or color strobe. It features 40 high-performance 20W HEX LEDs (6-in-1: RGBAL+UV), 10 pixel-controlled sections, tunable white color temperature control, Aria X2 management, and a durable all-metal black housing for reliable operation in any setting.

40 HEX Panel IP

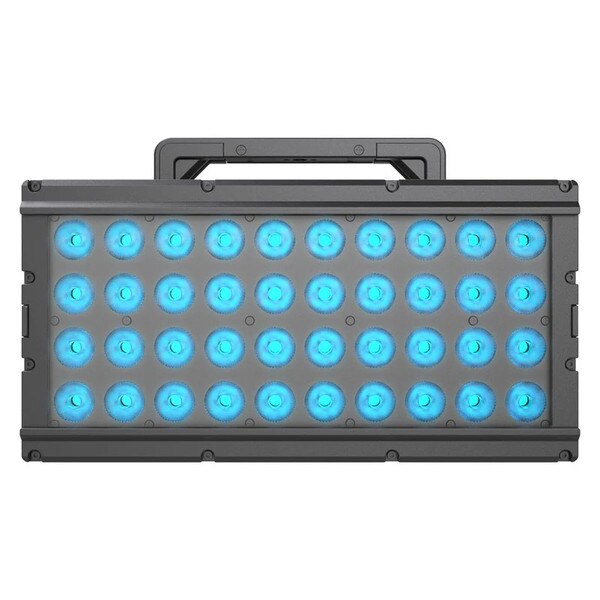

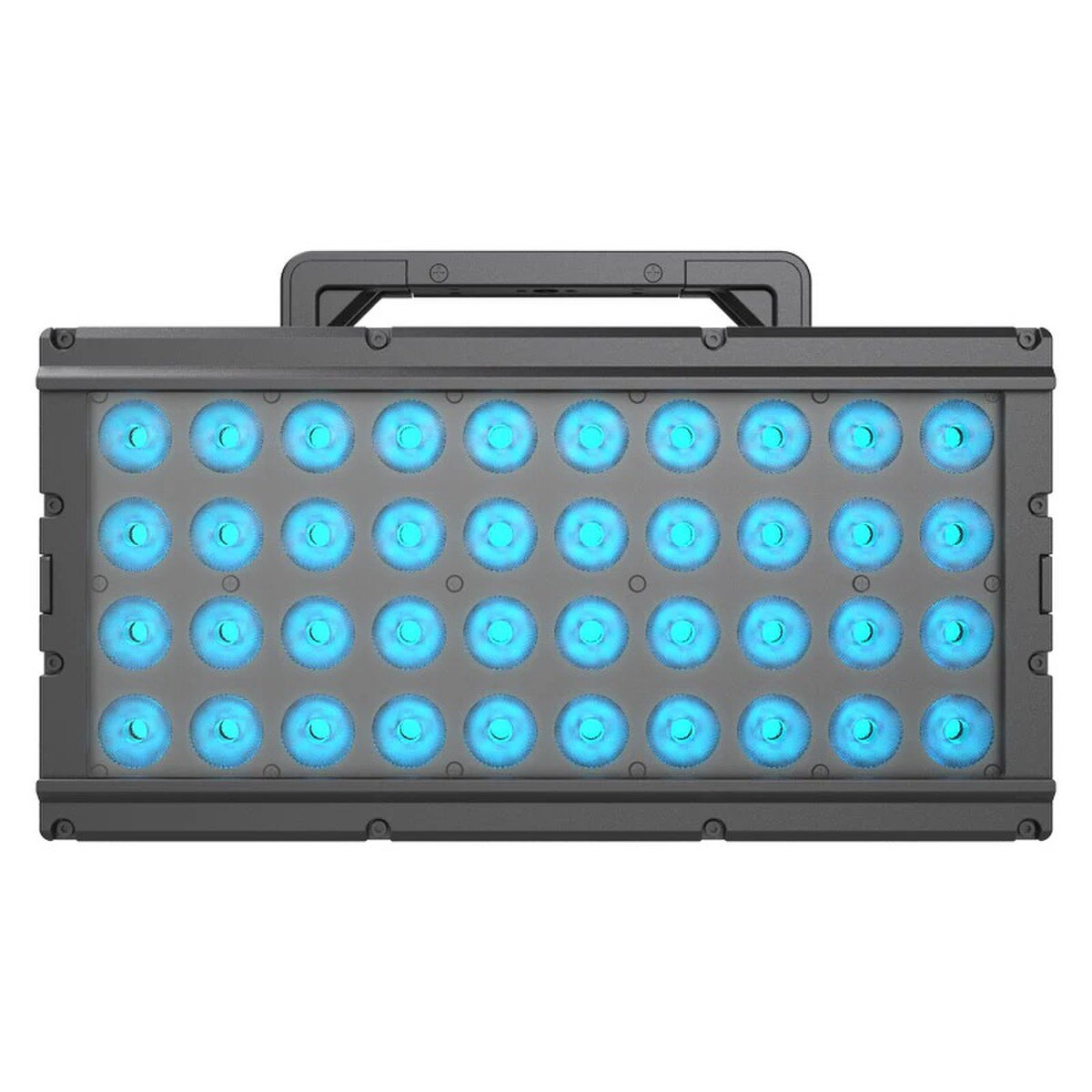

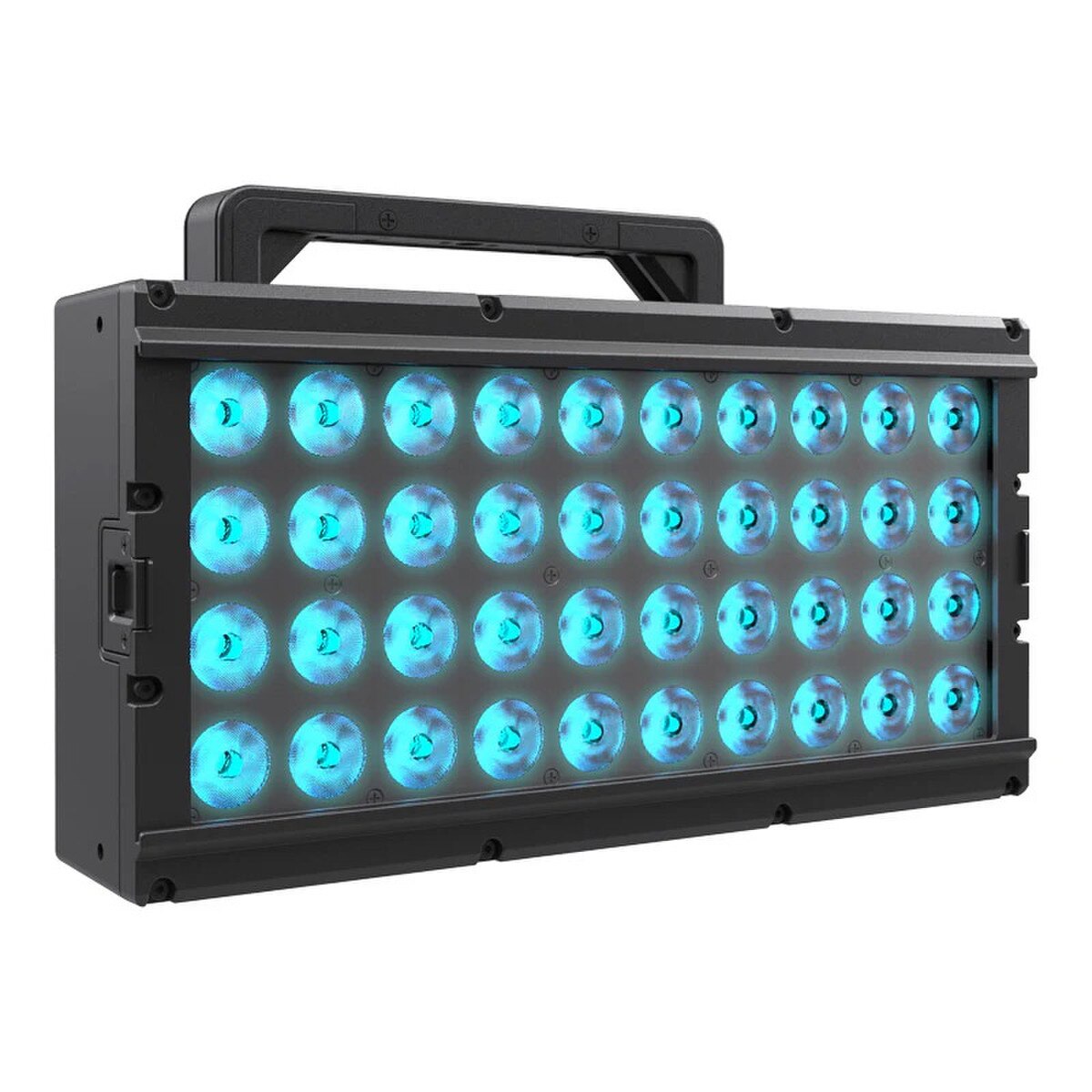

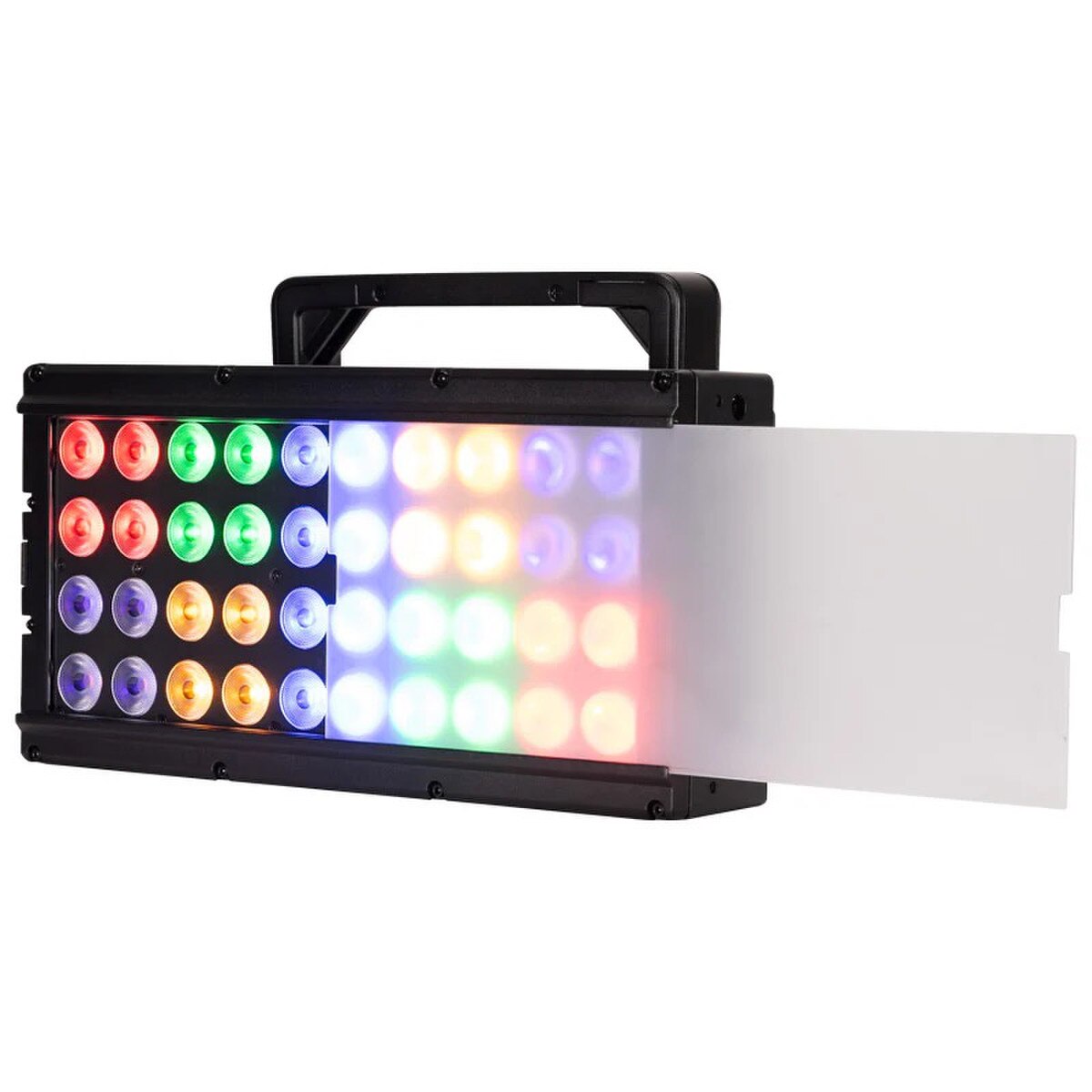

40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or color strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture.

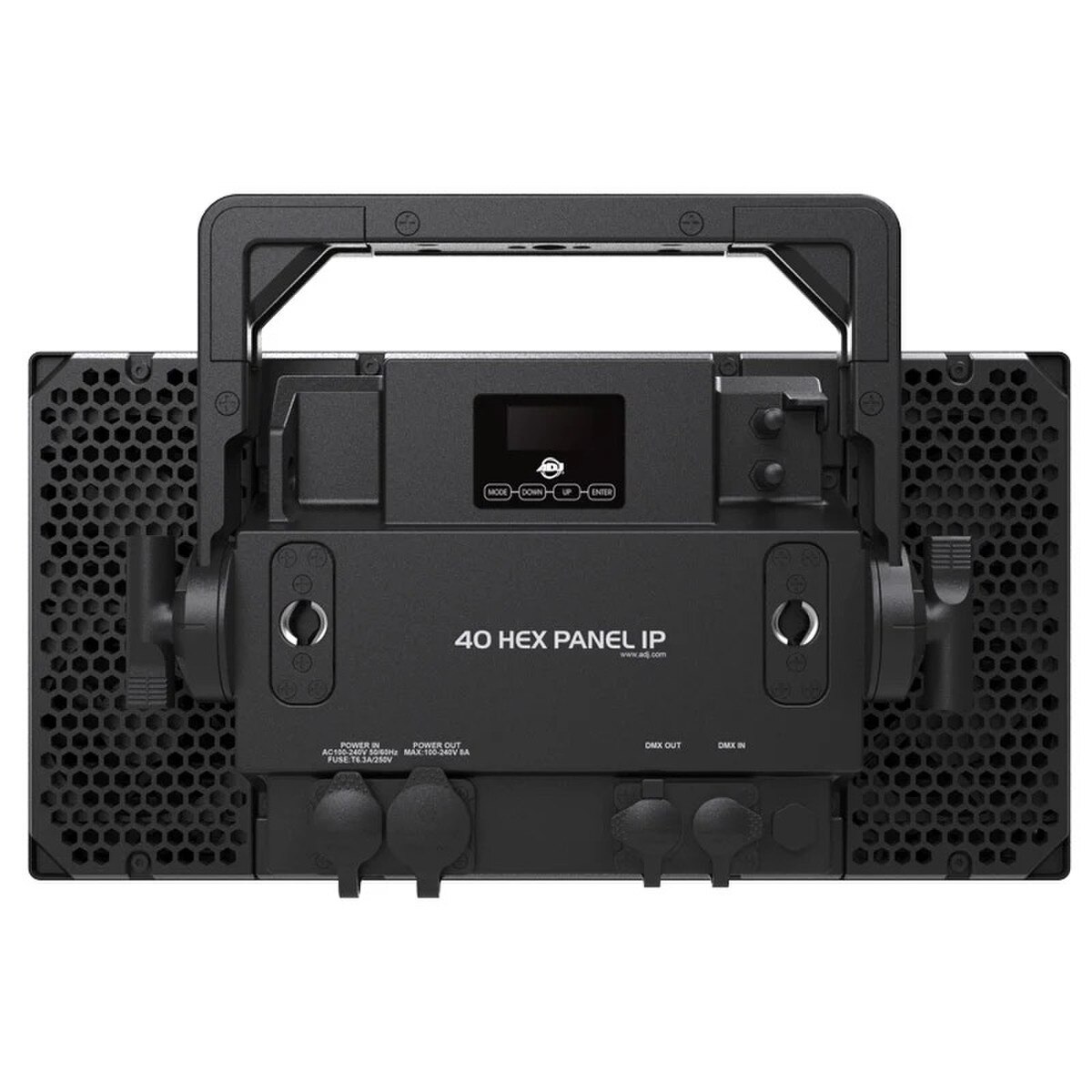

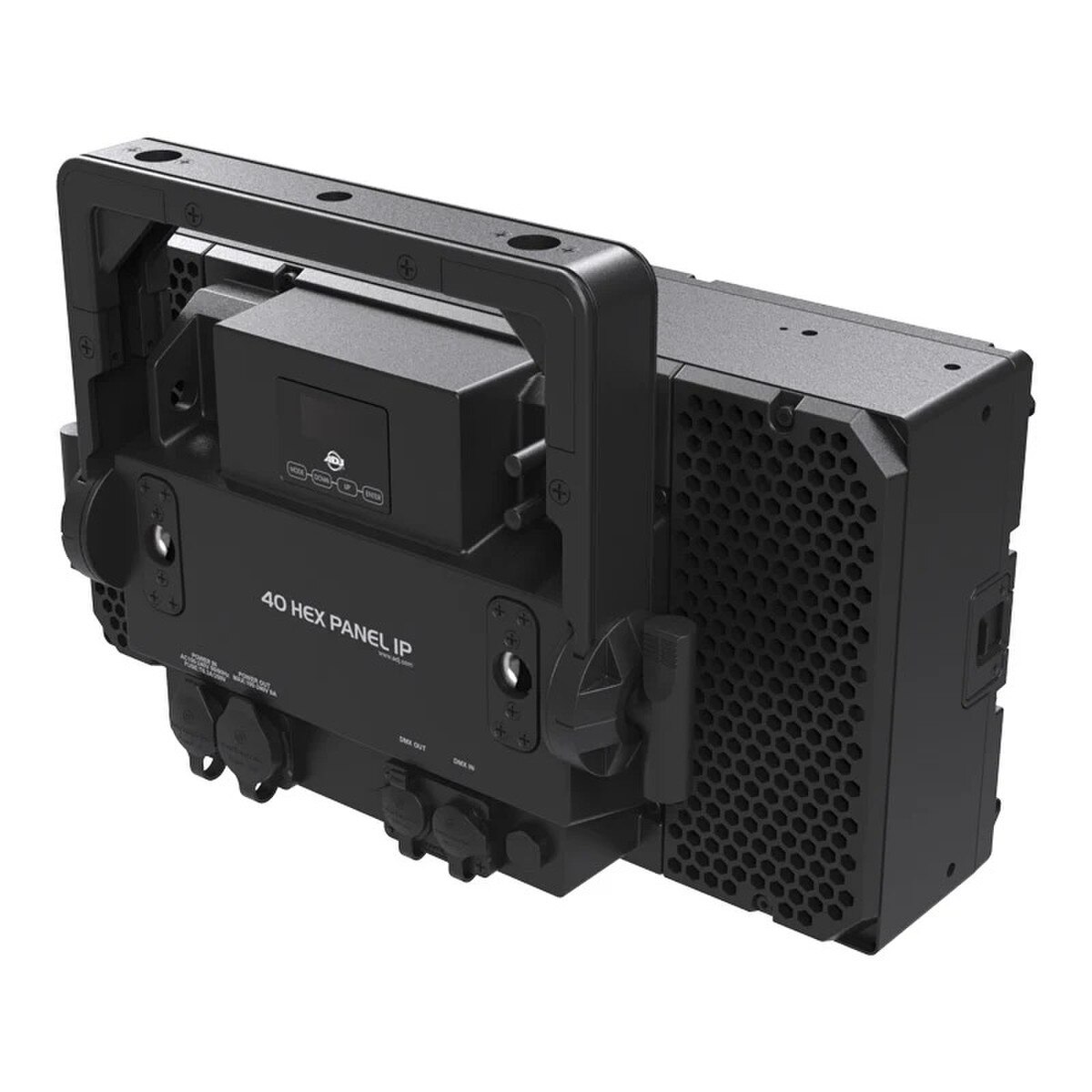

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.

Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.

Specifications

Light Source:

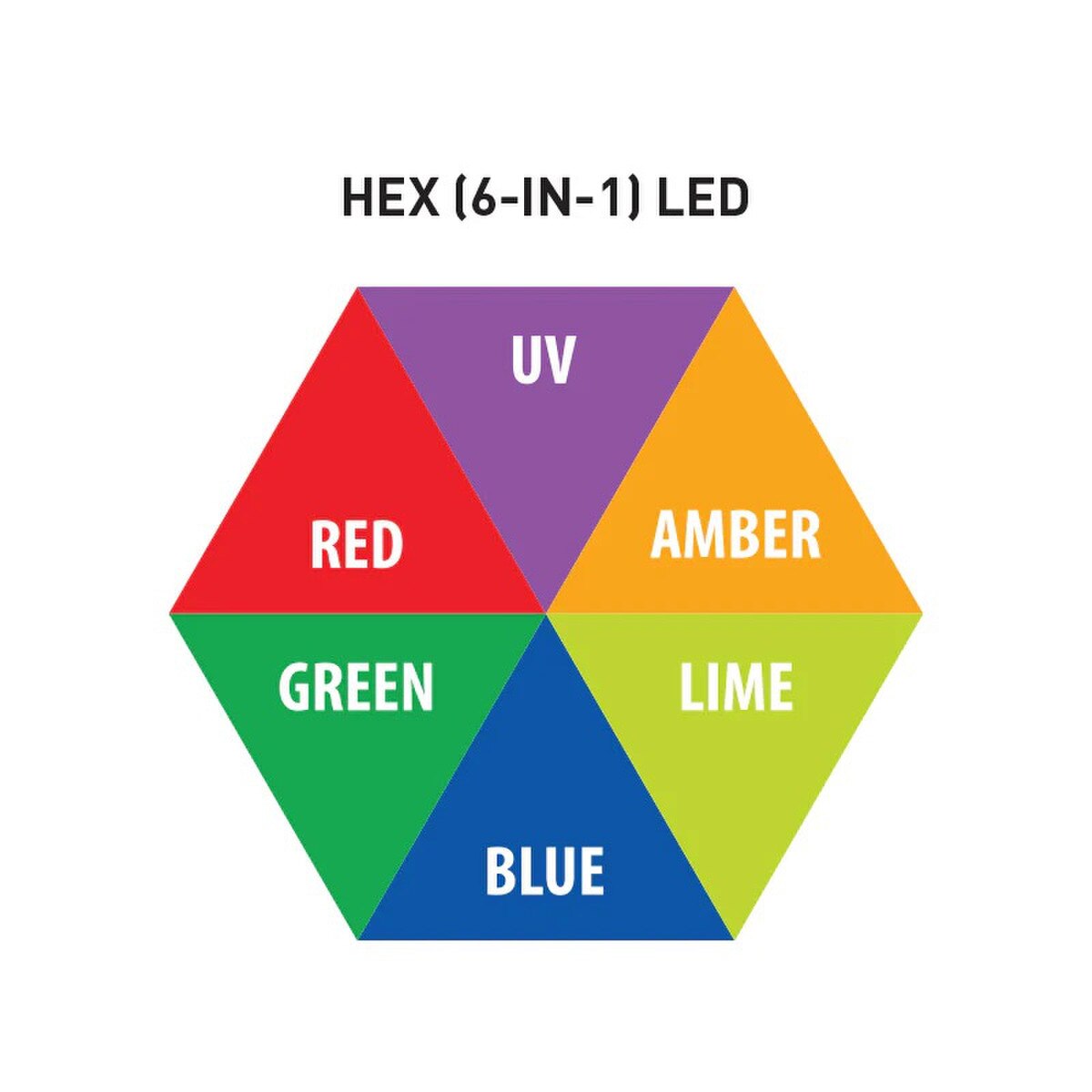

• LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
• Beam Angle: X = 28.61°, Y = 23.72°
• Field Angle: X = 50.82°, Y = 44.95°
• Lumens: 19,590

Features:

• IP65 rated – protects from dust, sand, moister, water
• Aria X2 Management System
• All metal construction with black housing
• Includes heavy duty bracket
• Flicker free for film and broadcast

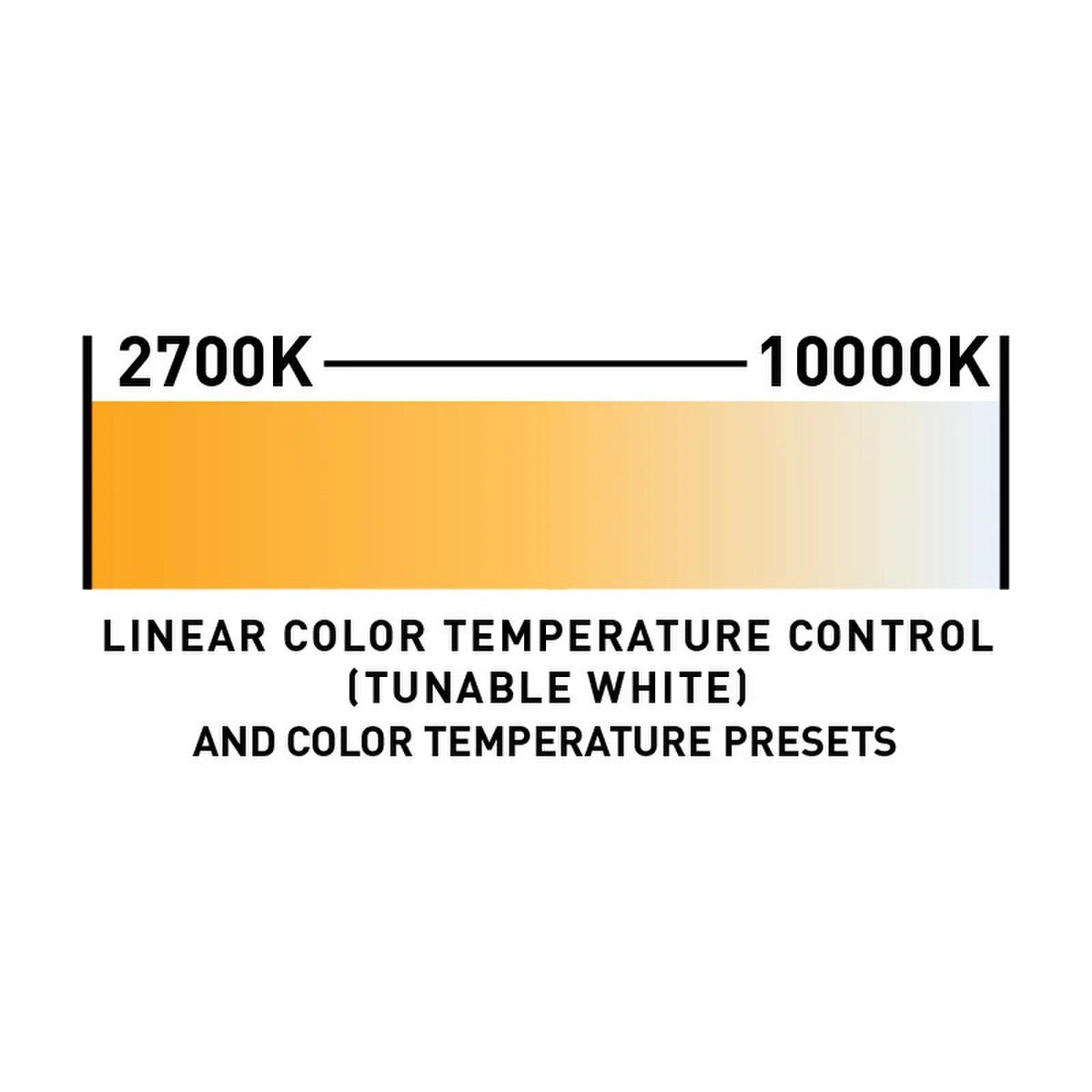

• Linear variable white temperature control (2700K~10,000K)

Construction:

• Display: OLED display with function buttons
• All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications

Control:

• 24 DMX control modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5 G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G 132Ch 10G modes
• 4 Control Groups: 1 / 2 / 5 / 10 Groups
• 0-100% Dimming + smooth 16-bit Dimming
• 5 Dimming Curve Modes
• Control Mode: DMX512, RDM (Remote Device Management)
• LED Refresh Rate: Multiple settings
• With Wired Digital Communication Network

Connections:

• Data: IP65 Locking 5-pin DMX In/Out
• Power: IP65 Locking Power In/Out

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 513W @120V; 492W @220V
• Max Power Link: 1pcs @120V; 4pcs @230V
• Fuse Protected: T4A/250V Glass Fuse (5*20MM)

Dimensions / Weight:

• Length: 16.42" (417mm)
• Width: 11.7" (296.8mm)
• Height: 8.35” (212mm)
• Weight: 24.58 (11.15kg)

What’s Included:

• 1 x IP65 Locking Power Cable
• 1 x Frost Filter
• 1 x Safety Cable

Optional Accessories:

• 180mm Omega Bracket
• JPFXBLKF (Sku: JPF001 - Black Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)
• JPFX1X60LF (Sku: JPF014 - 1x60° Linear Effect Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)

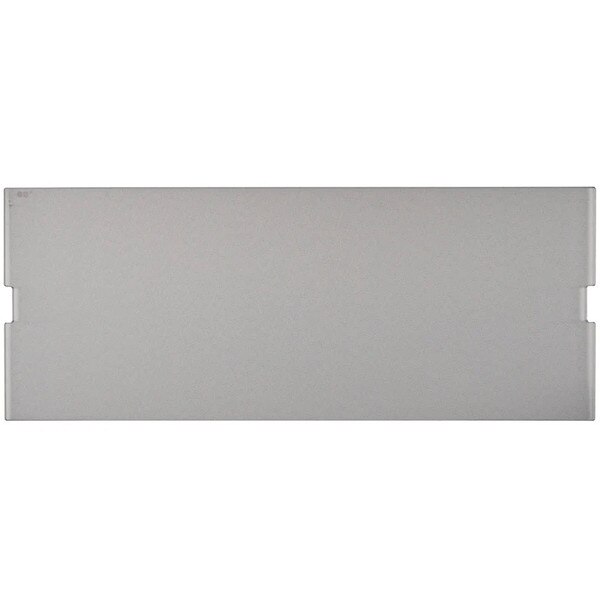

• JPFX60X1LF (Sku: JPF027 - 60X1° Linear Effect Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)

Approvals and Ratings:

• CE
• cETLus (Pending)
• IP65

Specifications are subject to change without notice.
