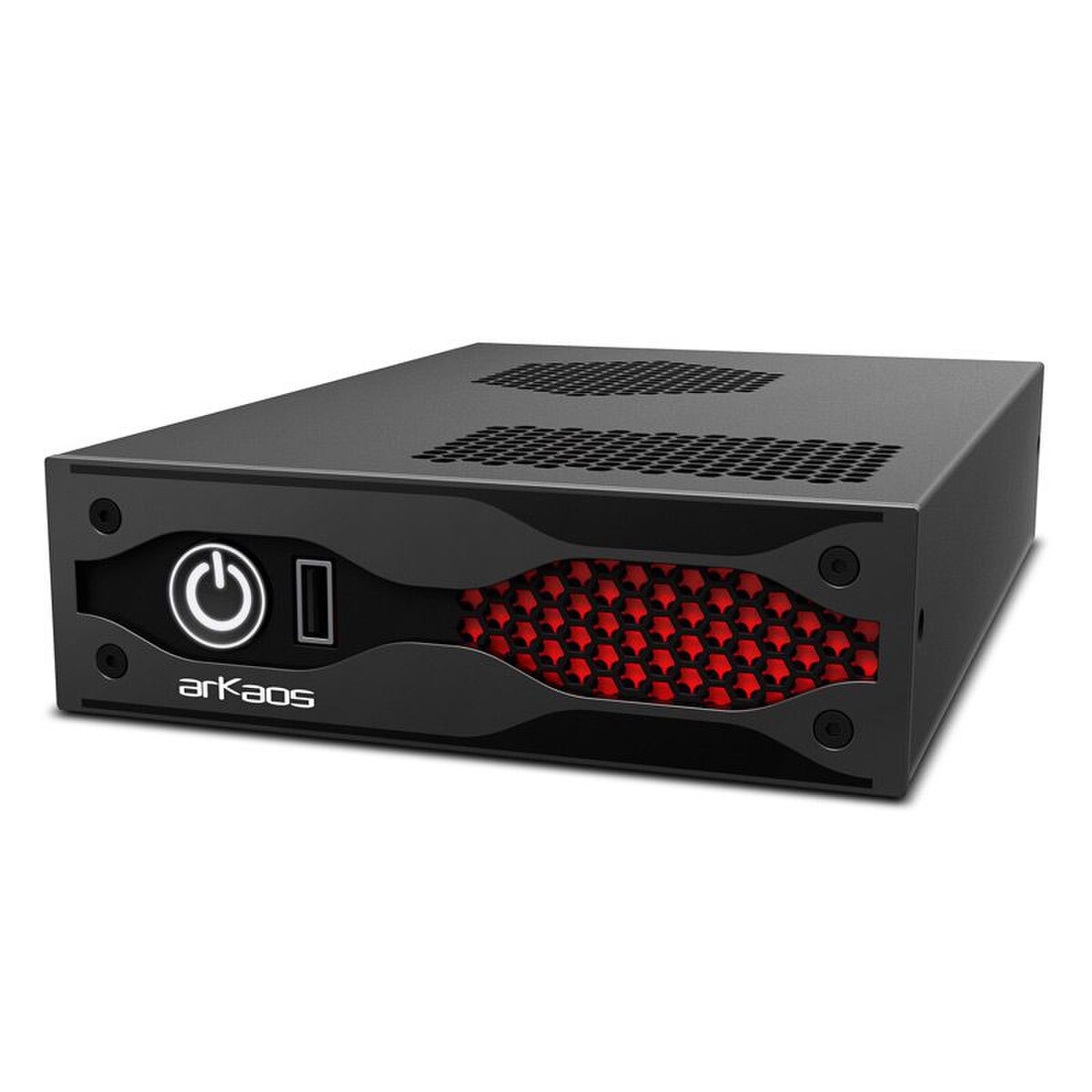

ADJ ArKaos VS1 Pro Media Server

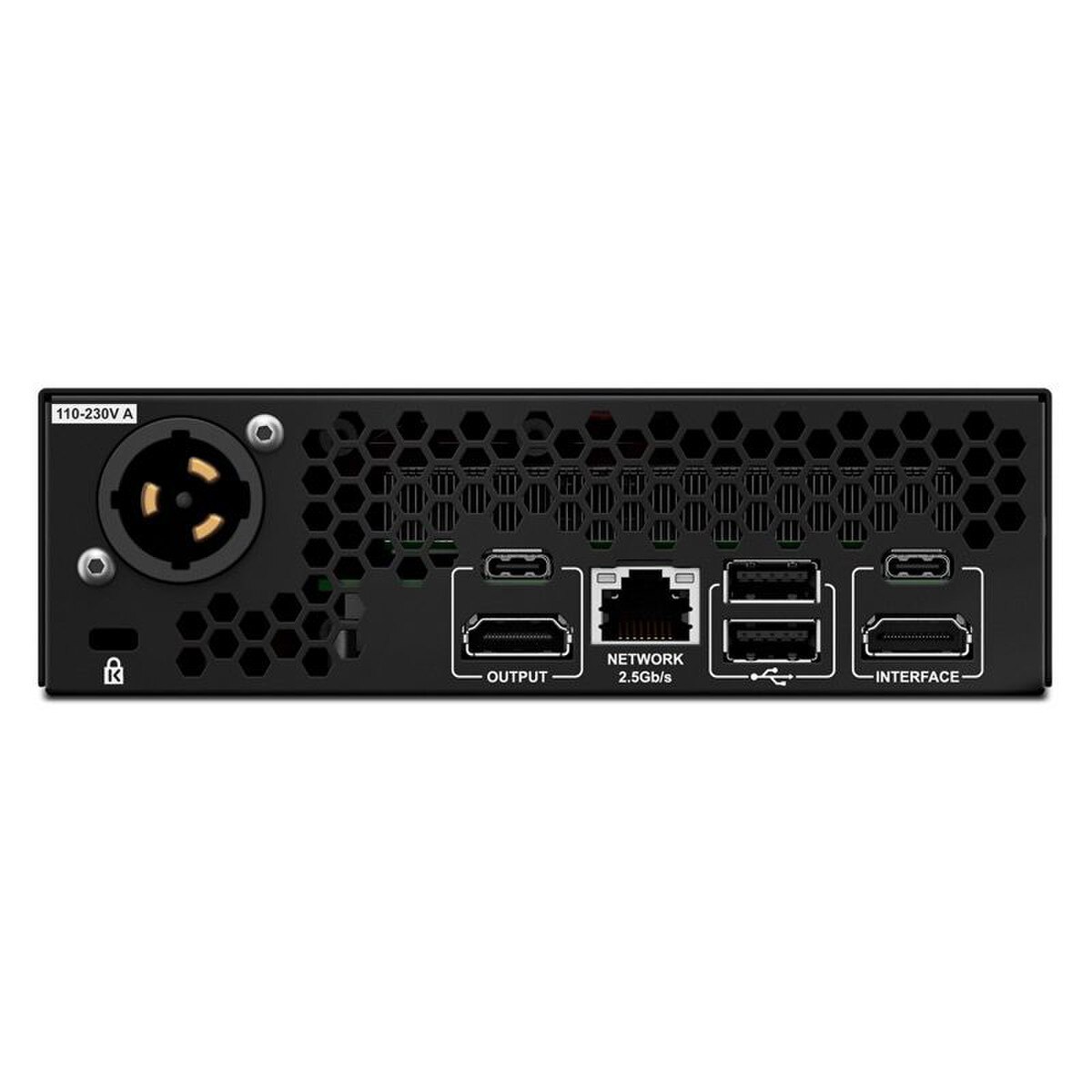

ArKaos VS1 Pro Media Server runs 4K video sources – with 2x HDMI and USB-C outs on the back of the device – giving the best and most vibrant results in a hugely flexible and user-friendly control package.

Specifications

Plug and Play Simplicity:

• Each server comes installed with MediaMaster Pro
• Runs 4K video on its output

I/O Specifications:

• Output:1x HDMI - 4K
• Ethernet:1x RJ 45 female
• USB:3x USB-A
• (1x USB 3.2/1x 3.0/1x USB 2.0)

Storage:

• System Drive: SSD 512 Gb
• Data DriveNo
• Sequential Read Speed: 560 MB/s

Software:

• Operating System: Windows 10
• MediaMaster Pro Software
• CuePlayer (in Theatre mode): Yes
• LED Mapper: Yes
• Kling-Net Mapper: Yes
• Video Mapper: Yes
• Acronis Backup System: Yes
• Playback Layers: 36
• Soft-Edge / Geometrical Correction: Yes

Control:

• Control Display (front panel): No
• LED Strip (front panel): No
• DMX / MIDI / Keyboard: Yes
• ArtNet / MA-Net: Yes

Hardware:

• CPU: Intel i7, 2,8 GHz
• #Threads (cores): 8 (4)
• RAM: 2x 8GB Crucial
• Type: DDR4 3200Mhz SODIMM
• Voltage: 107-240 V 50-60 Hz
• Professional Connectors: No

Dimensions:

• Unit Size (HxLxD): 143x195x43mm
• Unit Weight: 1.28 Kg
• Boxed Size (HxLxD): 515x235x100mm
• Boxed Weight: 1.66 Kg

Details:

When you need complete scalability, process control, and instant access, to manipulate several layers and scales simultaneously live on stage, it' s good to know you can rely on ArKaos innovation. With us, you have a promise of outstanding performance and rock-solid reliability. Small enough to carry around in your backpack.

The ArKaos VS1 Pro Media Server is a very flexible solution, with its triple unit in 1U footprint it’s ideal for churches, museums, bars, art installations, fashion shows, corporate events, video production companies, and much more.
