ADJ Arkaos Studio Server

Features

• Plug and Play Simplicity
• Vast library of high quality digital media from world’s best visual content providers
• Comes installed with MediaMaster Pro

Smart Design

• Runs full HD video on up to four EDID managed outputs
• One HD-SDI input and fast SSD drive
• Large LED status strip for quick visual feedback on the server’s operation state
• Front display allows use of server without the need of additional screens
• Fast recovery system by Acronis allows extremely simple reset from the boot menu
• Pre-configured to work directly with all market-leading DMX lighting desks

Blistering Performance

• Shock-resistant up to 2G
• Easy access to fans and filters
• Thoroughly tested in structural strength, and toleration of heat and vibration

Specifications:

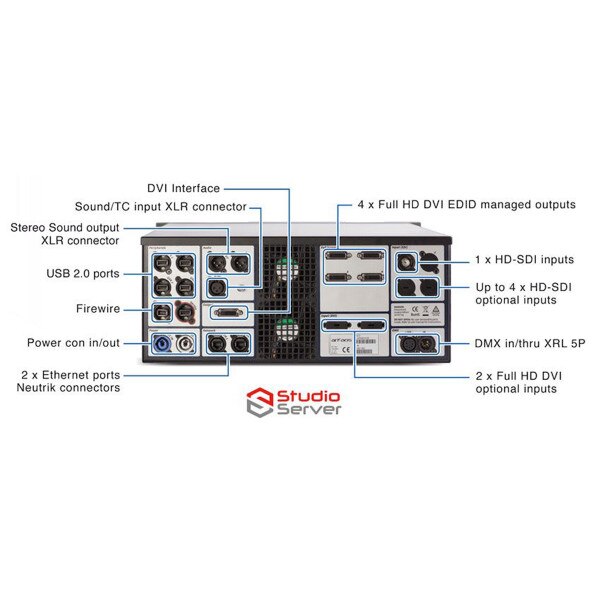

• I/O
• Interface Output: 1 (DVI)
• Output: 4 (DVI)
• EDID Management: Yes
• Input (Standard): 1x HD-SDI
• Input (Upgrade): Up to 4 x HD-SDI & 2 x DVI
• Output Resolution: 4 x Full HD
• DMX 5pin Connectors: Yes
• Genlock: No
• Framelock: No
• USB: 2 x USB 3.0 + 4 x USB 2
• Balanced Audio In/Out (XLR): Yes
• Network: 2

Storage:

• System Drive: SSD 128 GB
• Separate Drive: SSD 256 GB

Software:

• MediaMaster: Pro
• CuePlayer (Theater mode): Yes

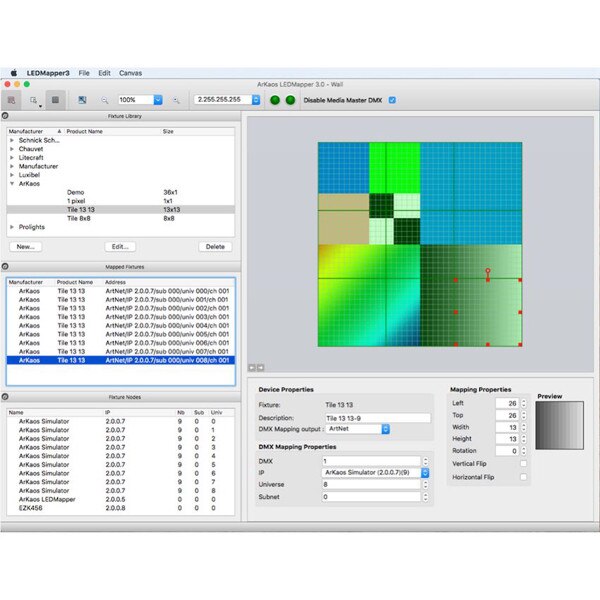

• LED Mapper: Yes
• Kling-Net Mapper: Yes

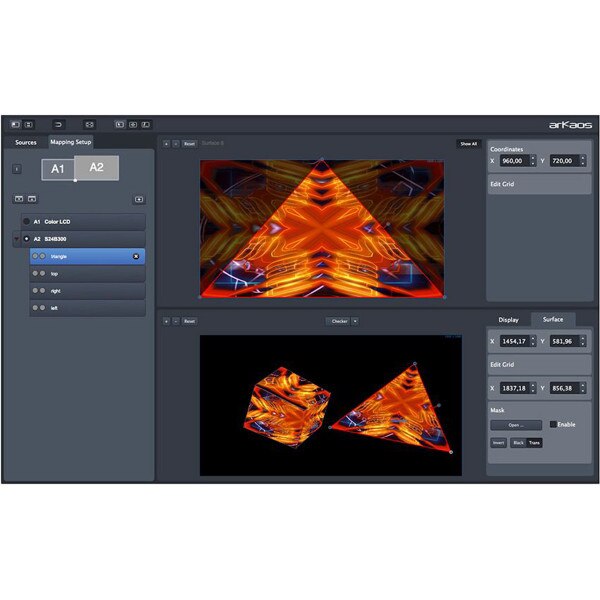

• Video Mapper: Yes
• Acronis Backup System: Yes
• Layers Full HD: Up to 12
• Layers HD: 12
• Soft-Edge / Geometrical Correction; Yes

Control:

• Control Display (Front Panel): Yes
• LED Strip (Front Panel): Yes
• DMX / MIDI / Keyboard: Yes
• ArtNet / MA-Net: Yes

Hardware:

• Voltage: 107-240V Auto Switching
• Professional Connectors: Yes
• RDM (Remote Device Management): Yes

Size / Weight:

• Height: 6.9” (176mm)
• Length: 16.8” (426mm)
• Depth: 20.0” (510mm)
• Unit Weight 55.1 lbs. (25kg)
