ADJ EVS3-5X3 Video Wall System

At A Glance:

The EVS3 5X3 video wall system includes all the components needed to build a 5 by 3 video wall, including video panels, video processor, power cables, data cables, rigging bars and video software (computer sold separately).

Details:

The EVS3 5X3 video wall system includes all the components needed to build a 5 by 3 video wall (Approx: 100” x 60” or 8.5 ft. x 5 ft.), including video panels, video processor, power cables, data cables, rigging bars and video software (computer sold separately).

The EVS3 is a rugged LED video panel solution designed for temporary installations that demand stunning visual displays. With a pixel pitch of 3.91mm and a configuration of a 3-in-1 RGB SMD2121 LED, the EVS3 delivers crisp and vibrant images with a pixel density of 128x128, totaling an impressive 65,536 pixels per square meter.

The EVS3 is built for convenience and durability, featuring front and rear serviceability with four easily replaceable video modules on each panel. Its compact size of 19.68” x 19.68” x 2.96” and lightweight construction weighing just 16.5 lbs make it highly portable and easy to handle.

Equipped with corner protectors for added durability during transport and setup, the EVS3 ensures that your investment remains protected. Its exceptional optical ratings include a brightness of 800 NITS and a wide viewing angle of 160° horizontal and 140° vertical at 9.75 ft. The EVS3 also offers versatile control options, supporting various input modes such as Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI.

Hang up to 20 EVS3 Video Panels vertically with the VSRB1 (VS1100) Rigging Bar. For added convenience, a range of optional accessories are available, including flight cases, rigging bars, support brackets, and video processors, allowing you to customize and enhance your installation according to your specific needs.

The EVS3 is intended for temporary use only and should not be permanently installed. Elevate your visual experience to new heights with ADJ’s EVS3 LED video panel.

Specifications

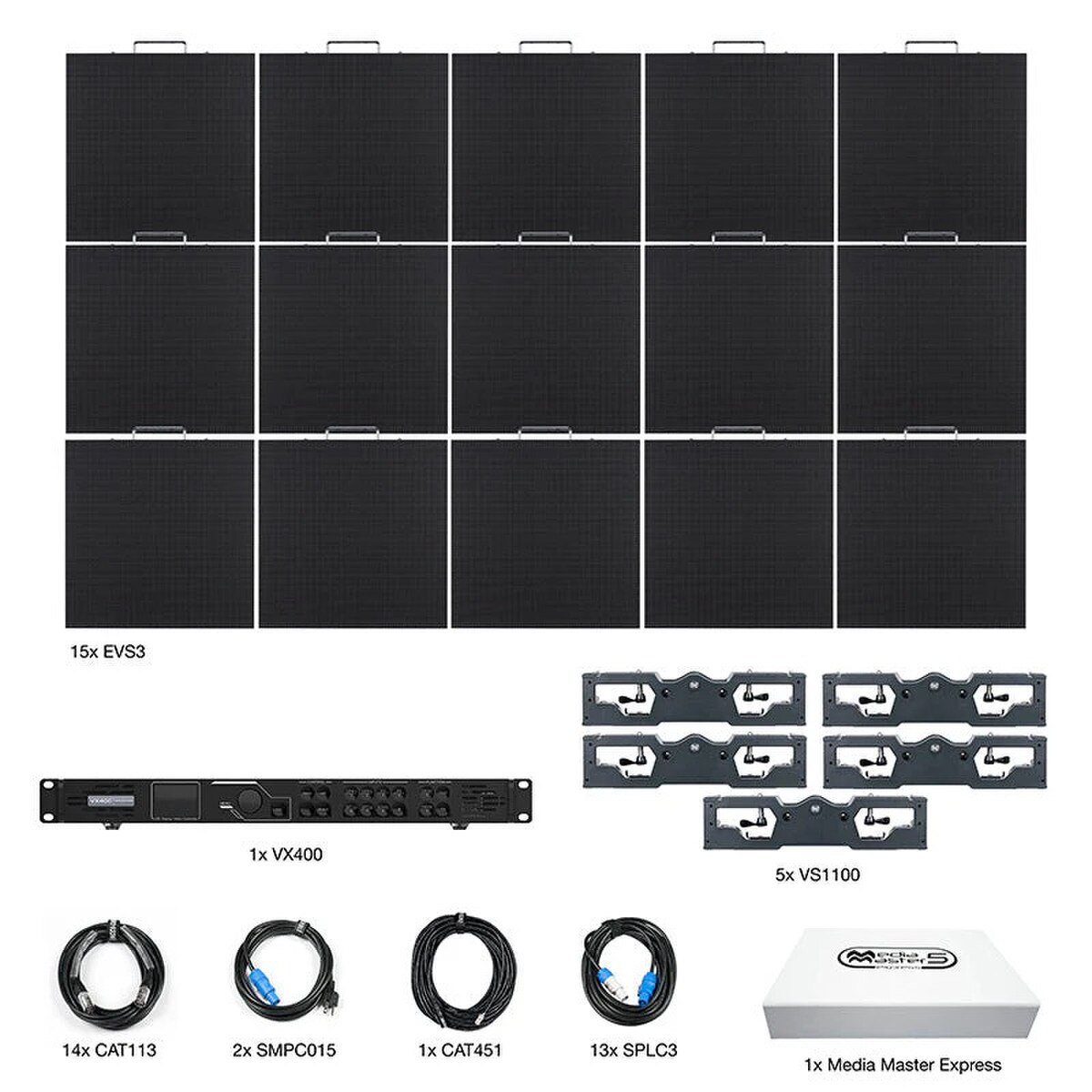

EVS3 5X3 Video Wall System Includes:

• 15 x EVS3 - 3.91mm, 3-in-1 RGB SMD2121 LED Video Panels (EVS300)
• 14 x CAT6PRO3 - 3 ft. Cabinet to Cabinet data link cable (CAT113)
• 1 x CAT6S25FC - 25 ft. Processor to Cabinet data link cable (CAT451)
• 13 x SPLC3 - 3 ft. locking power link connector cable (SPL013)
• 2 x SMPC15 - 15 ft. locking power to Edison cable (SMP027)
• 1 x VX400 - Novastar video processor (VX4027)
• 5 x VSRB1 - Single panel rigging / ground stack bar (VS1100)
• 1 x Media Master Express - Video Control Software
