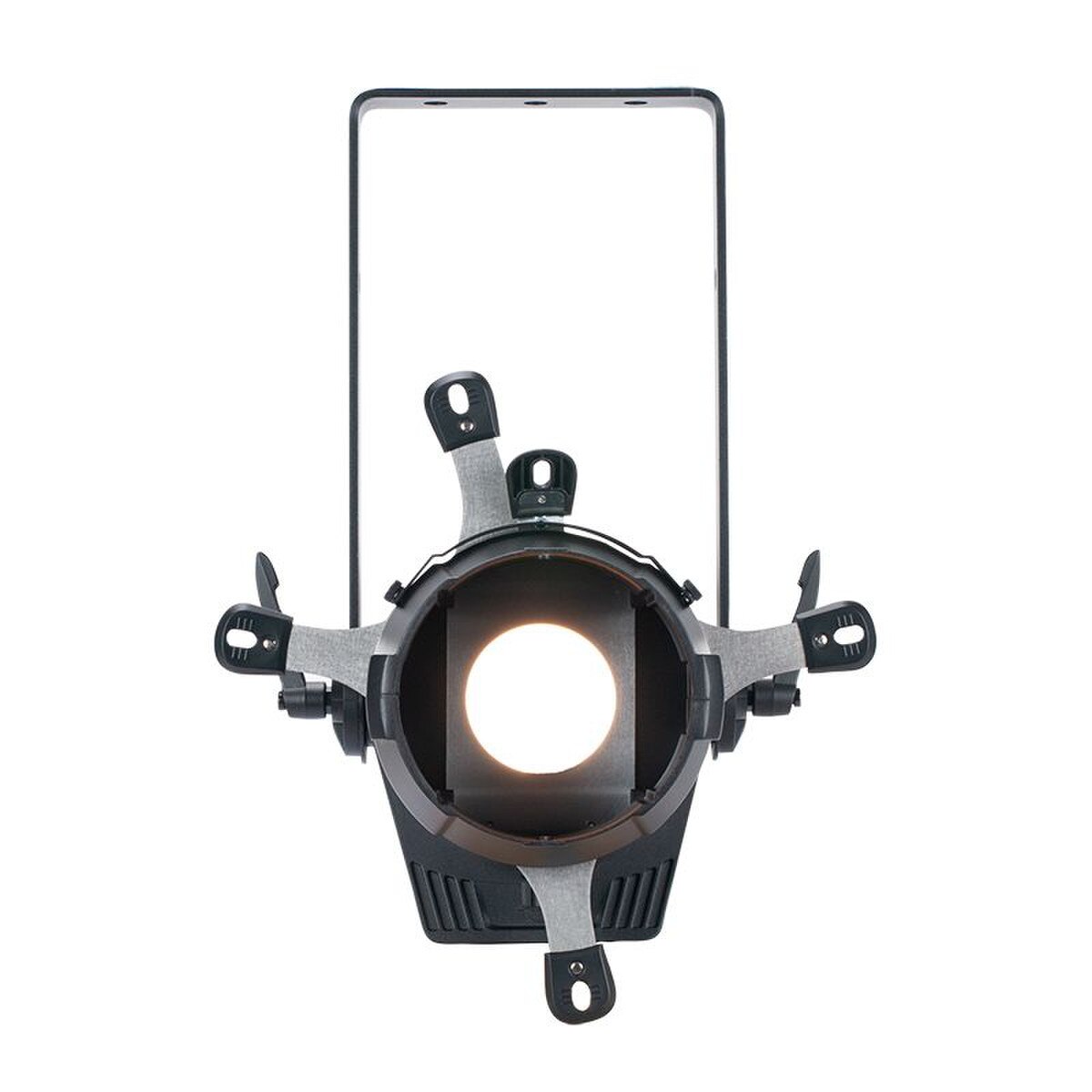

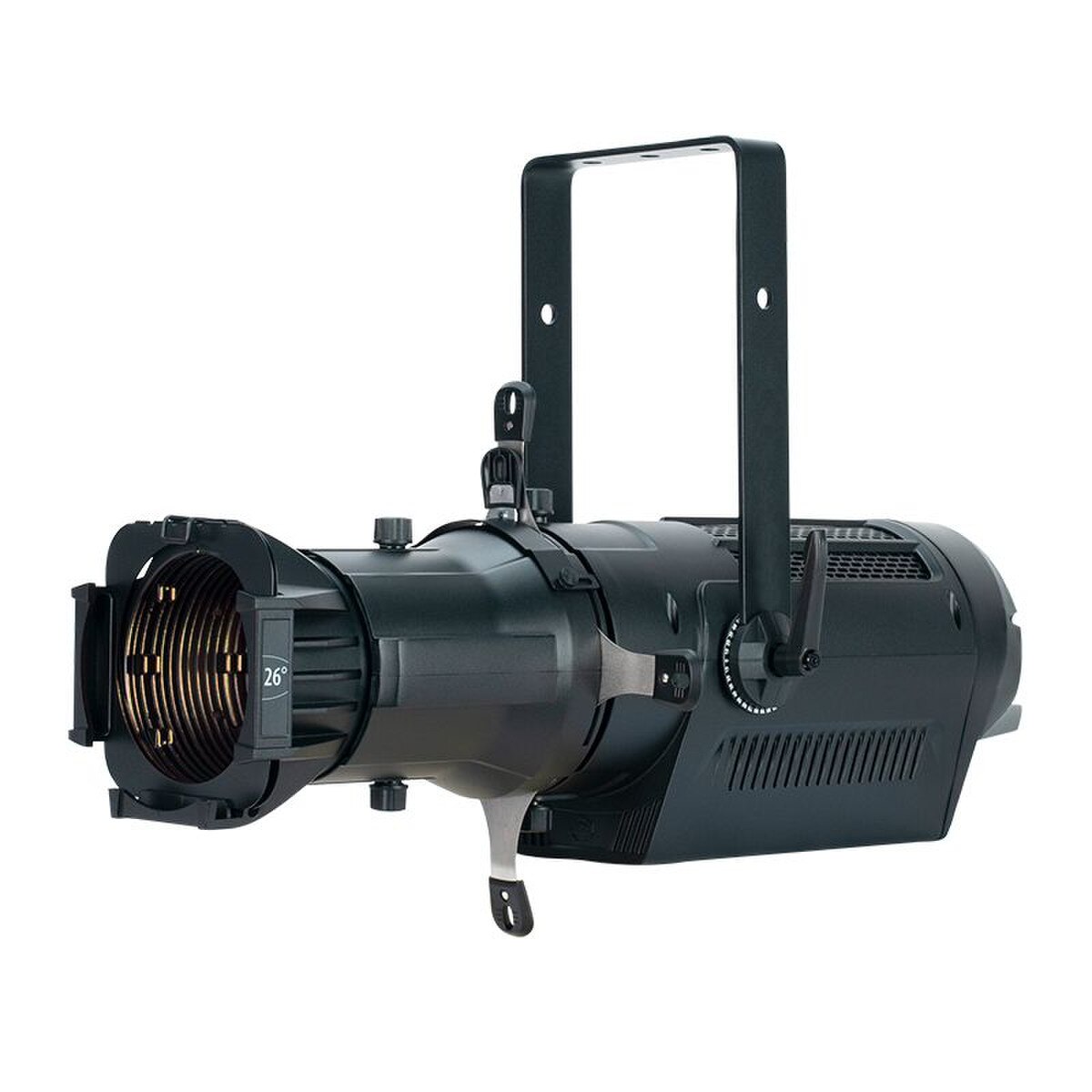

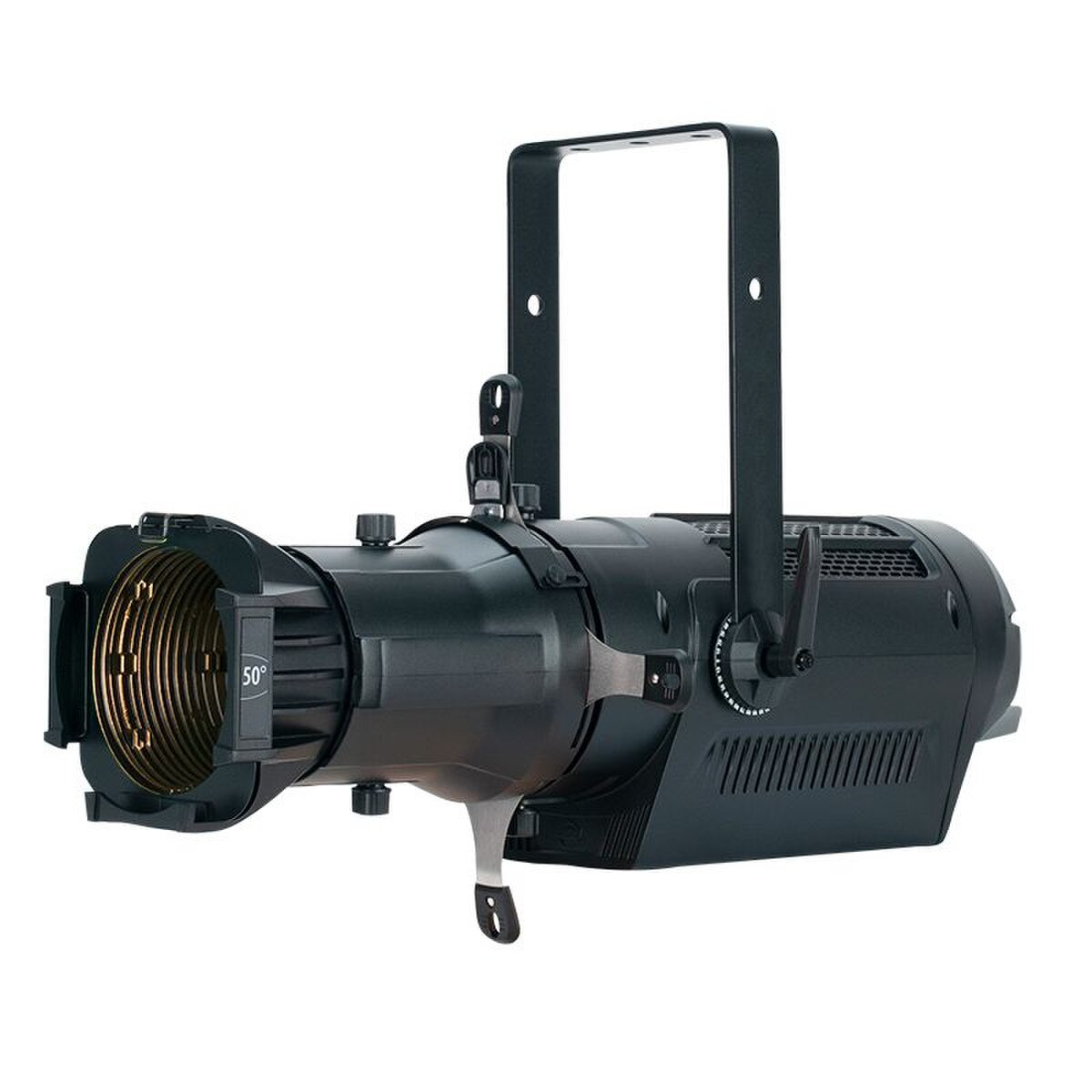

ADJ Encore Profile Pro WW

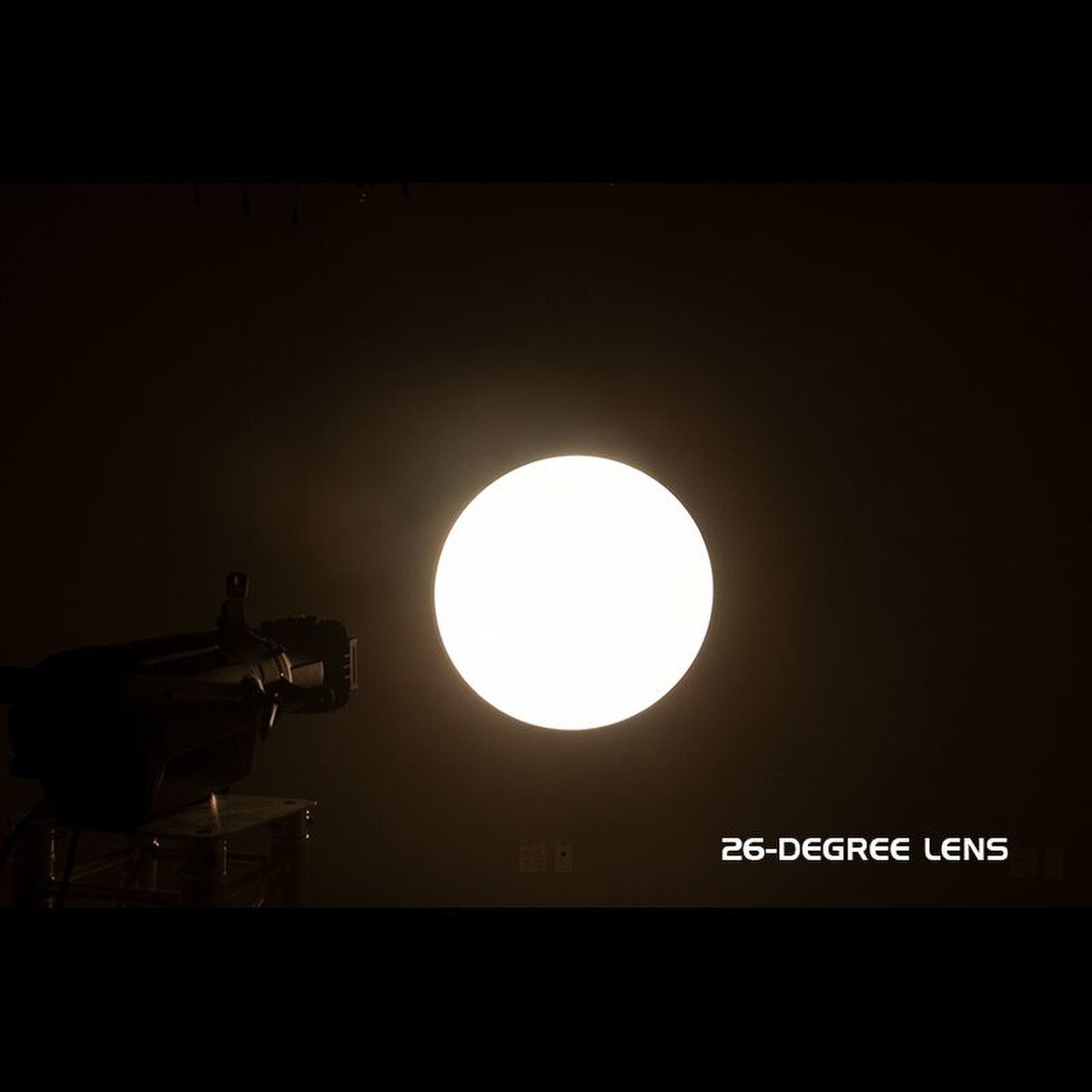

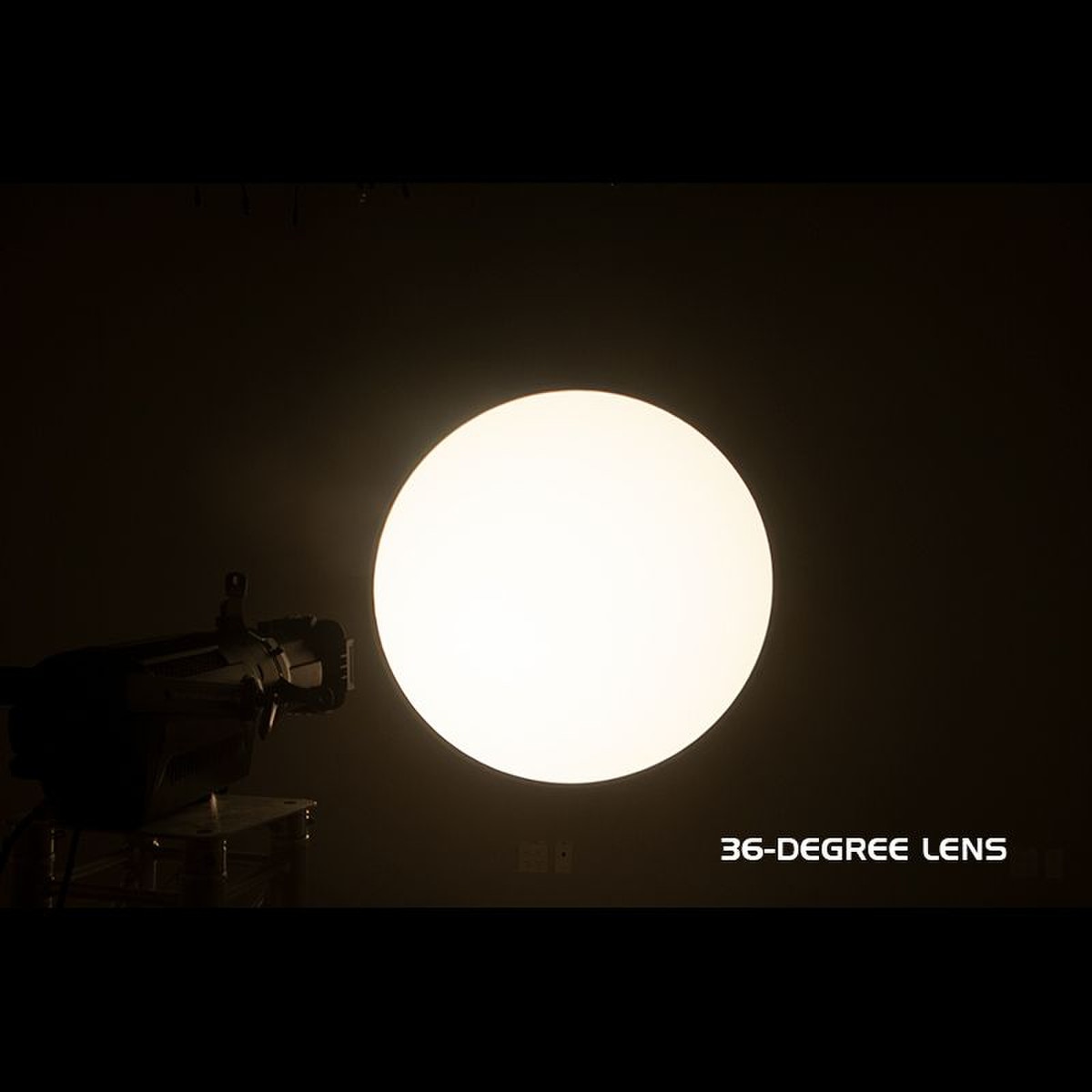

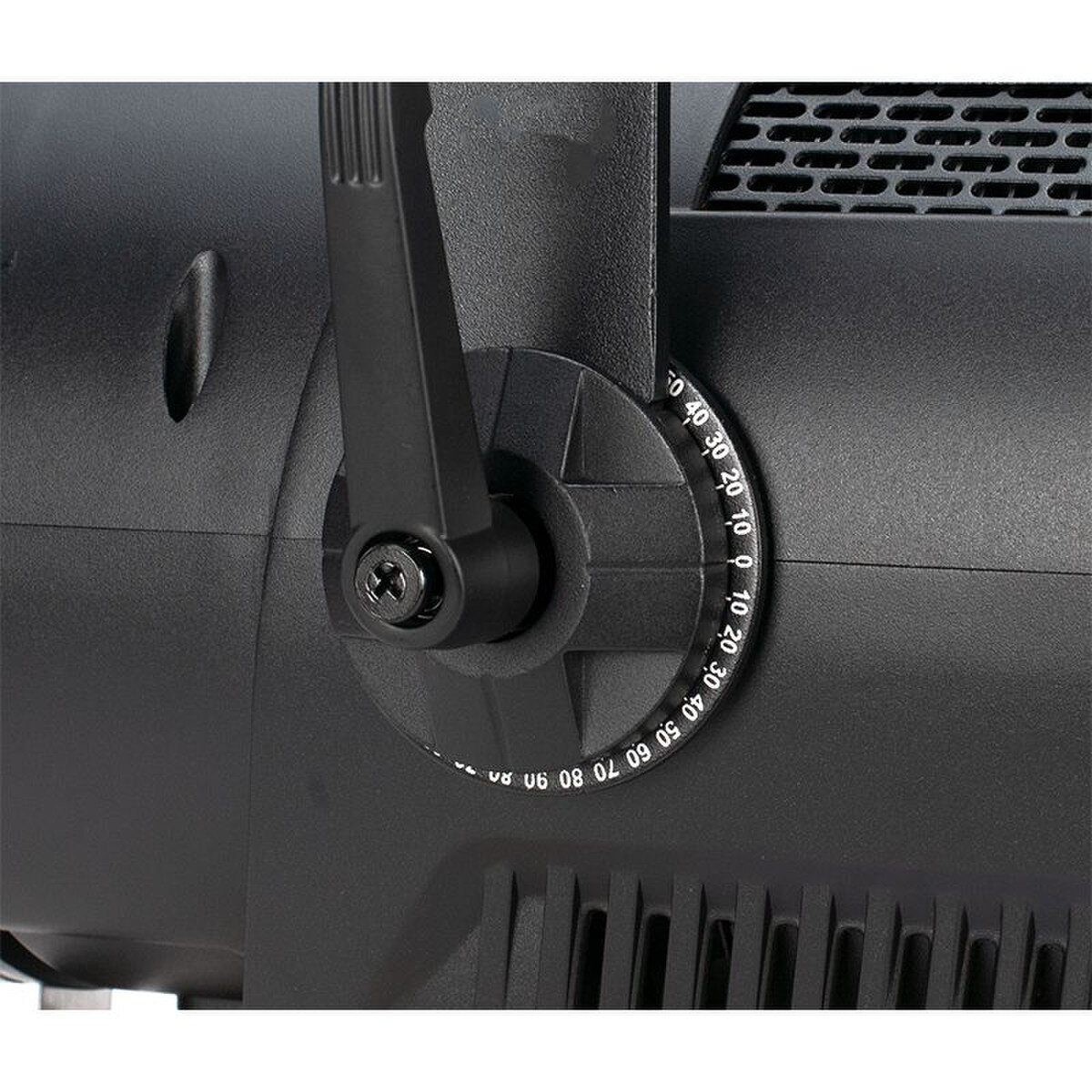

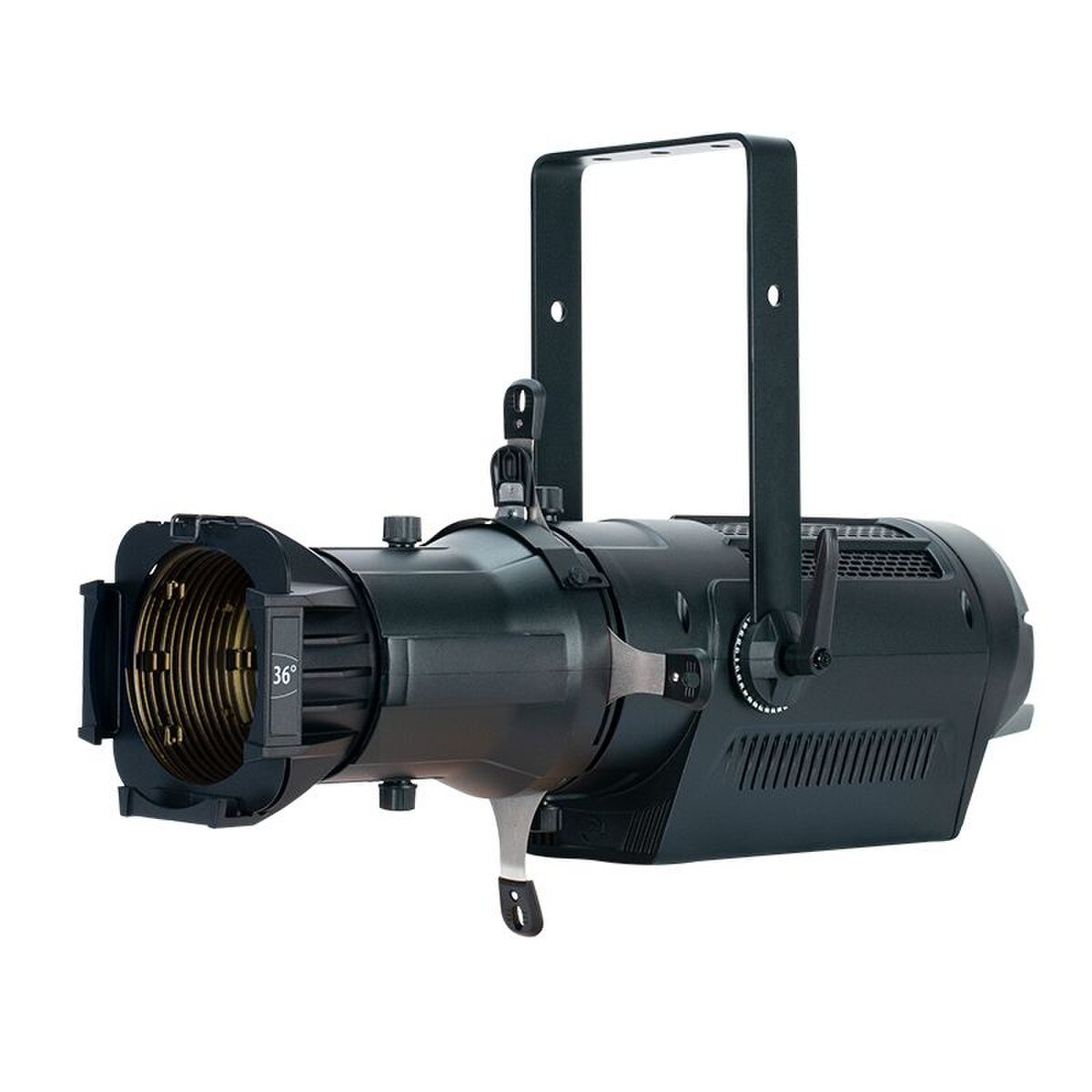

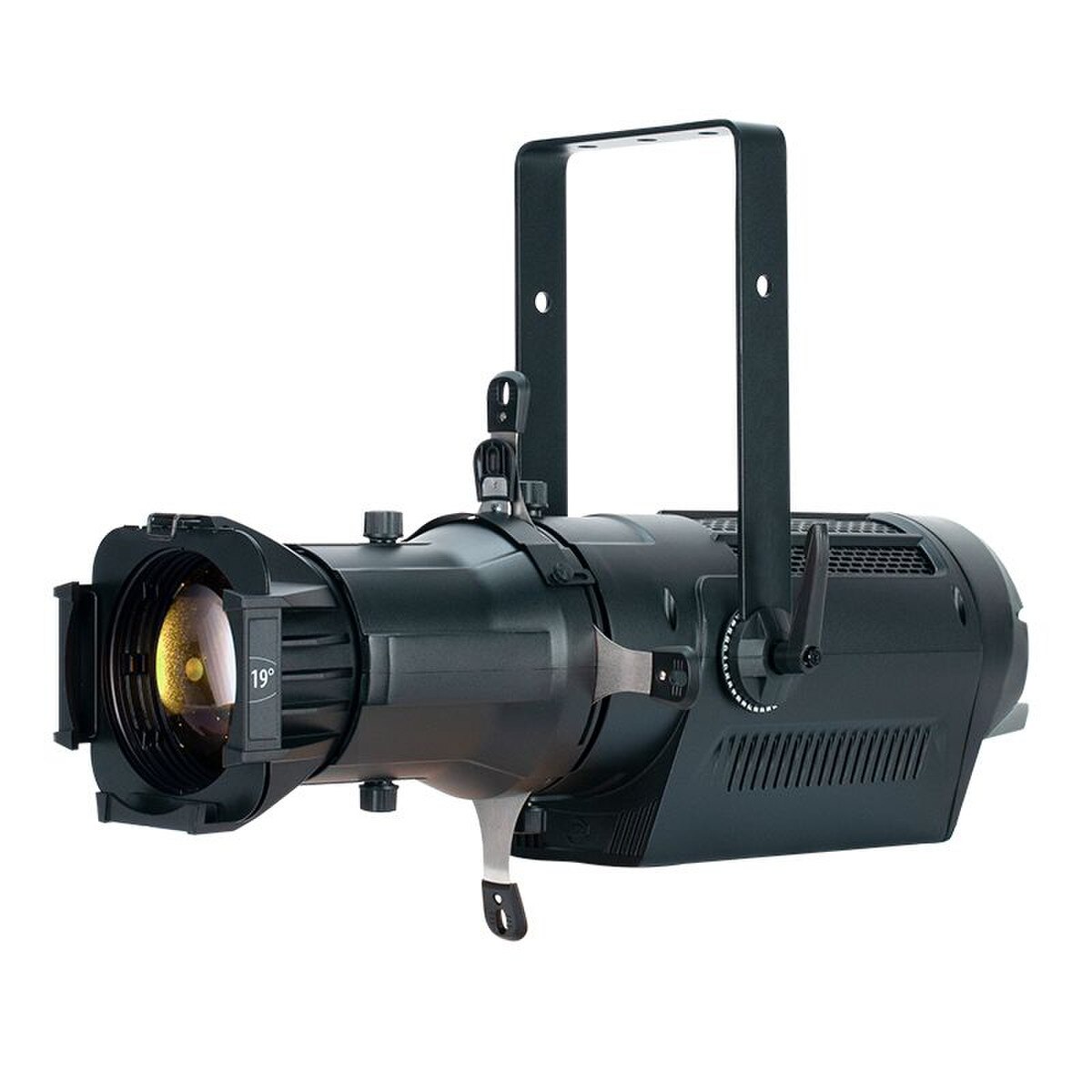

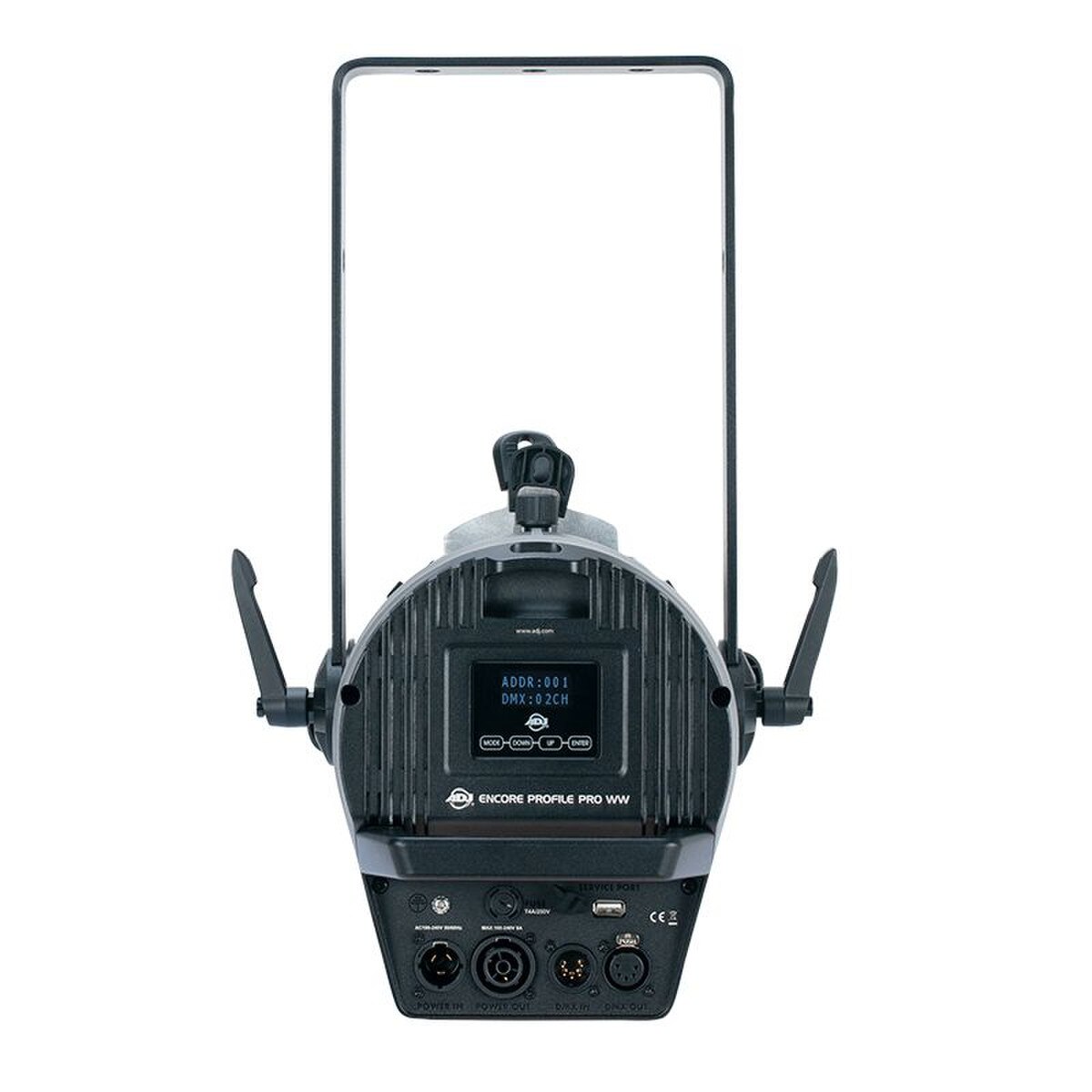

The ADJ Encore Profile Pro WW™ ellipsoidal features a high powered 260W Warm White >97CRI 3,200K LED engine producing 10,000+ total lumens, 14°, 19°, 26°, 36°, and 50° interchangeable high definition lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curves and dimming modes, adjustable refresh frequency for flicker free operation for TV and FILM, locking 5-pin XLR In/Out and Locking Power In/Out, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (AC100-240v).

Specifications:
Source:

• 260W Warm White LED Engine
• 50,000 Hour Average LED Life*
• *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data:

• >97CRI 10,000 Total Lumens* (*with 26° lens)
• 3200K Color Temperature

Effects:

• Electronic Strobe and Dimming
• Variable Dimming Curves and Dimming Modes

Gobos:

• Supports “B” Size Metal, HT Transparency Gobos
• GOBO Holder is included
• GOBOs are sold separately

Control / Connections:

• (3) DMX Channel Modes (2, 3, 6)
• Adjustable Refresh Rates (900-1500, 25,000 Hz)

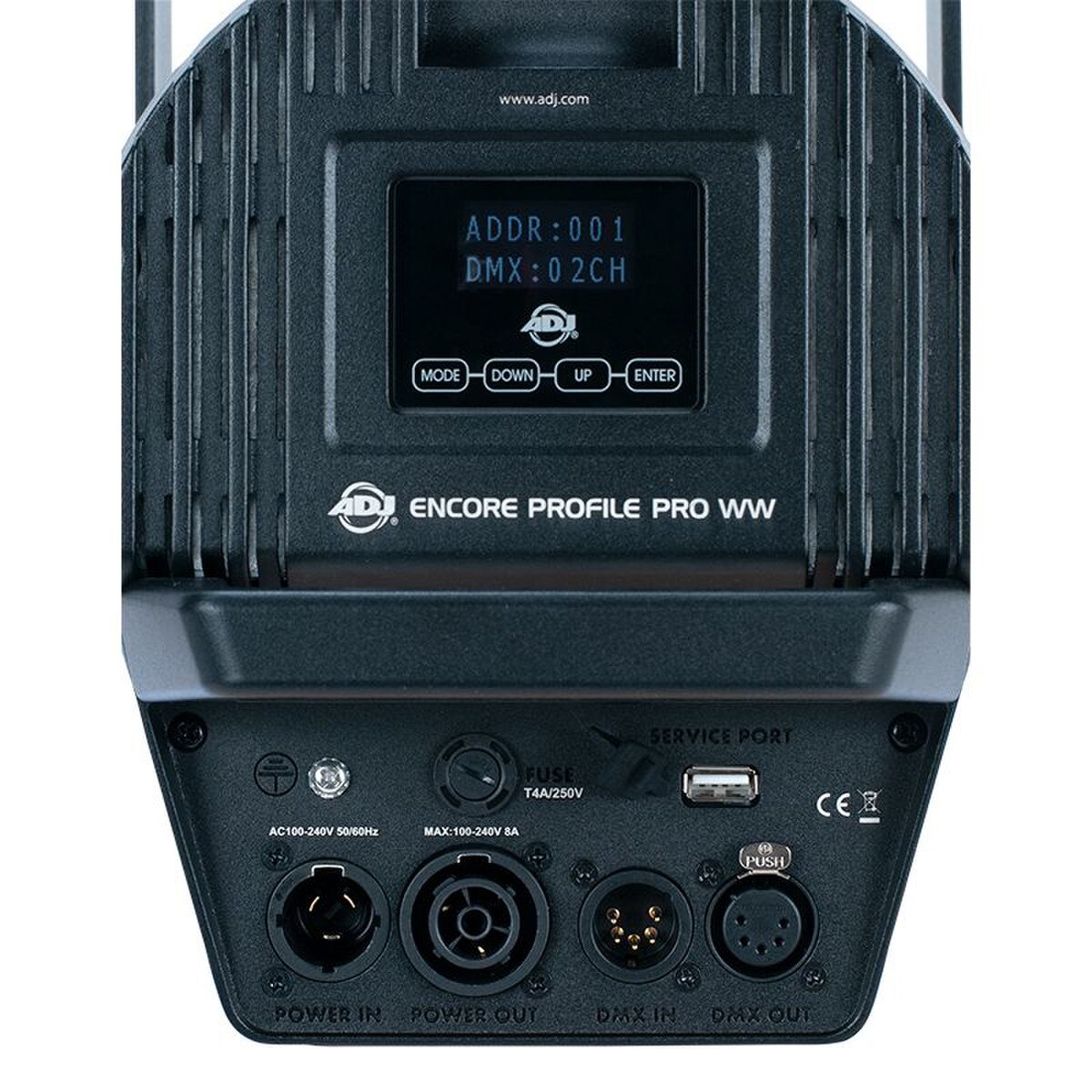

• 4 Button Control Panel
• LED Menu Display
• Locking 5pin XLR Connector In/Out
• Locking Power Connector In/Out
• With Wired Digital Communication Network
• RDM (Remote Device Management)

Size / Weight:

• Length: 26.9” (688mm) (Lens In)
• Width: 11.375” (287mm)
• Vertical Height: 17.7” (450mm)
• Weight: 20.0 lbs. (9.1 kg)

Electrical / Thermal:

• Quiet Fan Cooling
• AC 100-240V - 47/63Hz
• 260W Max Power Consumption
• Power Linking: 3pcs Max @120V / 8pcs Max @240V
• 14° to 113°F (-10° to 45°C)

Approvals / Ratings:

• CE | cETLus (Pending) | IP20

Included Items:

• (1) Locking Power Cable

Optional Accessories:

• EPP IRIS (EPP001)
• EP Lens 14 (14° High Definition Lens)

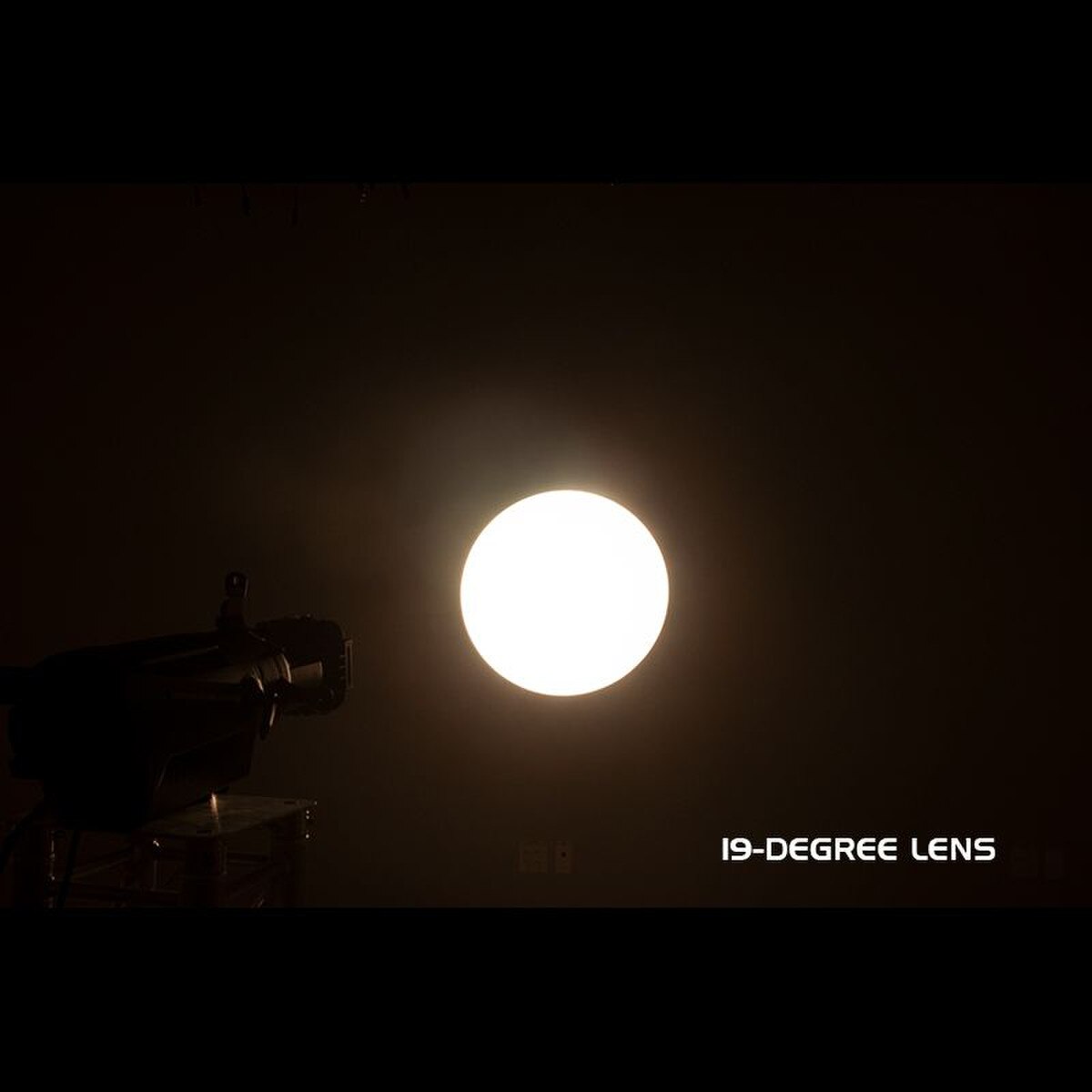

• EP Lens 19 (19° High Definition Lens)
• EP Lens 26 (26° High Definition Lens)
• EP Lens 36 (36° High Definition Lens)

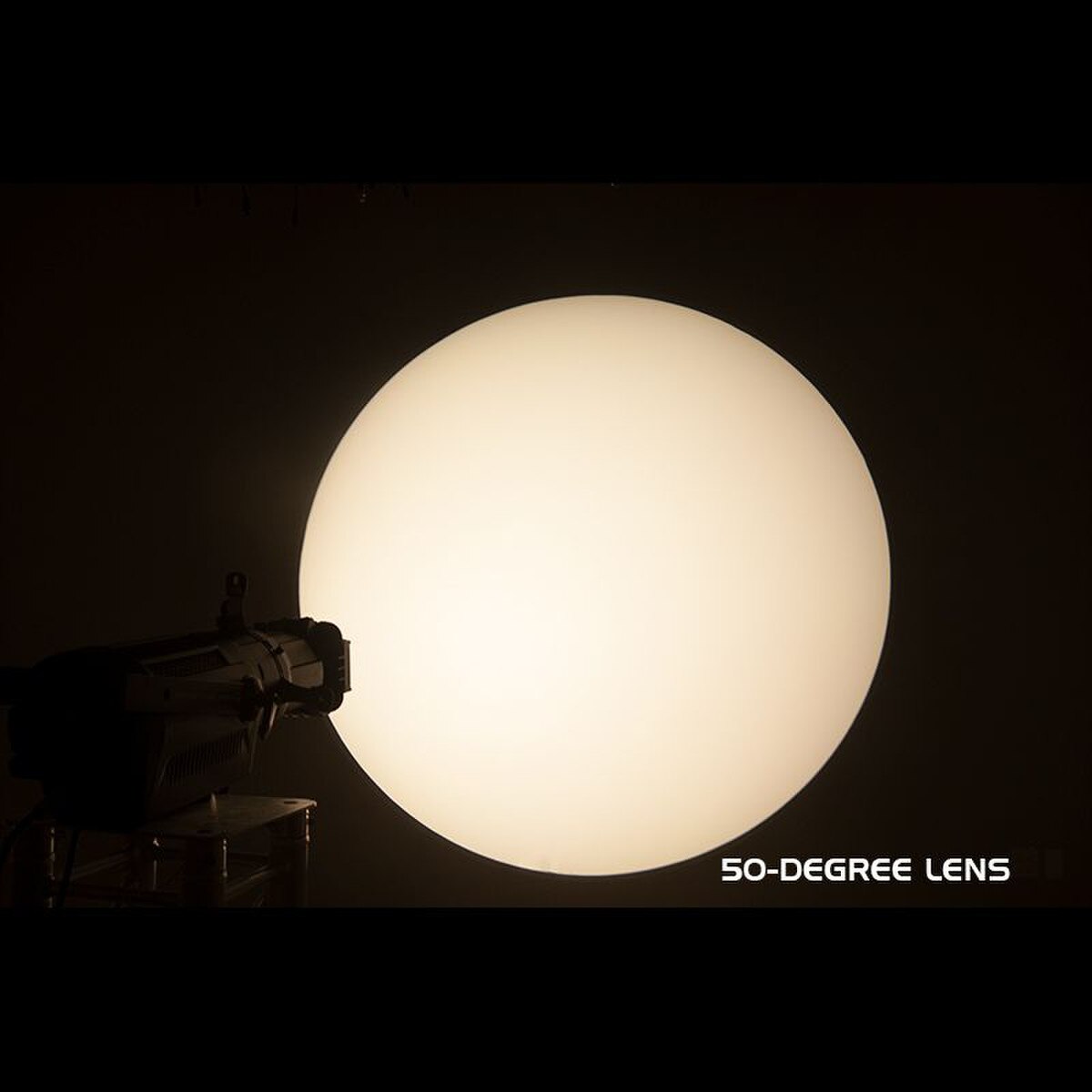

• EP Lens 50 (50° High Definition Lens)
• EP Lens 15-30Z (15° to 00° High Definition, Manual Zoom Lens)
• EP Lens 25-50Z (25° to 50° High Definition, Manual Zoom Lens)
• SIP064: 1.64ft. IP65 male to female twist lock power link cable
• SIP113: 3ft. IP65 male to female twist lock power link cable
• SIP126: 5ft. IP65 male to female twist lock power link cable
• SIP139: 10ft. IP65 male to female twist lock power link cable
• SIP152: 16ft. IP65 male to female twist lock power link cable
• SIP165: 25ft. IP65 male to female twist lock power link cable
• SIP178: 50ft. IP65 male to female twist lock power link cable
• SIP191: 100ft. IP65 male to female twist lock power link cable
• *Specifications and documentation subject to change without notice.
