ADJ Entour Pileus

At A Glance:

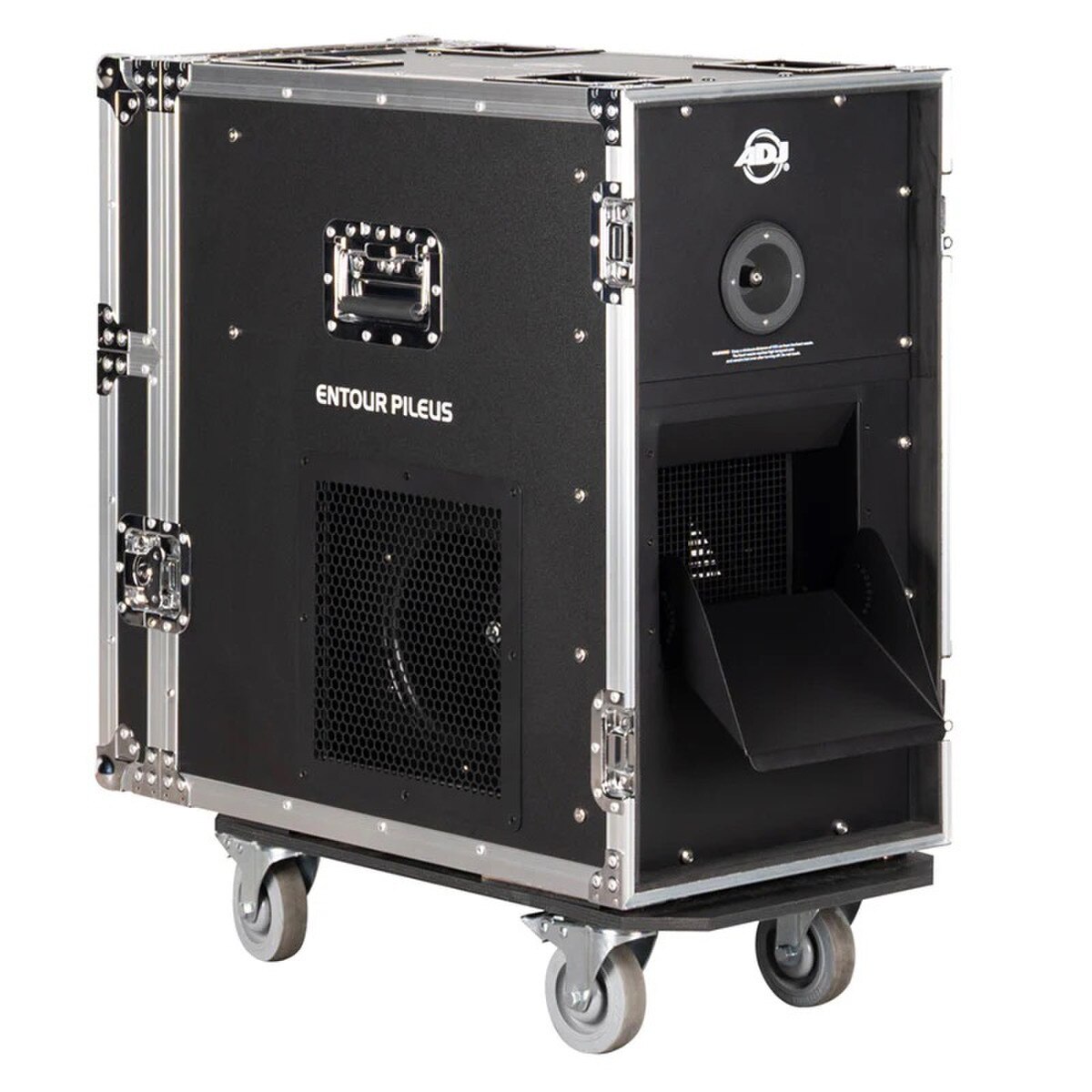

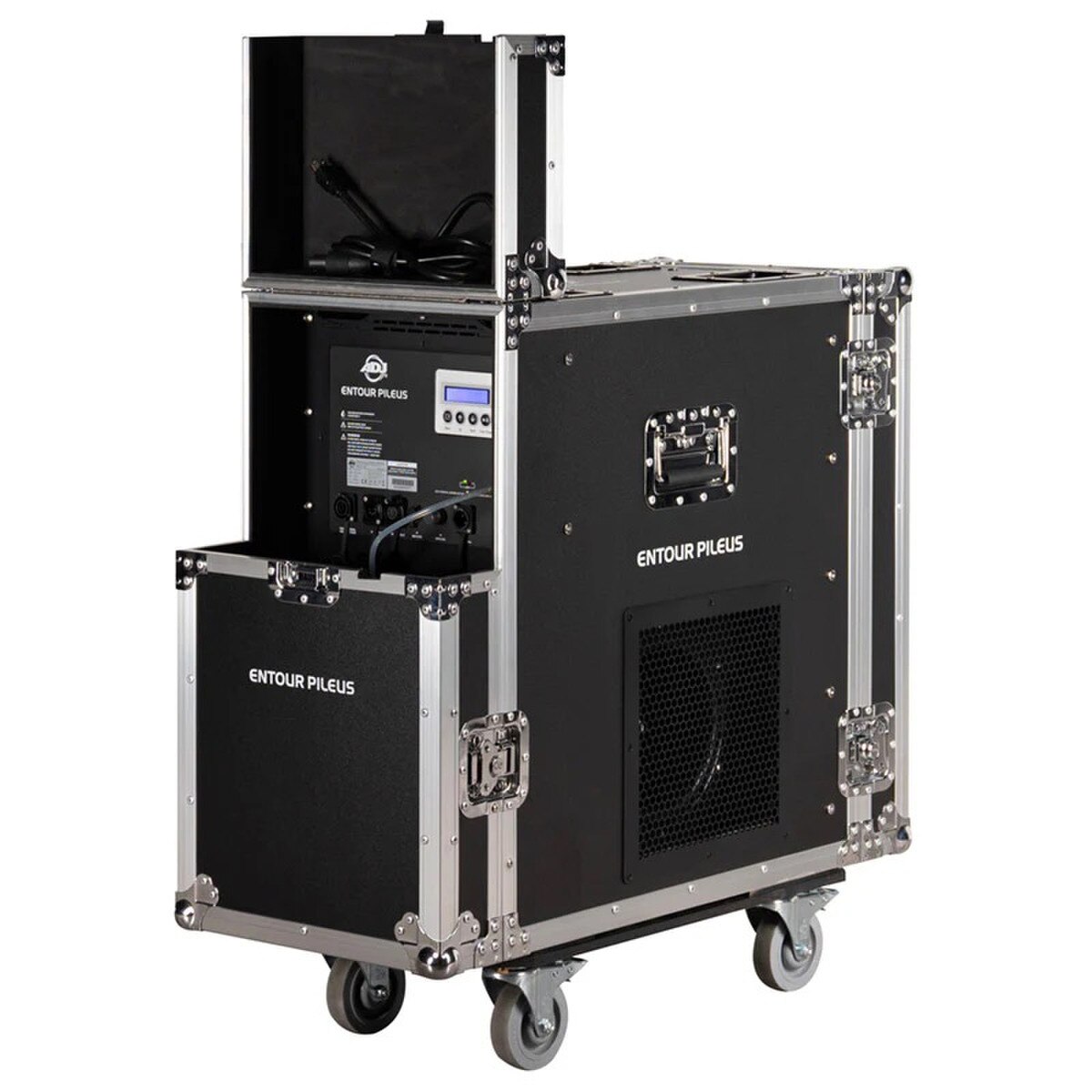

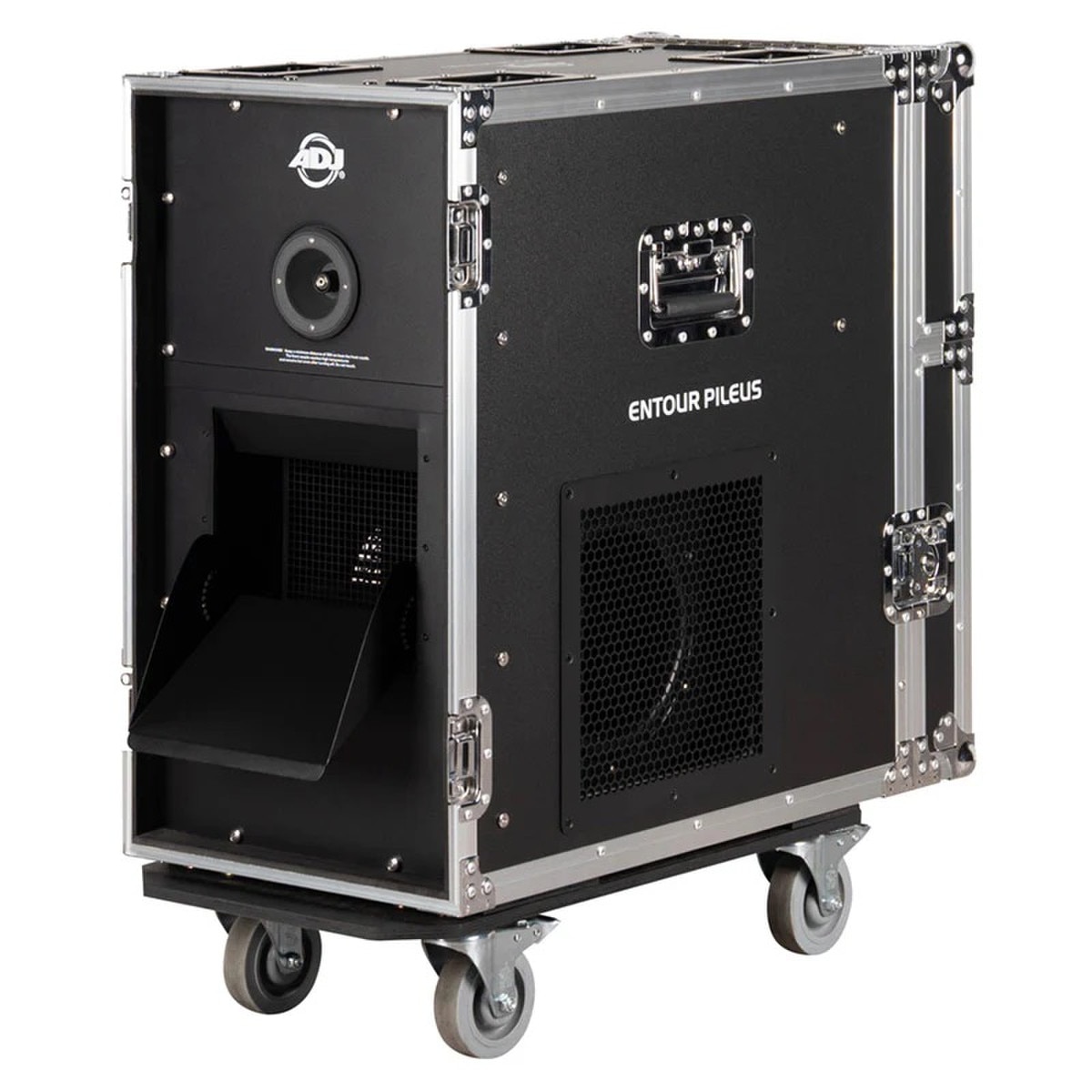

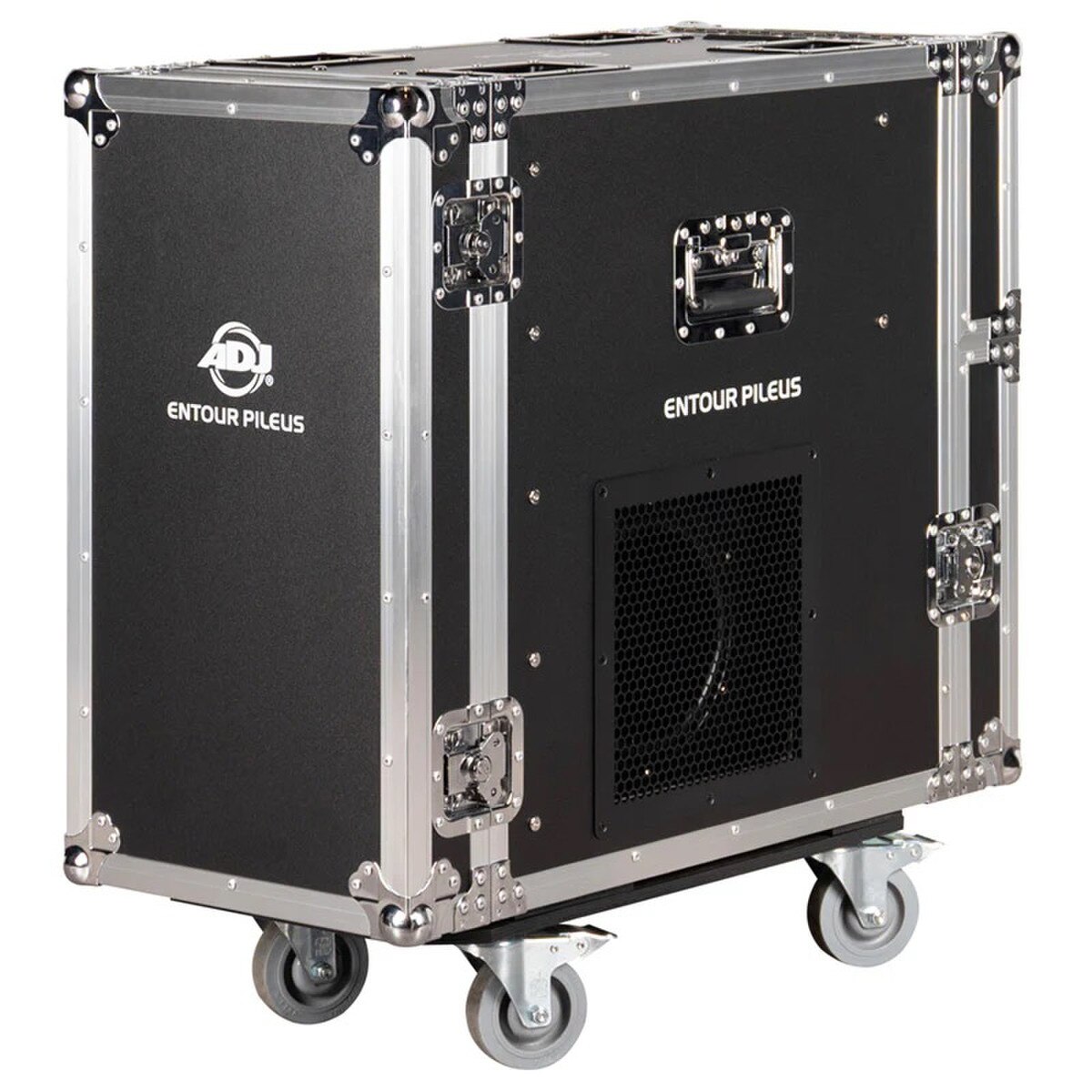

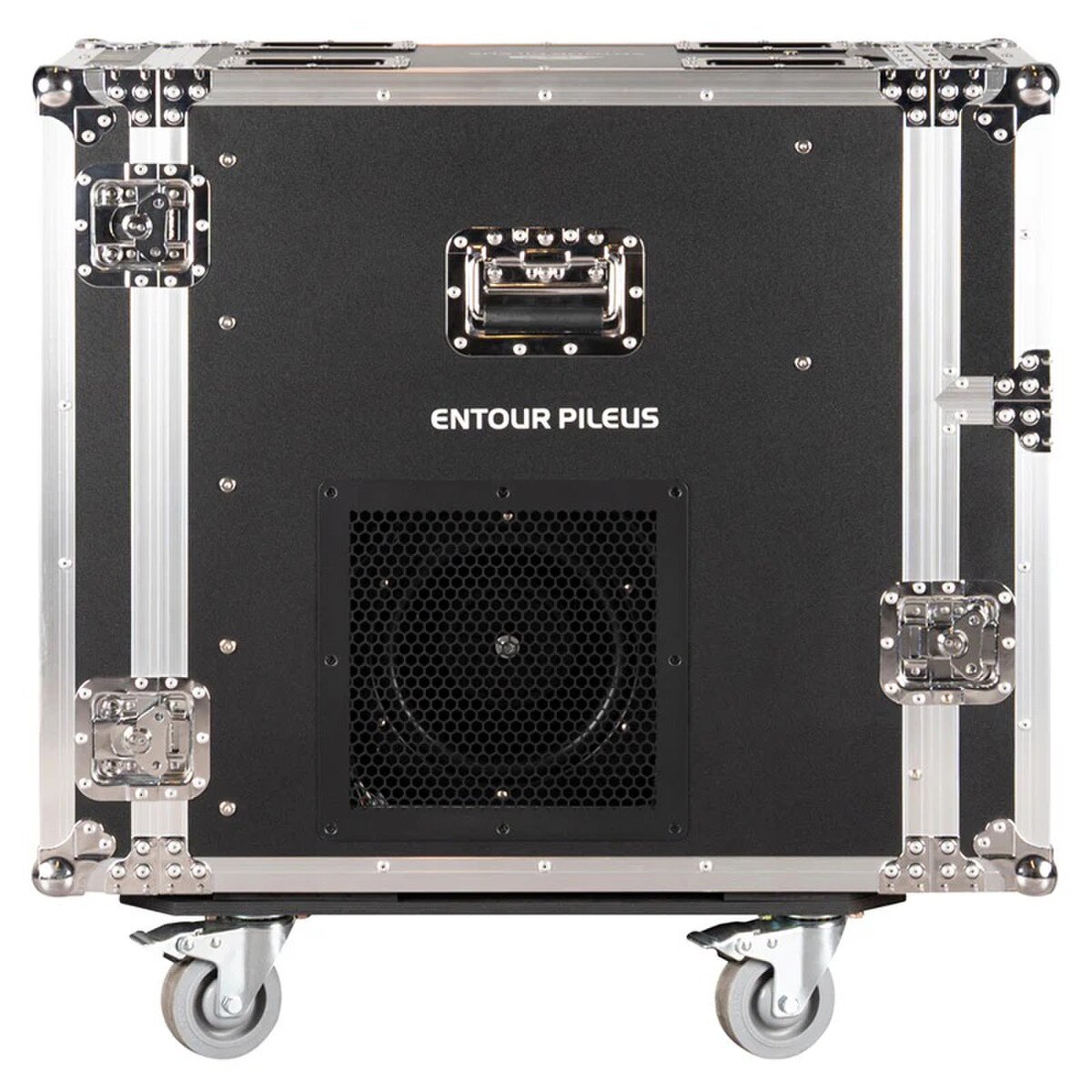

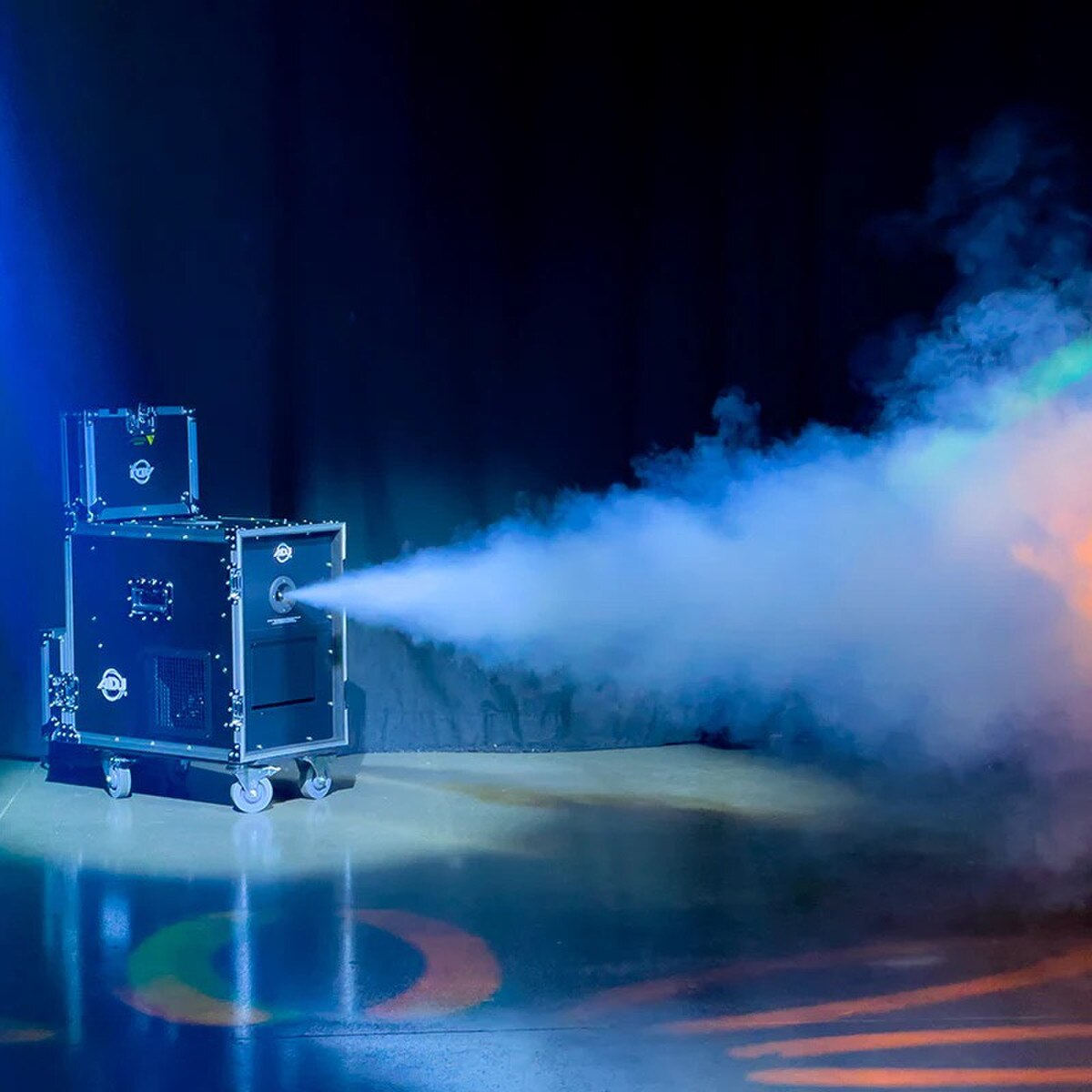

The Entour Pileus is a powerful 1650W hybrid water-based fog and faze machine, engineered for professional use. It delivers dense plumes of fog or fine, atmospheric mist with precision. Housed in a durable flight case with heavy-duty casters, the Entour Pileus is built to meet the demands of large-scale productions.

Specifications:

The Entour Pileus, the latest addition to ADJ’s renowned Entour Series, is a versatile, professional-grade multifunctional fog and faze machine tailored for large-scale productions. Encased in a durable flight case with locking castors, this robust machine offers the flexibility to produce either powerful fog bursts or a fine, faze-like mist using standard water-based fog fluid. It comes with two 5.6 liter tanks to either stock up on fluid or quickly switch between fog fluid and faze fluid. Equipped with a high-performance 1650W heater, a variable-speed dispersion fan, and advanced fluid consumption management, it ensures precise output control and continuous operation for up to 35 seconds. Capable of delivering a remarkable 60,000 cubic feet of output per minute, the Entour Pileus can easily fill even the largest venues. With dual 5.6L fluid tanks, an ultra-fast 16.5-second warmup time, multiple control options, 5-pin DMX In/Out, and a cutting-edge self-cleaning system, it’s the perfect atmospheric generator for tours and large-scale events.

Features:

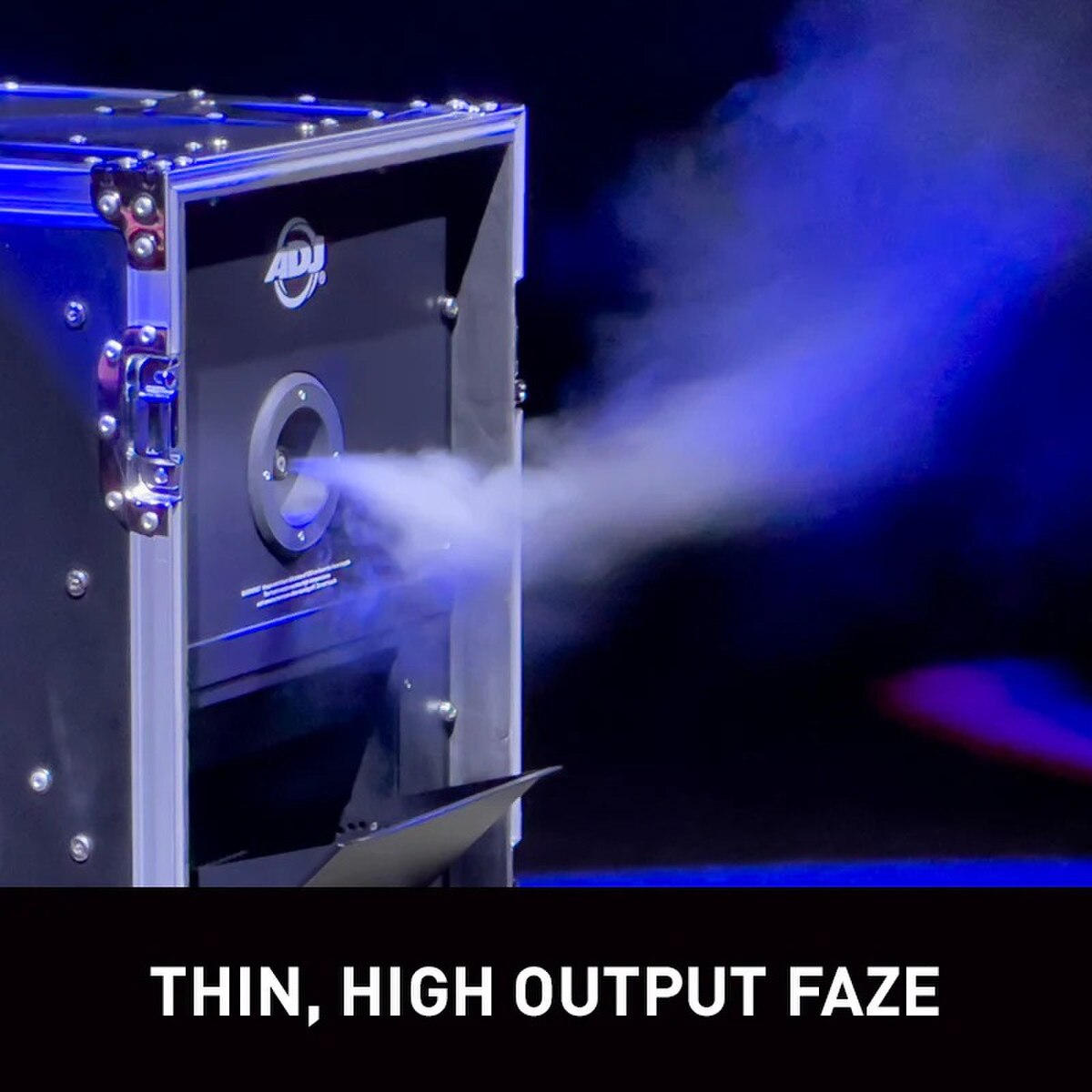

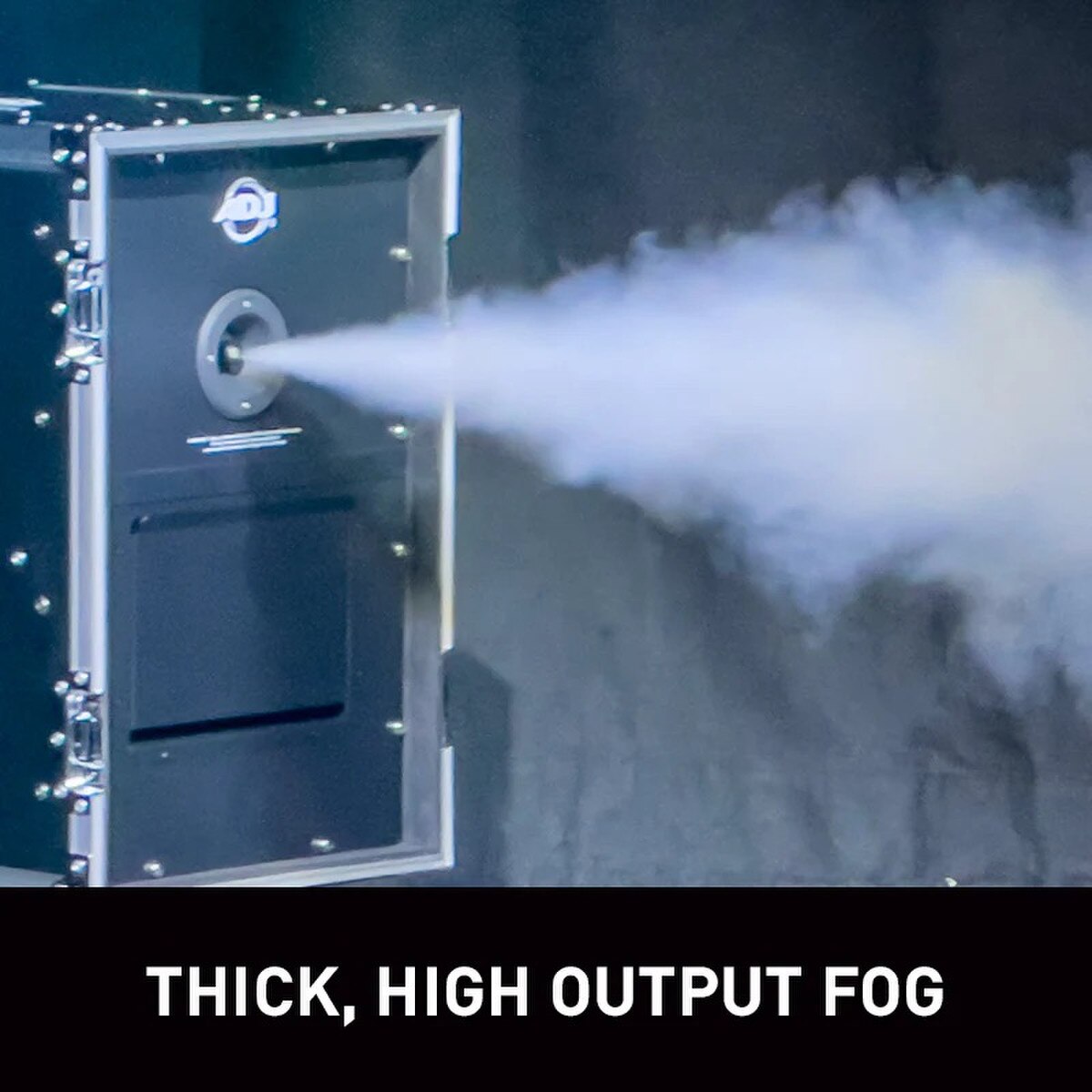

• Creates Thick Fog or thin Faze Output
• On Board Timer Control
• Remote controller connectors 1/4" Jack

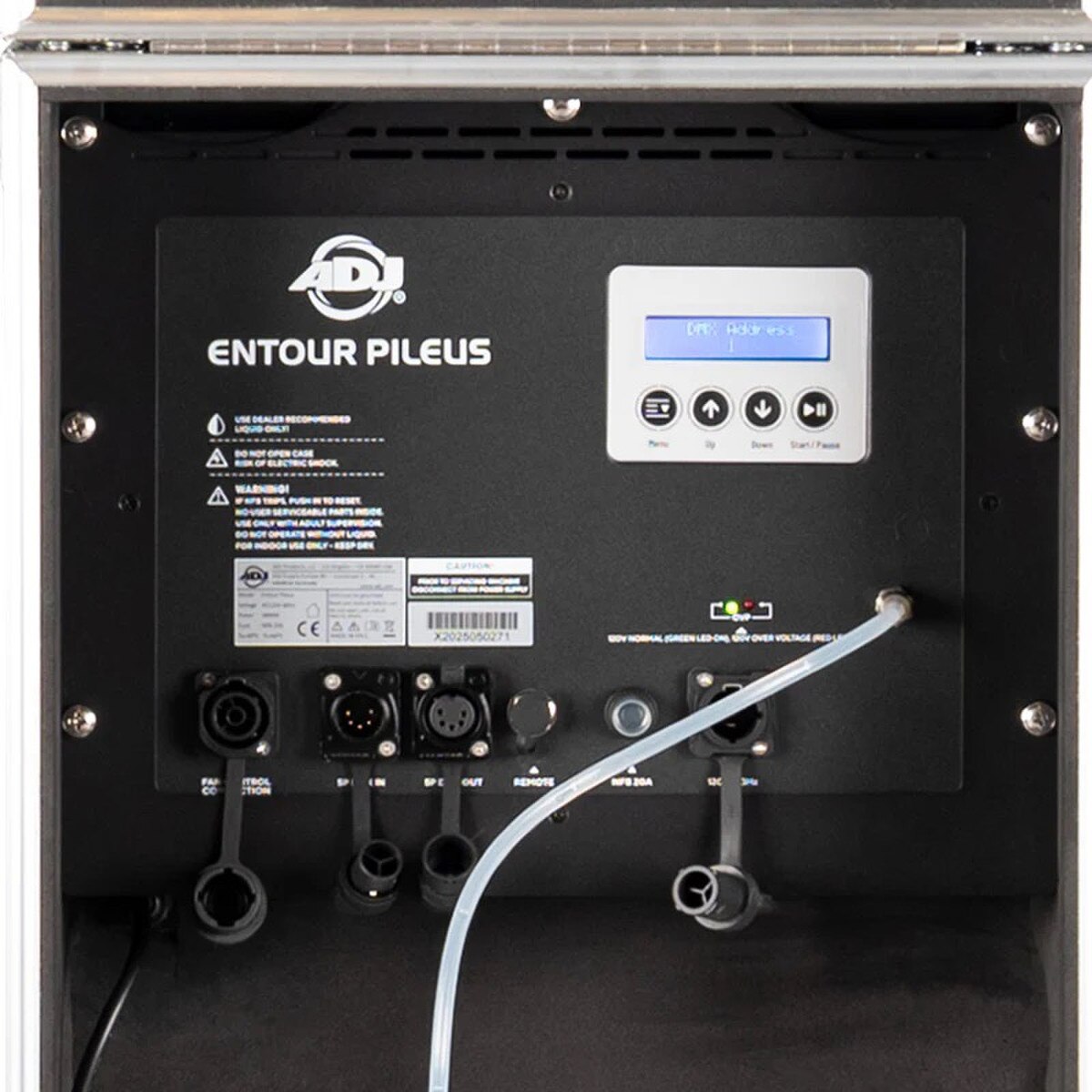

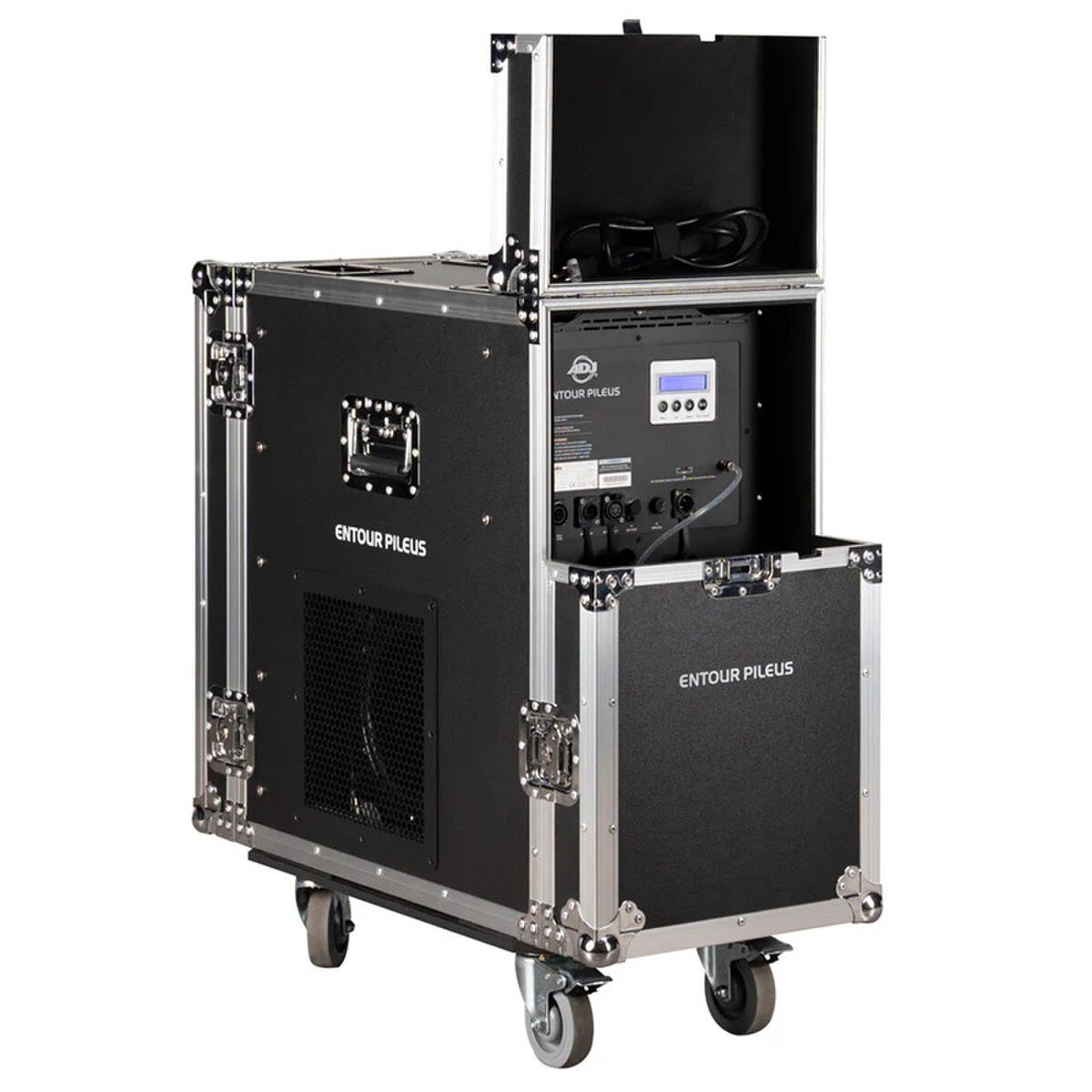

• LCD Display with 6-button Control
• OVP - Over Voltage Protection
• 3 DMX Channel Modes :1CH, 2CH, 4CH

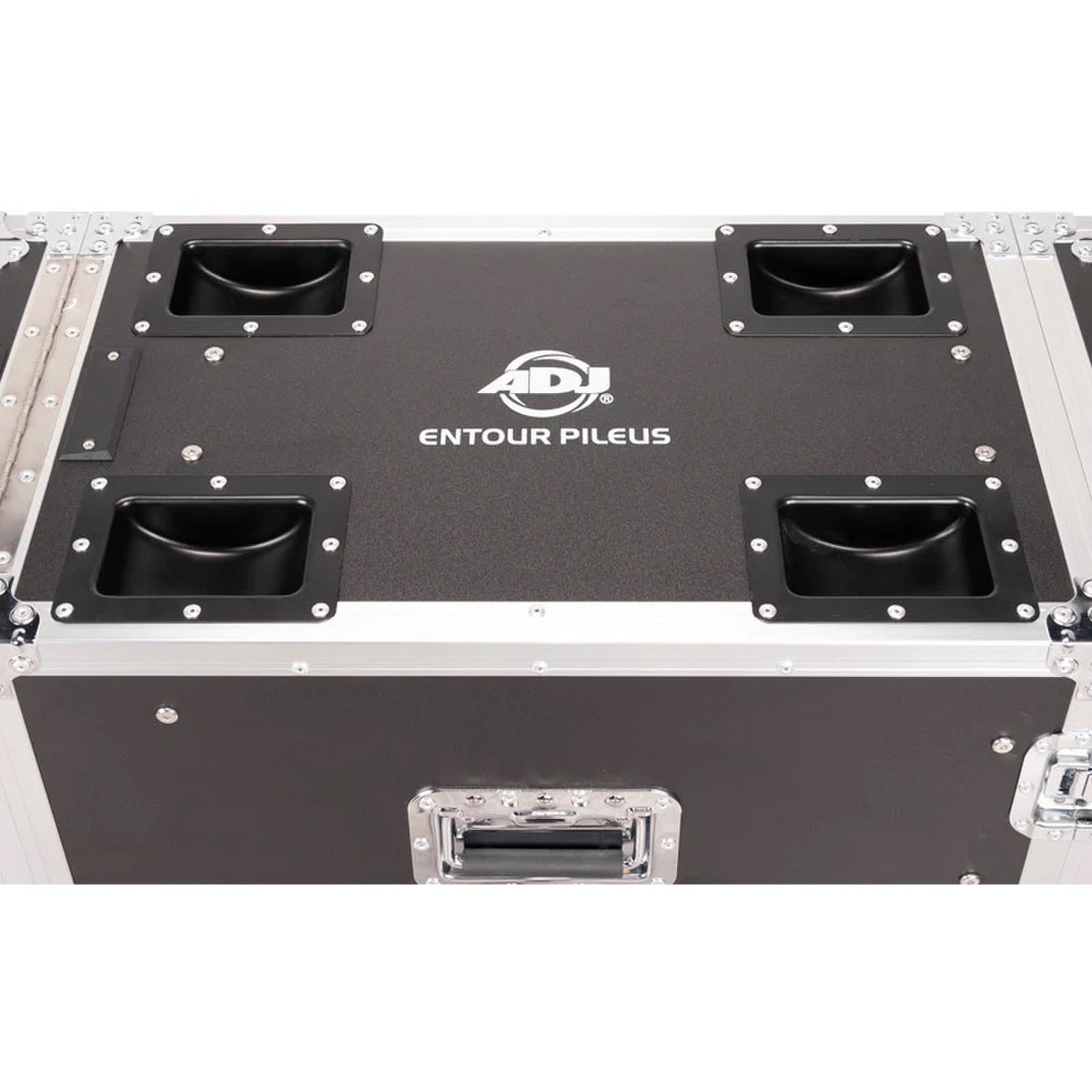

• Rugged Road Case Housing
• Heavy Duty Locking Casters

Performance:

• Fog Output (cu.ft/min) 60000
• Fluid Consumption Rate: Max. 180ml/min., Min. 38ml/min
• Fog Output Adjustment 5-100%
• Fan Speed Adjustment 5-100% "Fan can be disconnected"
• Max Output Duration (sec.) "Continuous mode off" 35s
• Continuous mode Option- Automatically Adjusts output to allow for longer burst
• Self-cleaning Duration (sec.) 30s
• Warm-up Time (min) 16.5

Physical:

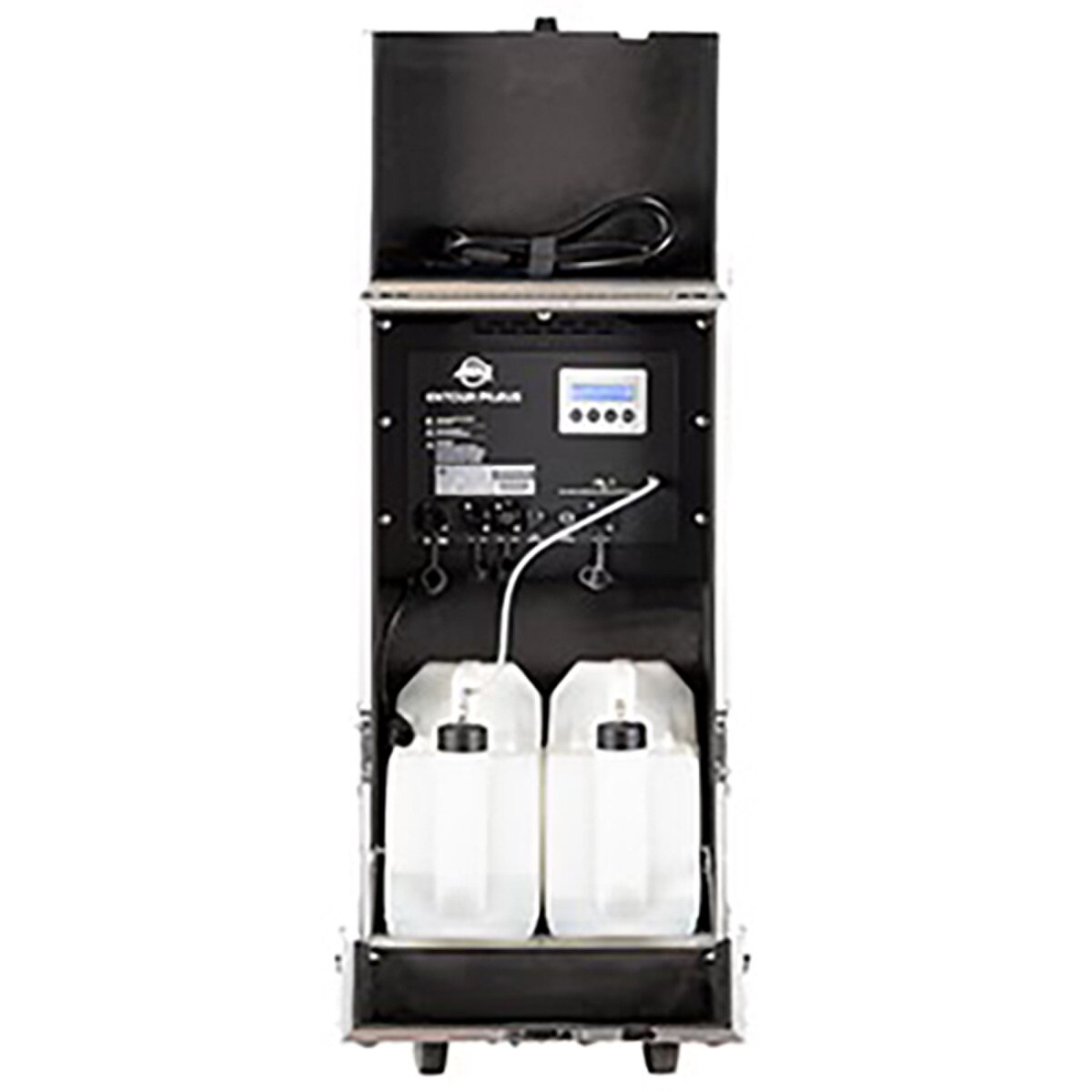

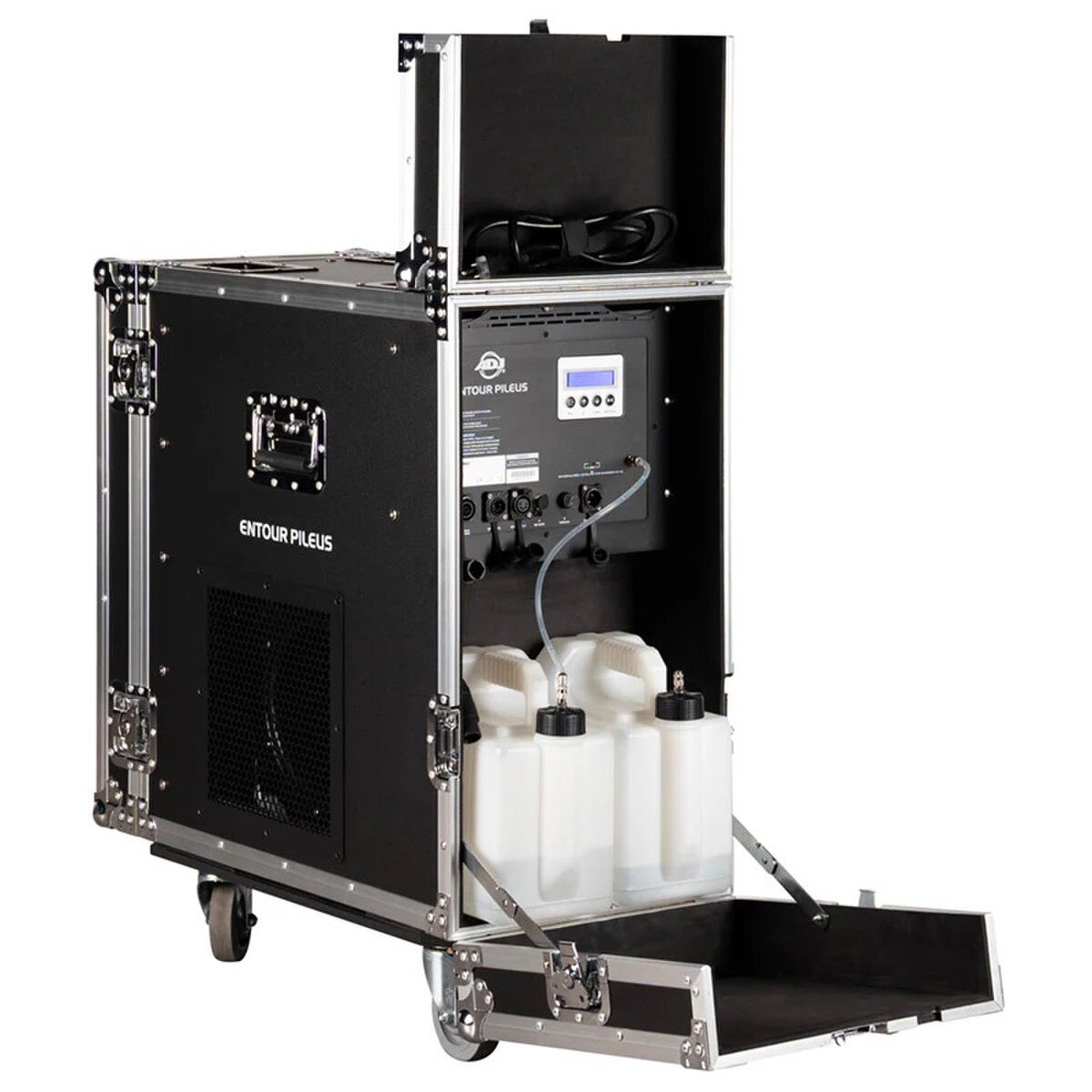

• Tank: Dual 5.6L tanks
• 5-Pin DMX IN/Out Data Connections
• Locking Power Input Connection
• Power Input: 120V~60Hz (US) / 230V~50Hz (EU)
• Heater Power 1650W
• Max Consumption: 1890W
• Fan Cooled
• Max Ambient Temp.(Ta) 40℃
• Dimensions (LxWxH) 33”x 16” x 32.6” / 841x398x829mm (wheels included)
• Weight: 139 lbs. / 63 kg

Specifications are subject to change without notice.
