ADJ NET 4

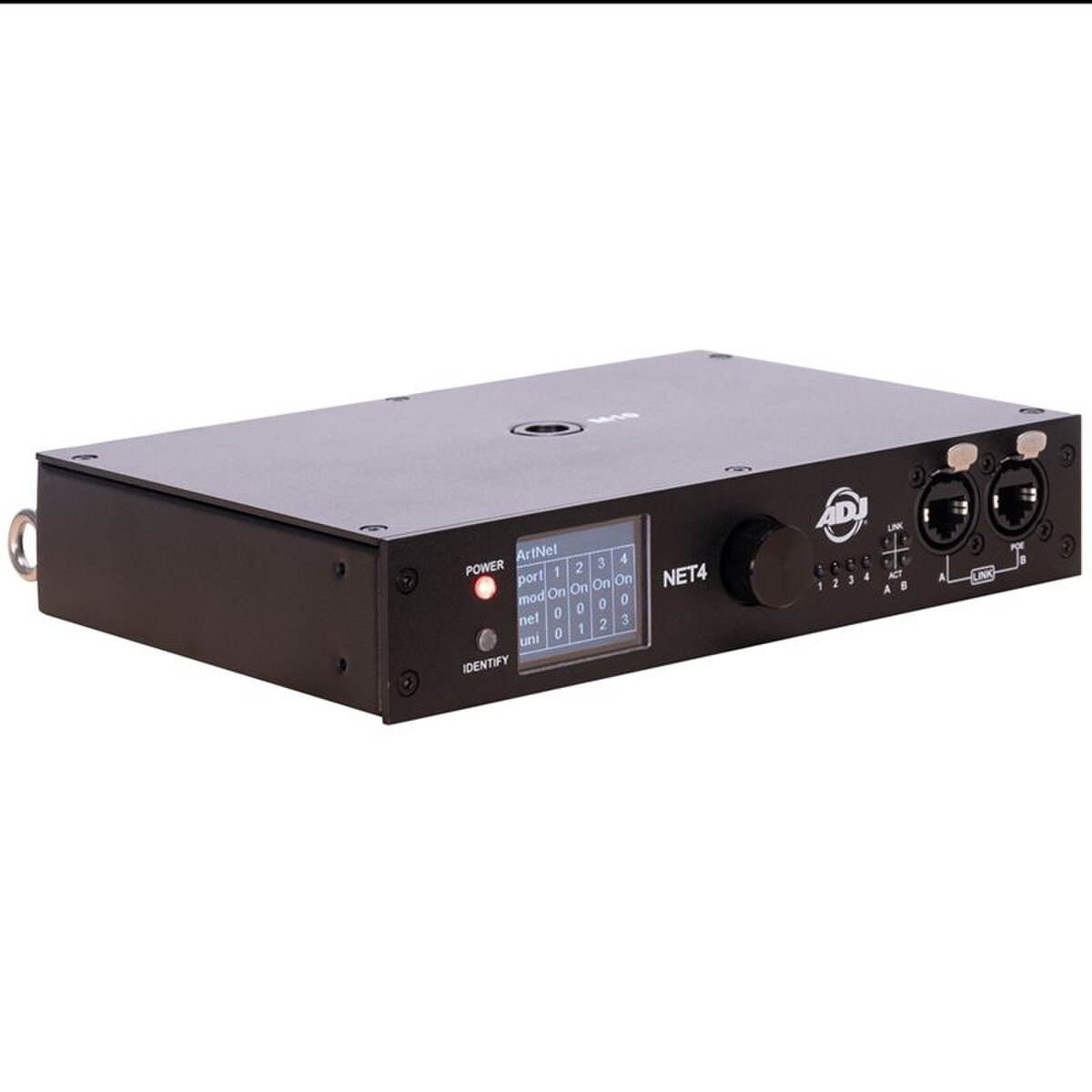

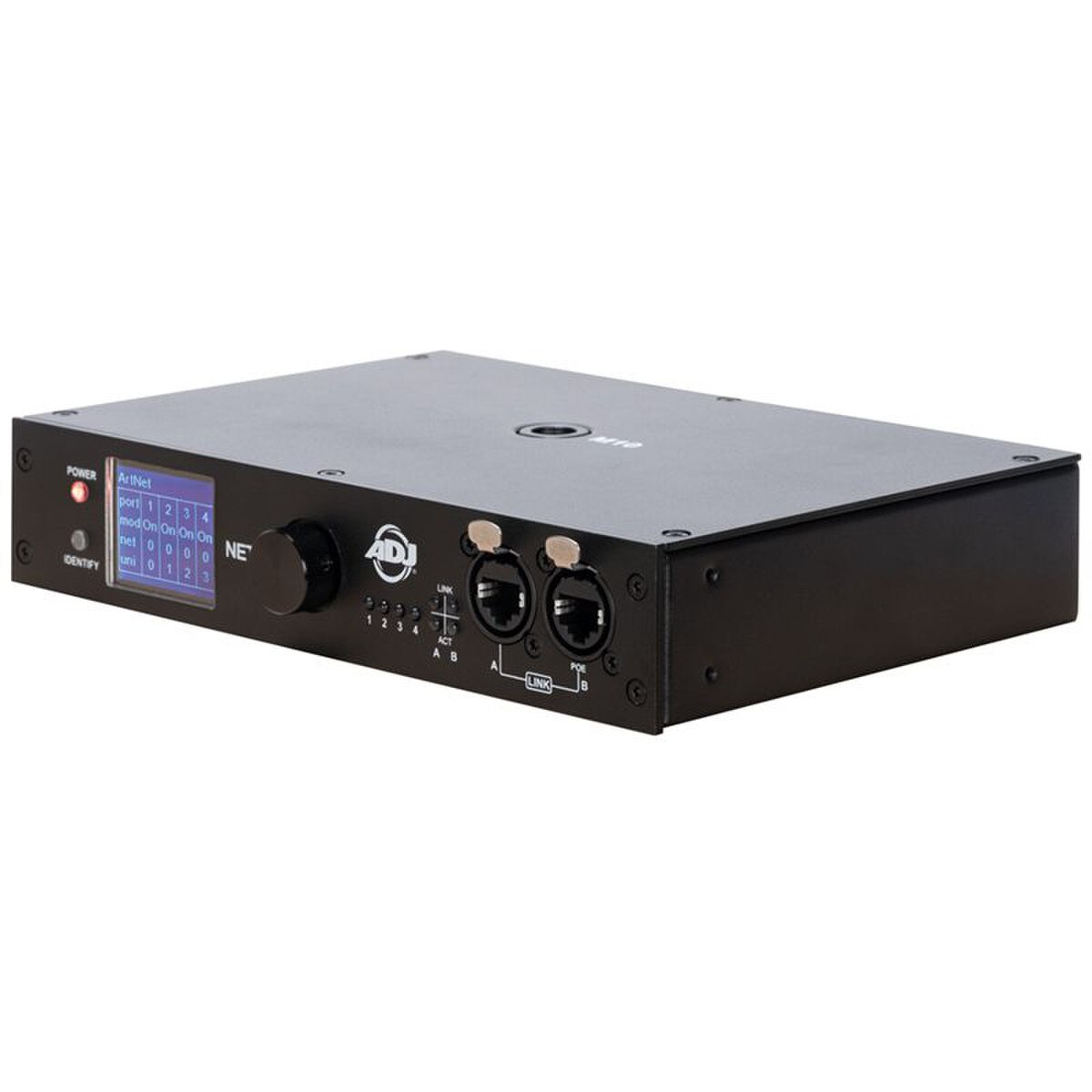

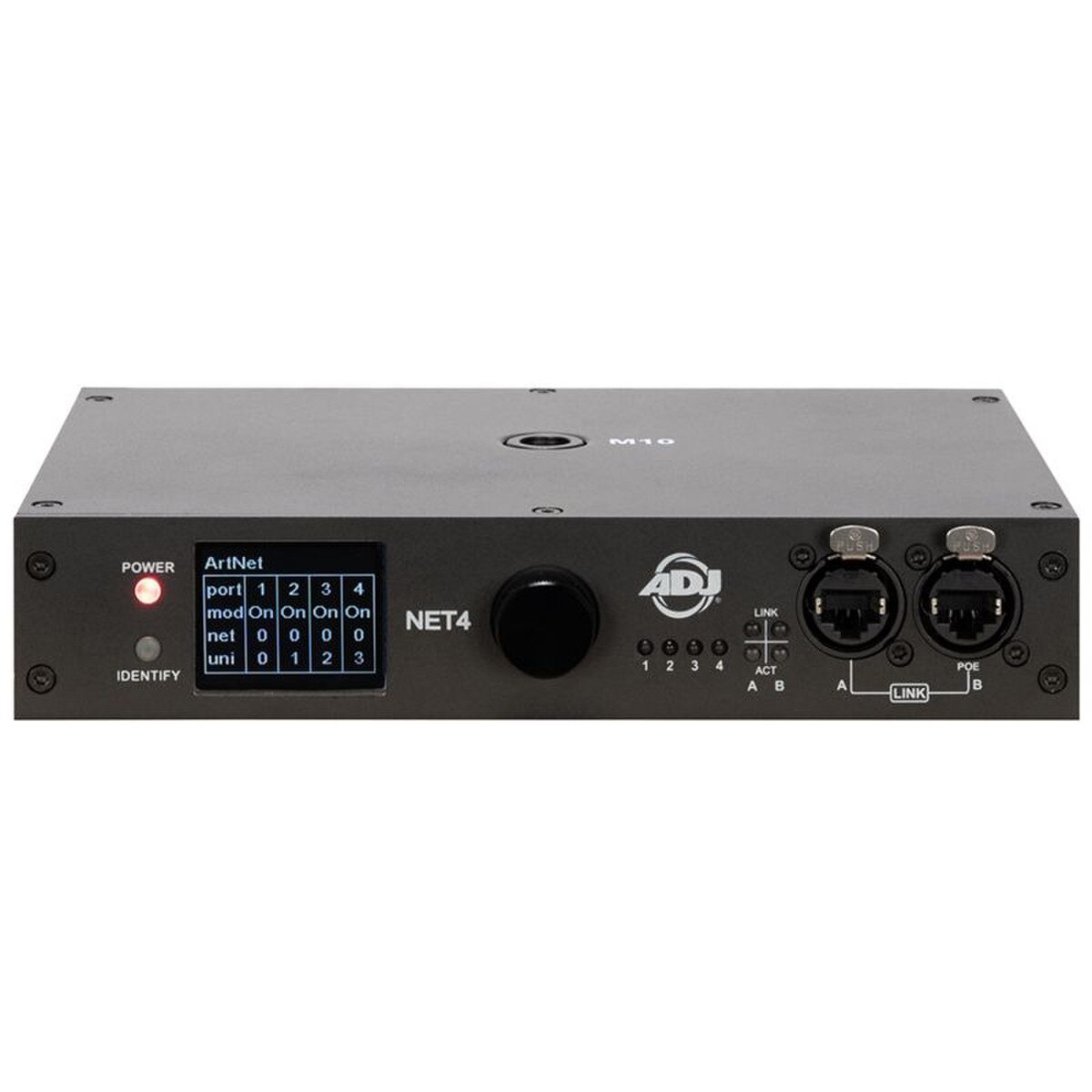

NET 4 is a versatile 4-port DMX over Ethernet node that can be truss mounted with M10 or M12 threads or rack mounted using the optional Aria X2 shelf. It is compatible with DMX-512, RDM, Artnet and sACN protocols, ensuring a broad spectrum of integration possibilities. The 1.7-inch LED display facilitates easy configuration, allowing you to fine-tune settings and monitor status at a glance.

Specifications

Features:

• ArtNet / sACN /DMX, 4 Port Node
• Line Voltage or Power over Ethernet (PoE) powered
• DHCP or Static IP Address
• 1.7”LCD Display
• Configurable from unit menu or web browser

Protocols:

• DMX512
• RDM
• Artnet
• sACN

Physical:

• M10 & M12 Threads for rigging

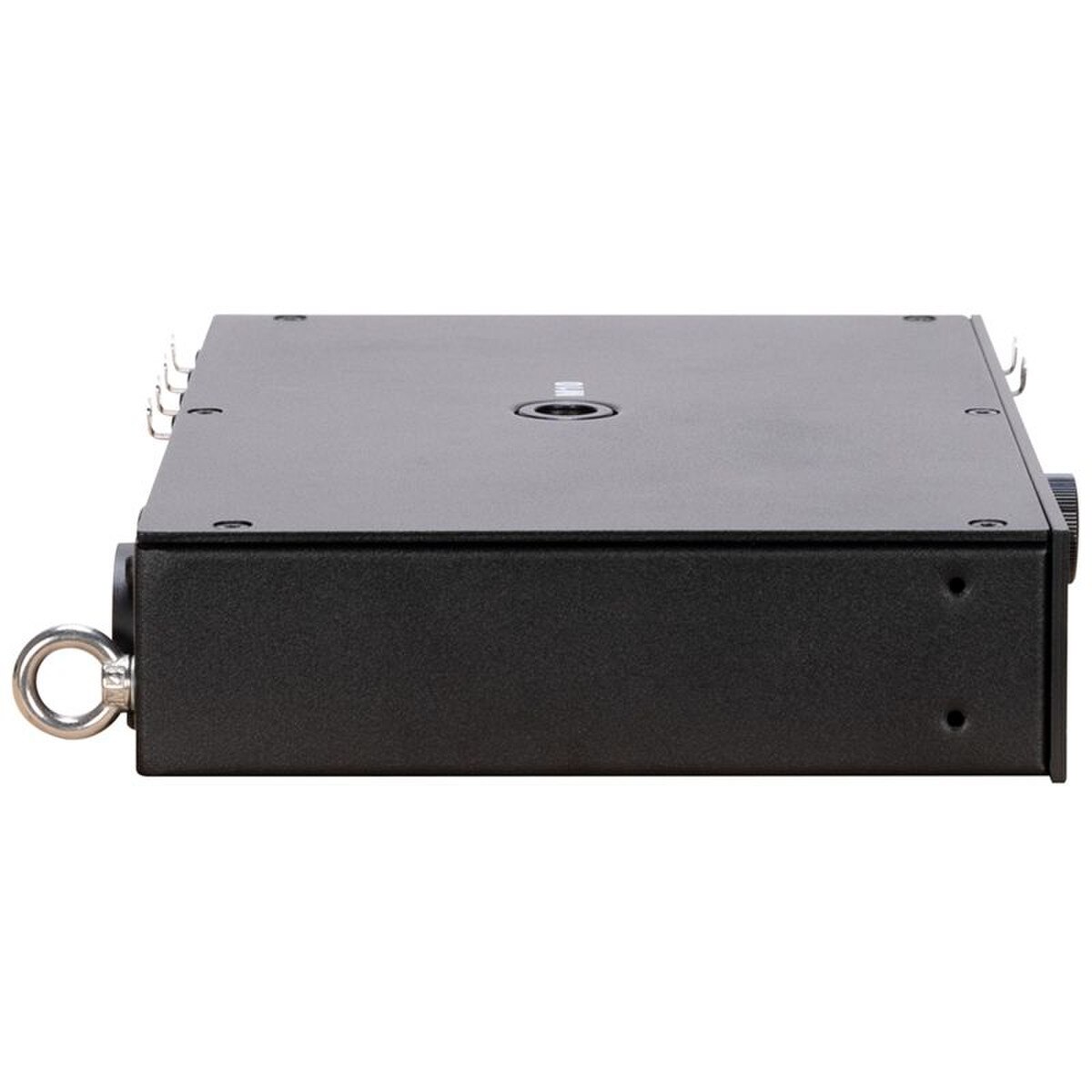

• Safety eyelet
• 2x Indoor RJ45 Input & Output

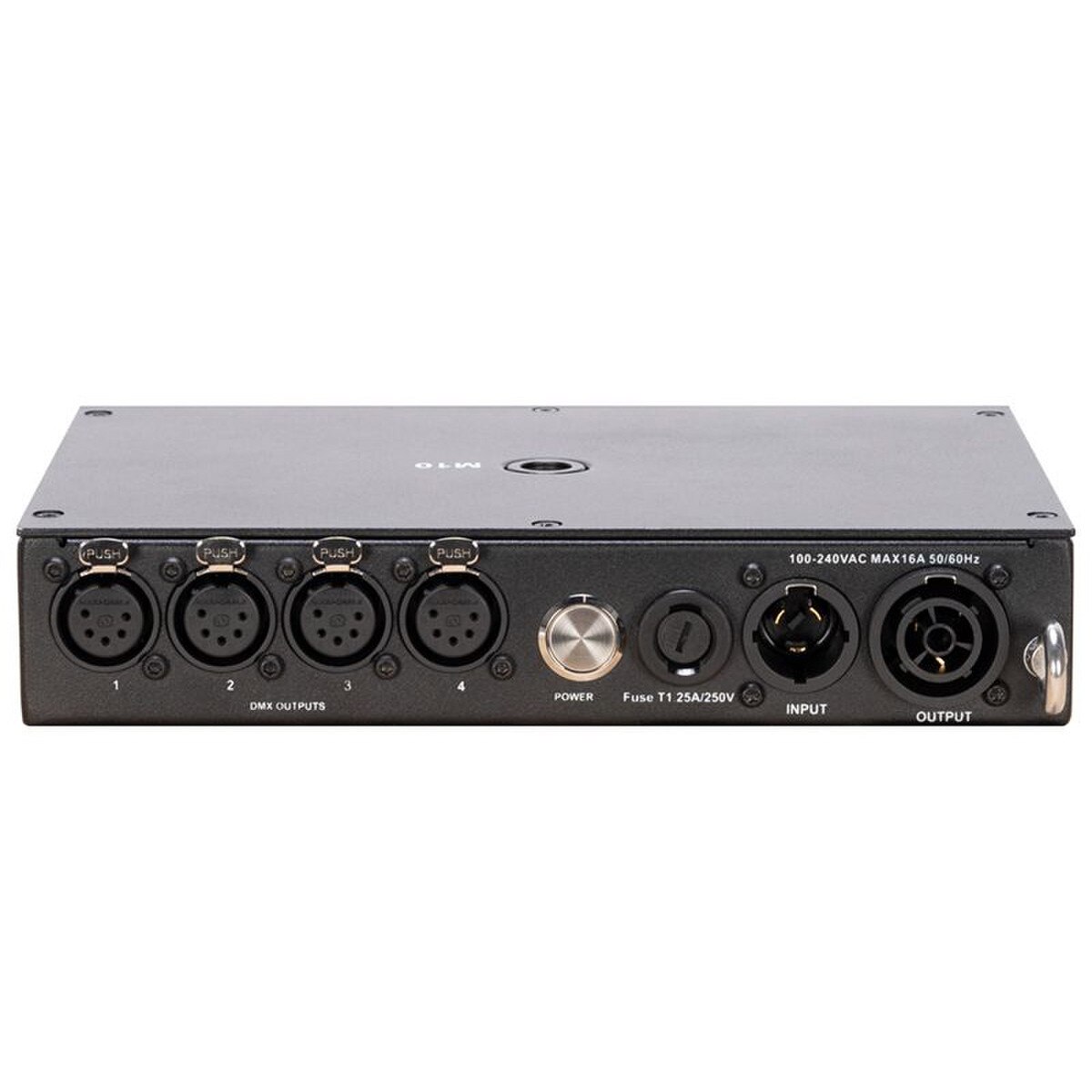

• 4x 5pin XLR Input / Output

Dimensions & Weight:

• Length: 5.93" (150.5mm)
• Width: 8.48" (215.3mm)
• Height: 1.66" (42mm)
• Weight: 3.16lbs. (1.43kg)

Power:

• AC Input 95-240V,50/60Hz
• PoE 802.3af
• AC Power: 15W
• PoE Power: 15W
• Power Consumption: 3.7W @ 120V and 4W @ 230V
• Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)

Thermal:

• Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
• Humidity: <75%
• Storage Temperature: 77°F (25°C)

Certifications & IP Rating:

• CE
• cETLus (Pending)
• FCC
• IP20

Included Accessories:

• Outdoor locking power cord

Optional Accessories:

• Aria X2 Shelf
• 35mm Din Rail adapter (2pcs. Required)

Specifications subject to change without notice.

Details:

NET 4, a cutting-edge 4-port DMX over Ethernet node that revolutionizes your lighting control experience. This versatile node supports ArtNet, sACN, DMX and RDM protocols, providing a seamless integration platform for your dynamic lighting setups. Whether you prefer traditional Line Voltage or the convenience of Power over Ethernet (PoE), NET 4 empowers you with flexible power options to suit diverse installation scenarios.


Configuring NET 4 is a breeze, offering the choice between DHCP or Static IP Address settings. This adaptability ensures that the node seamlessly integrates into your existing network infrastructure. What sets NET 4 apart is its user-friendly interface, allowing configuration adjustments from the unit menu or the convenience of a web browser. Whether you’re on-site or managing your lighting system remotely, NET 4 puts control at your fingertips.
