ADJ NET 8

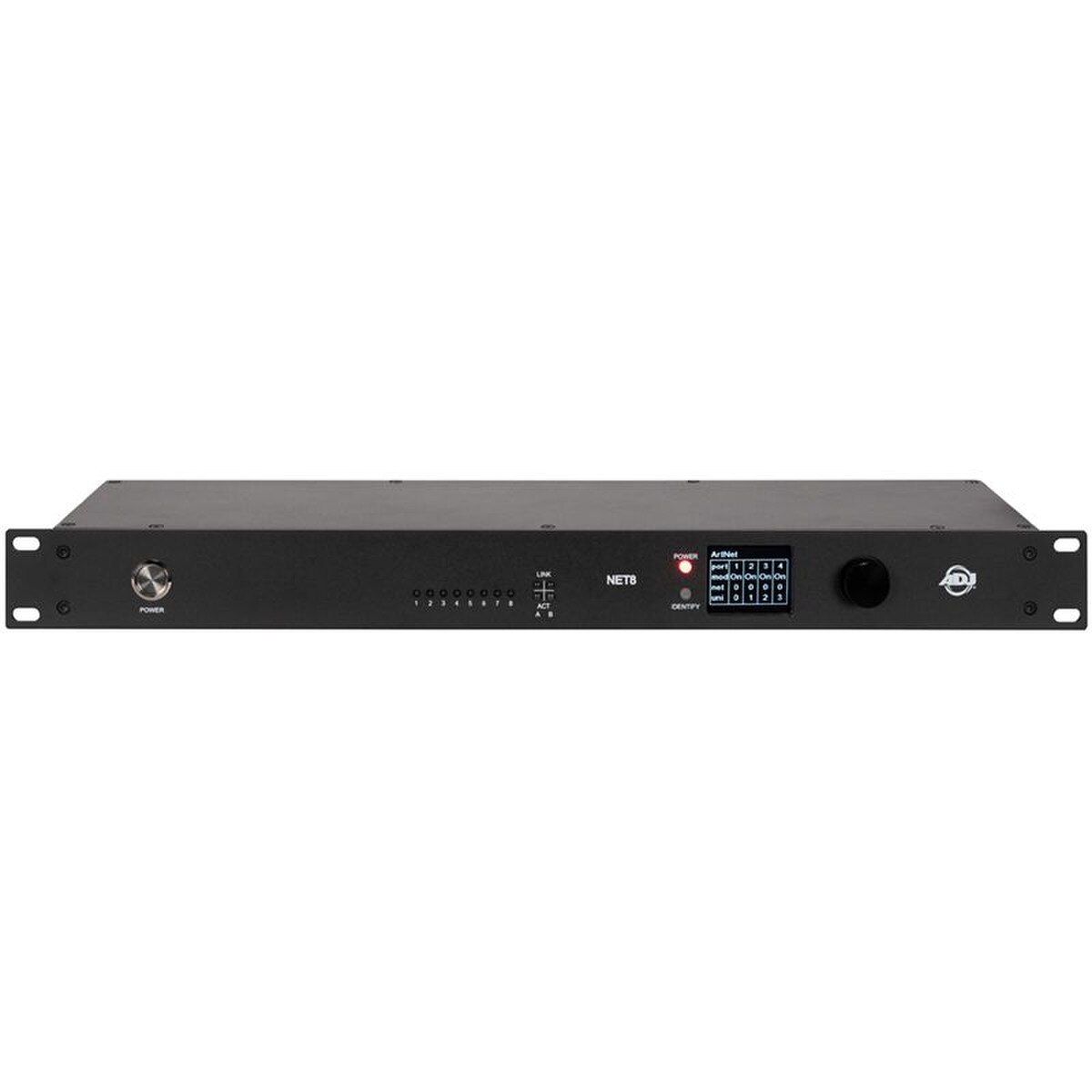

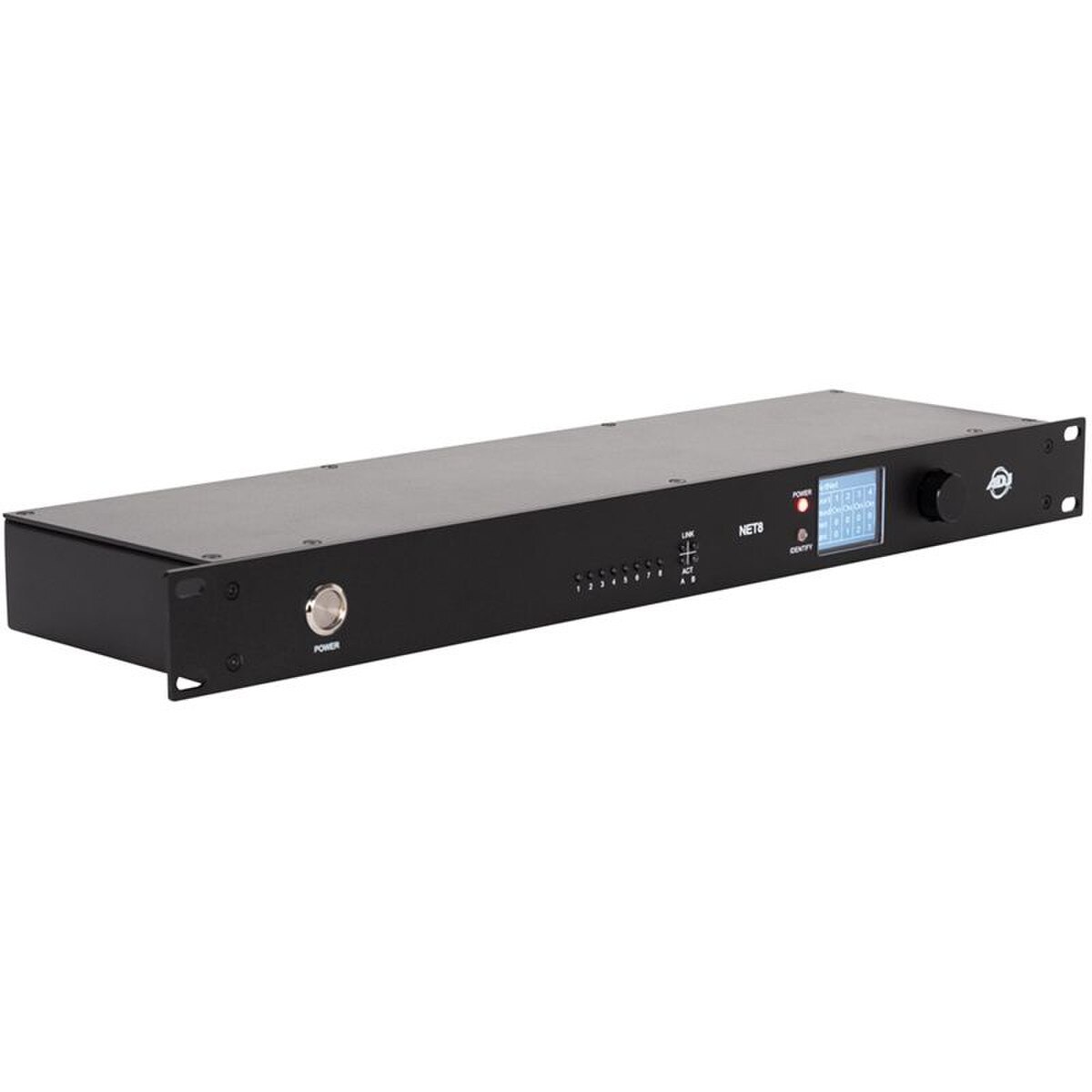

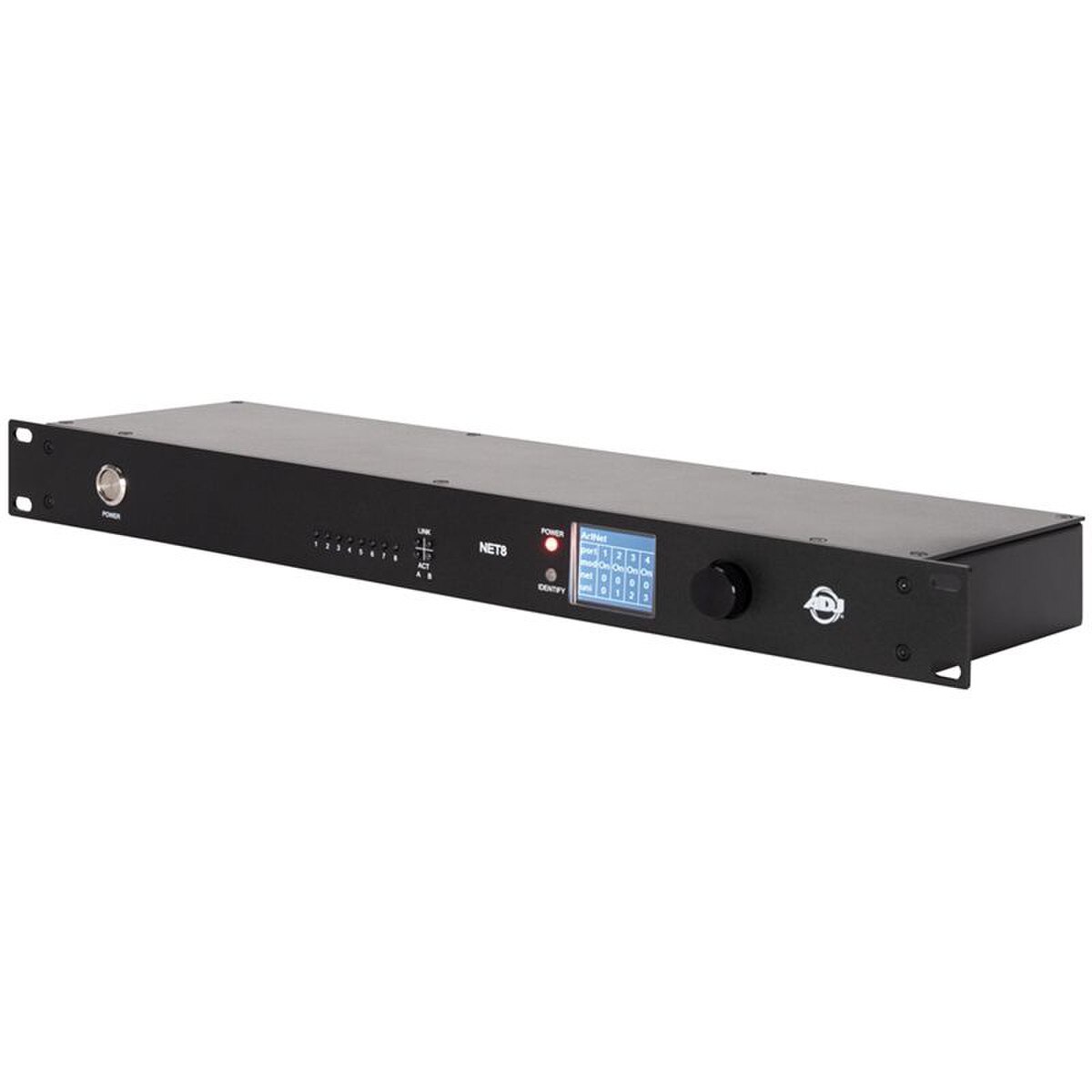

ADJ’s NET 8 is a versatile 4-port DMX over Ethernet node that can be mounted in a 19-inch rack case. It is compatible with DMX-512, RDM, Artnet and sACN protocols, ensuring a broad spectrum of integration possibilities. The 1.7-inch LED display facilitates easy configuration, allowing you to fine-tune settings and monitor status at a glance

Specifications

Features:

• ArtNet / sACN /DMX, 8 Port Node
• Line Voltage or Power over Ethernet (PoE) powered
• DHCP or Static IP Address
• 1.7”LCD Display
• Configurable from unit menu or web browser

Protocols:

• DMX512
• RDM
• Artnet
• sACN

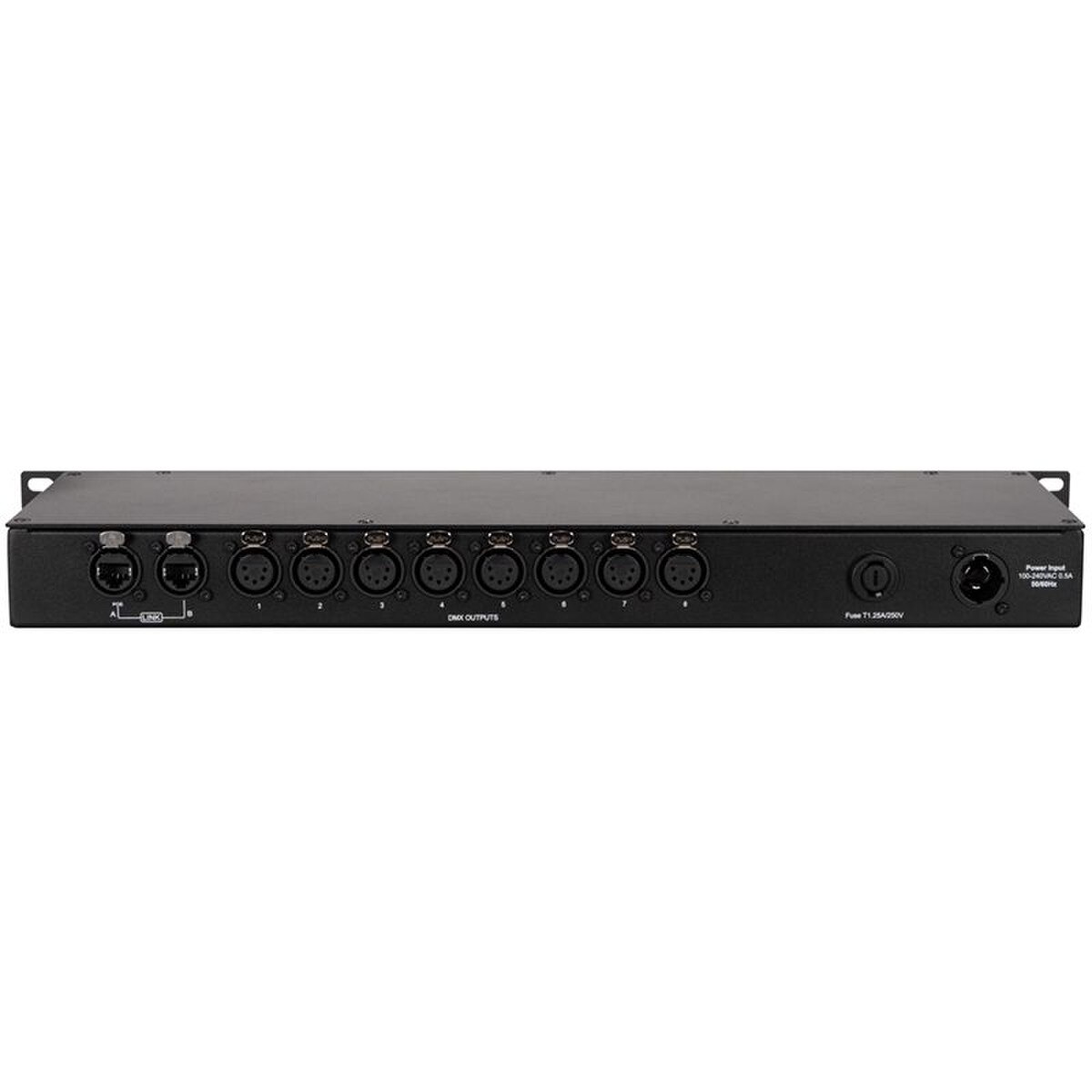

Connections:

• 2x Indoor RJ45 Input & Output
• 8x 5pin XLR Input / Output

Dimensions & Weight:

• Length: 5.09" (129.3mm)
• Width: 19" (482.5mm)
• Height: 1.73" (43.8mm)
• Weight: 4.76lbs. (2.16kg)

Power:

• AC Input 95-240V,50/60Hz
• PoE 802.3af
• AC Power: 15W
• PoE Power: 15W
• Power Consumption: 5.7W @ 120V and 5.9W @ 230V
• Power Input Protection: Fuse, T1.25A/250V (5.2x20mm)

Thermal:

• Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
• Humidity: <75%
• Storage Temperature: 77°F (25°C)

Certifications & IP Rating:

• CE
• cETLus (Pending)
• FCC
• IP20

Included Accessories:

• Indoor locking power cord

Specifications subject to change without notice.

Details:

ADJ Lighting’s NET 8, a cutting-edge 8-port DMX over Ethernet node that revolutionizes your lighting control experience. This versatile node supports ArtNet, sACN, DMX and RDM protocols, providing a seamless integration platform for your dynamic lighting setups. Whether you prefer traditional Line Voltage or the convenience of Power over Ethernet (PoE), NET 8 empowers you with flexible power options to suit diverse installation scenarios.

Configuring NET 8 is a breeze, offering the choice between DHCP or Static IP Address settings. This adaptability ensures that the node seamlessly integrates into your existing network infrastructure. What sets NET 8 apart is its user-friendly interface, allowing configuration adjustments from the unit menu or the convenience of a web browser. Whether you’re on-site or managing your lighting system remotely, NET 8 puts control at your fingertips. NET 8 is a one space, 19-inch rack mountable node that helps you expand from one DMX universe to eight (when used with an Artnet compatible lighting controller).
