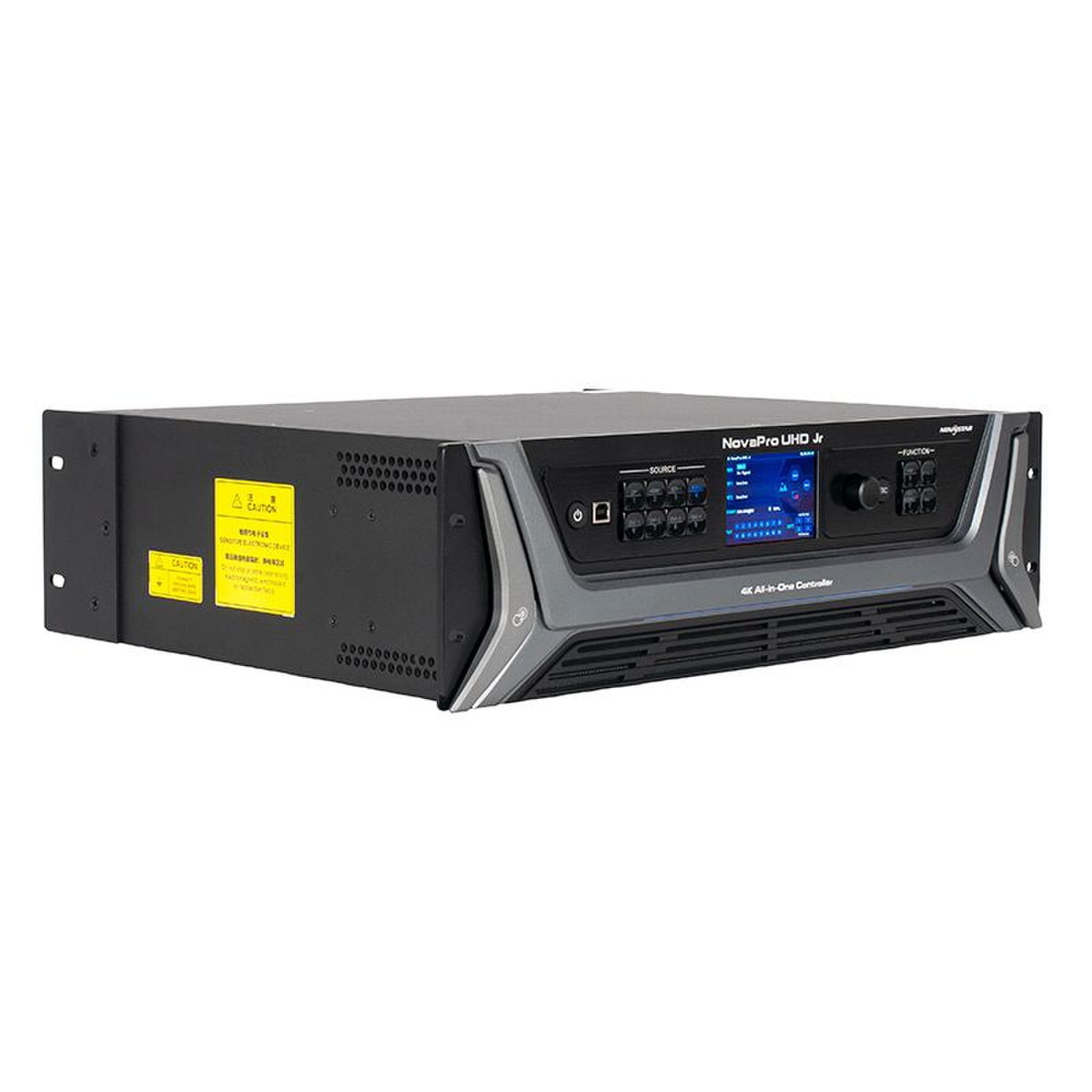

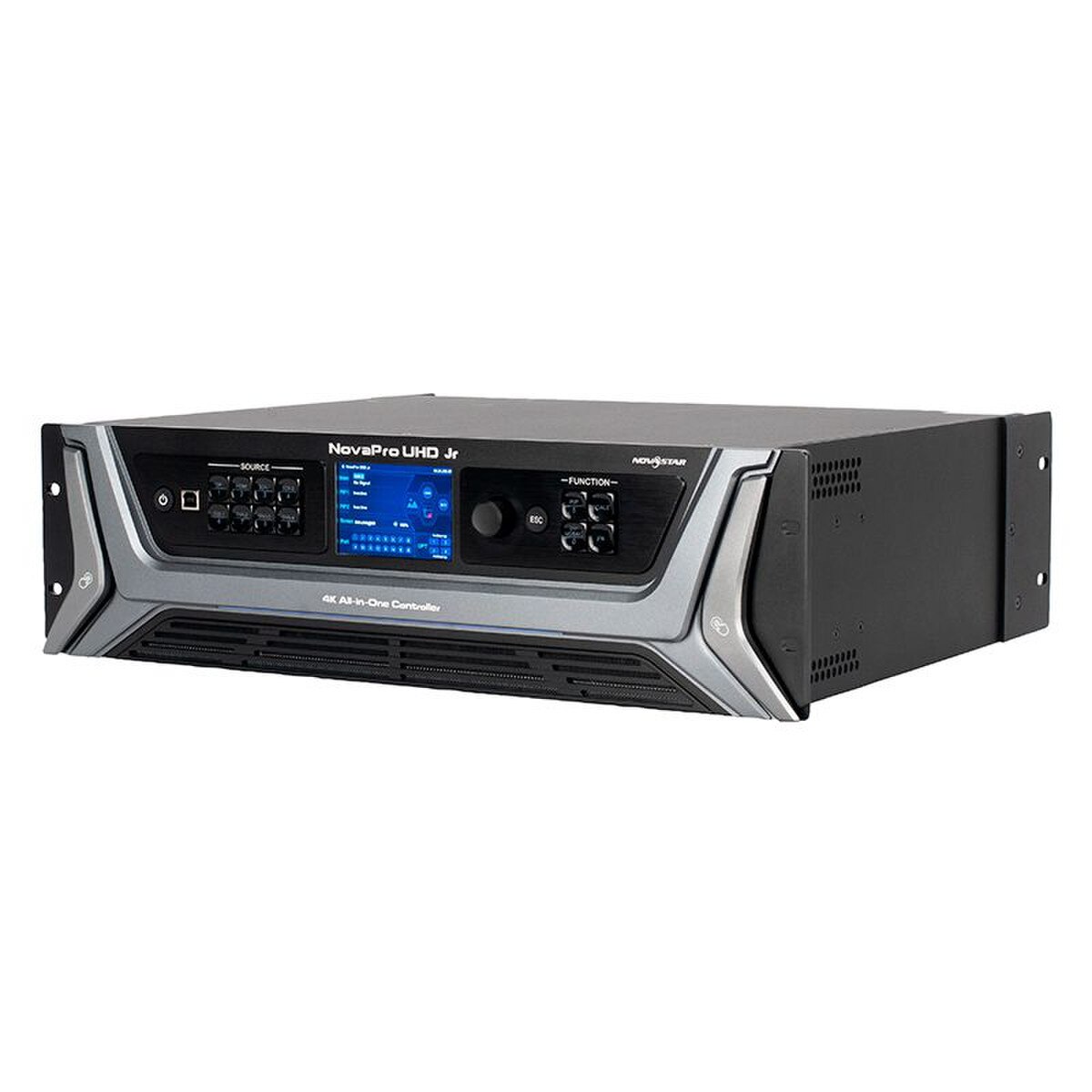

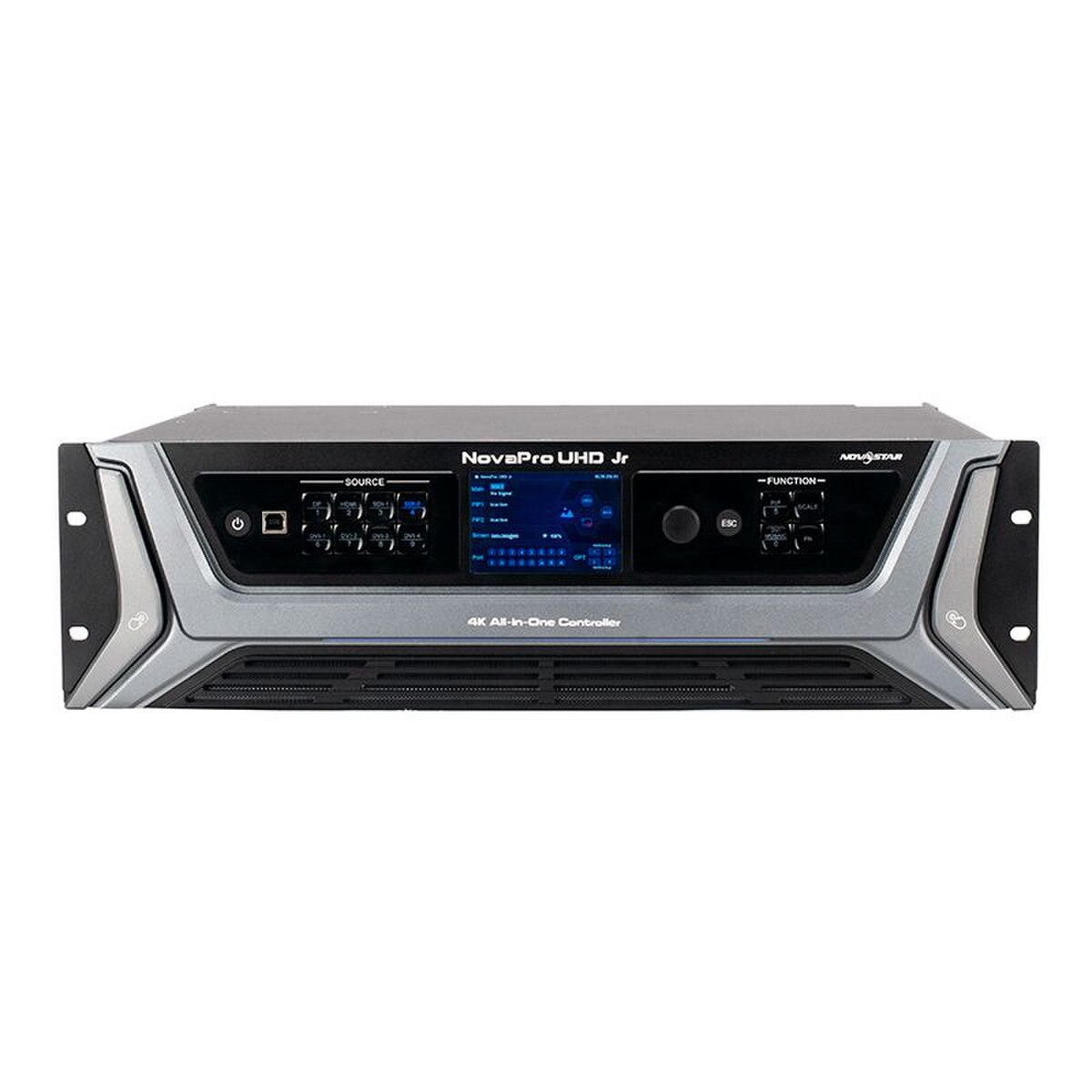

ADJ NOVAPRO UHD JR

The NovaPro UHD Jr is NovaStar's all-in-one controller that integrates video processing with sending card functions.The NovaPro UHD Jr features multiple input connectors, supporting up to 8 inputs simultaneously, and multiple output connectors, including 16 Ethernet ports and 4 optical fiber ports. Thanks to 4K×2K@60Hz ultra high-definition inputs and outputs, the product can be widely used for applications, such as stage control systems, conference sites and exhibition sites.

Features:

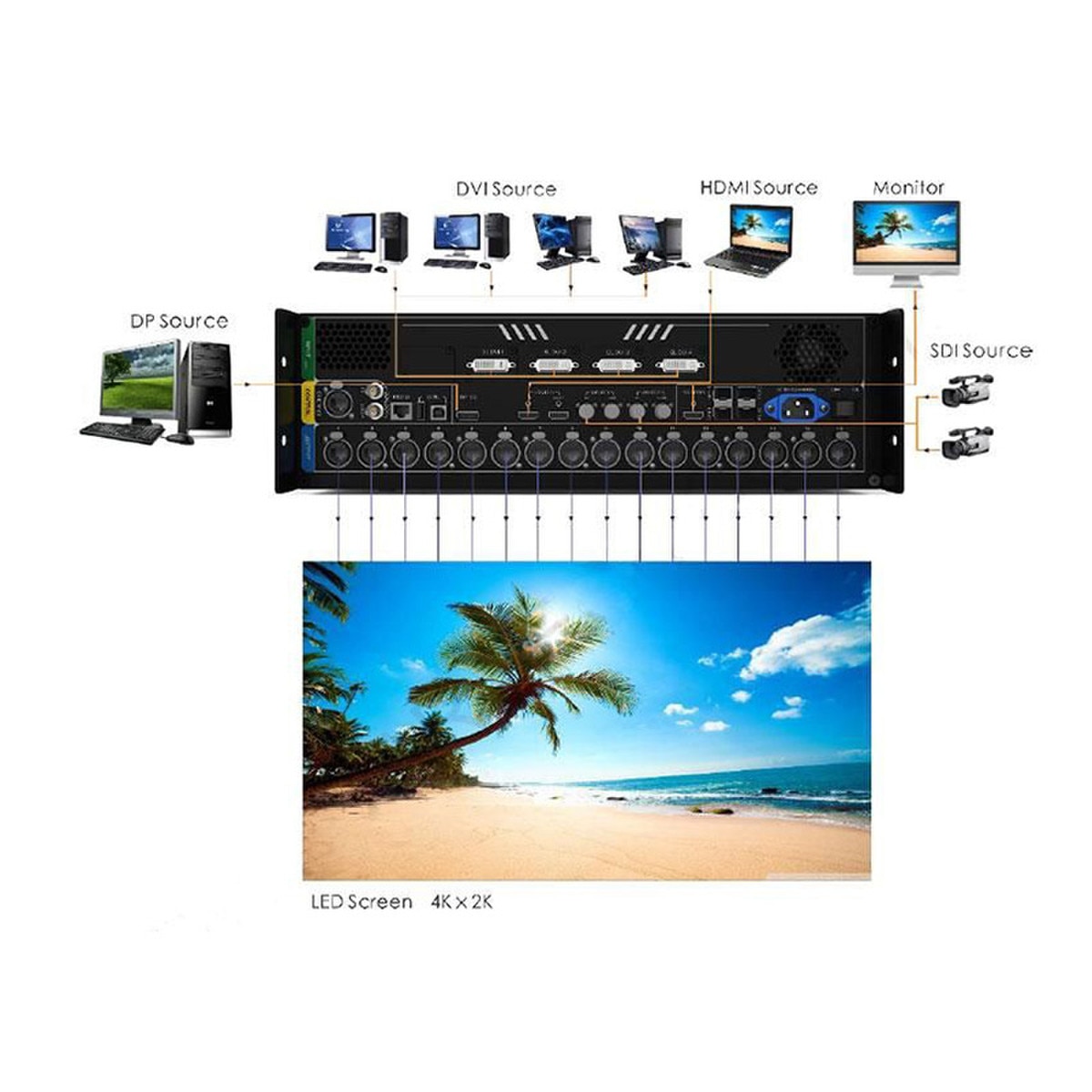

• Various inputs and outputs. Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDI with loop output.
• More output connectors, larger loading capacity. Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading capacity up to 8,300,000 pixels.
• DVI mosaic An input source can be made up of at most 4 DVI input sources.
• HDR output Greatly enhances display image quality, providing more clear and vivid image.
• 3D image output
• Decimal refresh rate
• Low-latency output Realizes zero frame latency from device to receiving card.
• Customized BKG settings Supports pure color and image BKGs.
• Personalized image scaling Supports 3 kinds of image scaling modes: auto fit, pixel to pixel, custom.
• Capture function Captures input source image which can be used as a BKG image.
• Cascading supported Up to 4 devices can be cascaded to load a super-large screen.
• V-Can (smart control software from NovaStar) supported
• 10 user presets can be created and saved as templates which can be used directly and conveniently.
• EDID management supported Supports custom EDID and standard EDID.
• No Computer or External Scaler Needed (standard rectangular layouts only)
• 4K x 2K @60Hz ultra high-definition (Inputs and Outputs)
• Multiple Video Signal Format Support
• Cascade up to 4 units together
• Rack Mountable Aluminum Enclosure (screws not included)

Specifications:

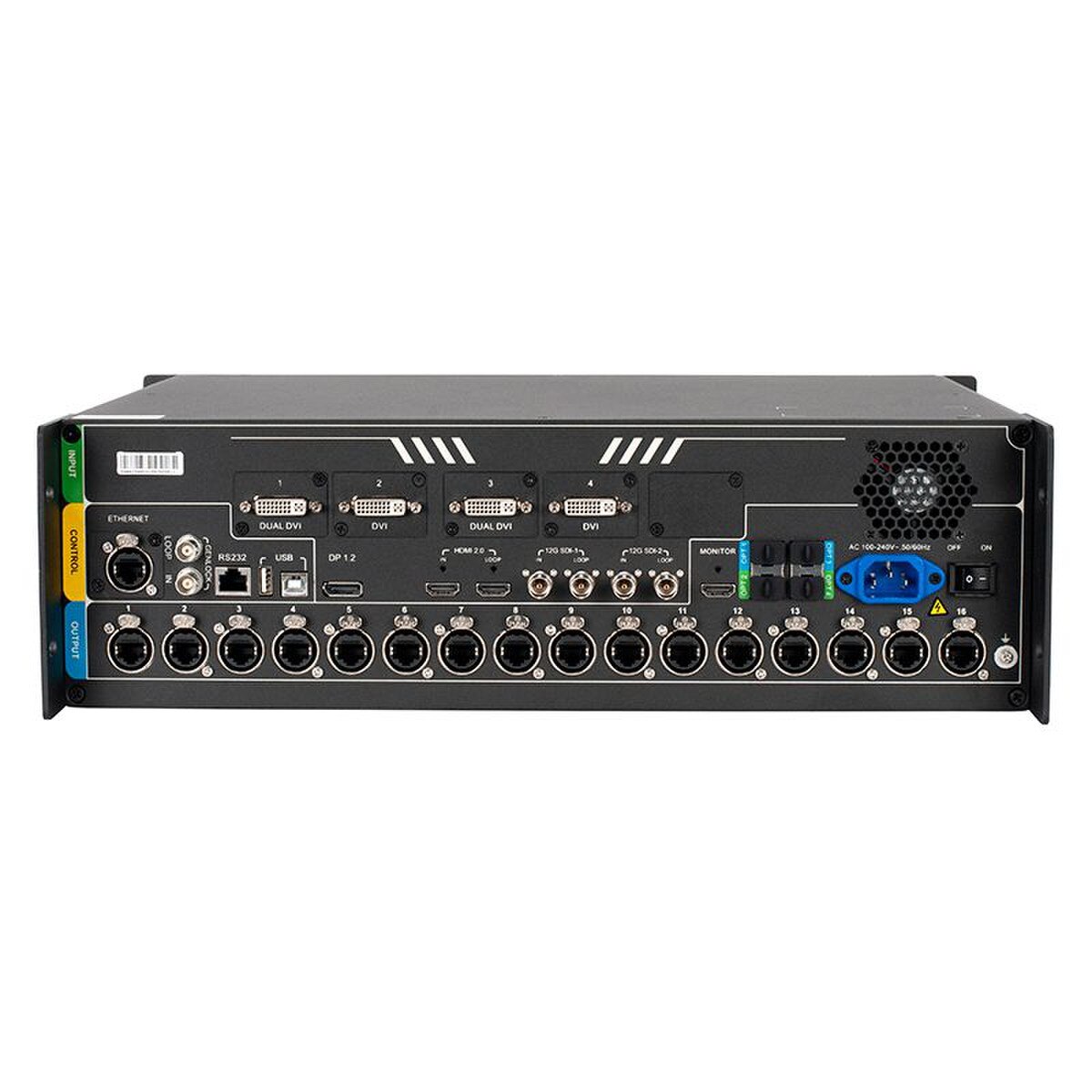

CONTROL / CONNECTIONS:

• (16) Output RJ45 EtherCON Ports
• (4) Fiber Optic Ports
• USB and GenLock In/Loop Ports
• Audio Input: 1/8 inch connector
• Video Input: 1x DP 1.2 / 1x HDMI 2.0 with loop output and 2x
• 12G SDI with loop output
• Locking IEC Power Input

SIZE / WEIGHT:

• Length: 19.0” (483mm)
• Width: 15.6” (396mm)
• Height: 5.5” (139mm)
• Weight: 13.9 lbs. (6.3kg)

ELECTRICAL:

• AC 100-240V - 50/60Hz
• Max Power Consumption: 70W
