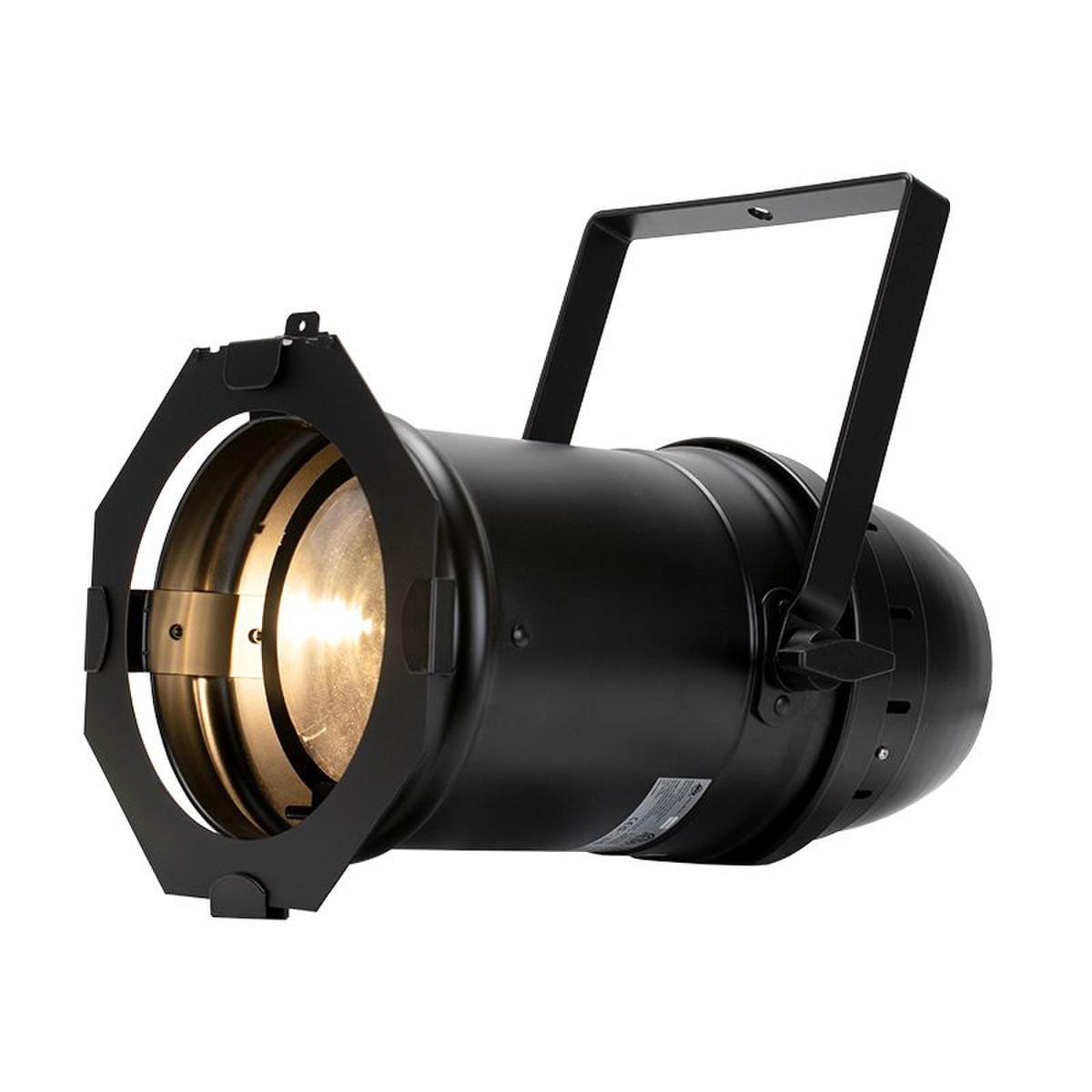

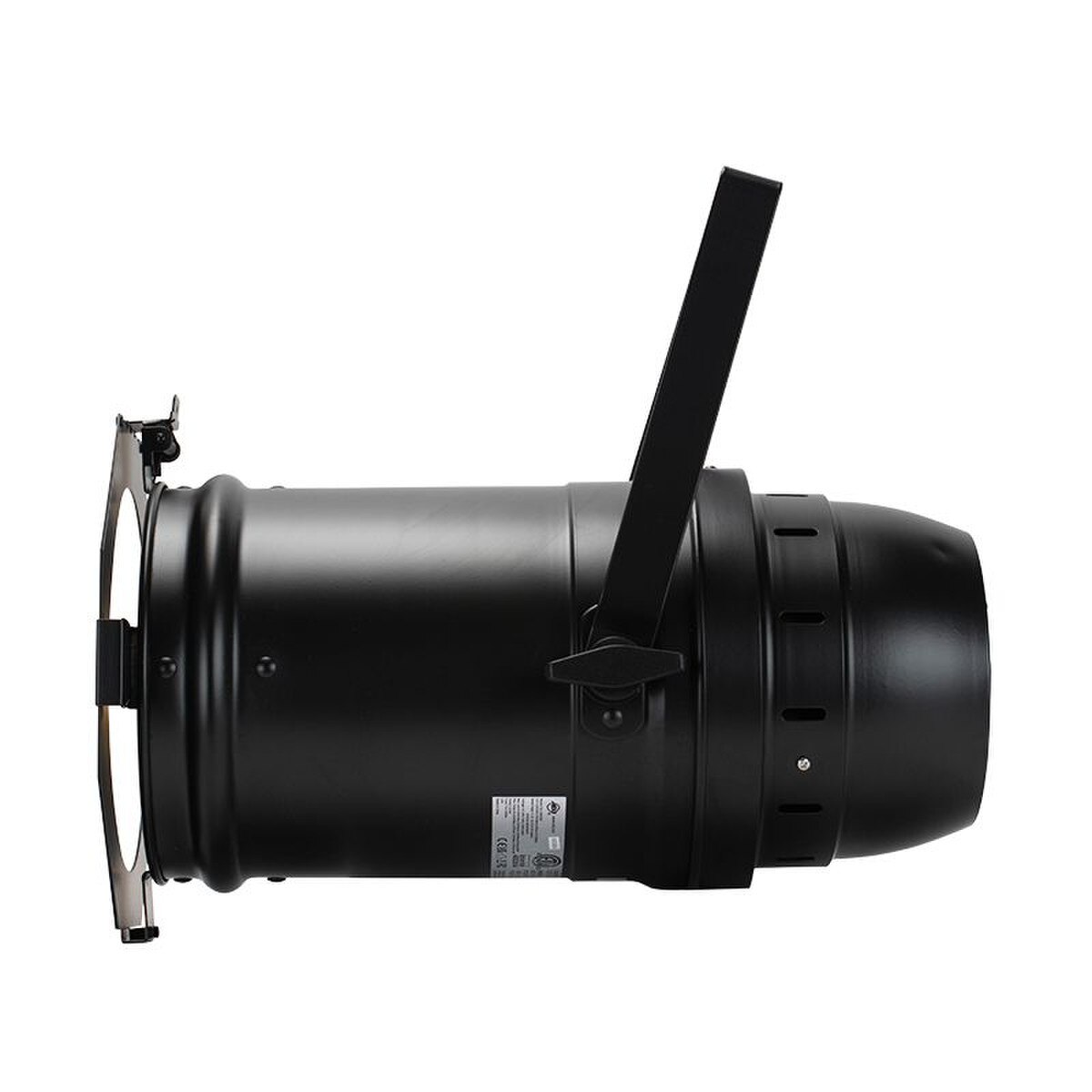

ADJ Par Z100 3K2

The Par Z100 3K2 combines the aesthetic appeal of a traditional stage par can with the contemporary advantages of LED technology. It runs on a 100-Watt, 3000K Warm White C.O.B. LED engine boasting a CRI exceeding 90. With 5 manually adjustable zoom beam angles, along with DMX In/Out and locking power In/Out, the fixture facilitates the seamless connection of multiple units for permanent or temporary use.

Specifications

Optical:

• 100-Watt, 3000K Warm White C.O.B. LED (Chip On Board)
• Life expectancy: rated at 50,000 hrs.
• Manual Zoom: 9°, 15°, 20°, 25° or 30°
• Zoom Ratio: 3.3:1

Photometrics:

• 5885 Lux (Zoomed In to 9° @ 5 meters)
• 767 Lux (Zoomed Out to 25° @ 5 meters)
• CRI: >90

Connection:

• DMX: 5-pin DMX In/Out
• With Wired Digital Communication Network
• Locking power In/Out connections

Control:

• DMX-512
• 3 DMX control modes: (1, 3 & 4 Ch. modes)
• RDM and RDM Net Compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode

Features:

• 4-button DMX menu display on rear panel
• OLED display

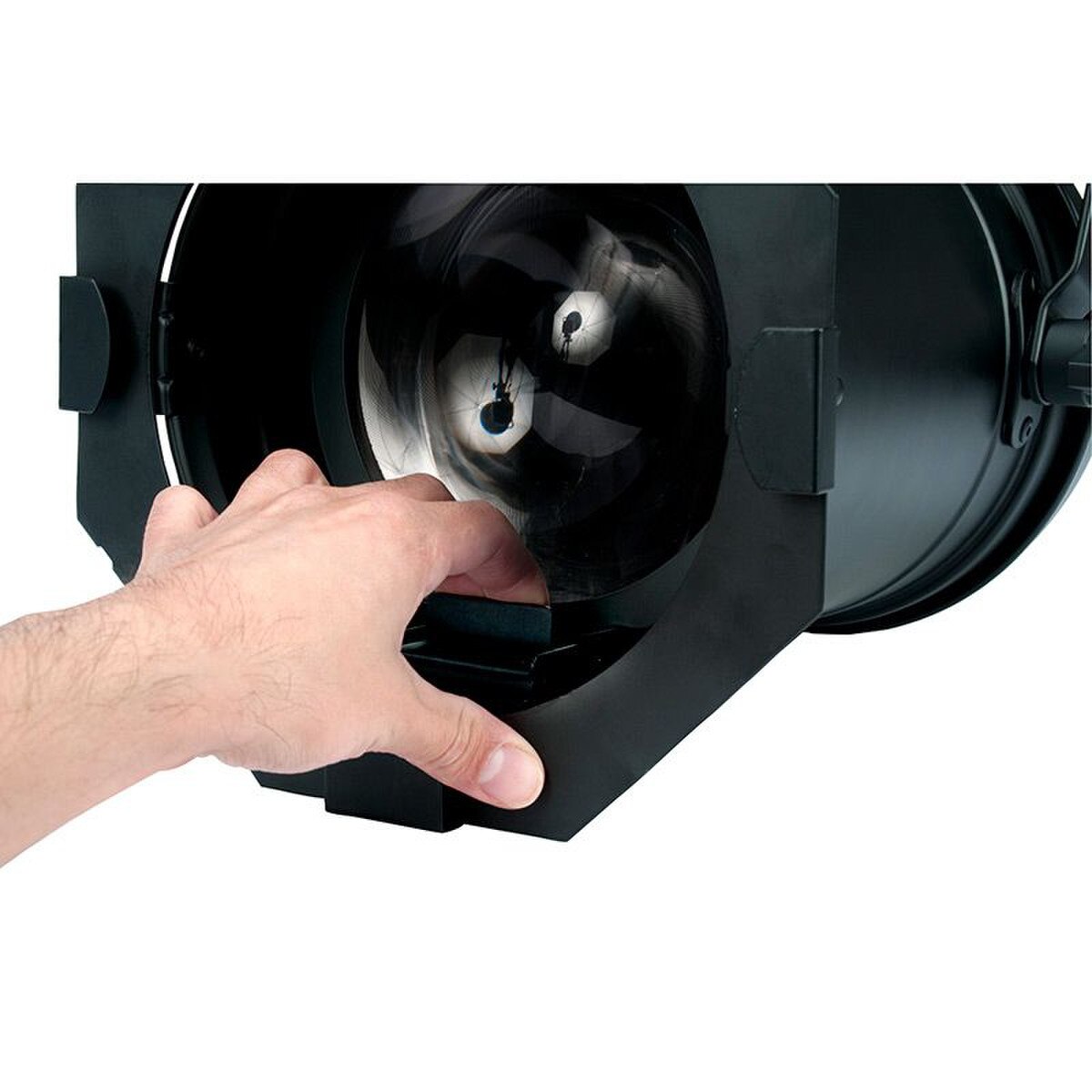

• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• Strobe Rate: 0.6Hz to 7.5Hz
• Refresh Rate: 1.2KHz
• Electronic Dimming: 0 - 100%
• 6 Dim Modes

Electrical:

• Power Draw Total (@ Full On): 115W
• Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Daisy chain: 12 fixtures @ 120V; 22 fixtures @ 230V
• Fuse protected: 3A/250V

Ambient Temperature Range (For Use):

• -4° ~ 113°F (-20°C ~ 45°C)

Storage Temperature Range:

• -22° ~ 113°F (-30°C ~ 45°C)

Dimensions / Weight:

• Dimensions (LxWxH): 19.25” x 10.94” x 10.68” / 489 x 277.7 x 271.1mm
• Weight: 7.94lbs. / 3.6kg.

IP Rating / Approvals:

• IP20
• CE & FCC
• ETL Approved (4002034)

Specifications subject to change without notice.

Details:

The ADJ Lighting Par Z100 3K2 offers the classic par can look with the modern benefits of LED. The PAR Z100 3K2, looks exactly the same as a regular black Par can, but inside its casing is housed a powerful LED light source. Offering output comparable to a 1000W sealed beam Par, but producing a fraction of the excess heat, making it ideal for illuminating stages while ensuring that performers won’t get too hot.

The Par Z100 3K2 is powered by a 100-Watt, 3000K Warm White C.O.B. LED engine with a CRI greater that 90. The 3000K color temperature offers a good approximation to the output of a traditional lamp. There are 5 manual zoom beam angles to choose from: 9°, 15°, 20°, 25° or 30.° A traditional par can gel frame is included so that designers can diffusion filter for even more control of the fixture’s output.

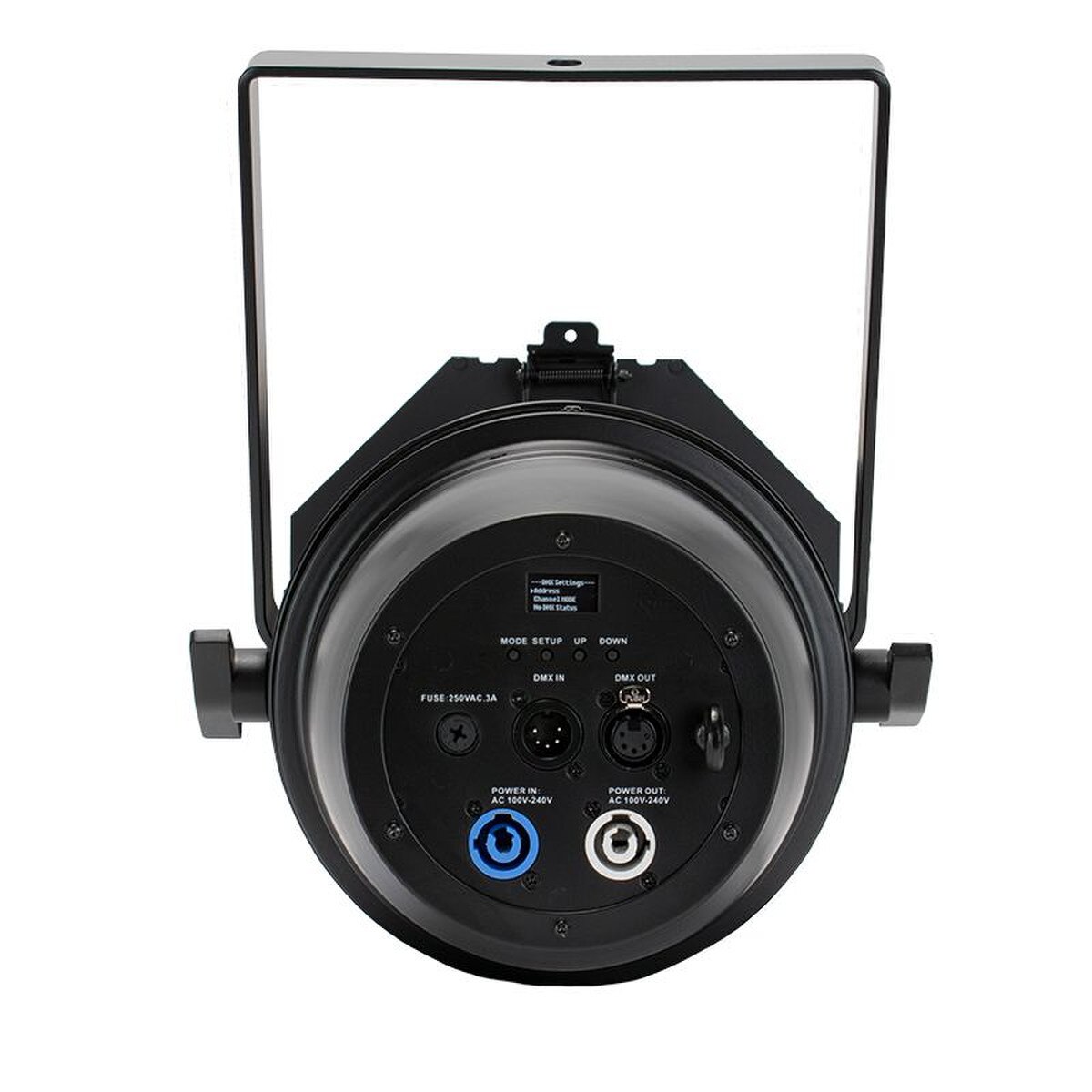

Advanced features include a 4-button DMX OLED display menu, adjustable strobe rates, 6 dim modes and electronic dimming form 1-100%. The fixture is RDM and RDM Net compatible. On the back of the fixture there are locking power In/Out sockets to daisy chain power, plus 5-pin DMX data In/Out sockets.
