ADJ Power Bone T1PC

(0)No Reviews yet
$149.99
SKU: ADJ POW193

Details

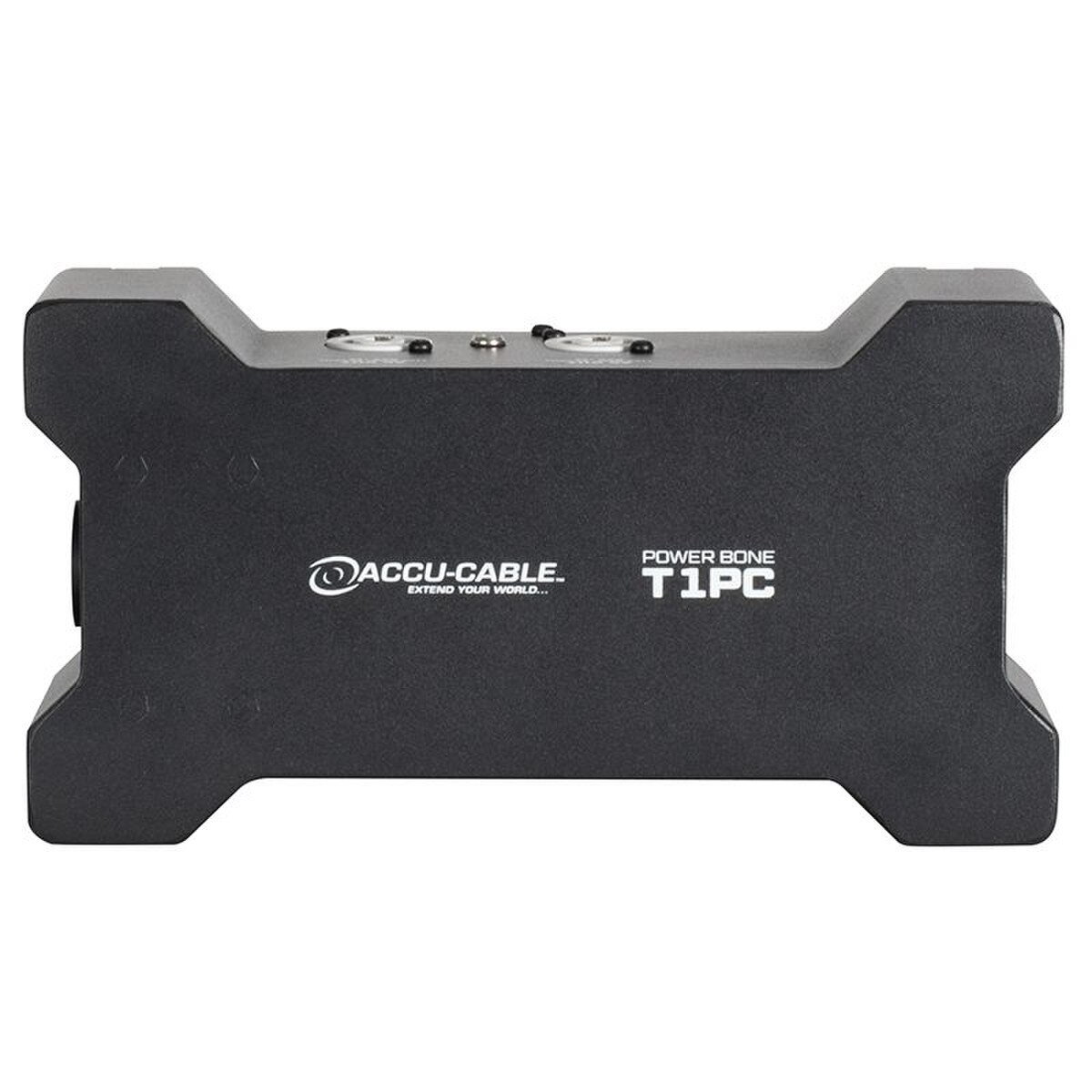

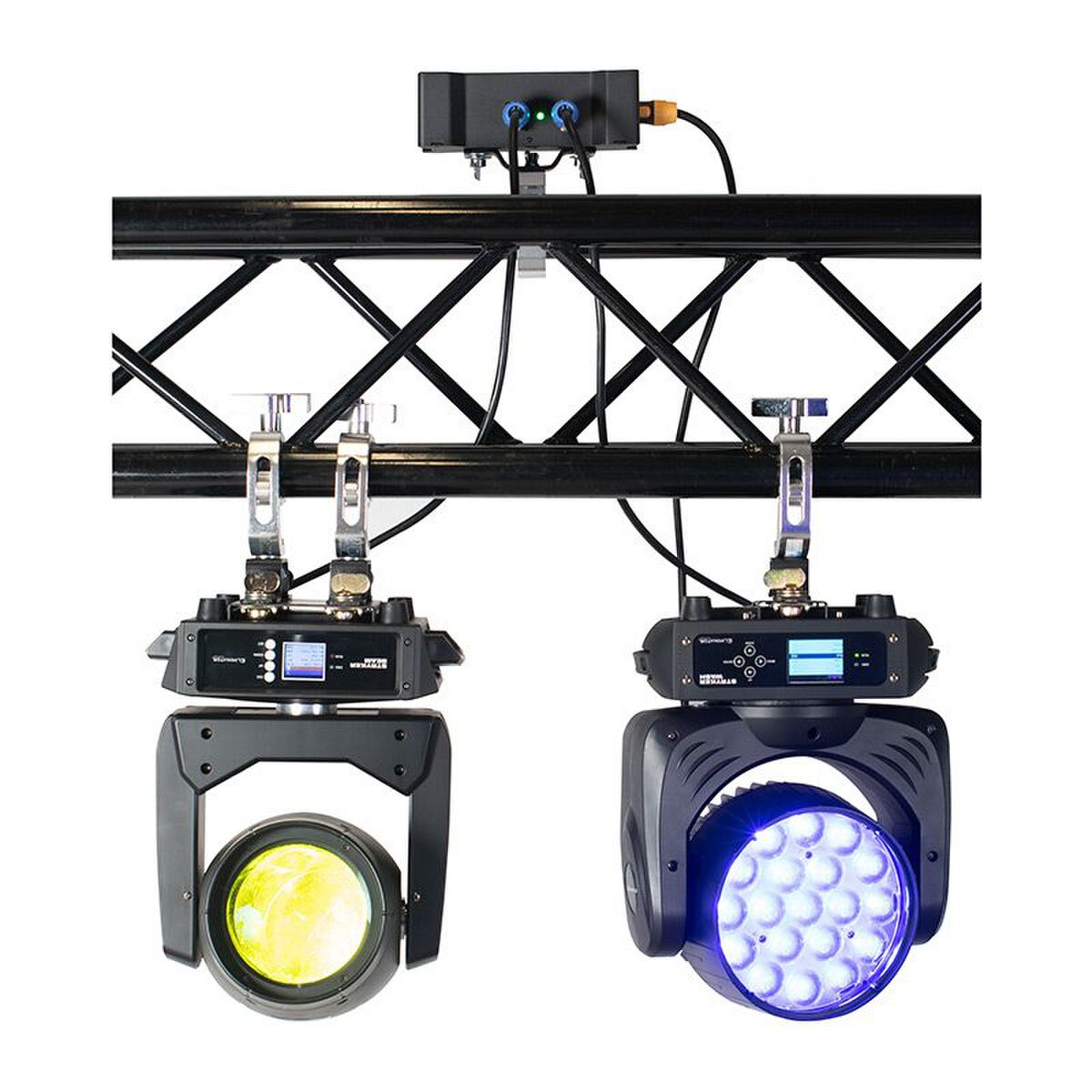

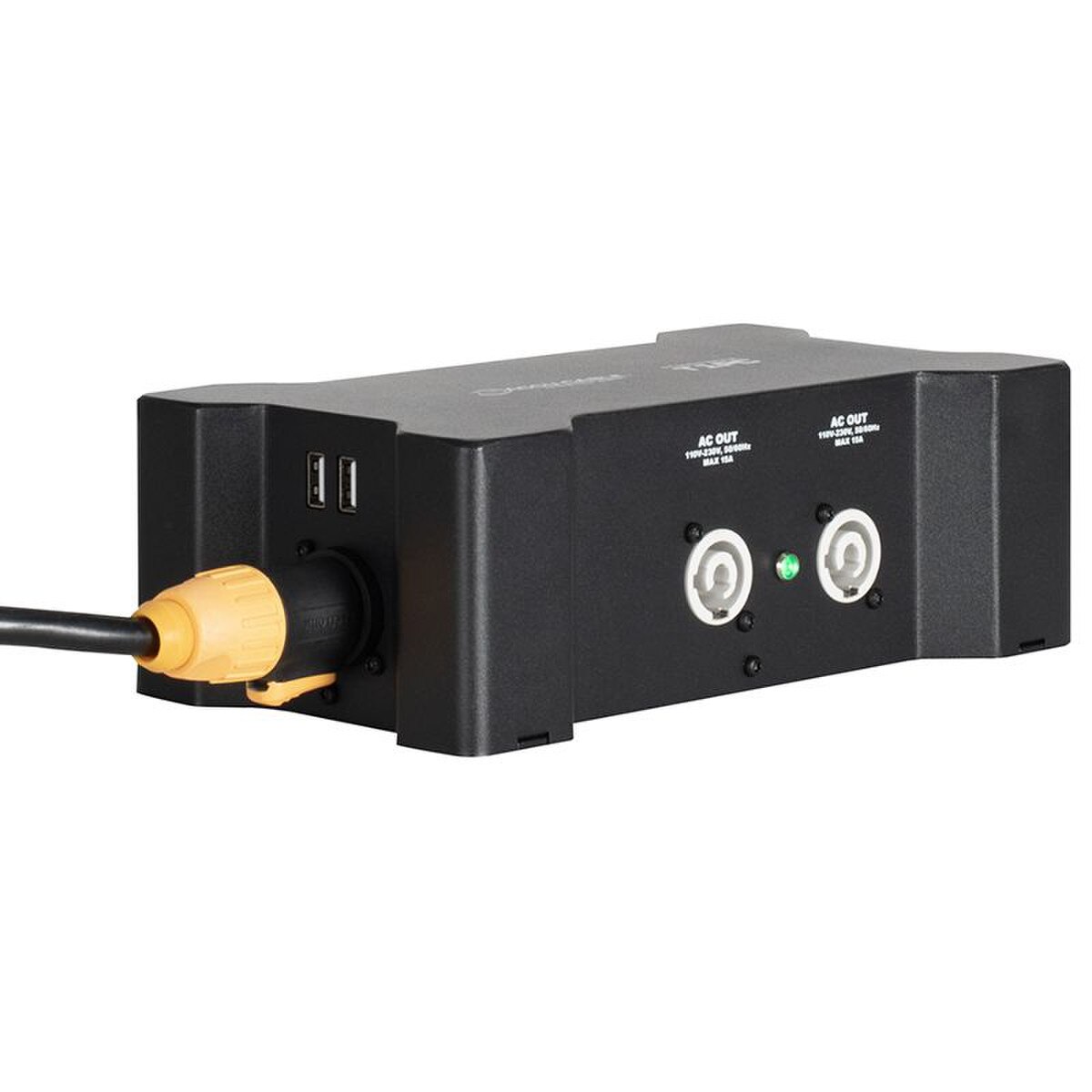

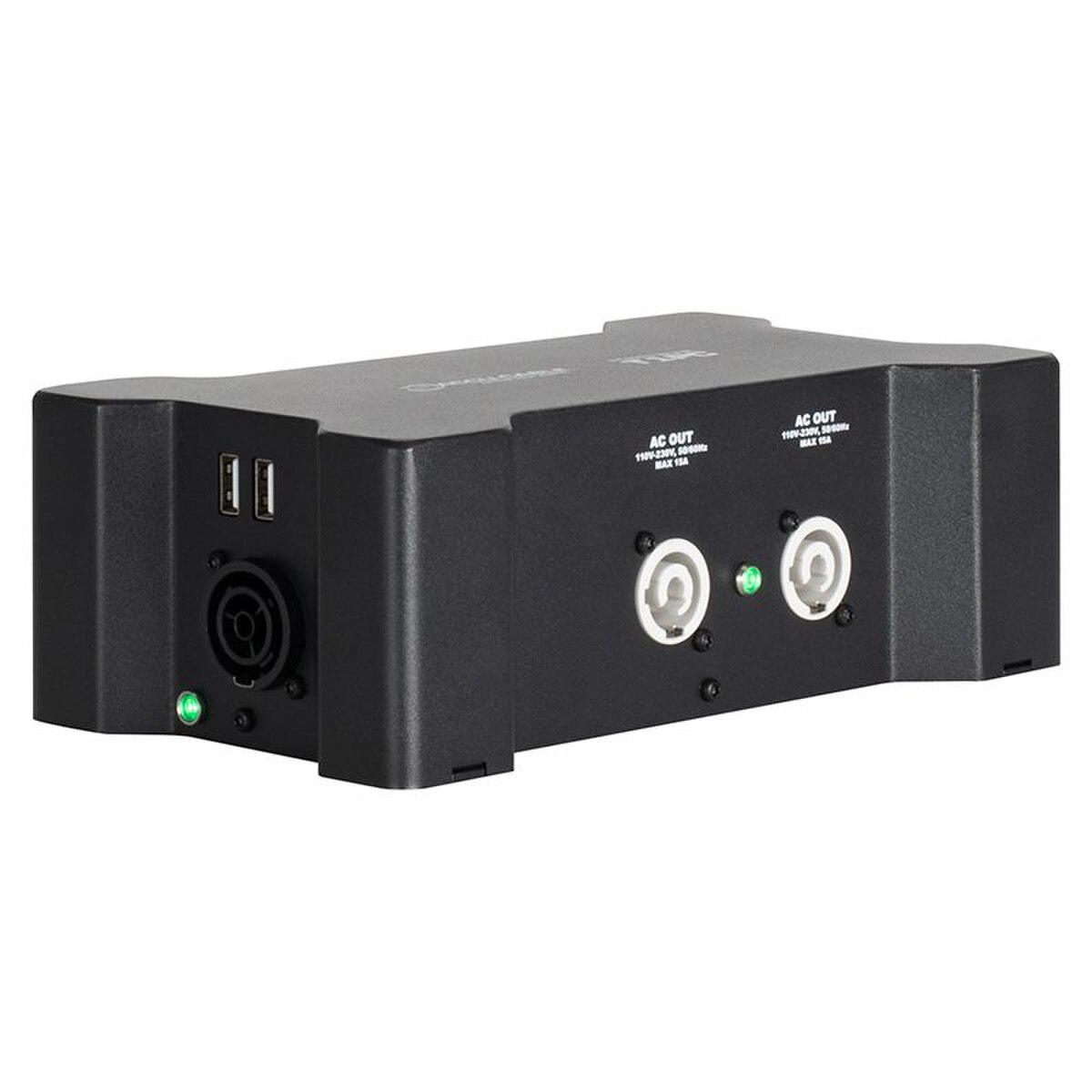

The Accu-Cable Power Bone T1PC Power Distribution Box is designed to provide reliable and secure power distribution for event productions and permanent installations. This product features two Seetronic, IP65 Locking Power input and thru connections and four Seetronic, Indoor Locking Power output connections.

Specifications

Features:

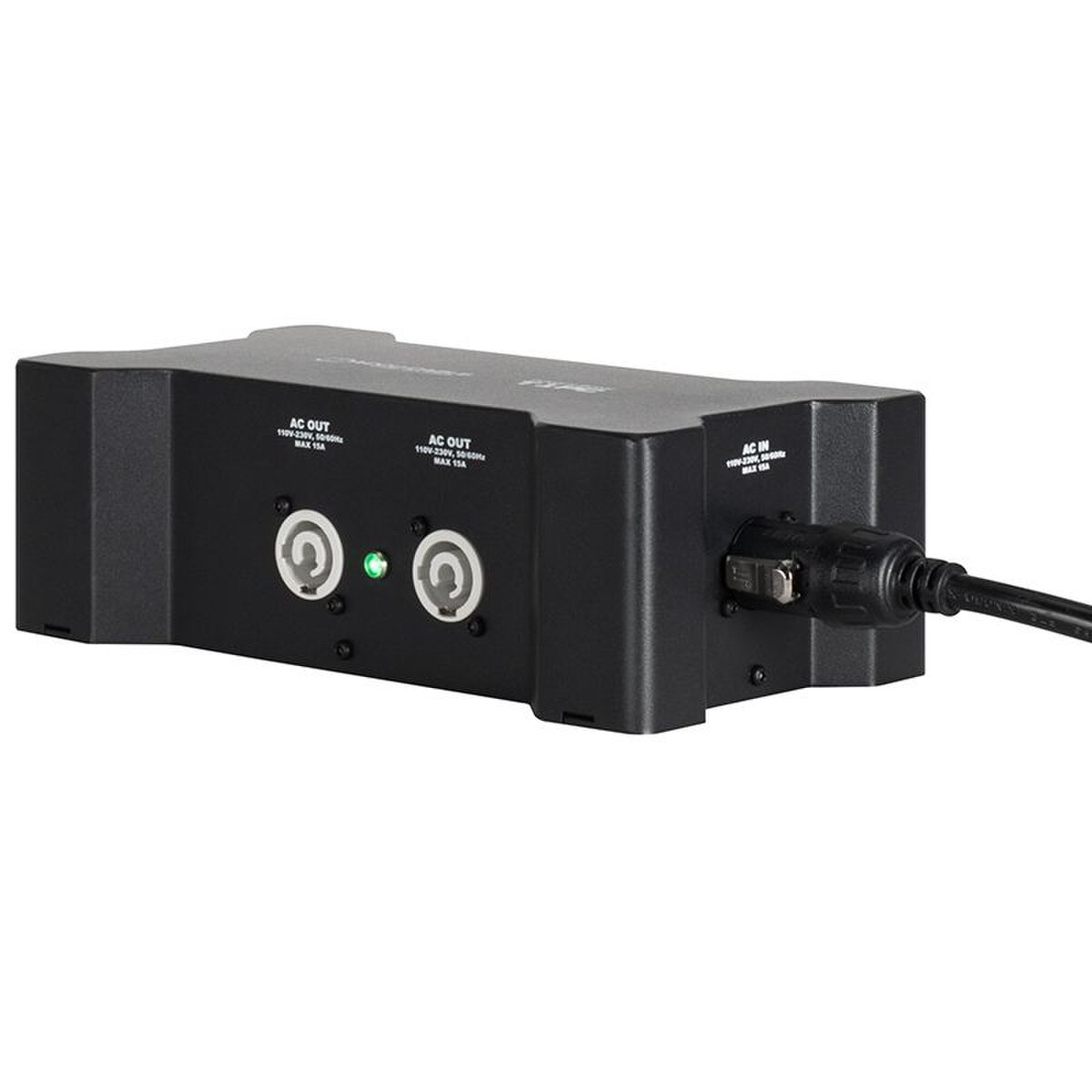

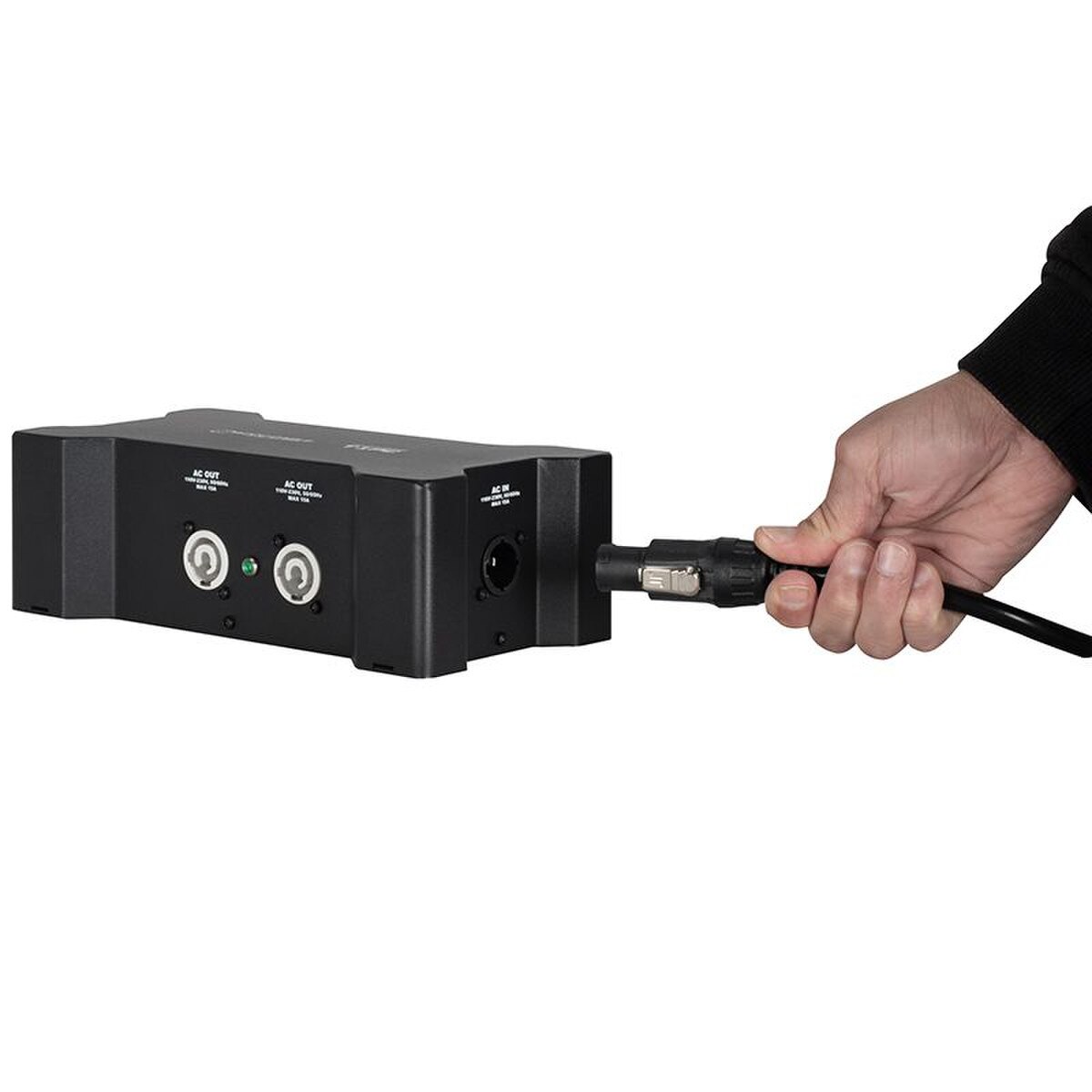

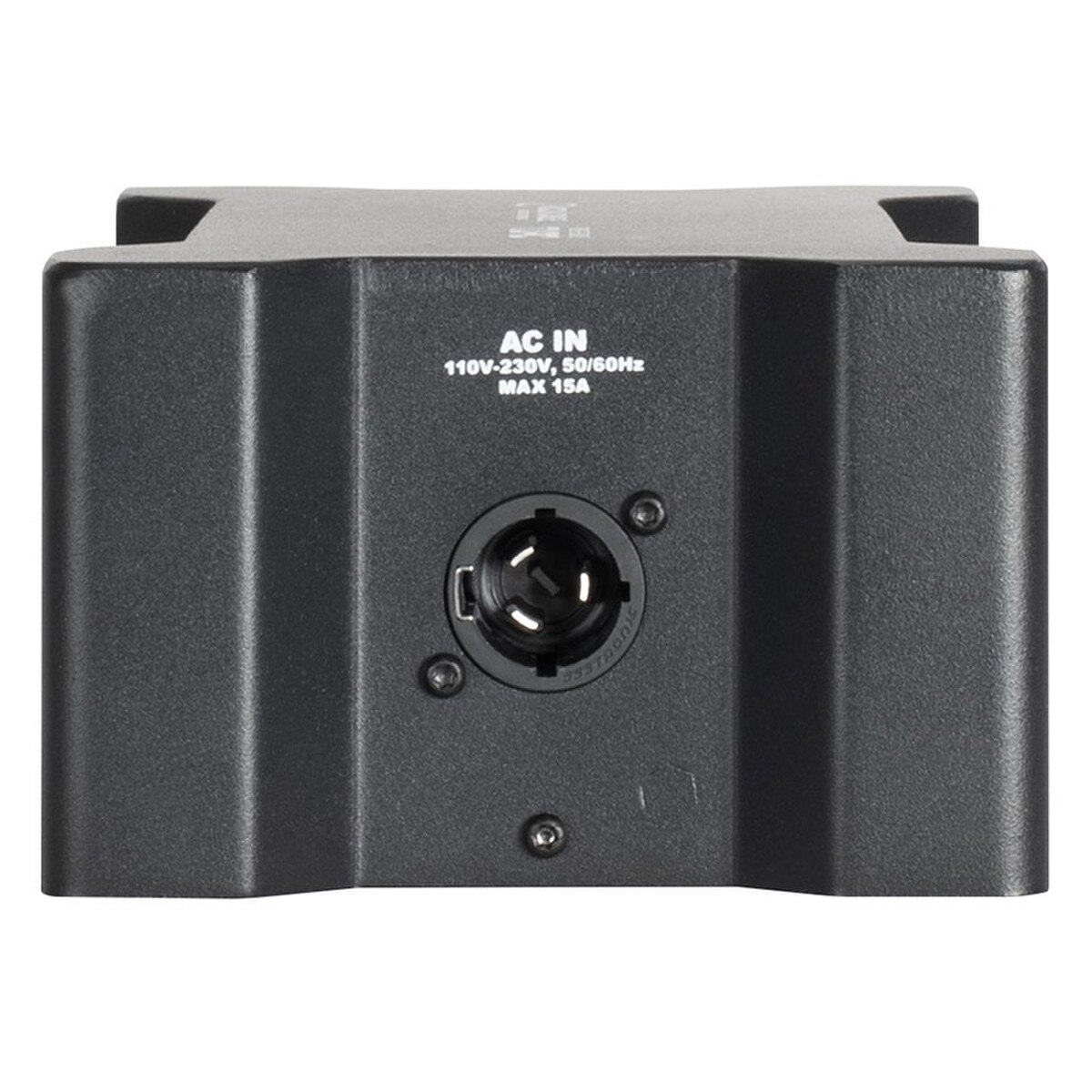

  • Seetronic, IP65 Locking Power input and thru connections

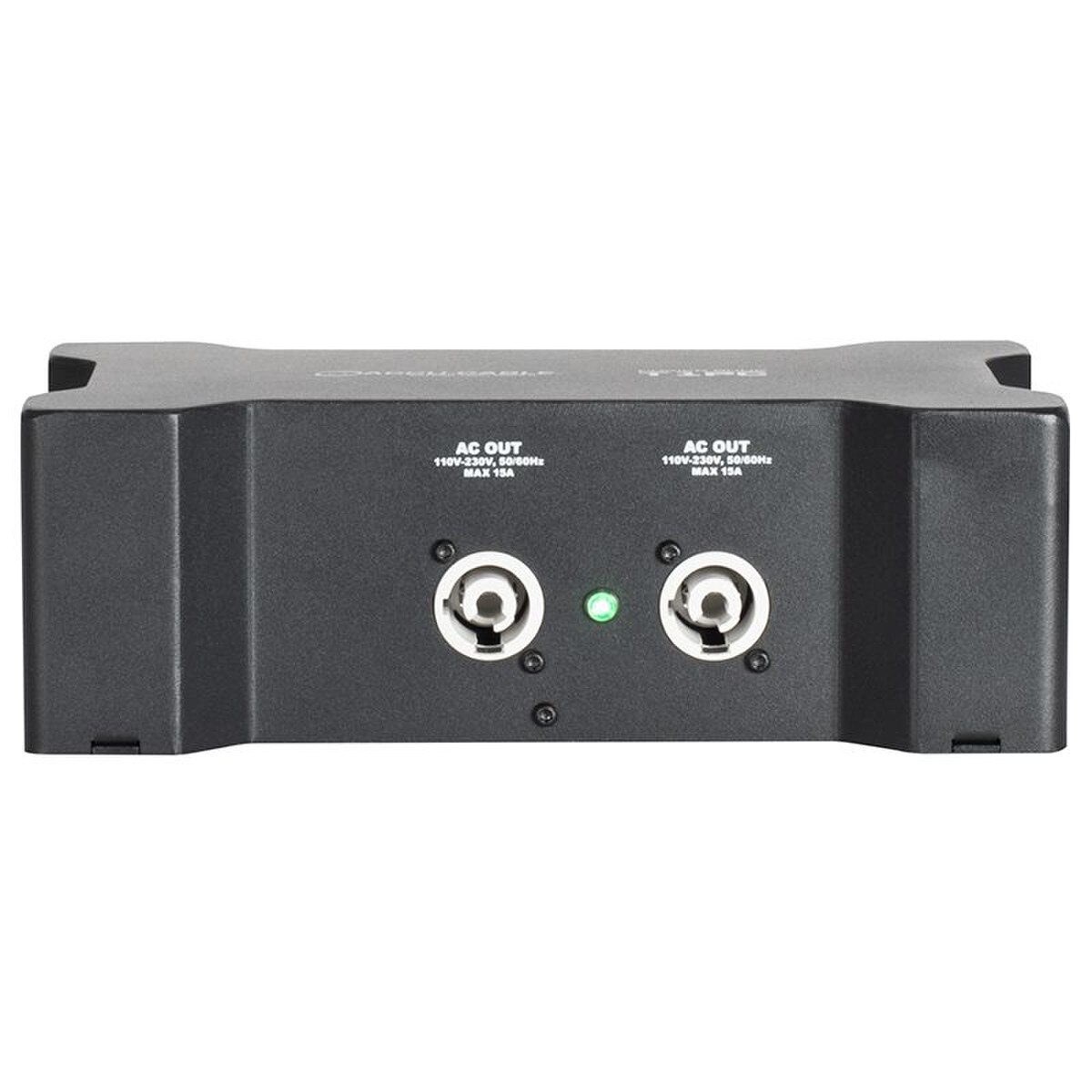

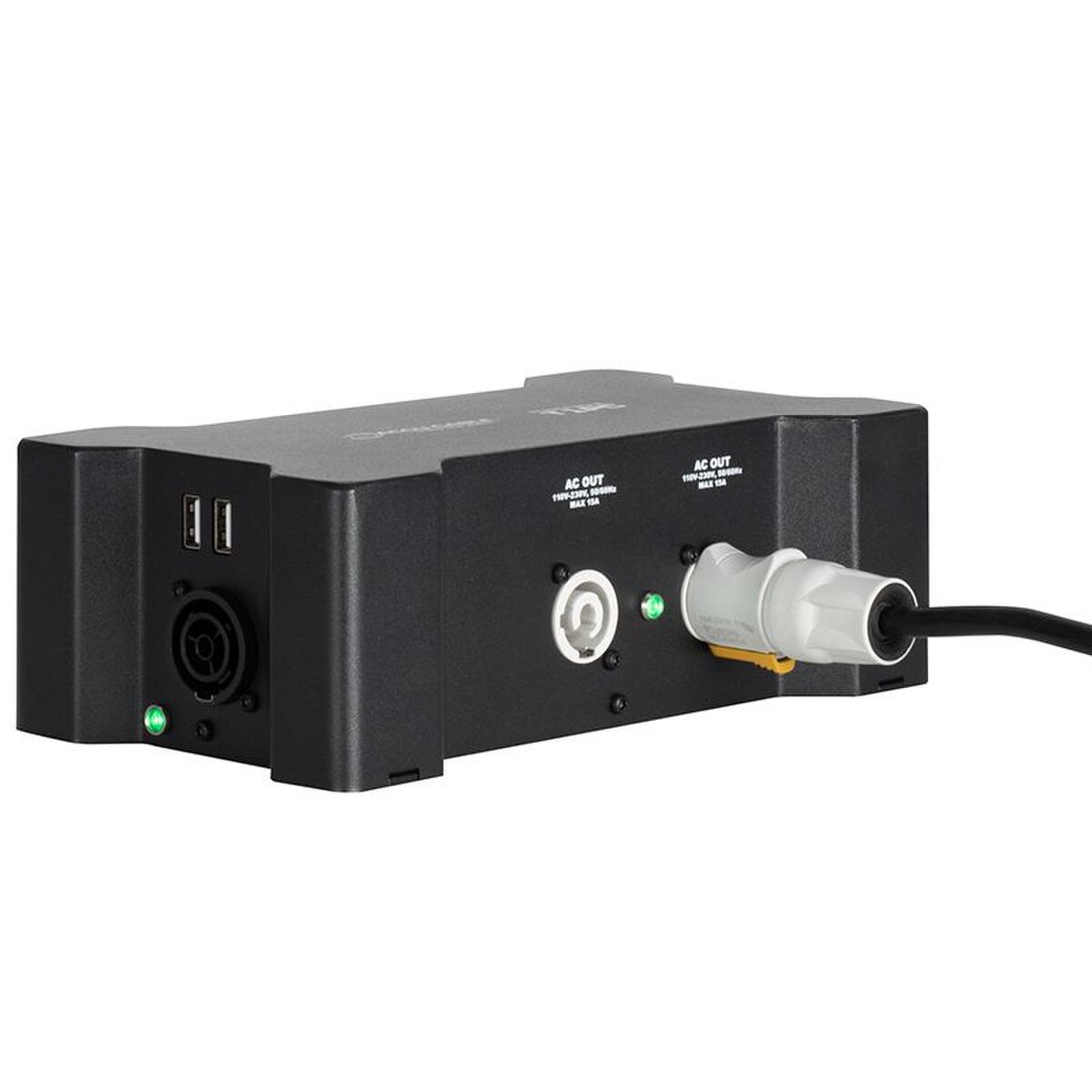

  • 4x Seetronic, Indoor Locking Power output connections

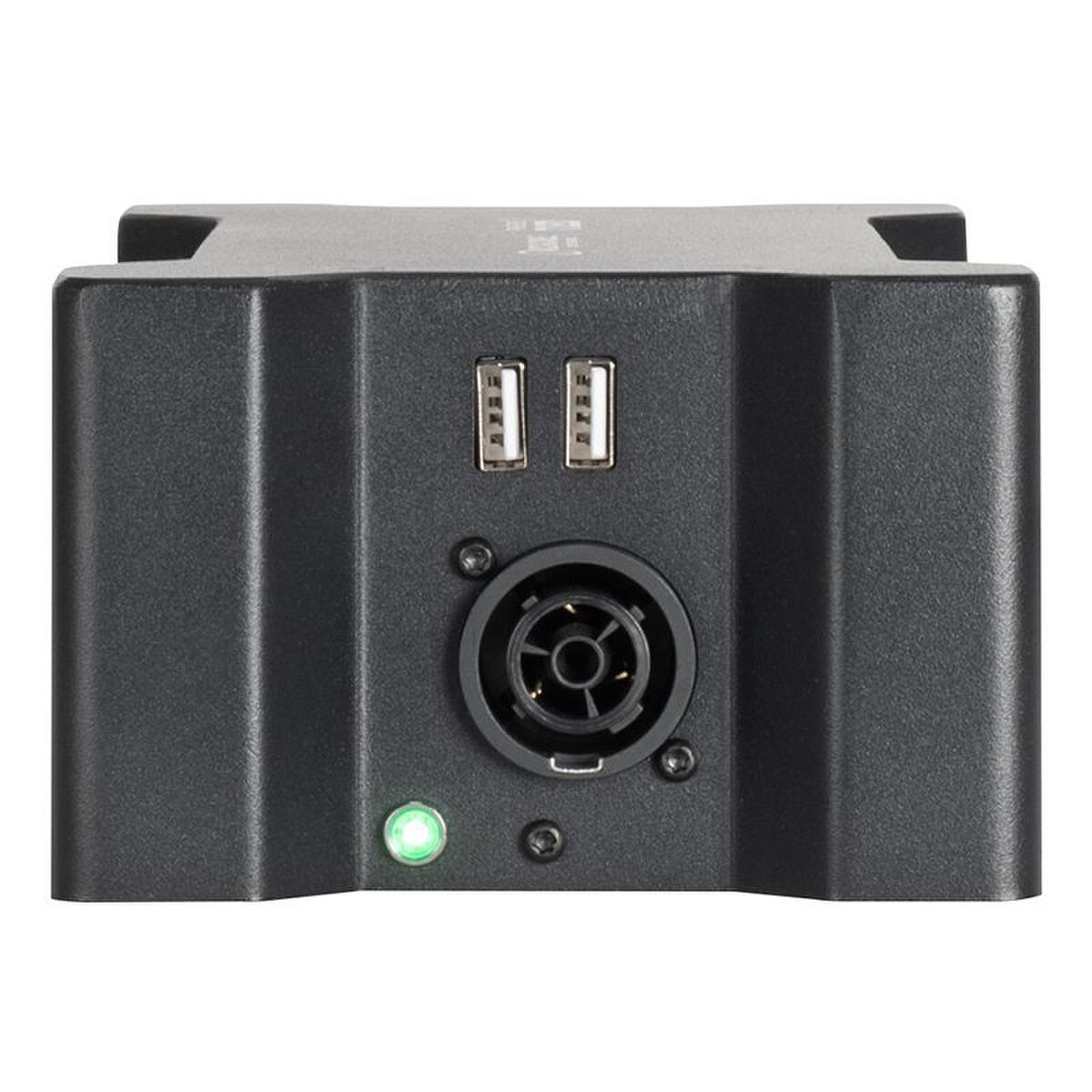

  • Two 5V USB sockets (5V-2.1A and 5V-1.3A)
  • Output DC 2.5V 2.1A / Ch, Total 3.4A Max
  • IP20 rated for dry location use only
  • Power indicator LEDs for input & outputs

Electrical:

  • Power Input: 100-240VAC ~ 50/60Hz
  • Maximum daisy chain current draw: 15A

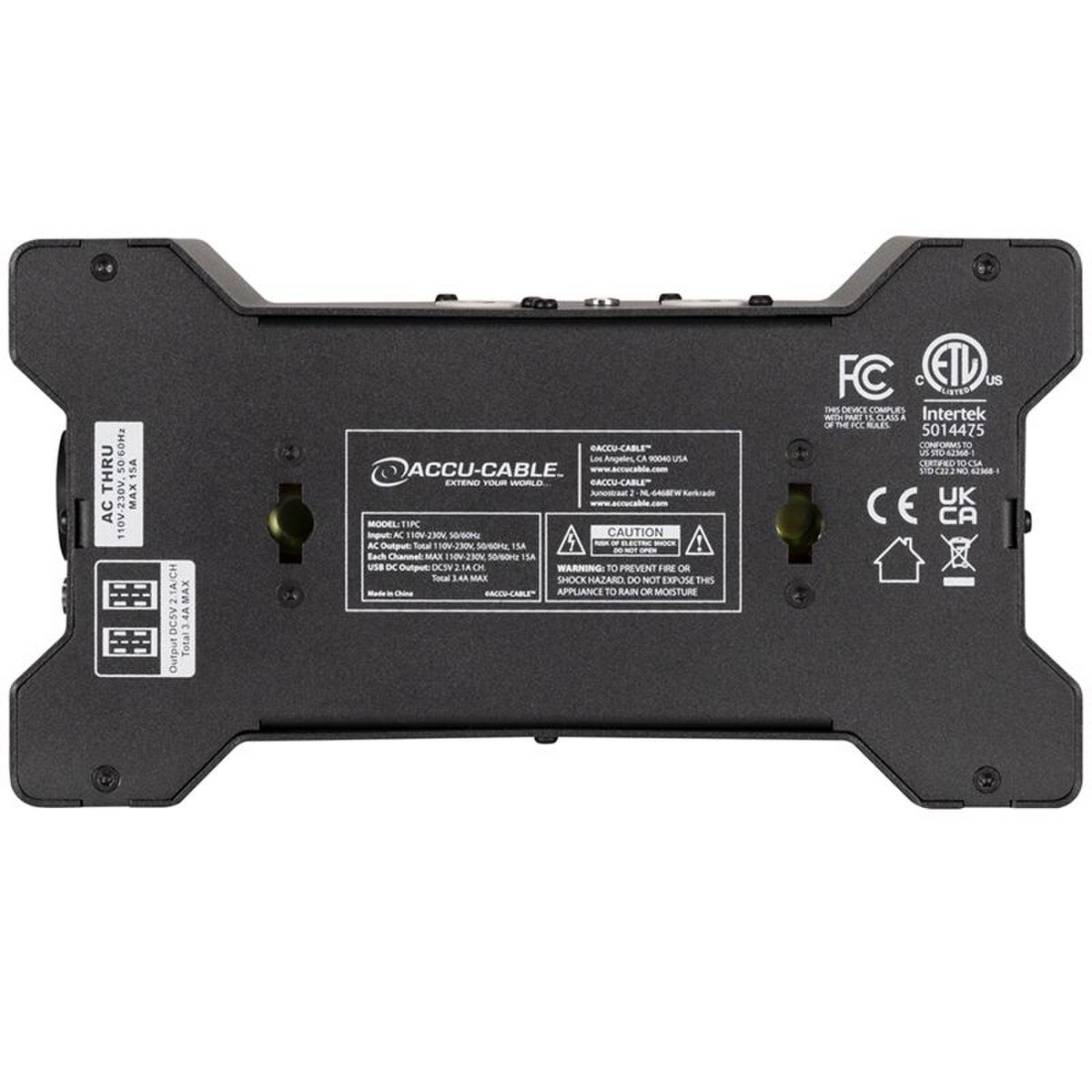

Approvals:

  • cETLus (Control #5014475)
  • FCC
  • CE

Dimensions / Weight:

  • Dimensions (LxWXH): 8.85” x 4.72” x 4.37” / 225x120x111mm
  • Weight: 3.96 lbs. / 1.8 kg.

Included Accessories:

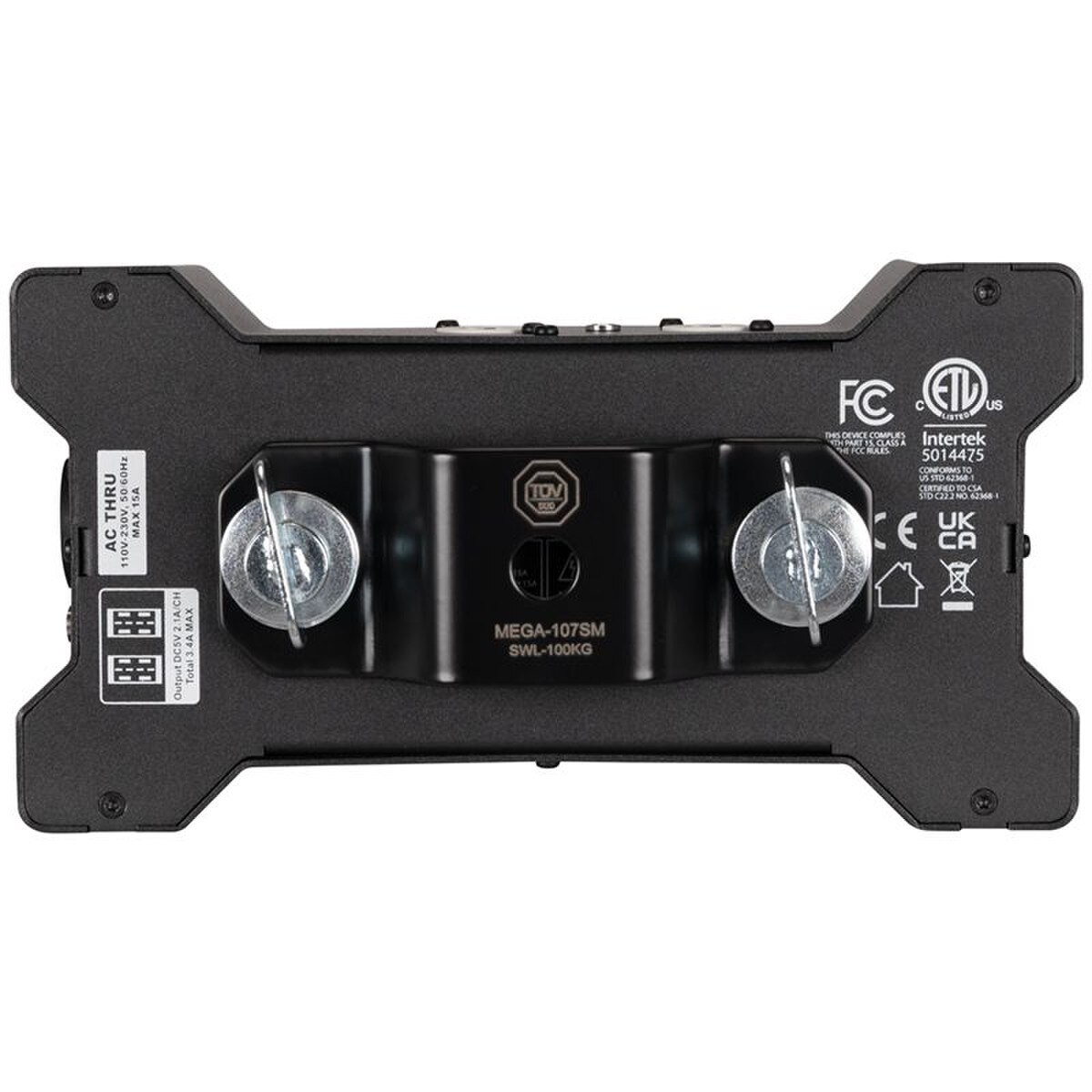

  • Quick Release, locking omega bracket
  • 6ft., 12 gauge, IP65 Locking Power Connector to Edison cable


Specifications are subject to change without notice.

Details:

The Accu-Cable Power Bone T1PC Power Distribution Box is designed to provide reliable and secure power distribution for event productions and permanent installations. With its innovative features, the Power Bone T1PC ensures convenient power connectivity.


Featuring Seetronic, IP65 locking power input and thru connections, this power distribution box offers a robust and secure power source. It also includes four Seetronic indoor locking power output connections, allowing you to power multiple devices simultaneously. The two 5V USB sockets (5V-2.1A and 5V-1.3A) provide a convenient power or charging solution for your USB-powered devices.


Equipped with power indicator LEDs for both the input and outputs, the Power Bone T1T1 keeps you informed about the power status at a glance. With a maximum daisy chain current draw of 15A, you can easily expand your power setup without compromising performance.


The IP20 rating ensures safe usage in dry locations, giving you peace of mind during temporary outdoor events. The compact dimensions of 8.85" x 4.72" x 4.37" (225x120x111mm) and a lightweight design of 3.96 lbs. (1.8 kg) make it easy to transport and set up or install without being an eyesore.

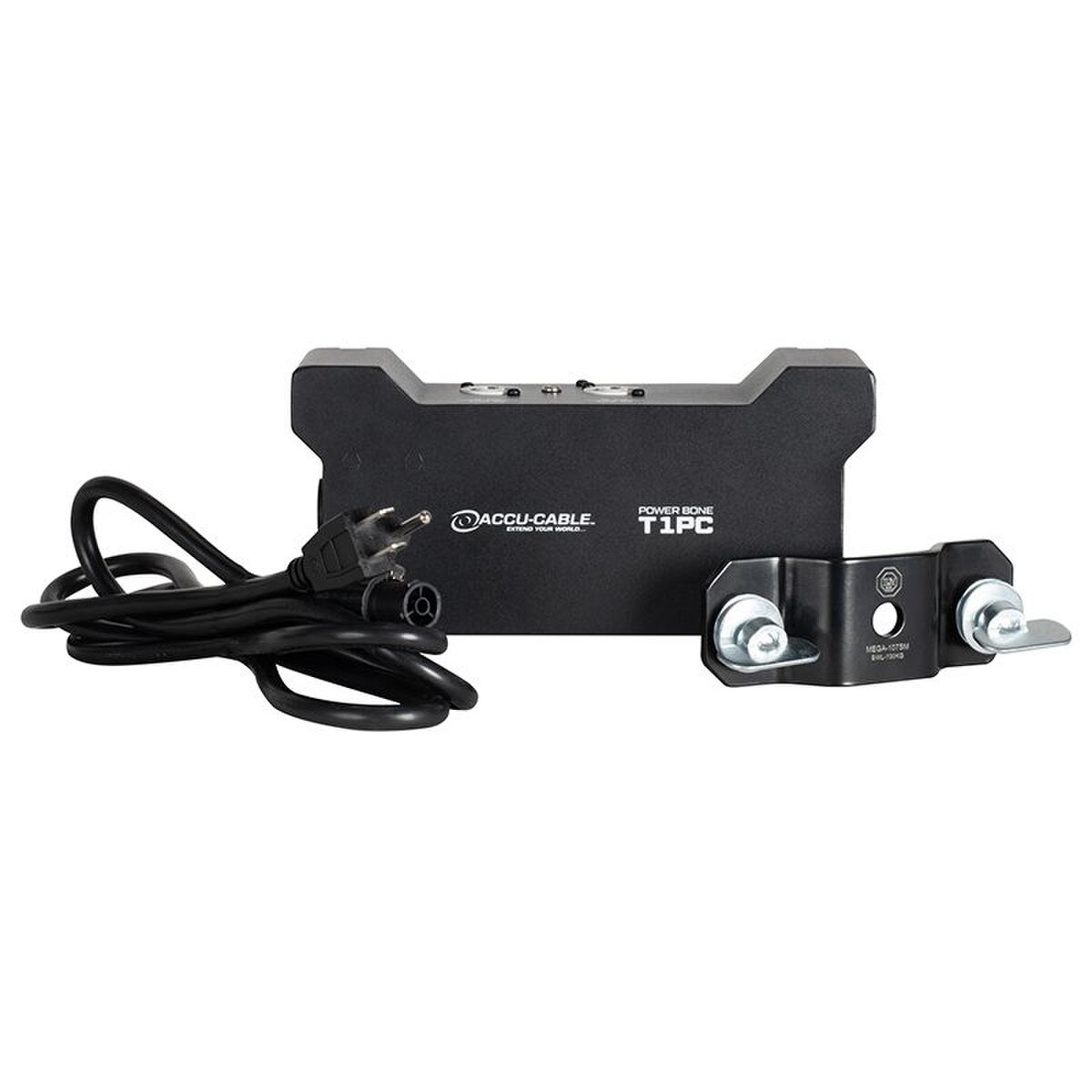

Included with the Power Bone T1PC is a quick-release, locking omega bracket for secure mounting, as well as a 6ft., 12 gauge, IP65 locking power connector to Edison cable for convenient connectivity.


Experience the power of efficiency and reliability with the Accu-Cable Power Bone T1PC. Take control of your power distribution needs and ensure seamless performances every time.





ADJ POW193 User Manual.pdf
ADJ POW193 User Manual - French.pdf
ADJ POW193 Cutsheet.pdf
