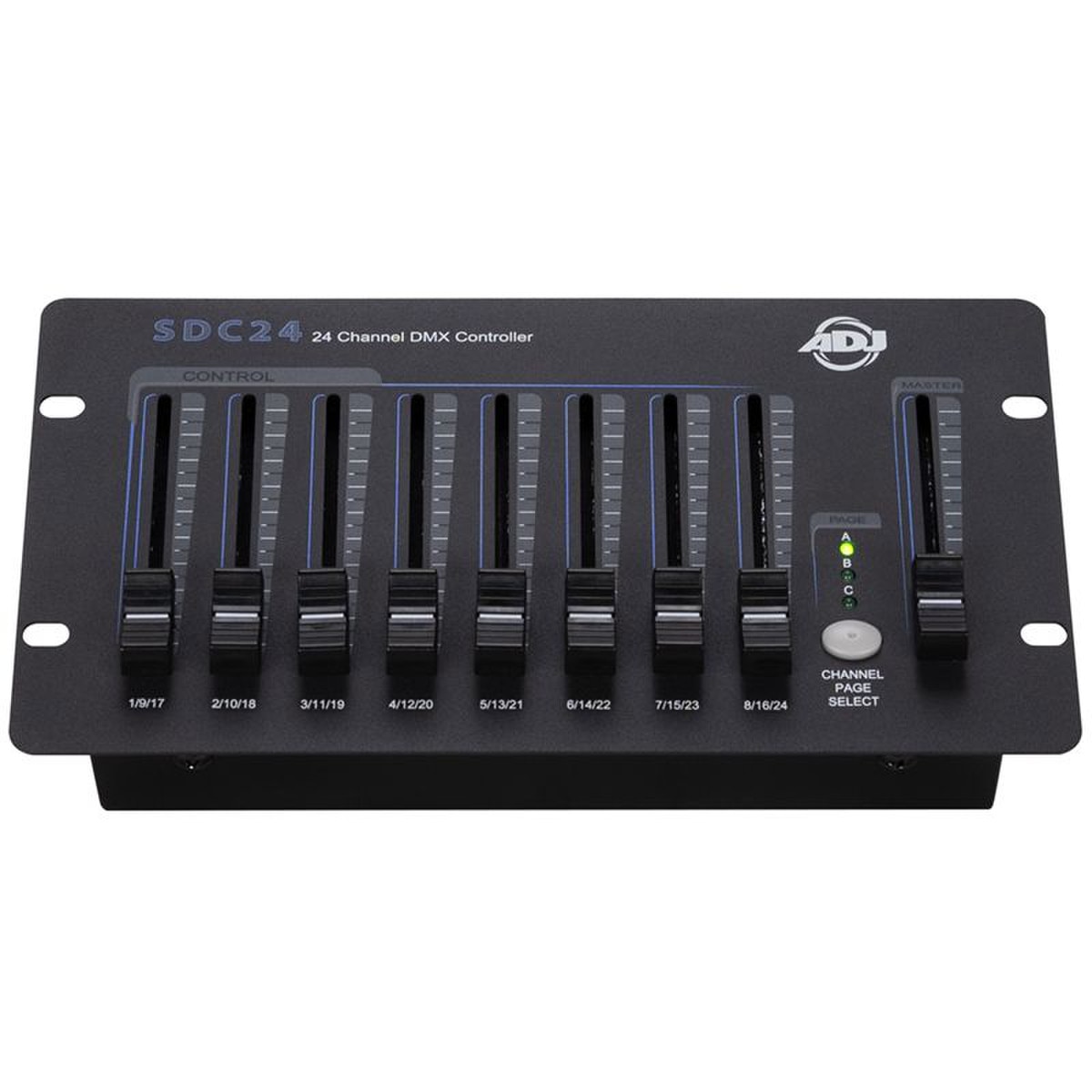

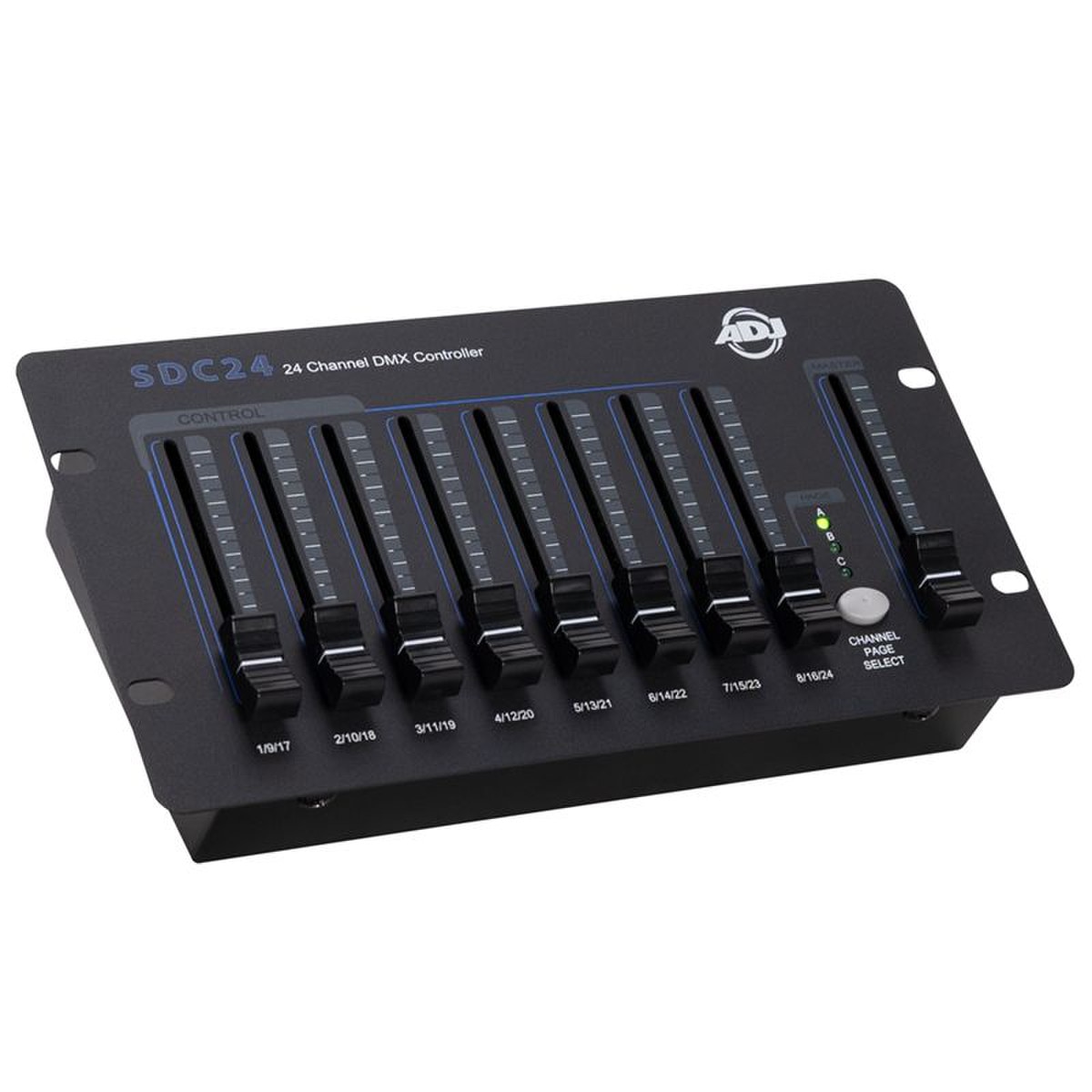

ADJ SDC24

The SDC24 is a basic 24-channel DMX Controller with 5-pin and 3-pin DMX out put and can be controlled by AC or DC power.

Specifications

Features:

• 8 individual channel faders and 1 master fader
• 24 DMX channels
• Compact, portable design
• 3-Pin and 5-Pin XLR output
• Battery Type: PP3 9V (not included)

Control / Connection:

• DIP Switches To Set Starting DMX Channel
• 3pin & 5pin DMX Outputs
• On/Off Switch
• Channel Page button with Indicator LED's
• DC9V-12V Power Supply Input
• 9V Battery slot

Size / Weight:

• Length: 4.73” (120mm)
• Width: 9.06” (230mm)
• Height: 2.23” (56.66mm)
• Weight: 1.86 lbs. (0.84kg)

Electrical:

• DC9V-12V 300mA min or 9V Battery (Not Included)
• Power Consumption: DC9V 40mA 0.36W, DC12V 40mA 0.48W

Approvals / Ratings:

• CE Approved
• cETLus (Control # 5014475)
• IP20

Included Accessories:

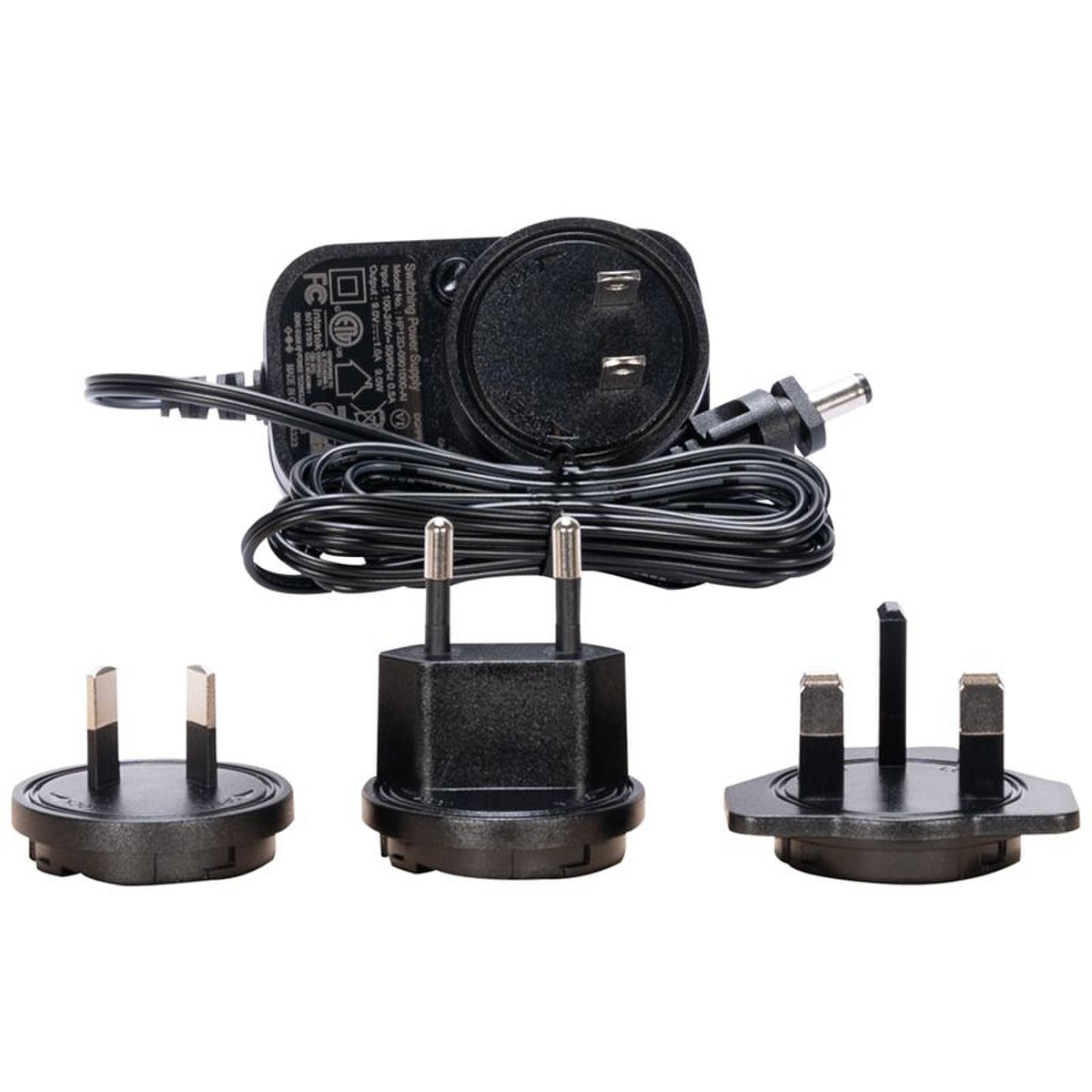

• 9V 1A Power Supply

Specifications subject to change without notice.

Details:

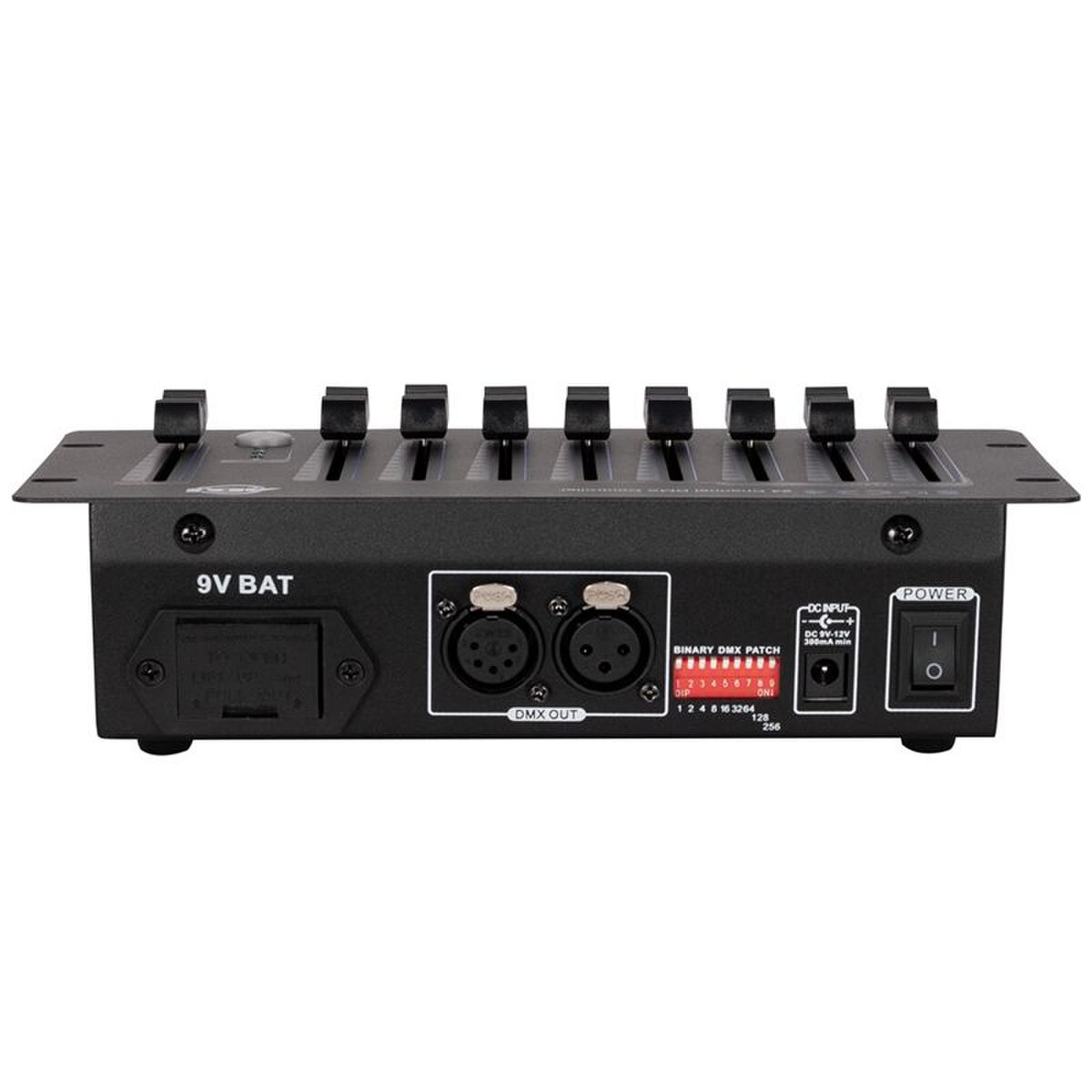

The ADJ Lighting SDC24 is a basic 24-channel DMX Controller that operates via an external 12VDC power supply (included) or a 9VDC battery (not included). SDC24 has 5-pin and 3-pin DMX output sockets, DIP switches to set a starting DMX channel, a master dimmer fader, an on/off switch and Channel Page button with Indicator LEDs. This a great compact controller for product demos or manual control of LED or conventional fixtures.
