ADJ Saber Spot DTW

(0)No Reviews yet
$149.99
SKU: ADJ SAB990

Details

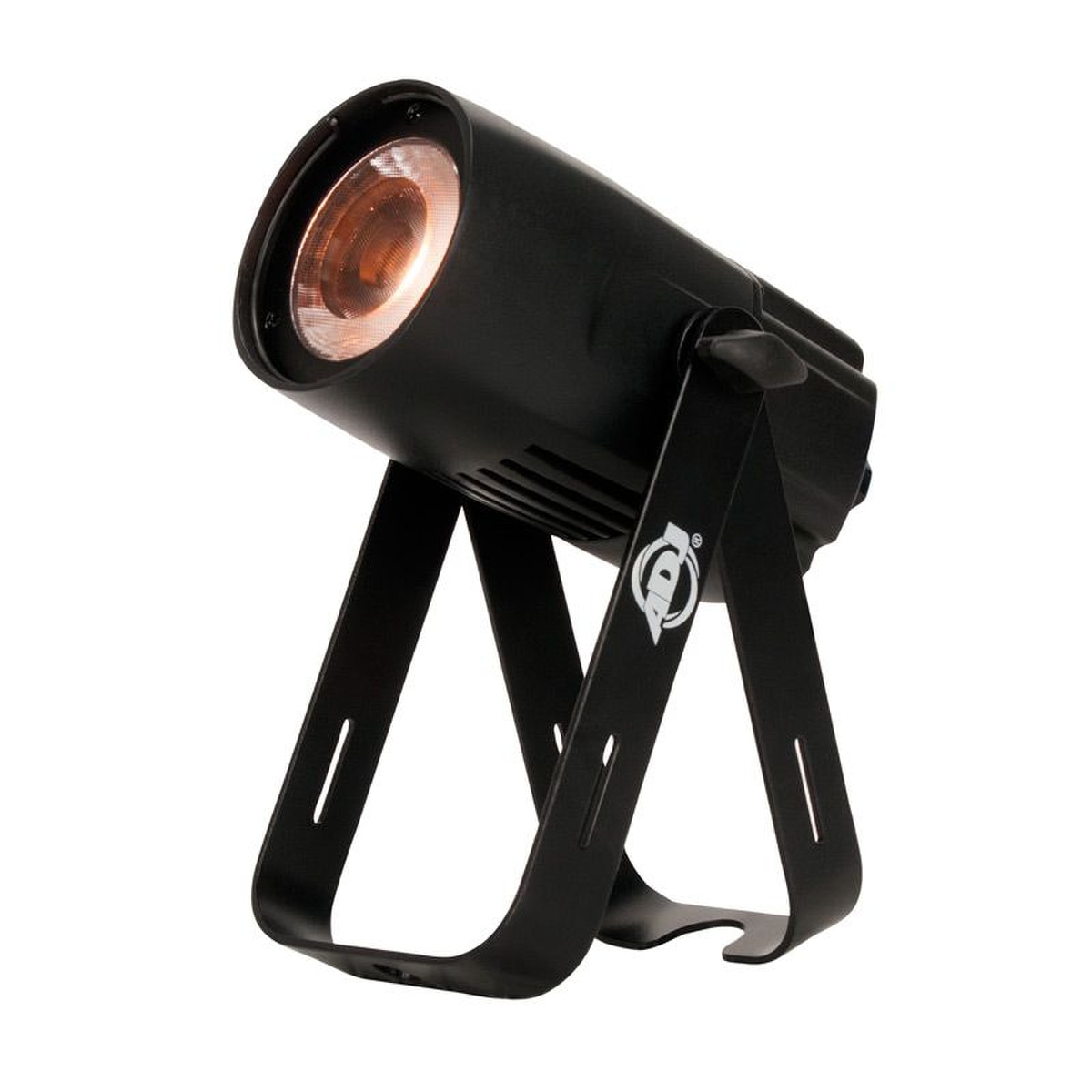

The Saber Spot DTW is a compact spot fixture with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button LED display system on the rear panel. Its built-in ACL lens produces a 20-degree beam angle. It features a dim to warm effect that replicates a halogen-like dimming profile.


The Saber Spot DTW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.

Specifications:
Optical:

  • Light Source: 15-Watt Warm White LED
  • LED Life Expectancy: 10,000 Hrs
  • Beam Angle: 20-degrees

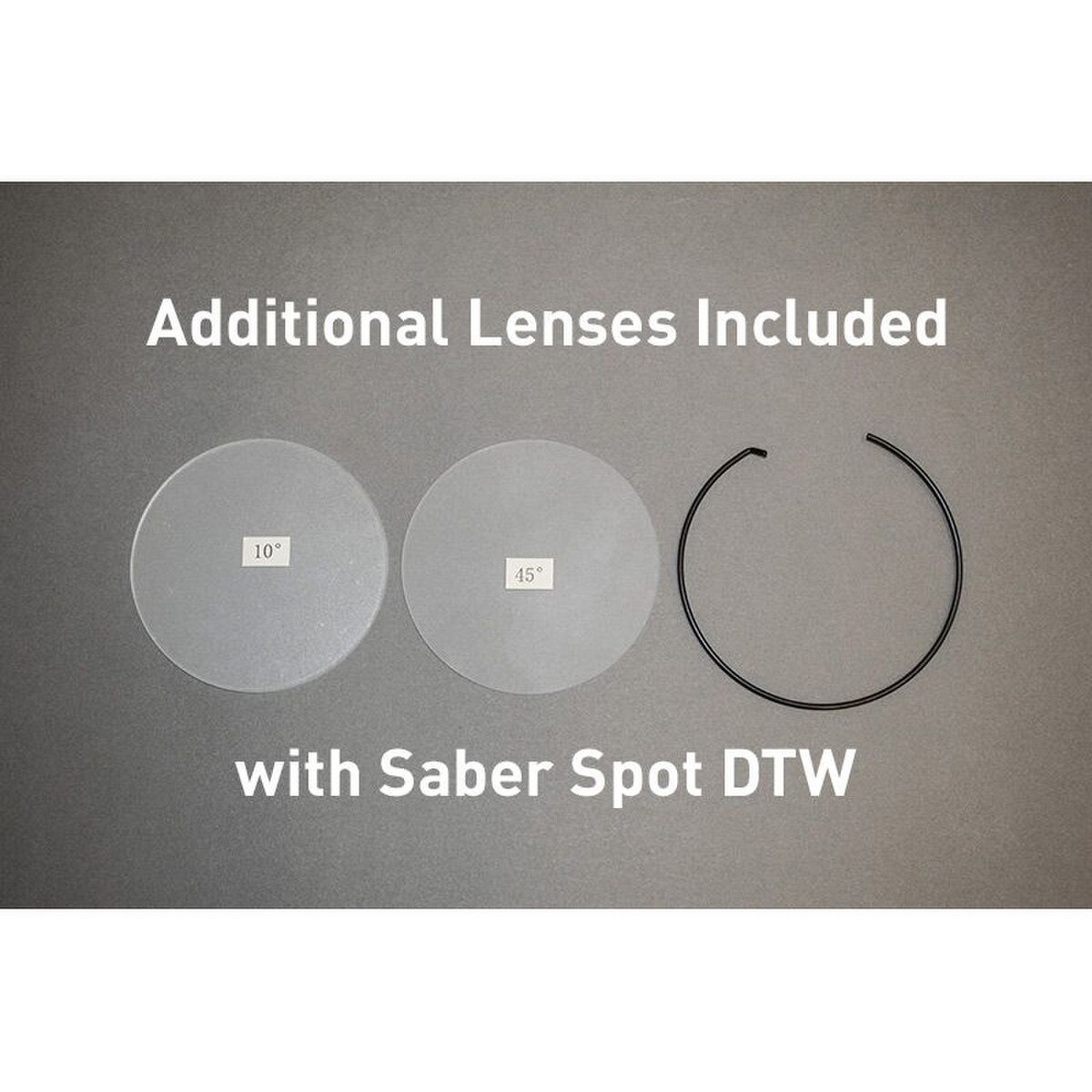

  • Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
  • Color Temperature (Full on): 3100K (Warm White); 1900K (Amber)
  • LUX: 726 @ 3M
  • CRI (Full on): 92

Control:

  • 3 DMX Channel Modes: 1, 2 or 4
  • 4-button Digital Display for easy navigation
  • Electronic Dimming 0 – 100%
  • 5 Dimming Curve modes
  • Dim to warm effect with Amber LED
  • Flicker Free (Refresh Rate: 3.6KHz)
  • Variable Strobe: 1-20Hz
  • RDM (Remote Device Management)

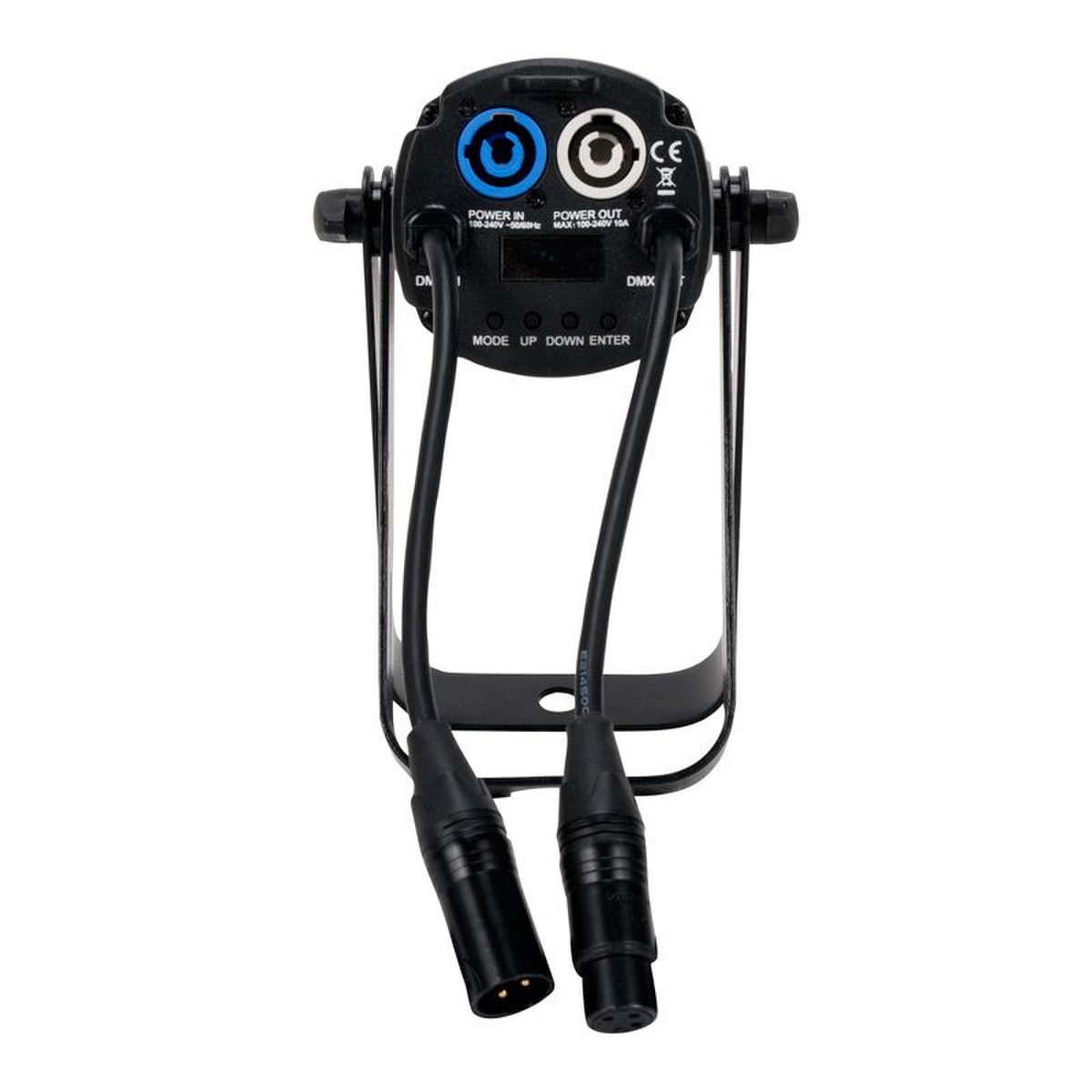

Connections:

  • Power Input: Locking Power IN connection
  • Power Output: Locking Power OUT connection
  • Daisy chain quantity: 33 fixtures (@120V); 71 fixtures (@230V)
  • Control: 3-pin DMX In/Out pigtails
  • With Wired Digital Communication Network

Electrical:

  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power draw 120V 60Hz: 15W, 0.13 Amps
  • Power draw 220V 50Hz: 15W, 0.07 Amps
  • Power Consumption: 24W

Physical:

  • Dimensions (LxWxH): 3.5” x 6.75” x 3.5” / 88 x 170 x 87mm
  • Weight: 2.6 lbs / 1.2 kg.
  • Metal Black Housing

Certifications:

  • ETL Pending, UL, CE
  • IP 20: Dry area, No liquids





ADJ Saber Spot DTW User Manual.pdf
ADJ Saber Spot DTW Photometric Test Report.pdf
