ADJ Set of 4 ElectraPix Bar 16 in a Rechargeable Road Case
Details

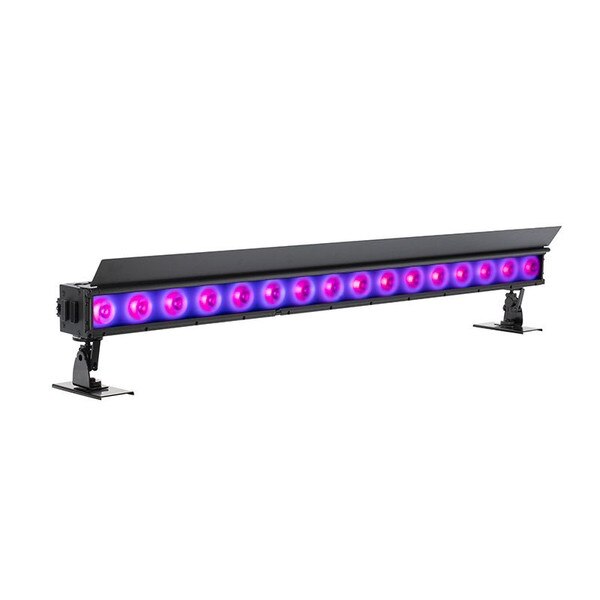

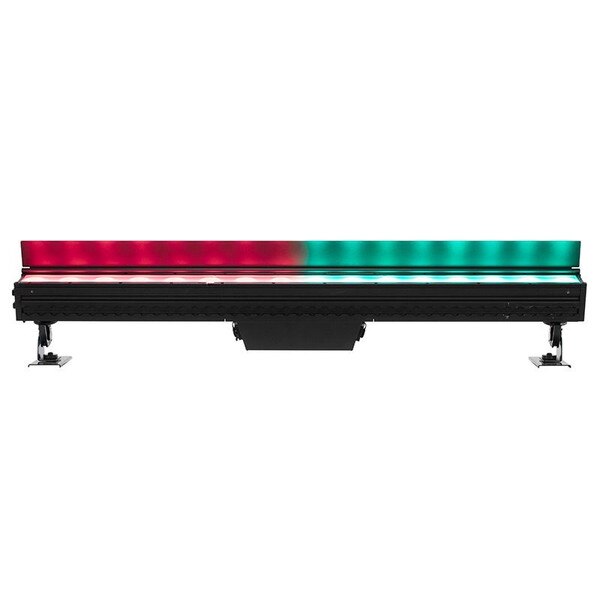

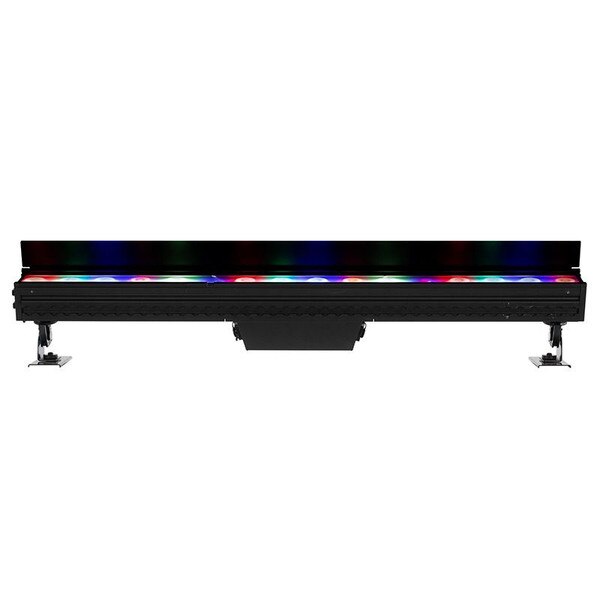

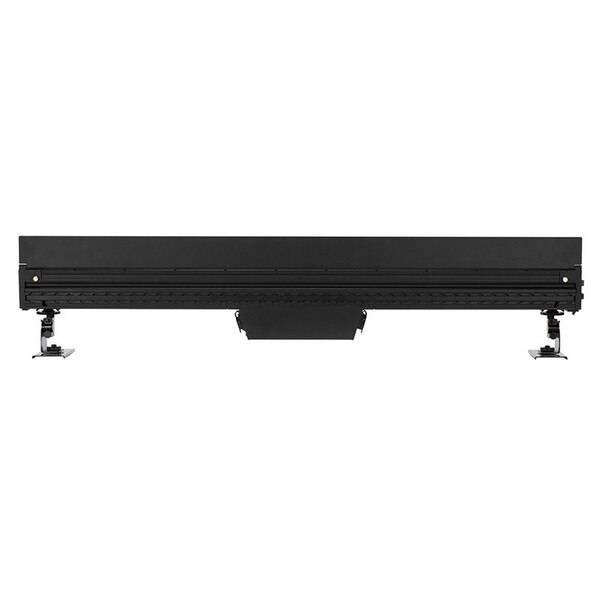

The ADJ Lighting ElectraPix Bar 16 is a cutting-edge IP65-rated, battery powered, wireless DMX 1-meter linear fixture. It features eight 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless DMX / Management System and has a battery life up to 20 hours.

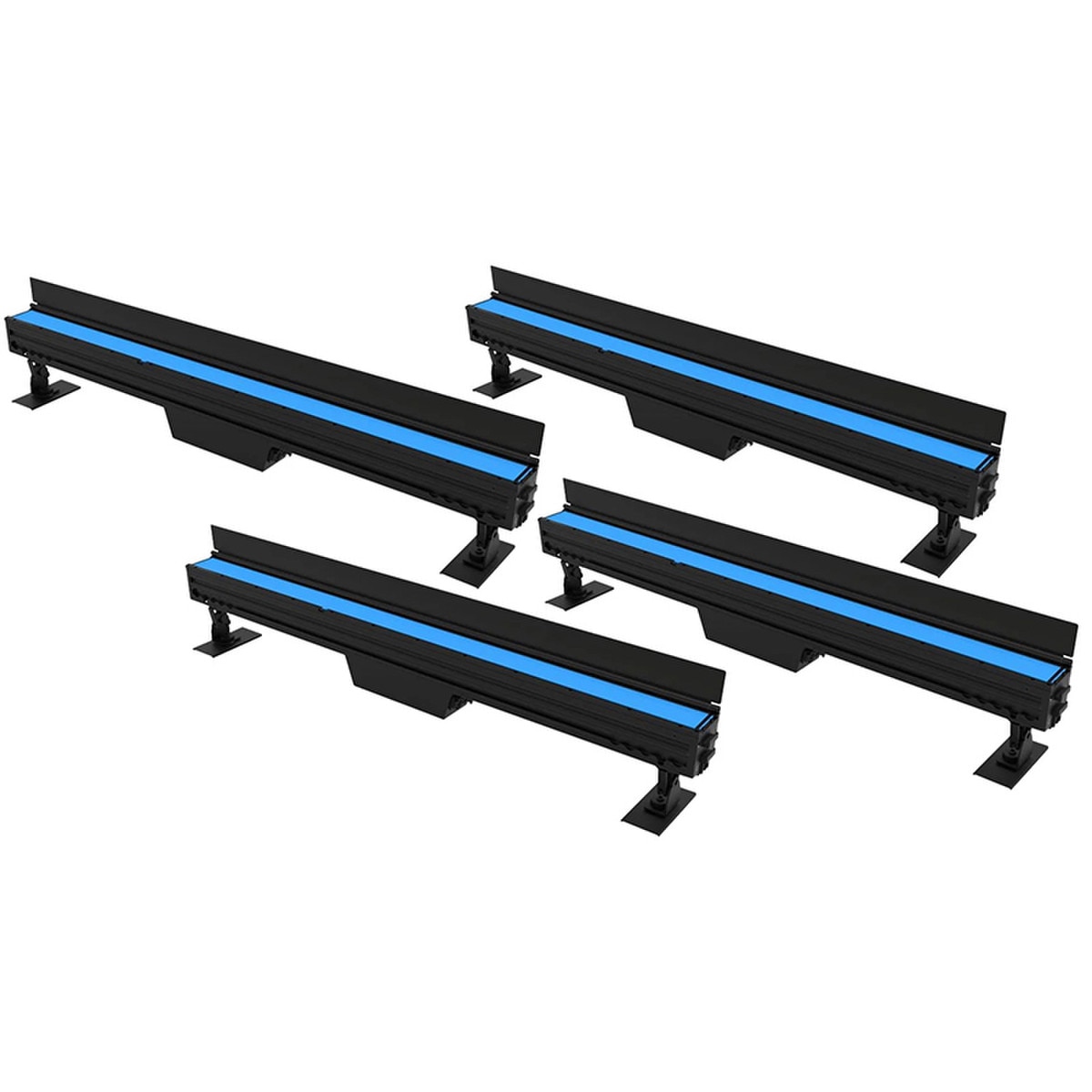

This pack includes 4 x Electrapix Bar 16 in a Rechargeable Road Case.
Specifications
Features:
- 16 Pixel, Hex Color LED (RGBAL+UV) LED Bar
- Battery or Wall Powered
- Up to 20 Hour Battery Operation
- Battery Operation (Menu Option)
- Individual Pixel Control
- Built-In Foreground LED Programs
- Built-In Background LED Programs
- Variable White Color Temperature Control (2,300K ~ 9,900K)
- English & Spanish User Menu
- Built-In Alarm
- Color Calibrated LED's
- User Selectable LED Refresh Rates (900Hz ~ 25K)
- 6 User Selectable Dim Modes
- 4 User Selectable Dim Curves
- Electronic Strobe (0.3Hz ~ 11Hz)
- Electronic Dimming
- Attach up to two (2) ElectraPix Bar 16 to the Accu Stand VFB1 vertical floor base
Source:
- (16) 20W Hex Color RGBAL+UV Foreground LEDs
- (66) 0.2W RGB Background LED's
- 50,000 Hour Average Life*
- *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
- 2,300K ~ 9,900K White Color Temperature Range
- 17° Beam Angle
- 45mm Lens Diameter x16
Physical:

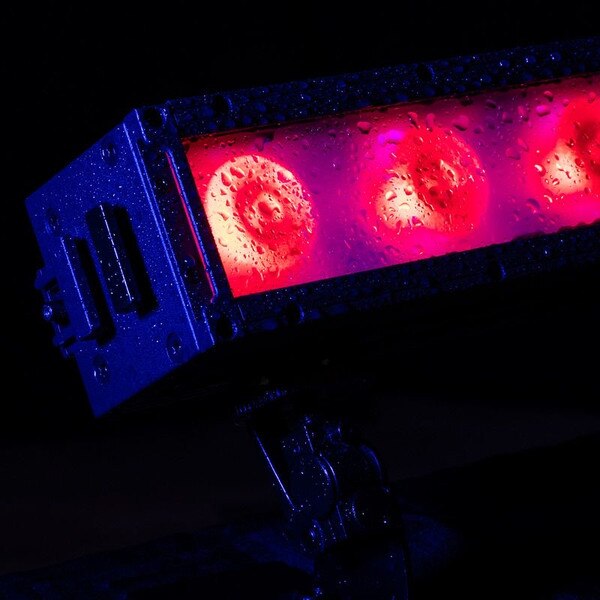

- IP65 Housing

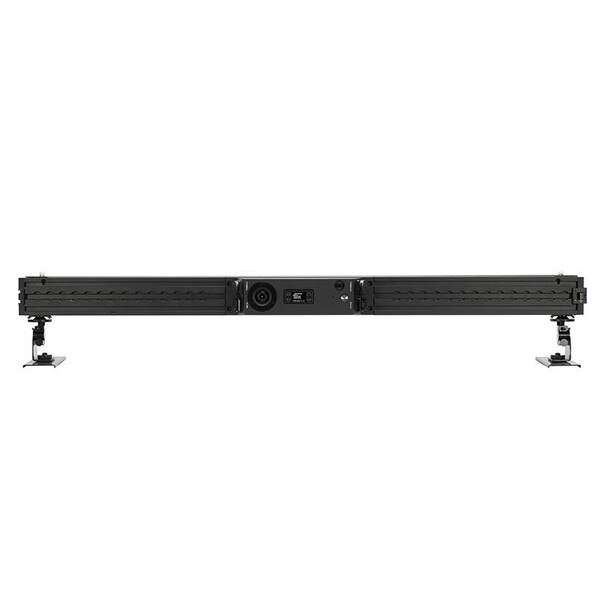

- OLED Digital display
- L Track system for locking accessories / rigging
- Glare Shield
- Diffusion Filter slot

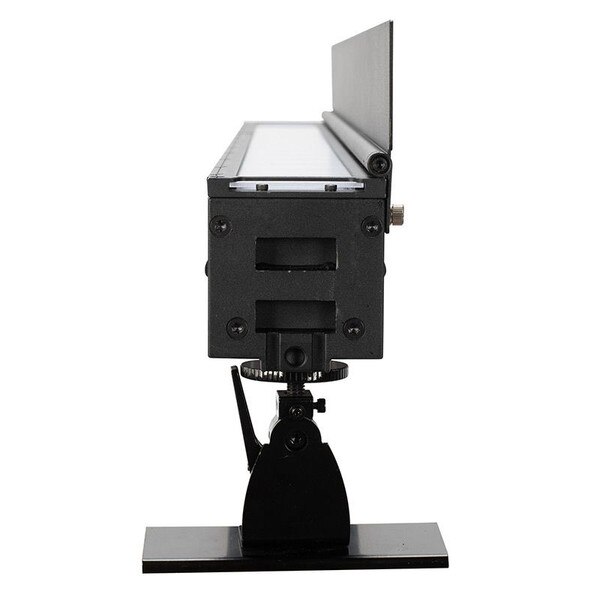

- Angle adjustable feet
- Horizontal slide lock to attach additional ElectraPix Bar 16 or ElectraPix Bar 8
Control:
- DMX512
- Aria X2 Wireless Management / DMX System
- Bluetooth
- RDM and RDM Net Compatible
- IR (Includes UCIR24 wireless remote)
- (9) DMX Channel Modes (5, 6, 9,13, 22, 24, 96, 99 & 114 Channel modes)
- On-board Manual Control Mode
- Primary / Secondary Mode
Connections:

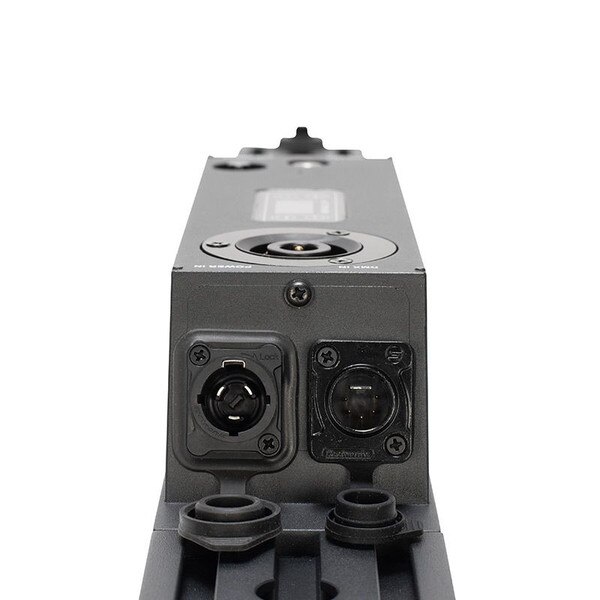

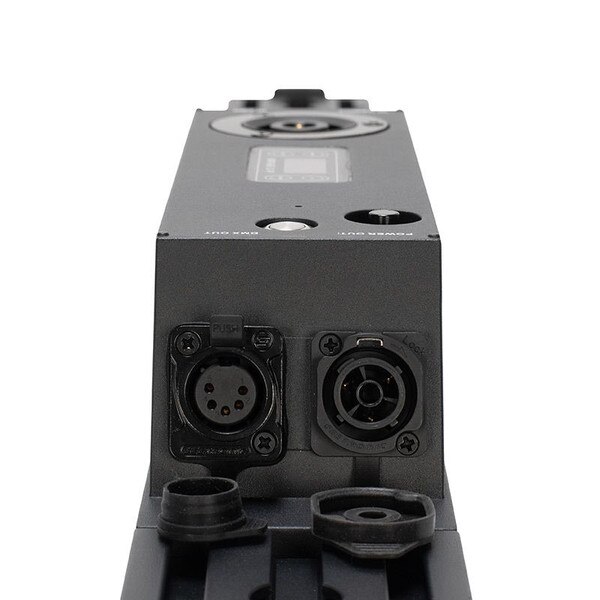

- 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- Outdoor Locking Power Sockets
- Battery Charging Socket
Dimensions & Weight:
- Length: 3.72" (94.5mm) Width: 45.6" (1158. 7mm) Height: 10.6" (268. 7mm)
- Weight: 26.9 lbs. (12.2 kg)
Power:
- AC100-240V/50Hz-60Hz Input
- 90W Power Consumption
- Link 10 pieces @120VAC or 18 pieces @ 230VAC
Battery:
- Rechargeable Lithium ion
- Battery Capacity: 14,000mAh
- Battery Voltage: 22.2V
- Charge Time, AC Power: 5.5 Hours (To Full)
- Charge Time, Flight Case: 5.5 Hours (To Full)
- Up to 20 Hour Battery Operation
- Battery Cycles: 500
Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications & IP Rating:
- CE
- cETLus (Pending)
- FCC
- IP65
Included Accessories:
- (4) Outdoor Locking Power Cable
- (4) UCIR24 Remote
- (4) 20° Diffusion Filter
Optional Accessories:
- Accu Stand VFB1 (Floor Base)
- LTrack A2 (LTrack Adapter Only)
- LTrack CA2 (LTrack Adapter with Narrow Clamp)
- EPIX B816 IPCB: replacement charging base and power supply
Specifications and documentation subject to change without notice.
Details:
The ADJ Lighting ElectraPix Bar 16 is a cutting-edge, 1-Meter battery powered, wireless DMX lighting solution. Packed with advanced features, this fixture boasts eight 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers up to 20 hours of battery operation.
With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Bar 16 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.
Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. Additional, up to two ElectraPix Bar 16 fixtures may be mounted vertically to the VFB1 floor base (sold separately). The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.
The ElectraPix Bar 16 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Bar 16, where innovation meets performance.
