ADJ Set of 6 ElectraPix Par 7 Fixtures in a Rechargeable Road Case

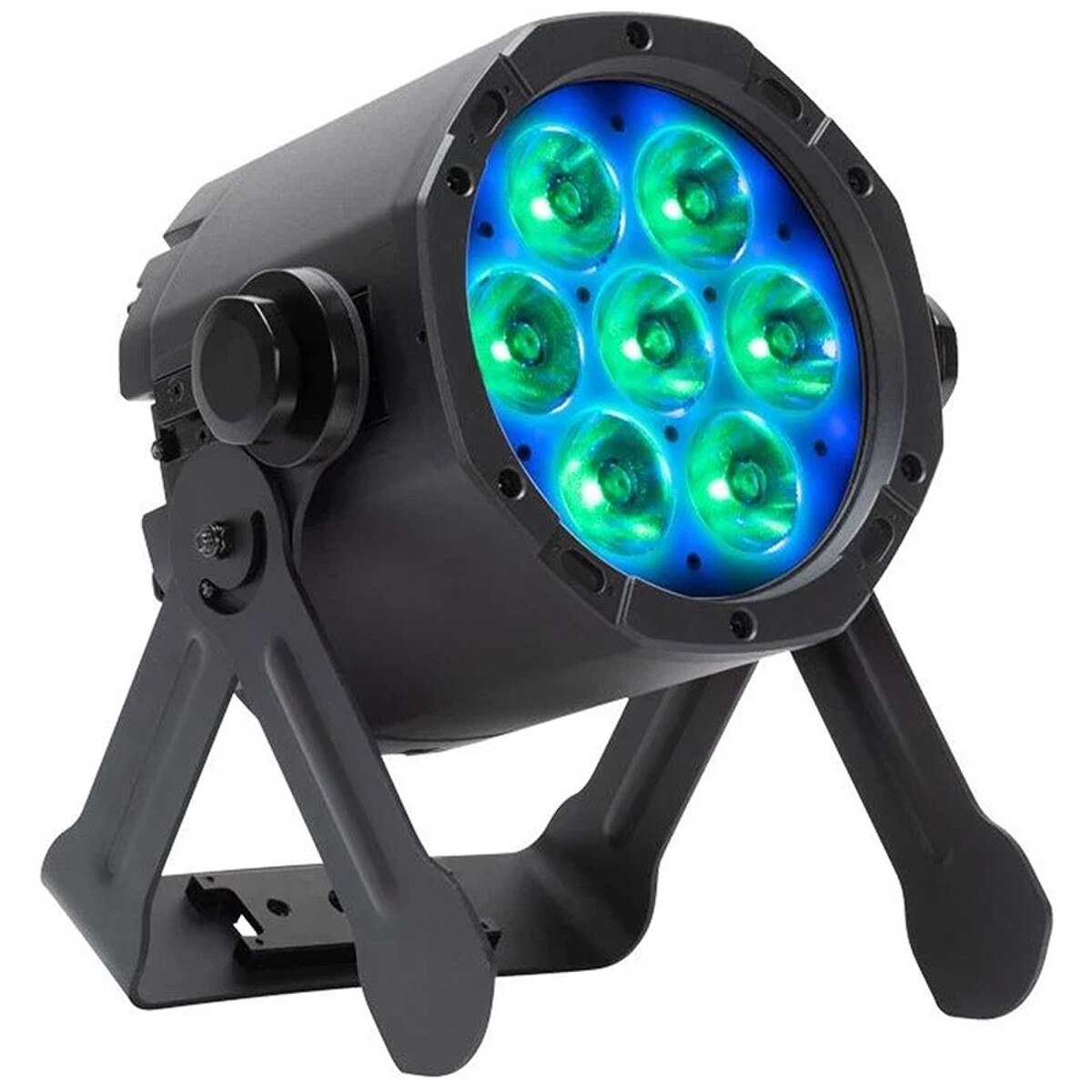

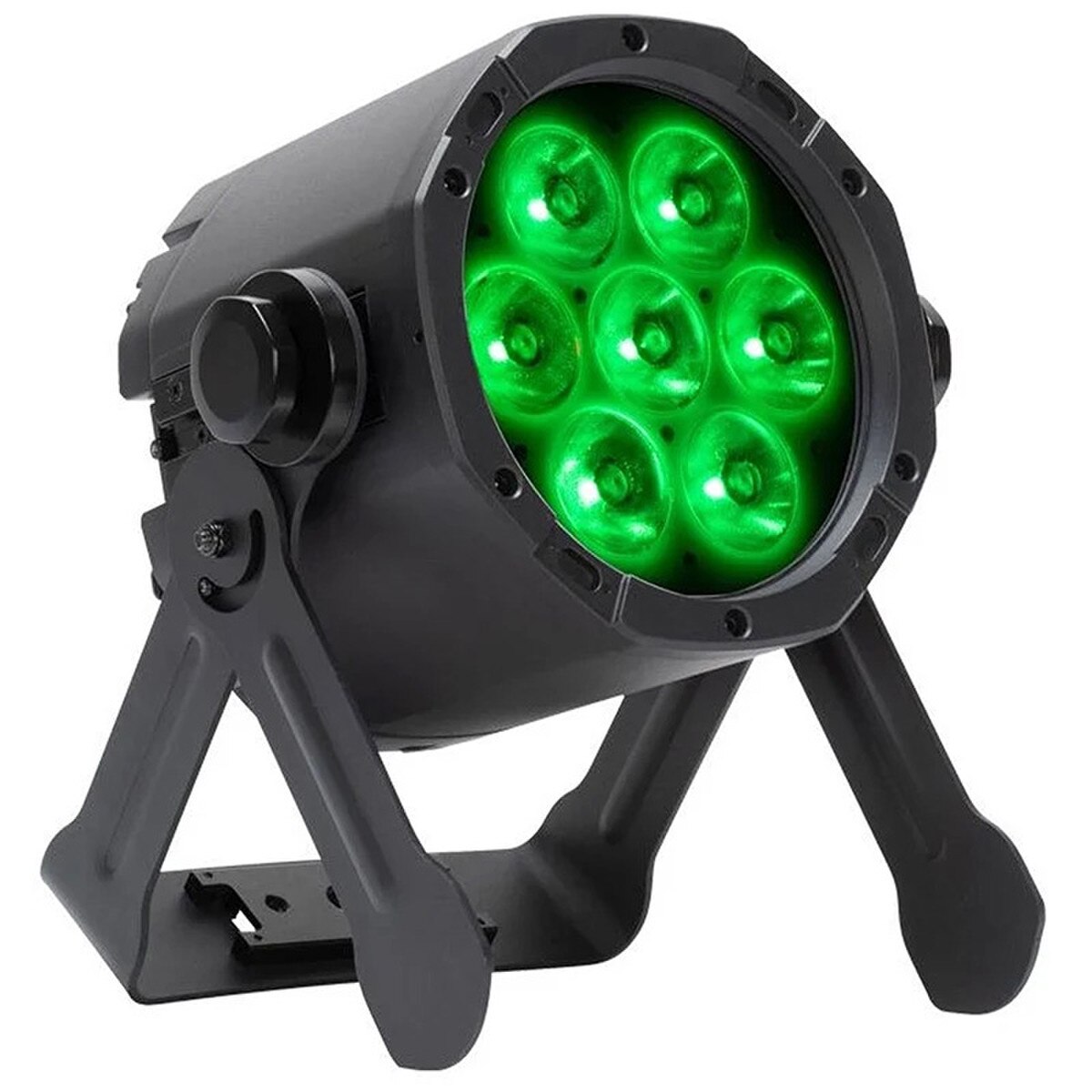

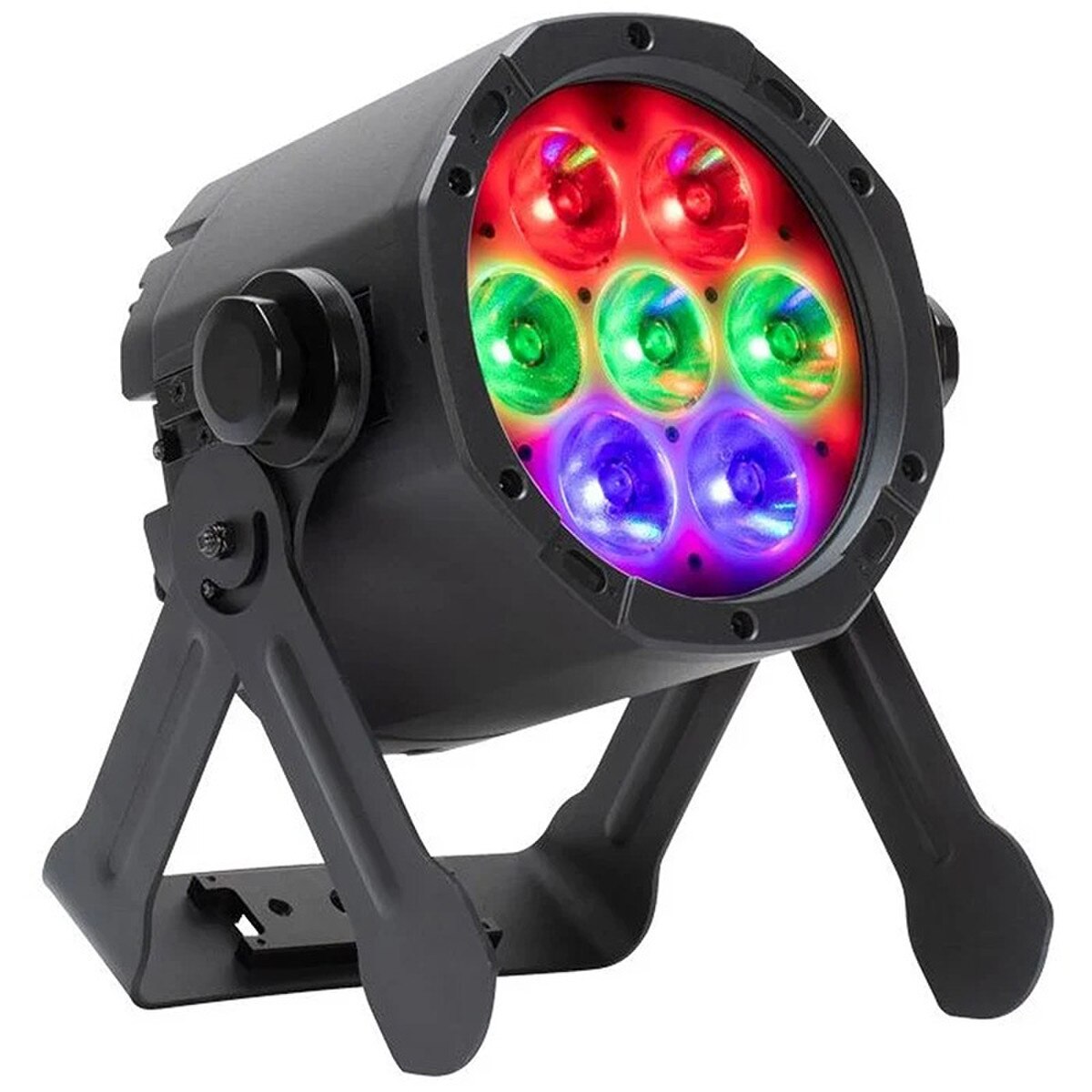

The ADJ Lighting ElectraPix Par 7 is a IP65-rated, battery powered, wireless DMX LED fixture. It features seven 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless DMX and has a battery life up to 20 hours.

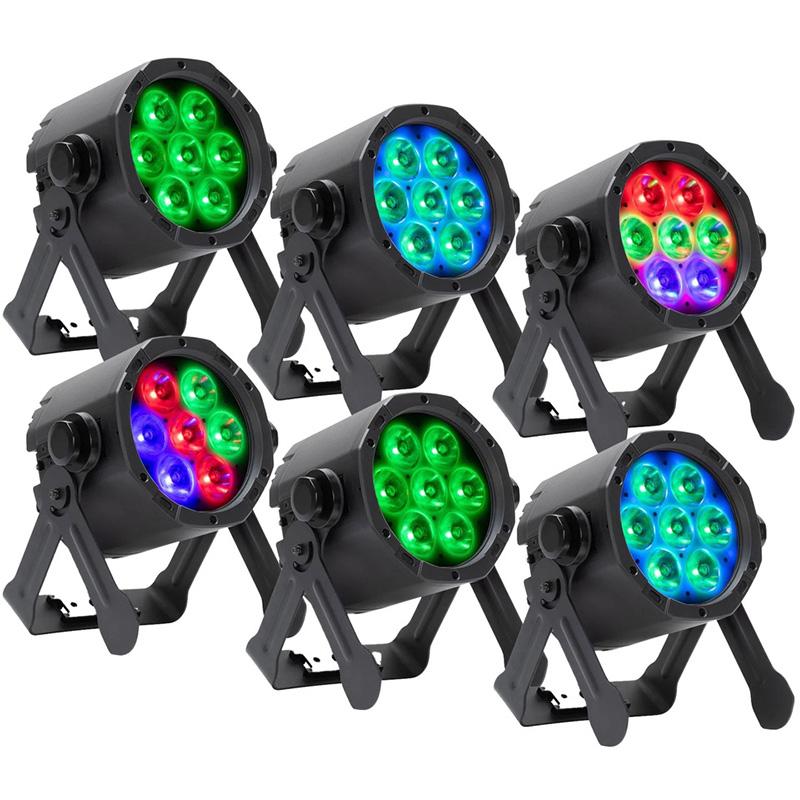

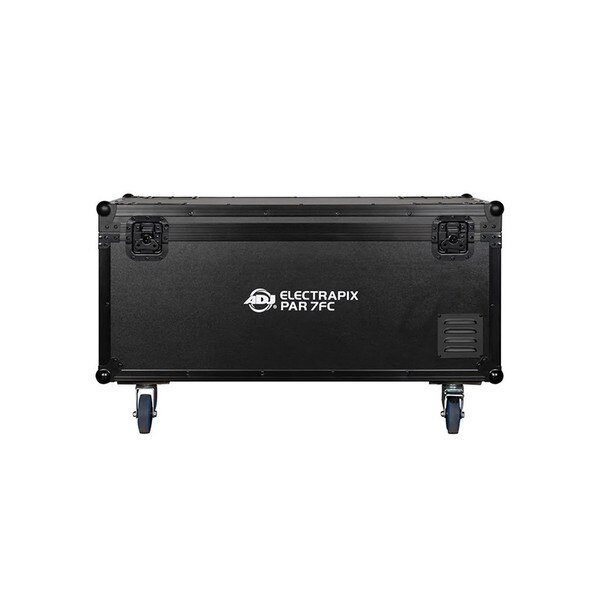

This pack includes 6 x ADJ ElectraPix Par 7 Fixtures in a Rechargeable Road Case.

Specifications

Features:

• 7 Pixel, Hex Color LED (RGBAL+UV) LED Par
• Battery or Wall Powered
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs

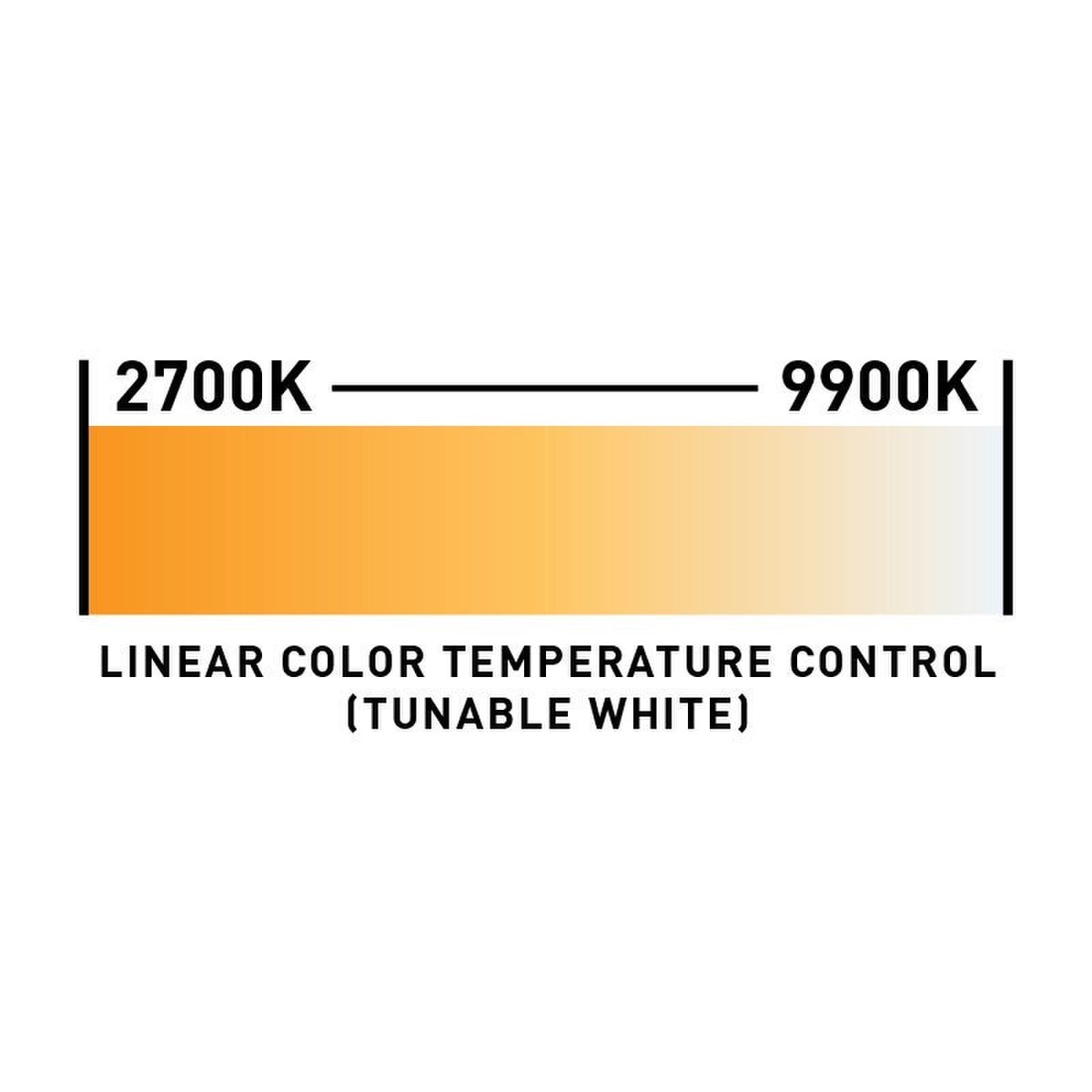

• Variable White Color Temperature Control (2,700K ~ 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Color Calibrated LED's
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

Source:

• (7) 20W Hex Color RGBAL+UV Foreground LED's
• (29) 0.2W RGB Background LED's
• 50,000 Hour Average Life*
• May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

• 2,300K ~ 9,900K White Color Temperature Range
• 17° Beam Angle

Physical:

• IP65 Housing
• OLED Digital display
• L Track system for locking accessories / rigging
• Gel Frame Holder

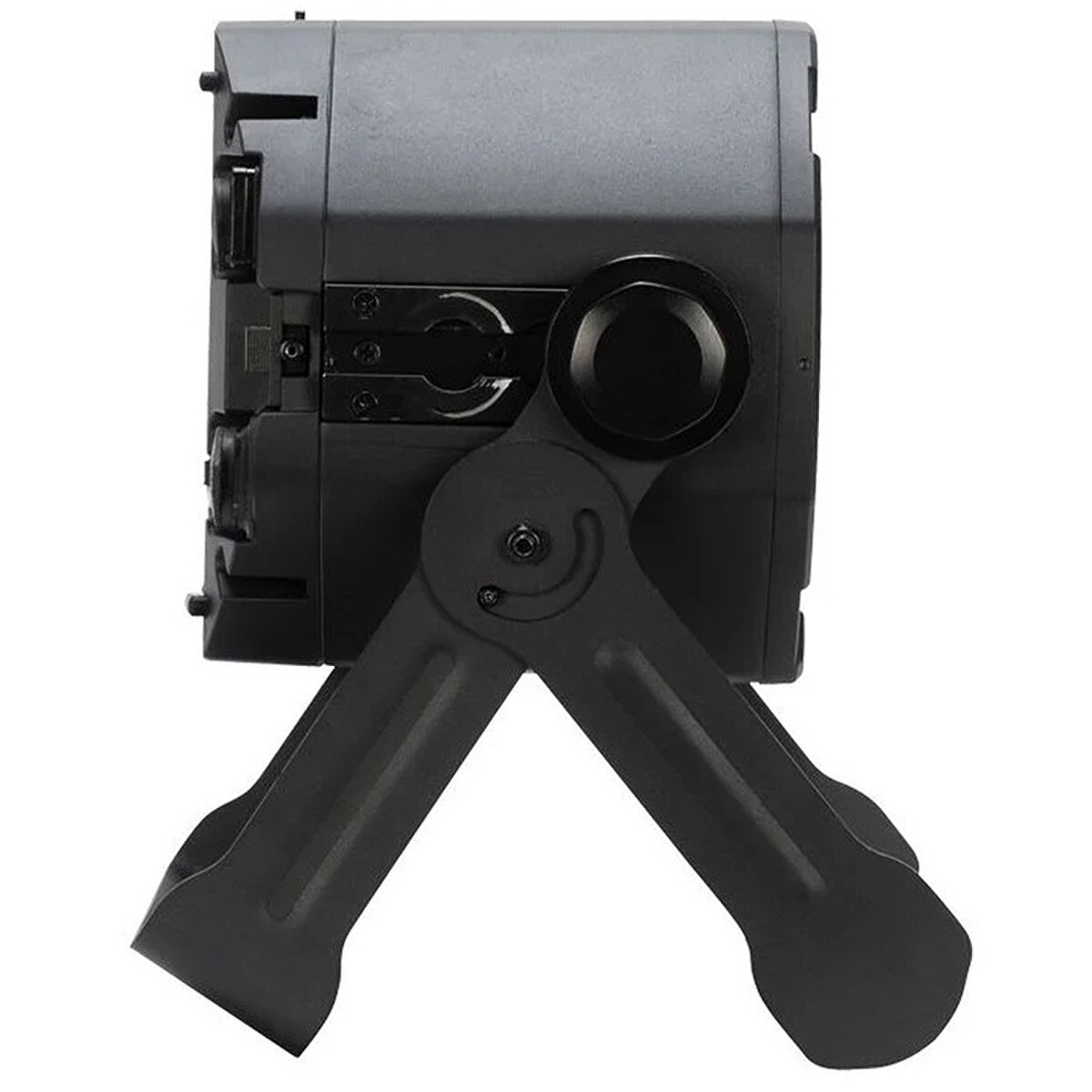

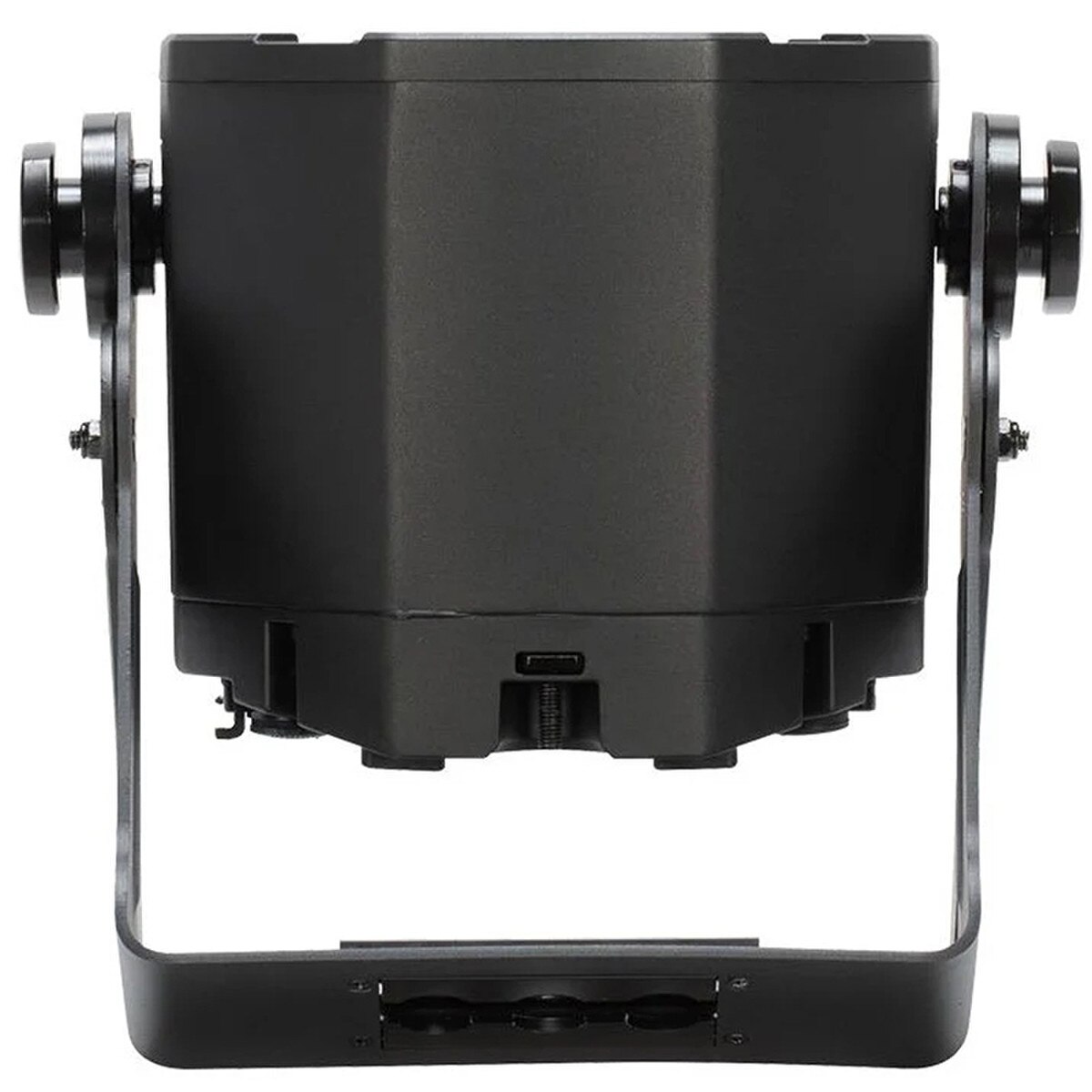

• Adjustable, hanging / kick stand bracket

Control:

• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 & 54 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

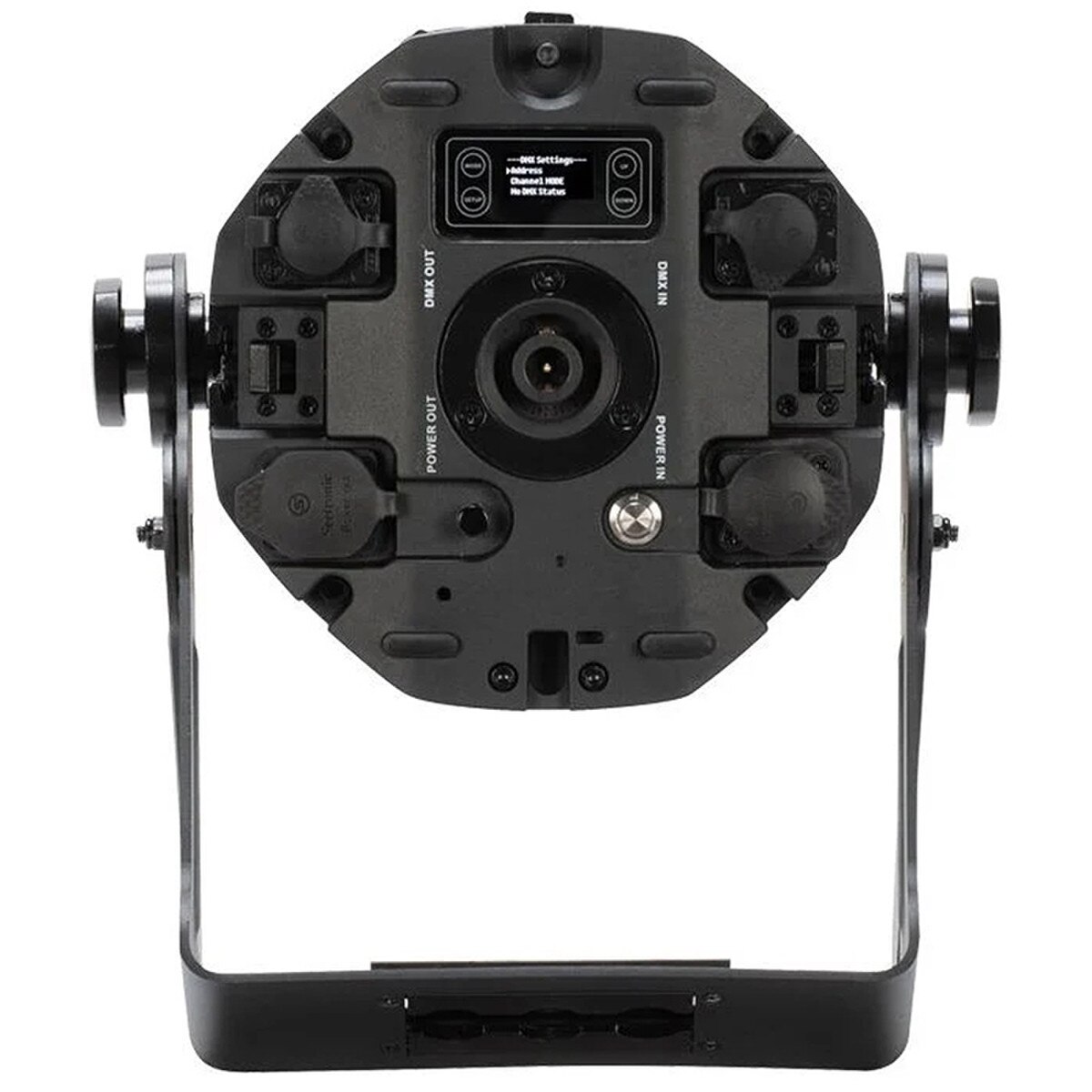

Connections:

• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• Outdoor Locking Power Sockets
• Battery Charging Socket

Dimensions & Weight Per Fixture:

• Length: 11.11” (282.1mm)
• Width: 9.77” (590.3mm)
• Height: 7.46” (189.5mm)
• Weight: 15.4 lbs. (7 kg)

Power:

• AC100-240V/50Hz-60Hz Input
• 60W Power Consumption
• Link 15 pieces @120VAC or 28 pieces @ 230VAC

Battery:

• Rechargeable Lithium ion
• Battery Capacity: 7,000mAh
• Battery Voltage: 22.2V
• Charge Time: 6 Hours (To Full)
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
• Battery Cycles: 500

Thermal:

• Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
• Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

• CE
• cETLus (Pending)
• FCC
• IP65

Included Accessories:

• (6) Outdoor Locking Power Cable
• (6) Floor / Mounting Bracket
• (6) UCIR24 Remote
• (6) Gel Frame
• (6) 20° Diffusion Filter

Optional Accessories:

• LTrack A2 (LTrack Adapter Only)
• LTrack CA2 (LTrack Adapter with Narrow Clamp)
• ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)
• ELPIX7L55: 55° diffusion filter for the ElectraPix Par 7
• ELPIX7L40: 40° diffusion filter for the ElectraPix Par 7
• ELPIX7L30: 30° diffusion filter for the ElectraPix Par 7
• ELPIX7L20: 20° diffusion filter for the ElectraPix Par 7
• ELPIX7L30X60: 30x60° linear filter for the ElectraPix Par 7
• ELPIX7L15X60: 15x60° linear filter for the ElectraPix Par 7
• ELPIX7L10X60: 10x60° linear filter for the ElectraPix Par 7
• ELPIX7L10X40: 10x40° linear filter for the ElectraPix Par 7
• EPIX P7 IPCB: replacement charging base and power supply

Specifications and documentation subject to change without notice.

Details:

The ADJ Lighting ElectraPix Par 7 LED Par is a cutting-edge wireless DMX lighting solution. Packed with advanced features, this fixture boasts seven 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, battery operation can be selected by the user for durations ranging from 5 to 20 hours.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Par 7 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Par 7 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Par 7, where innovation meets performance.
