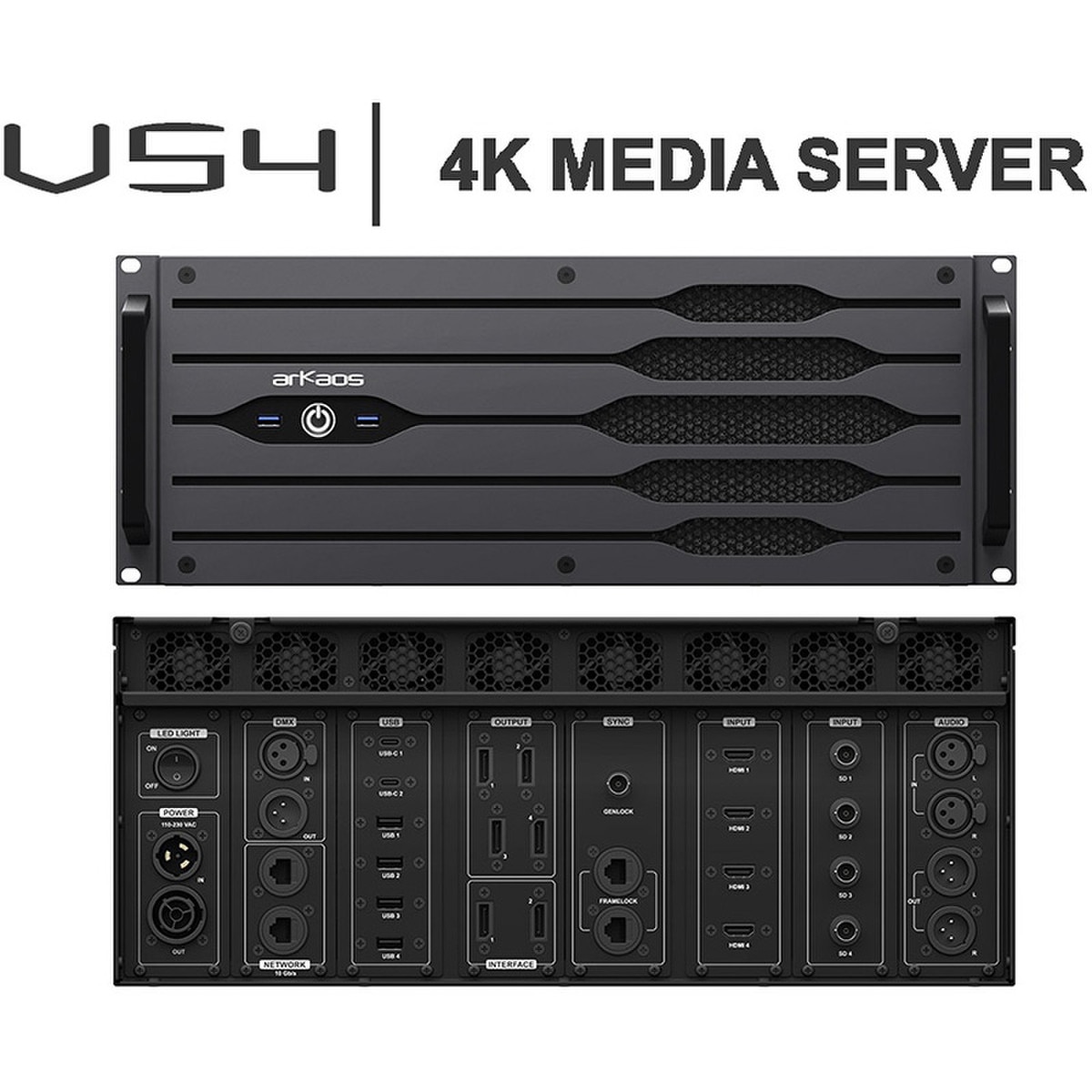

ADJ VS4 4k Media Server

VS4 is a feature-packed, intuitive and fun to use visual tool as well as s cost-efficient 19 inch rack mounting solution for all scenarios requiring full control over a range of media inputs.

Running seamlessly with the latest ArKaos MediaMaster software, VS4 interfaces and works harmoniously with any lighting console, and is targeted at high end television studios, streaming facilities and broadcast scenarios. With this exceptionally rugged engineering, is also ideal for production, touring and rental markets.

Two interface screens enable monitoring, there is full USB connectivity on the front via two robust ports and a Neutrik PowerCON True1 for power.

With up to 4x4K or 16 x HD screens running from one VS4, devices can also be networked together for controlling even more screens. The screens can be remotely EDID locked, while the front panel LEDs can be programmed to display different colours to indicate status or assist with fault finding.

I/O Specifications:

• Interface Output: 2x DisplayPort - 4K
• Outputs: 4x DisplayPort - 4K
• Ethernet: 2x RJ 45 female 10Gb/s (cat6A)
• USB's: 2x USB3.0 (Front), 4x USB3.1 and 2x USB-C Gen.3 (Back)
• BackplateCustom I/O Connectors
• Sync: NVIDIA PNY Quadro Sync 2, Genlock/Framelock (optional) and Audio/SMPTE/LTC/BPM
• Input's: 2x/4x/8x SDI (optional) and 2x/4x/8x HDMI (optional)

Storage:

• System Drive: SSD 500 Gb
• Data Drive: 1Tb

Software:

• Operating System: Windows 11 pro
• MediaMasterPro
• CuePlayer (in Theatre mode): Yes
• LED Mapper: Yes
• Kling-Net Mapper: Yes
• Video Mapper: Yes
• Acronis Backup System: Yes
• Playback layers: 12/36
• Soft-Edge / Geometrical Correction: Yes

Control:

• Control Display (front panel): No
• LED Strip (front panel): Yes
• DMX / MIDI / Keyboard: Yes
• ArtNet / MA-Net: Yes

Hardware:

• CPU: AMD Ryzen Threadripper PRO
• #Threads (cores): 32(16)
• RAM: 4x 8GB Crucial
• Type: DDR4 3200Mhz SODIMM
• Graphical cards: nVIDIA PNY RTX A4000, NVIDIA PNY T400 and 4x DP outputs + 2x DP outputs gui
• Voltage: 107-240 V 50-60 Hz
• Professional Connectors: Yes
• Professional Connectors: Yes

Dimensions:

• Unit Size (HxLxD): 16.73" x 24.61" x 6.97" (425x625x177 mm)
• Unit Weight: 35.27lbs. (16 Kg)
• Boxed Size (HxLxD): 23.63" x 31.89" x 14.18" (600x810x360 mm)
• Boxed Weight: 44.09lbs. (20.3Kg)

Specifications are subject to change without notice.

Details

Plug and Play Simplicity:

• Each server comes installed with MediaMaster Pro
• Runs 4K video on its multiple outputs
• 4x4K or 16 HD screens

Make Day-To-Day or On-The-Road Maintenance Easy:

• The backplate opens and the cables can be extended so if a connector needs to be swapped out, the process is straightforward and painless.
• LED illumination on the rear allows technicians to see what’s happening in the dark – handy when working onstage, on a set or in any dark corner or recess!

Fully Modular System:

• VS4 units can be built up as required by adding input cards. The basic version comes with power and output cards allowing users to precisely tailor the VS4 to their needs and also utilize your budget efficiently.
