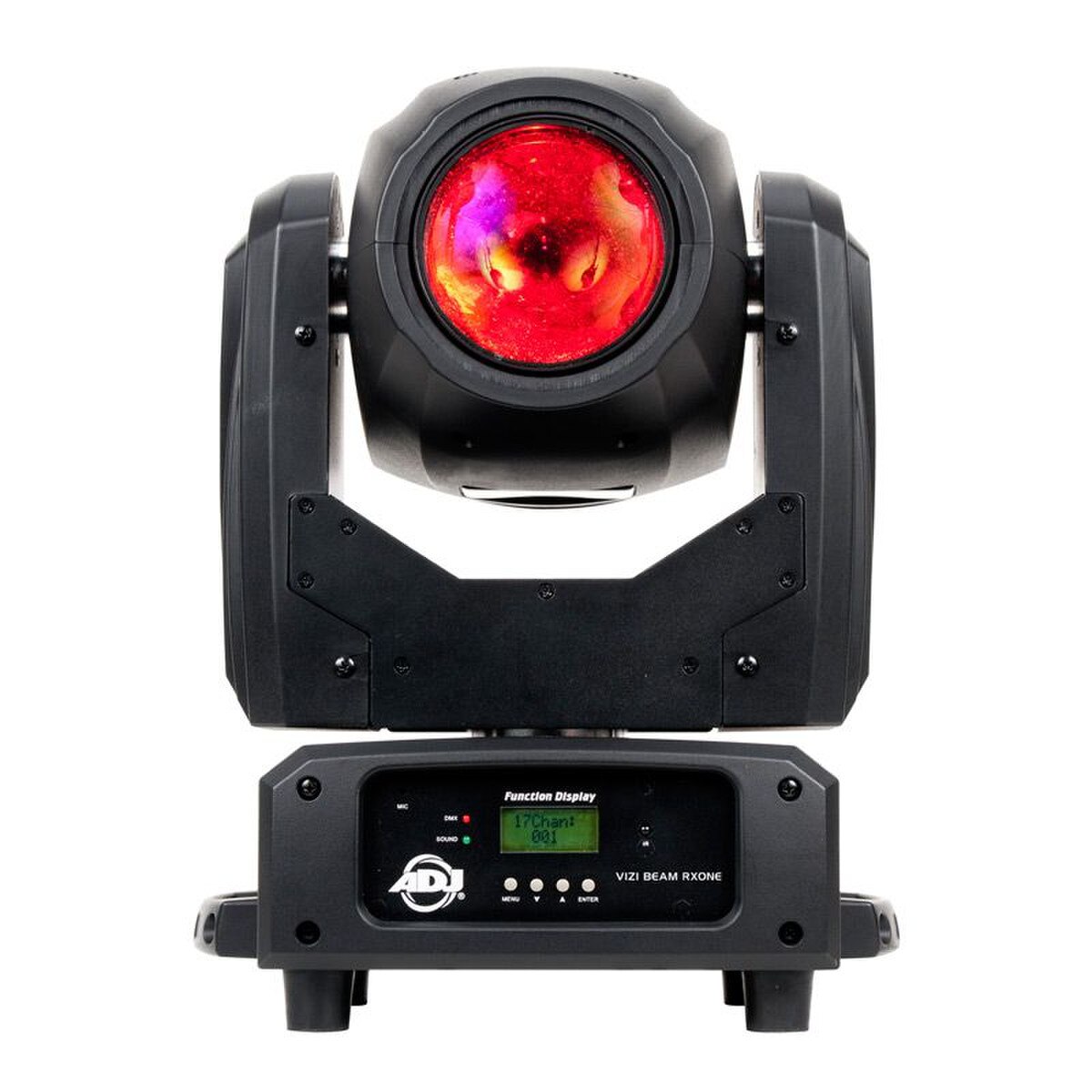

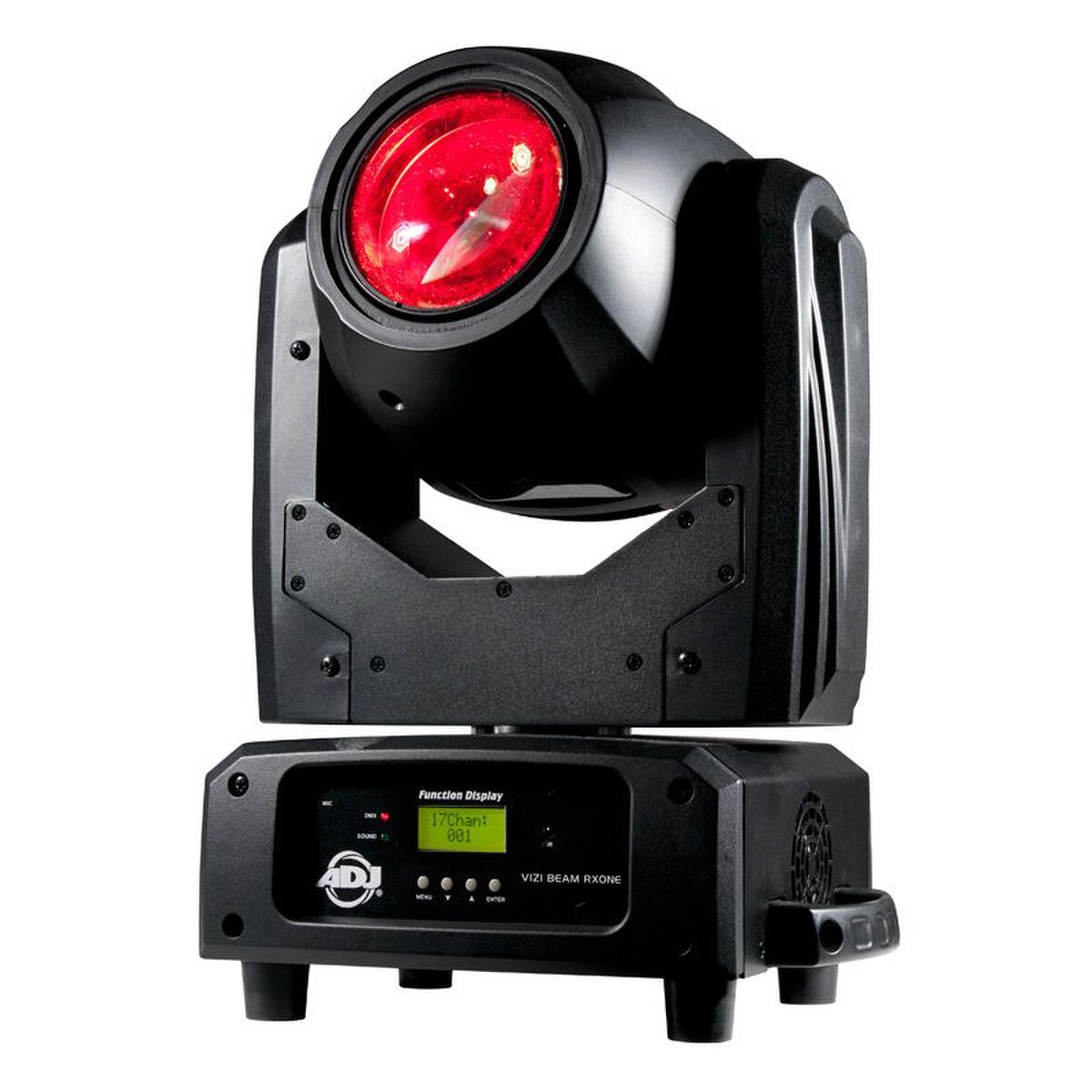

ADJ Vizi Beam RXONE

Part of ADJ’s popular Vizi Series, the Vizi Beam RXONE, is a compact and quick moving head with a potent Osram® Sirius HRI 1R discharge long life lamp (6,000 hrs.) that produces a super sharp 3-degree beam of light that travels up to 100 meters. This 16-bit, nimble mover also includes a frost filter to give the beam a wash effect of 21-degrees making this fixture very useful for a variety of portable and permanent applications.

Under the hood the Vizi Beam RXONE boasts a 16-facet prism to break apart the solid beam into 16 mini beams, 14 color + white and 15 static, fixed GOBOs. The RXONE has 2 DMX modes (15 or 17 channel mode), 3-pin DMX In/Out, Locking power In/Out connections plus a low power consumption of only 199W at max power.

Two Vizi Beam RXONE fit in the ADJ DRC MH road case.

Specifications:
Light Source:

• Lamp: Osram® Sirius HRI 100W 1R discharge, 9,000˚K – 6,000 hr. long life
• LUX: 76300 @ 10M, 33900 @ 15M

Features:

• 3-degree beam angle

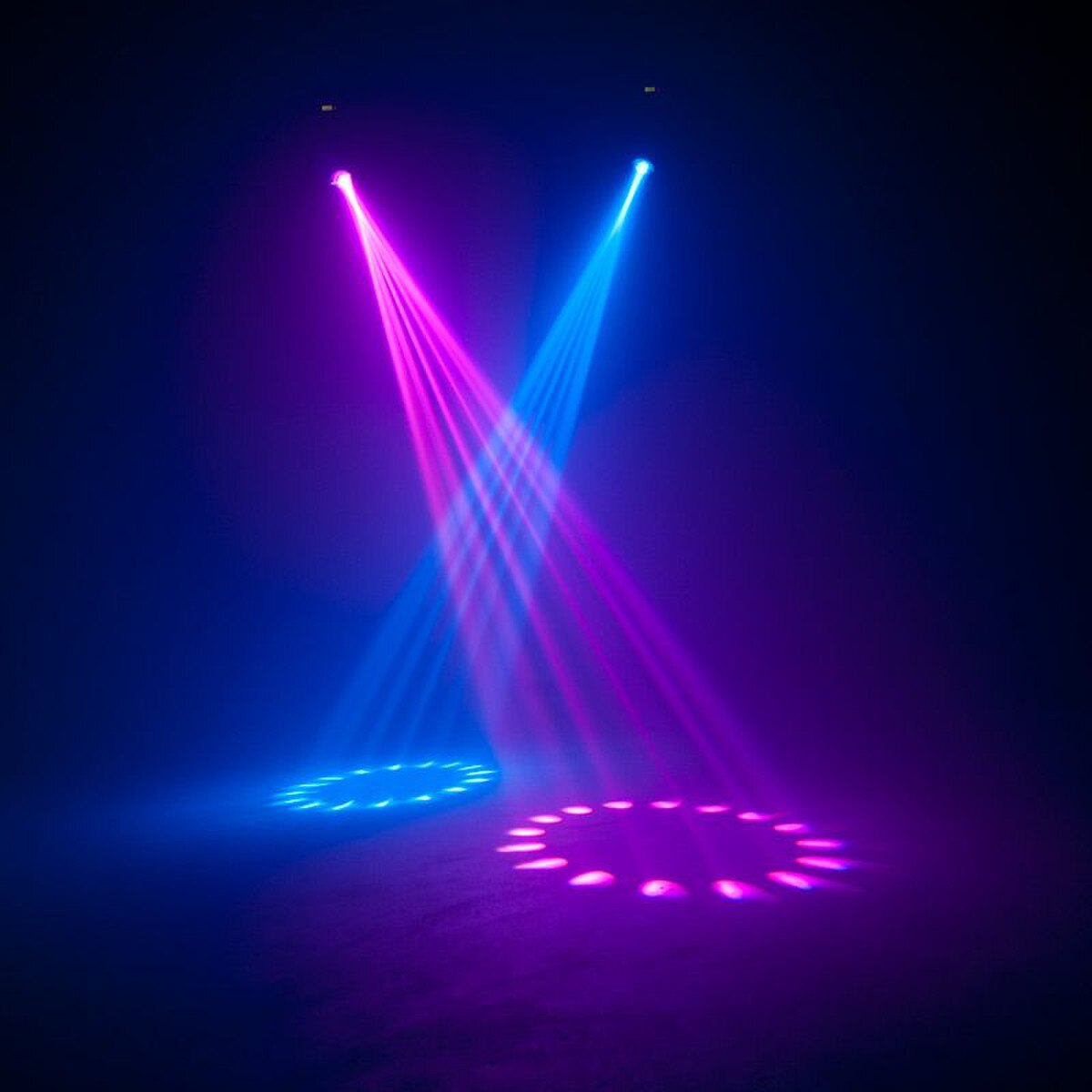

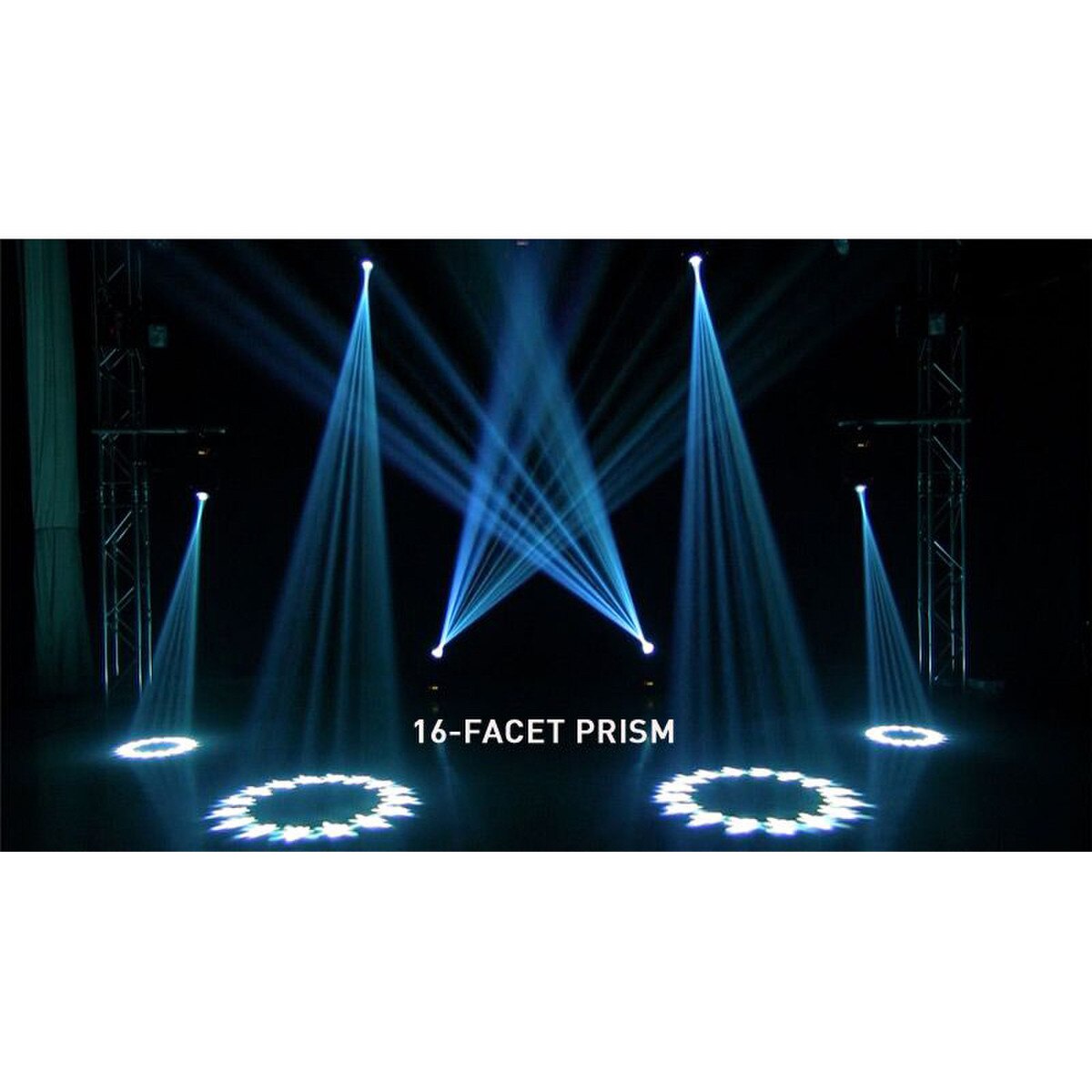

• 16-facet Prism with macros

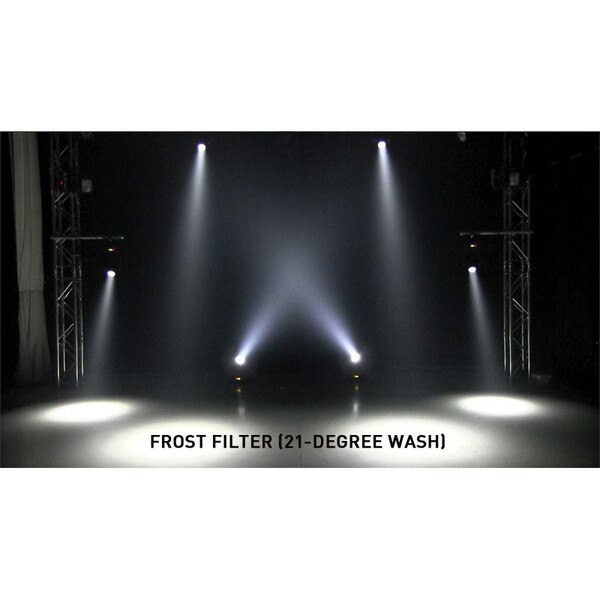

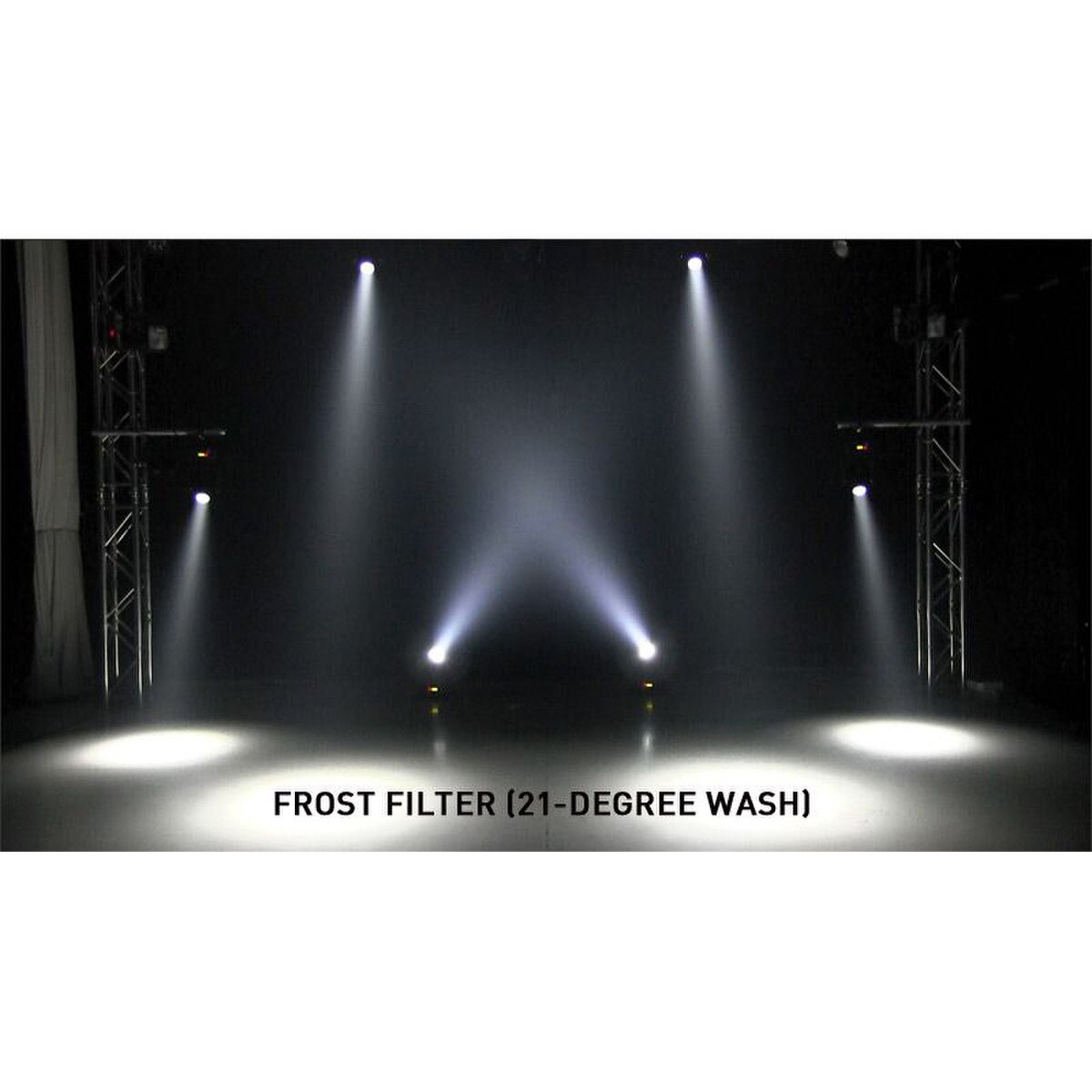

• Frost Filter (21-degree beam angle)
• Independent gobo and color wheels
• Stepper motors with micro stepping

Control:

• 2 DMX Channel Modes: 15 or 17 DMX channels
• LED DMX 4-Button menu system
• Shutter: Pulse effect; random strobe slow to fast
• Strobe effect
• UC IR Compatible (Not Included) & Airstream IR APP Compatible
• Electronic Dimming: 0% - 100%
• Strobe Rate: 0.3-12HZ
• With Wired Digital Communication Network

Colors:

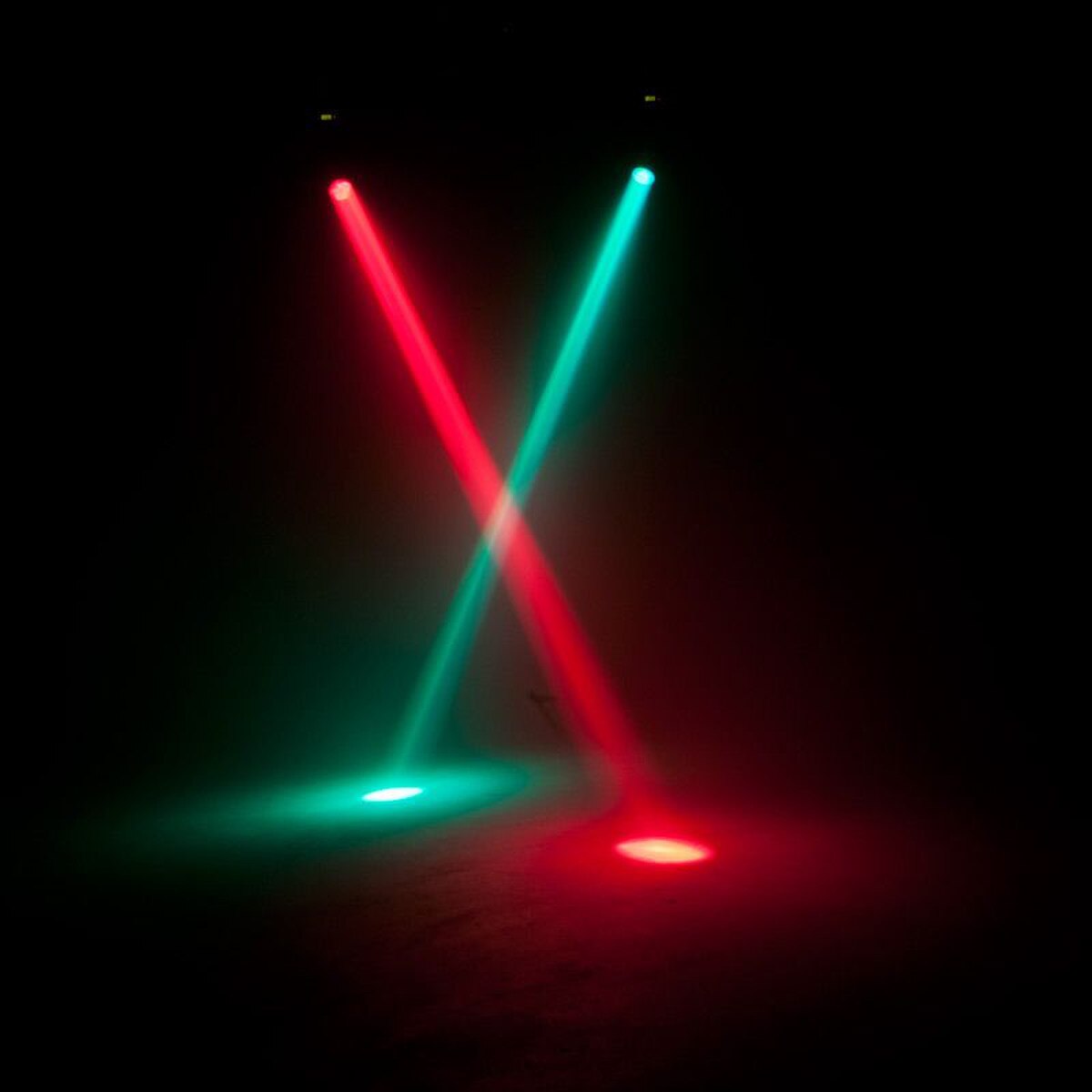

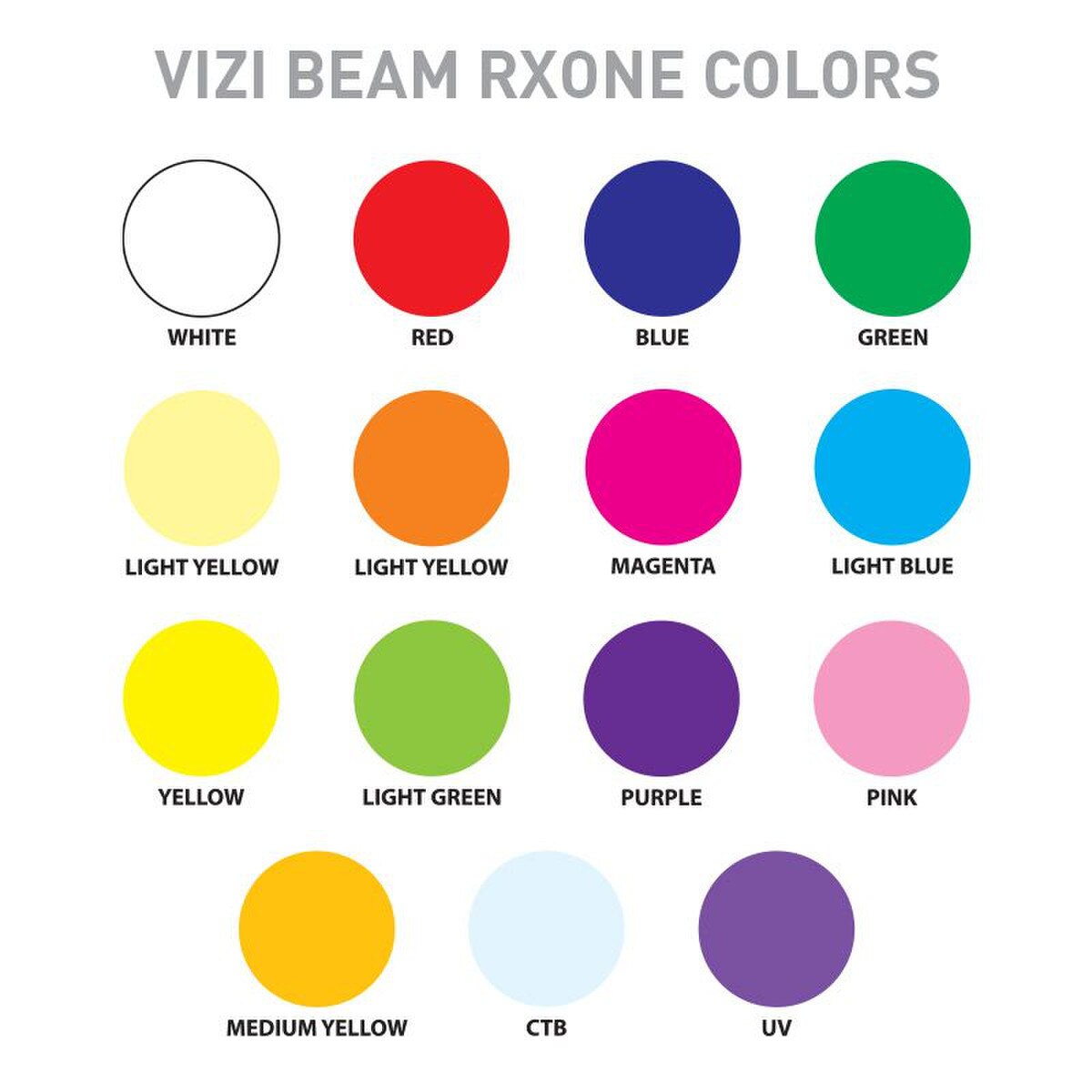

• 14 colors + white and Split Colors

Gobos:

• 15 static, fixed GOBOs + spot
• GOBO Shake effect

Pan/Tilt:

• Pan: 540-degree
• Tilt: 270-degree
• 16-Bit Pan/Tilt Positioning
• Auto X-Y repositioning
• Pan/Tilt Invert
• Built-In Pan/Tilt Macros

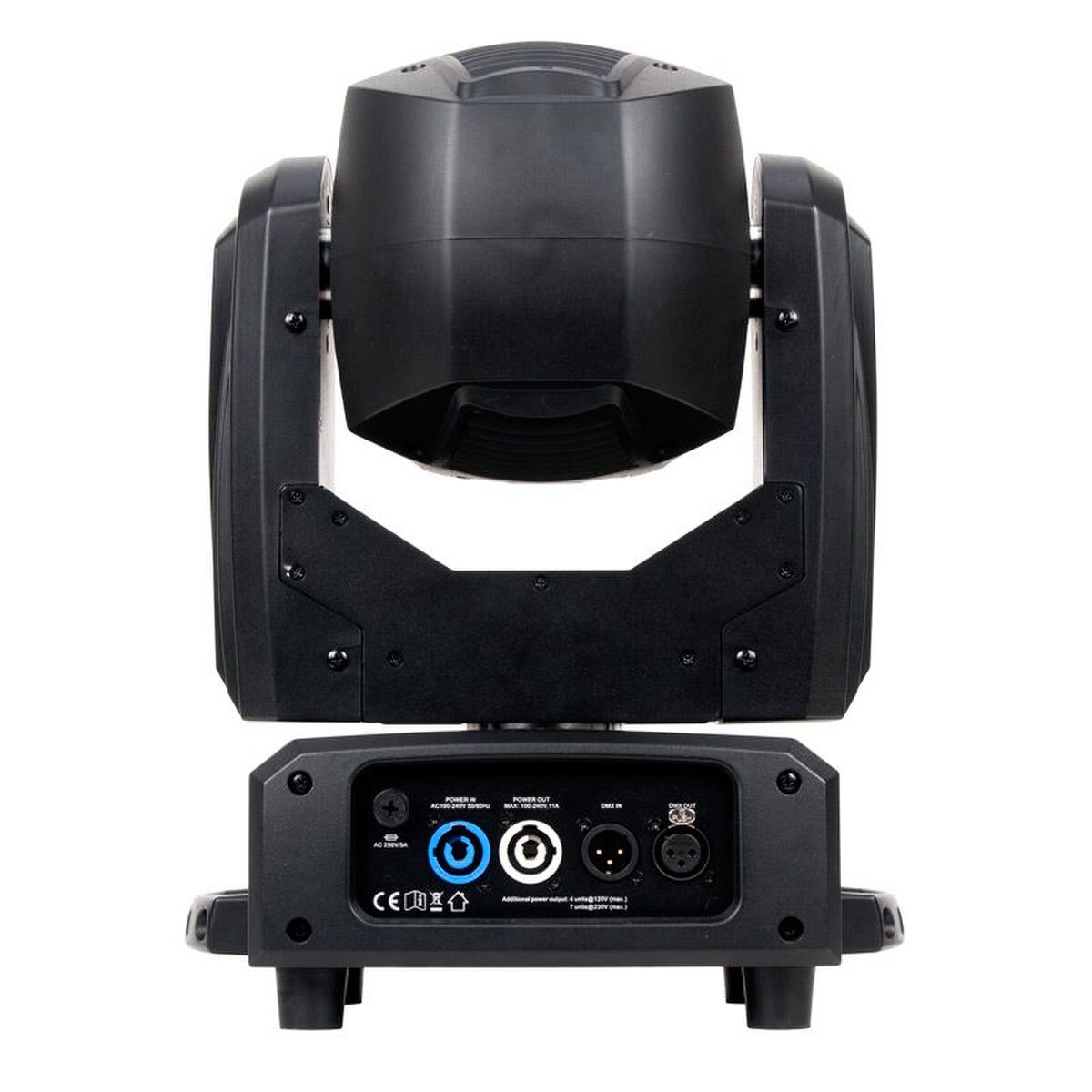

Connections:

• Power: Locking connections In & Out to daisy chain power
• DMX Connections: 3-pin DMX In/Out

Electrical:

• Power Consumption: 199W
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Daisy Chain up to 8 fixtures max (@ 120V); 16 fixtures max (@ 230V)

Dimensions & Weight:

• Dimensions (LxWxH): 279 x 225 x 387mm / 11” x 8.75” x 15.25”
• Weight: 9.2kg. / 20 lbs.

Optional Road Cases:

• DRC MH: 2 Vizi Beam RXONE fit in the DRC MH Road Case

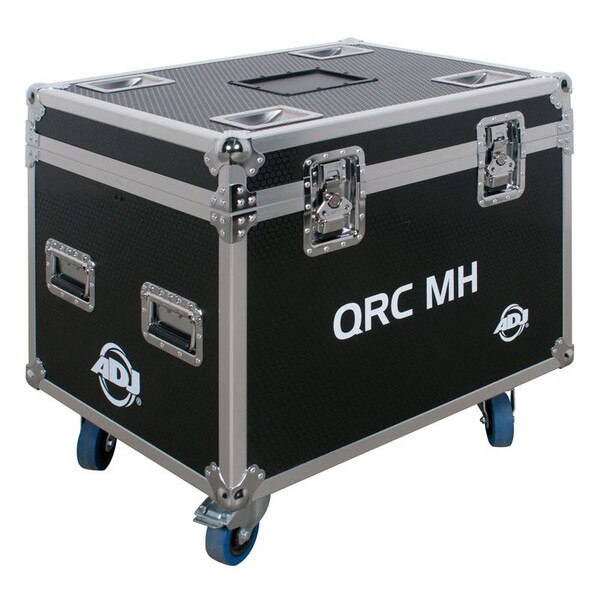

• QRC MH: 4 Vizi HBeam RXONE fit in the QRC MH Road Case

Approvals:

• cETLus Approved (Control #4000358)
• CE Certified
