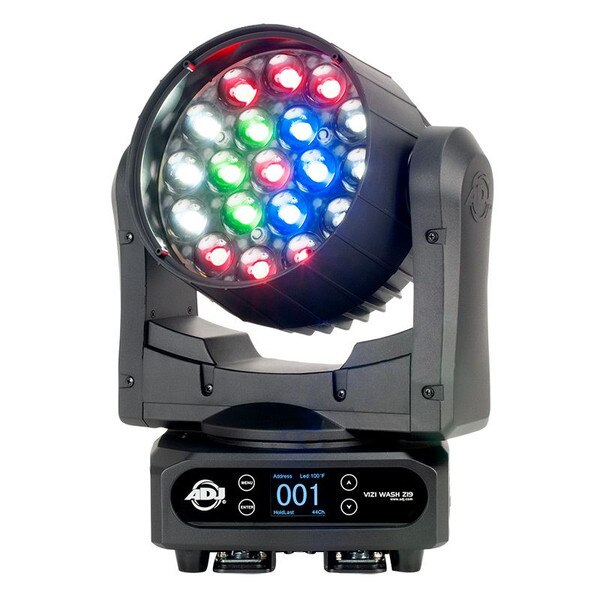

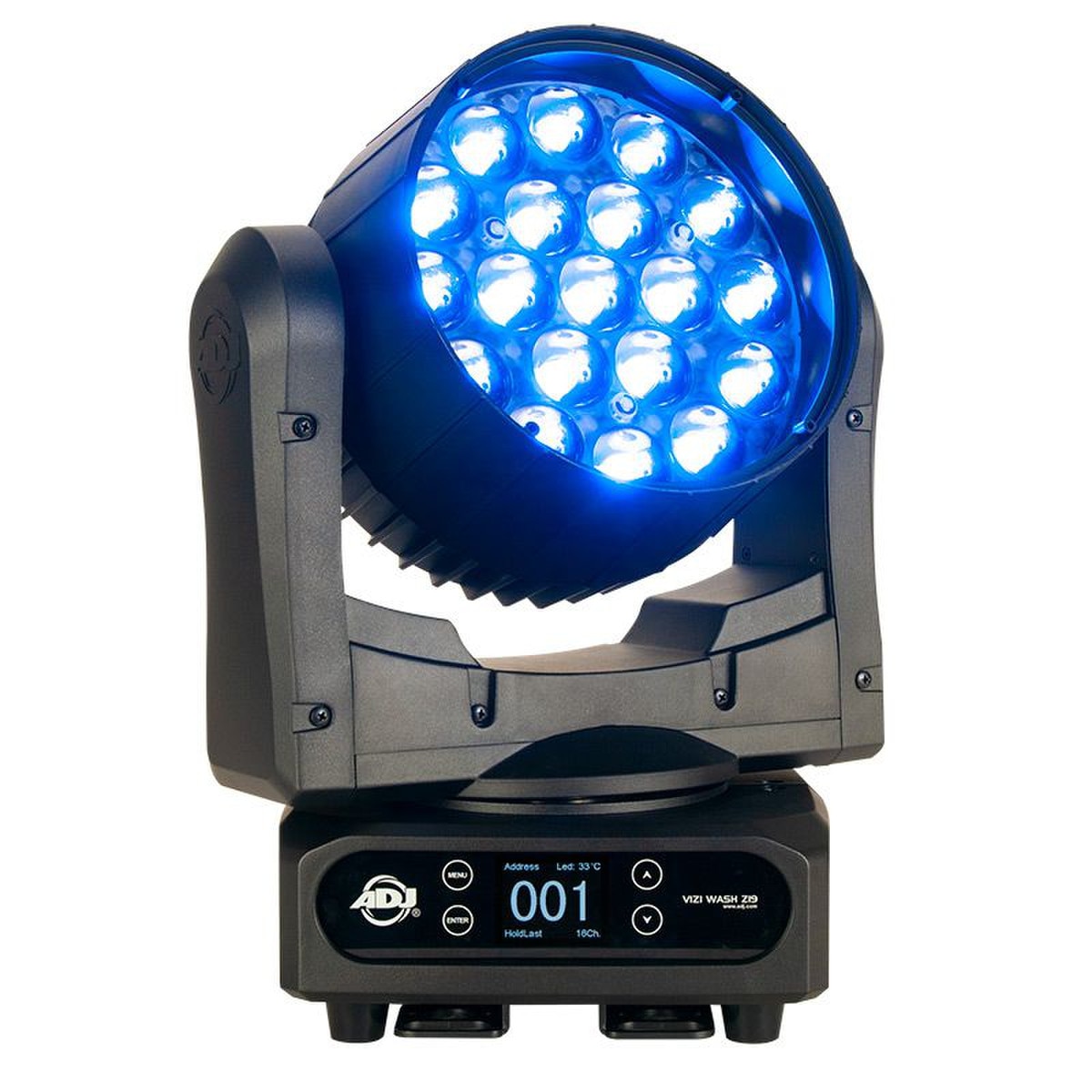

ADJ Vizi Wash Z19

The Vizi Wash Z19 is a 380W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs. It features 3 or 7 zones of LED ring control, smooth dimming control from 0-100% (plus 16-but fine dimming), twist lock power In/Out connections to daisy chain power, both 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.

There are 64 built-in color macros, 16-bit fine zoom control, and 8 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.

Specifications:
Optical:

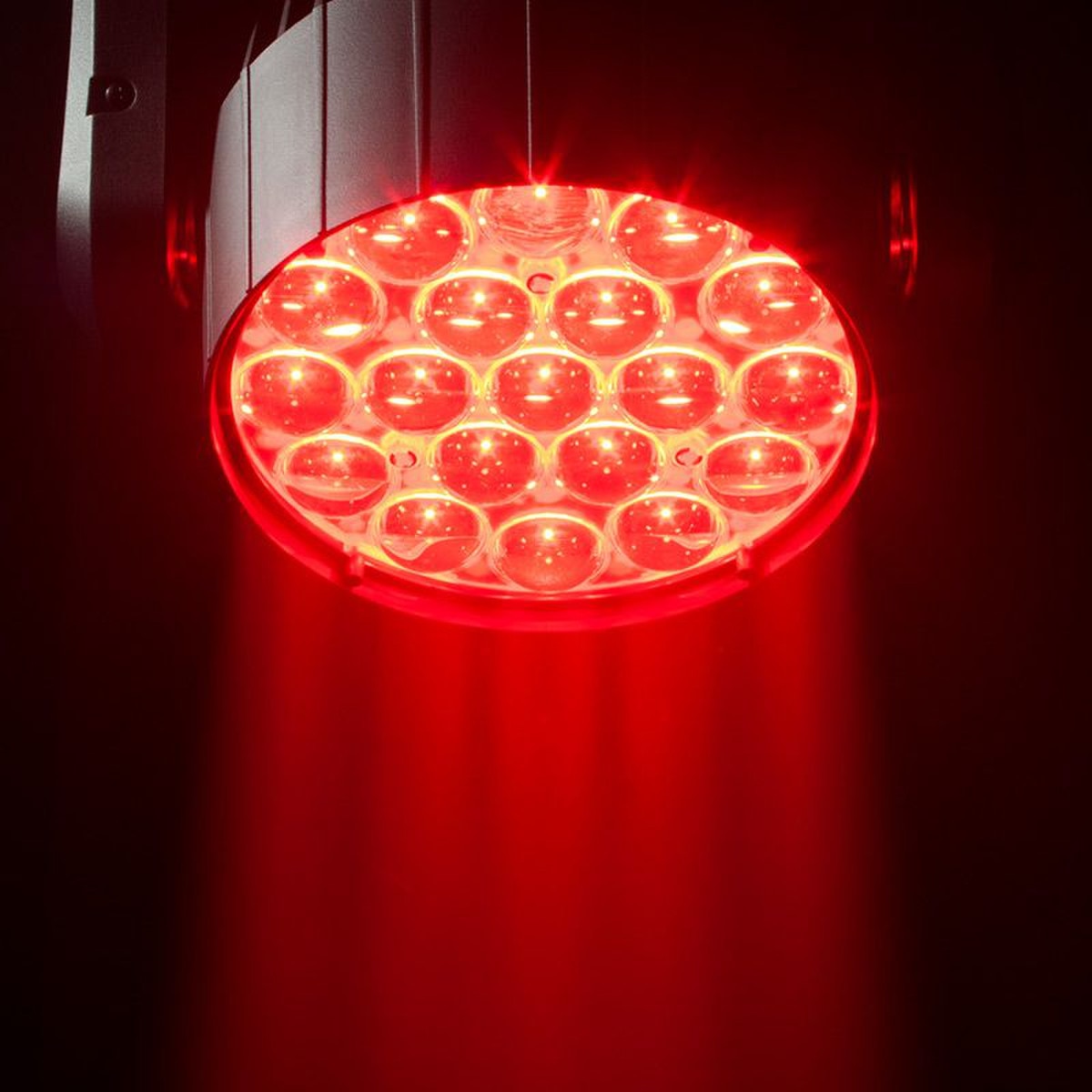

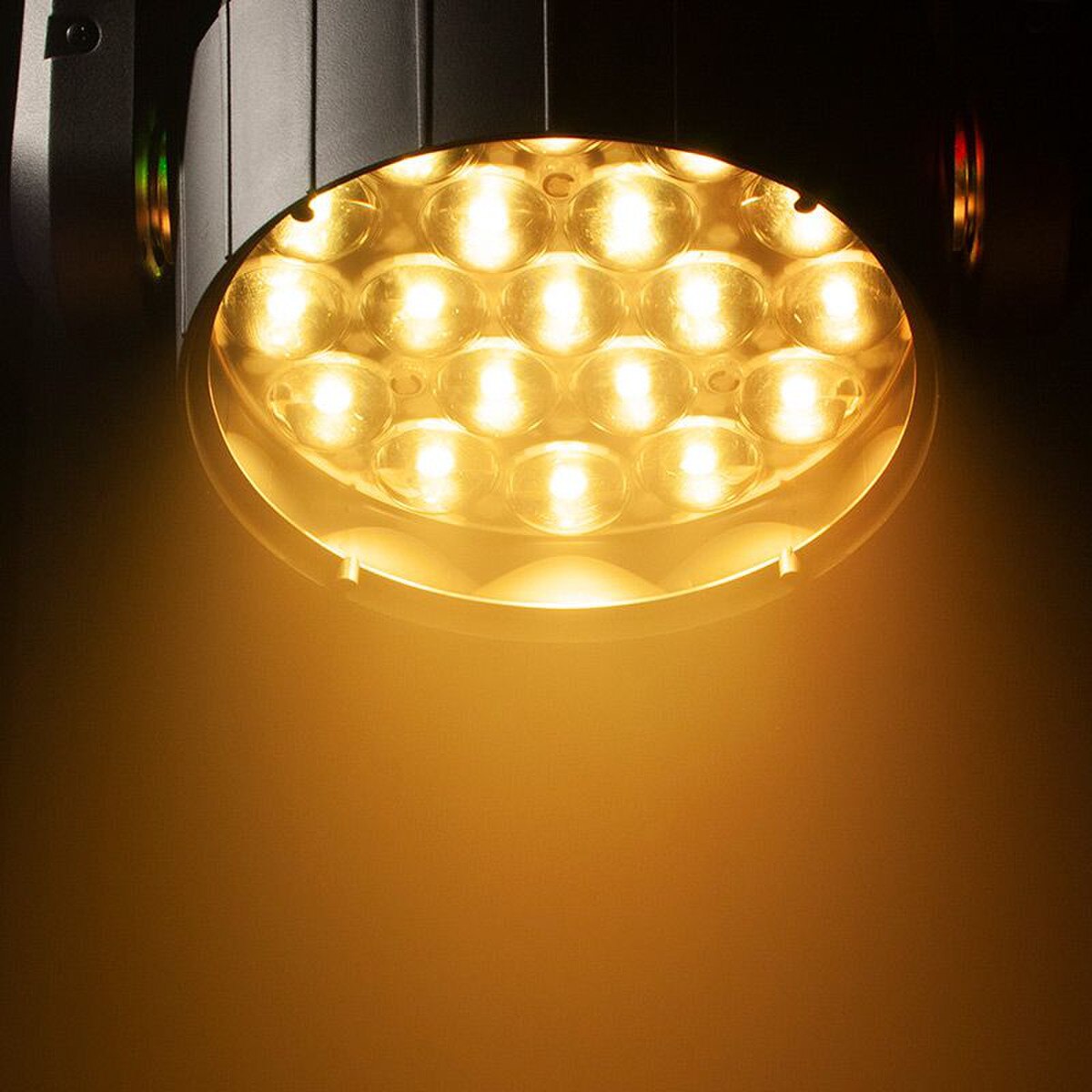

• 19x Osram 20W RGBW (4-IN-1) LEDs
• 20,000 Hour Average LED Life

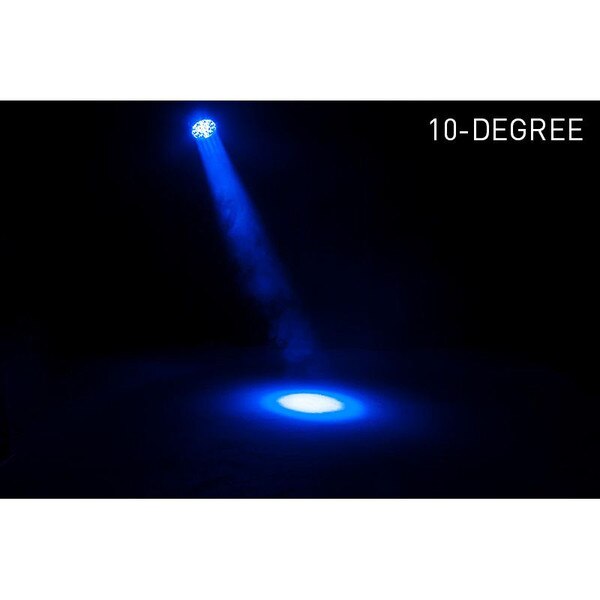

• LUX @ 5M: 9960 lux @ 10-degrees; 694 lux @ 60-degrees

Effects:

• 3-zone or 7-zone Ring Control with Color Macros
• Variable Strobe & Pulse effects

Connections:

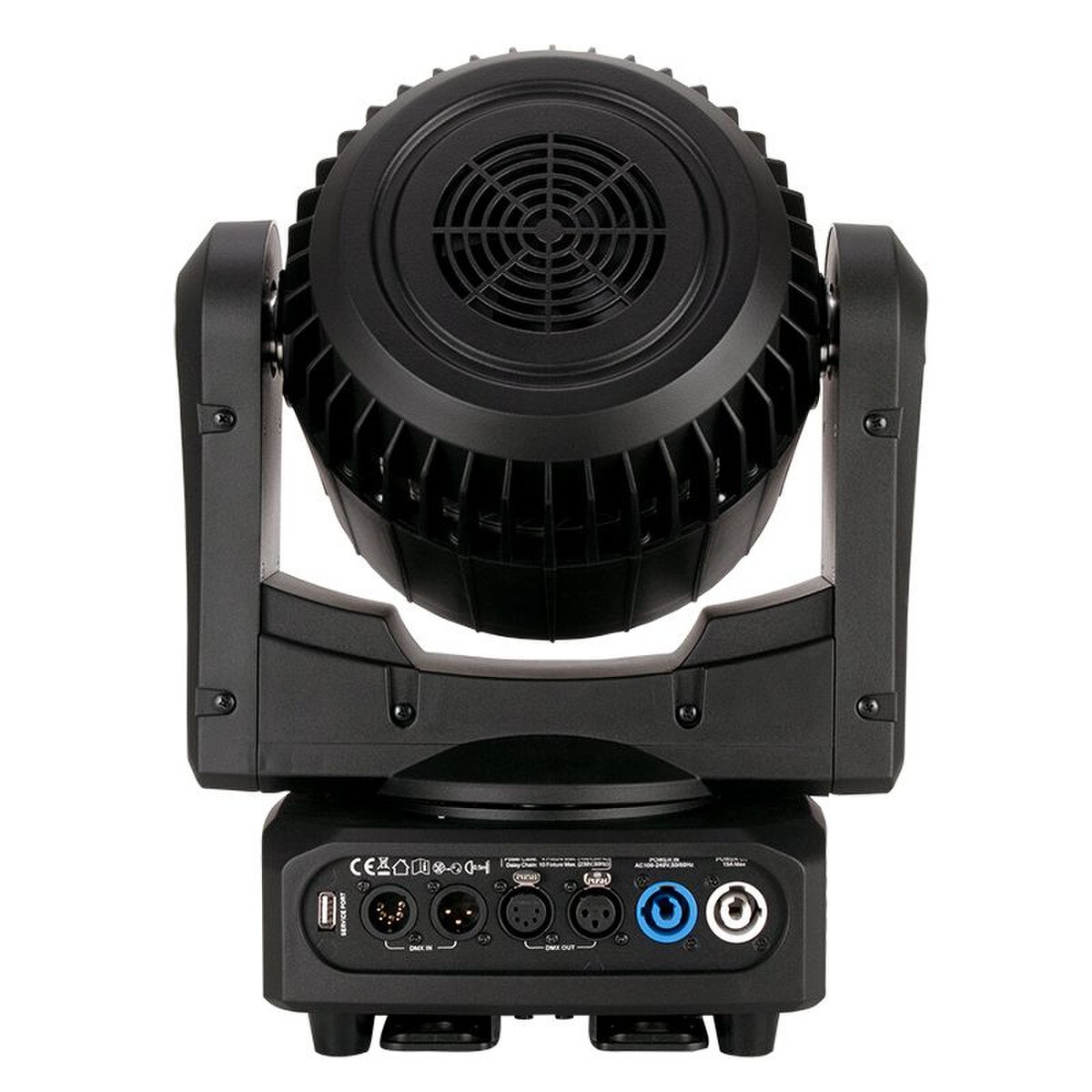

• Seetronic locking power In/Out to daisy chain power
• Daisy chain up to 5 fixtures @ 120V, 11 fixtures @ 230V
• 3-pin & 5-pin In/Out DMX Connections
• With Wired Digital Communications Network

Control:

• Motorized Zoom: 10 ~ 60-degrees
• Control: DMX-512 & RDM (Remote Device Management)
• 8 DMX Channel Modes: 13 / 14 / 17 / 18 / 29 / 30 / 45 / 46
• 64 built-in Color Macros
• Color display with touch buttons

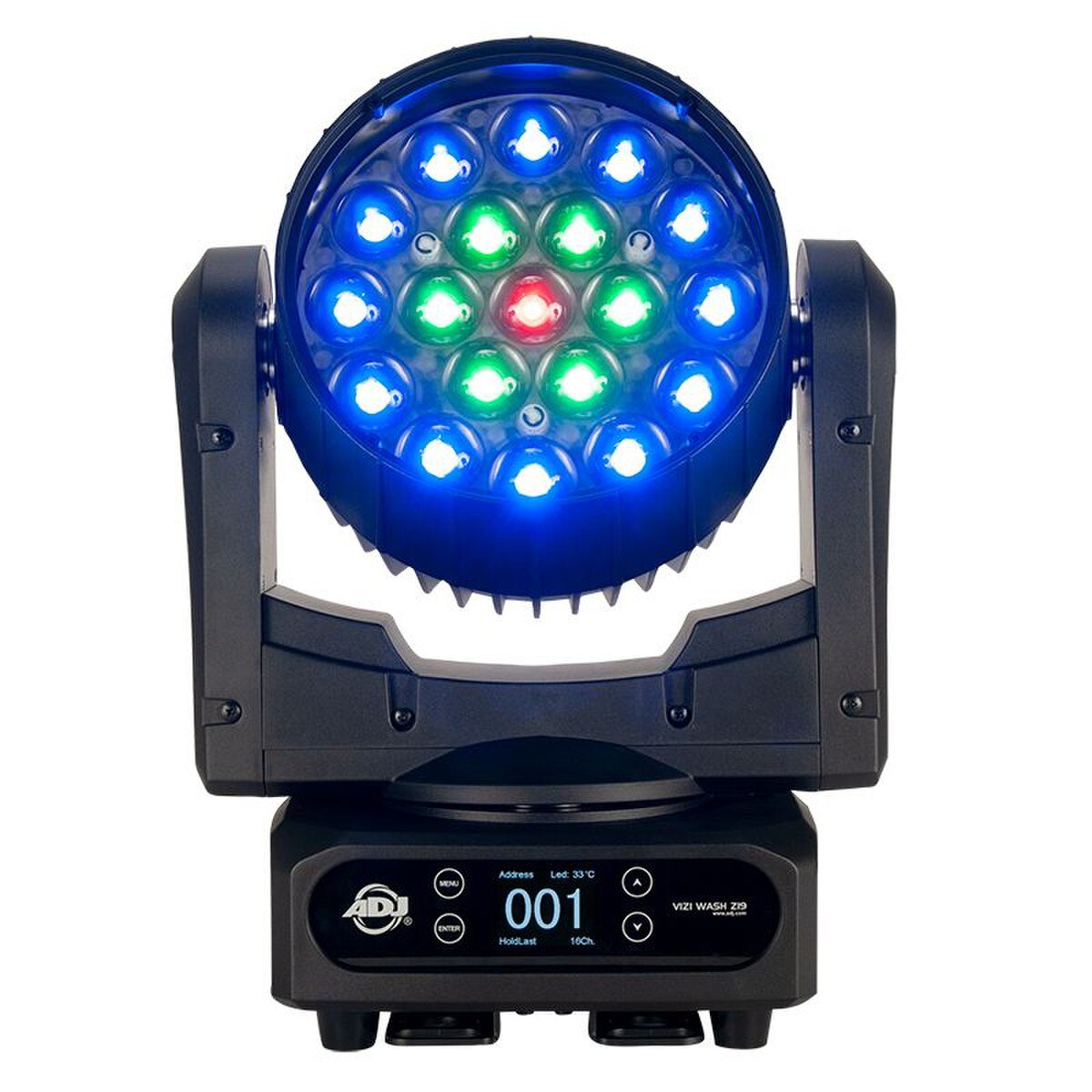

• 3 or 7 zones of LED ring control
• Smooth 0-100% Dimming
• Fine 16-bit Dimming
• 6 Dimmer Curve modes
• Fine 16-bit Zoom control
• Built-in USB software upgrade port
• Various Strobe speeds (1-40Hz)
• Pan: 540-degree (plus fine 16-bit pan)
• Tilt: 270-degrees (plus fine 16-bit tilt)

Electrical:

• Multi-voltage operation: 110-240V, 50-60Hz
• Power Consumption: 276W Max

Dimensions / Weight:

• Dimensions (LxWxH): 12.1”x7.7”x15.5” / 306.6×195×393.3mm
• Weight: 20 lbs. / 9.4kg.

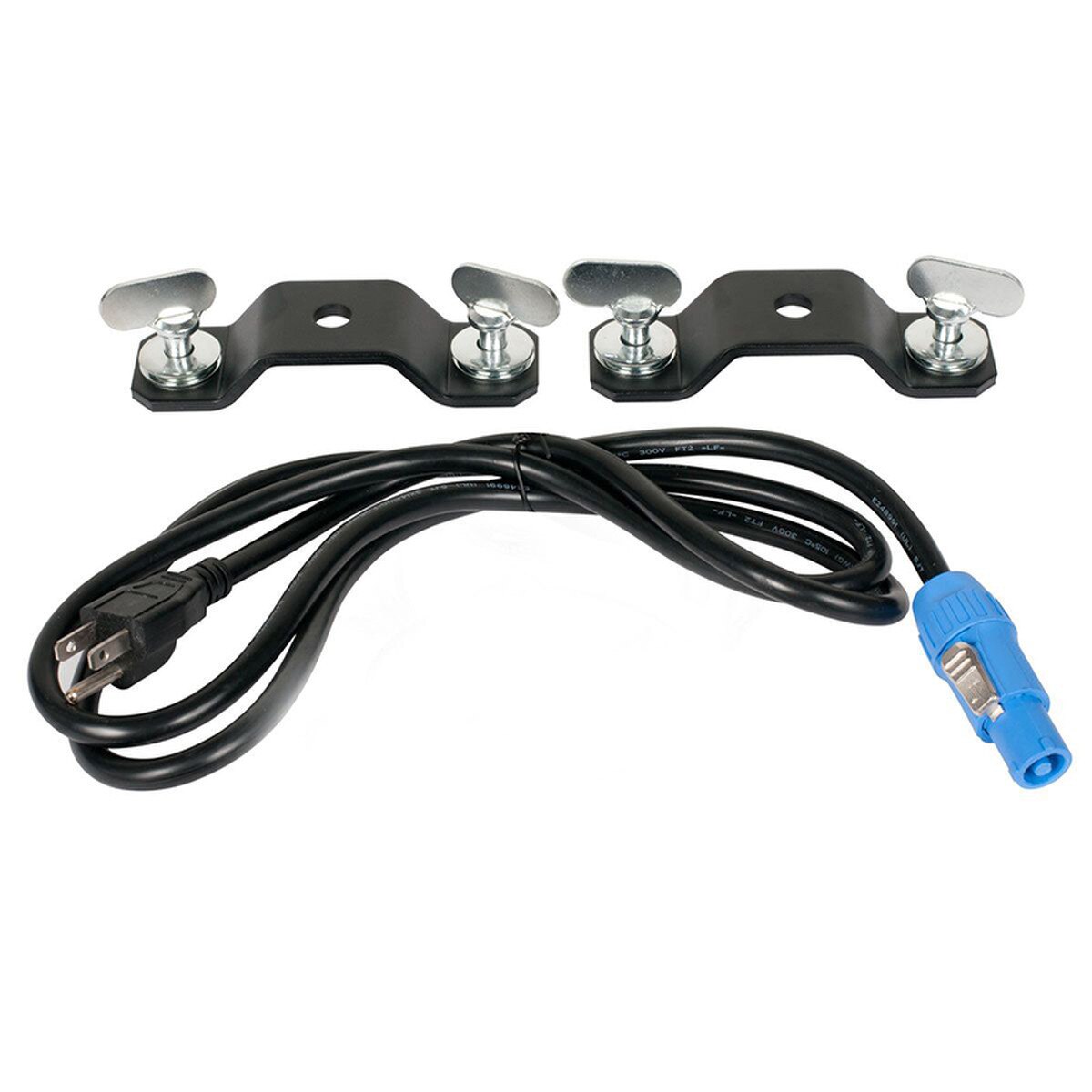

What’s In The Box:

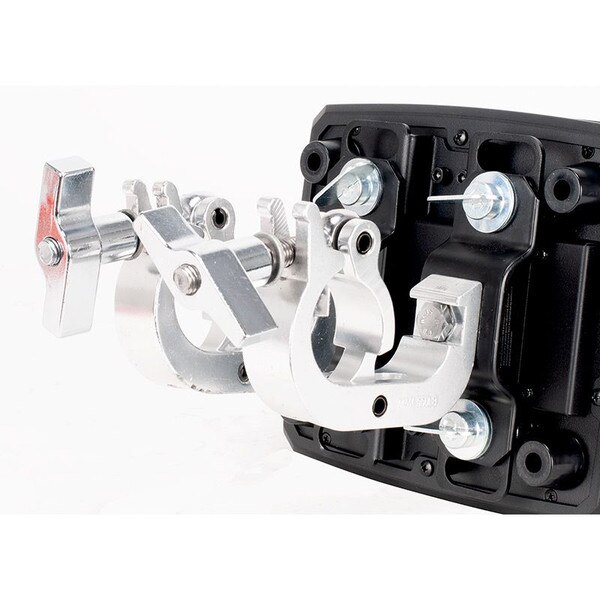

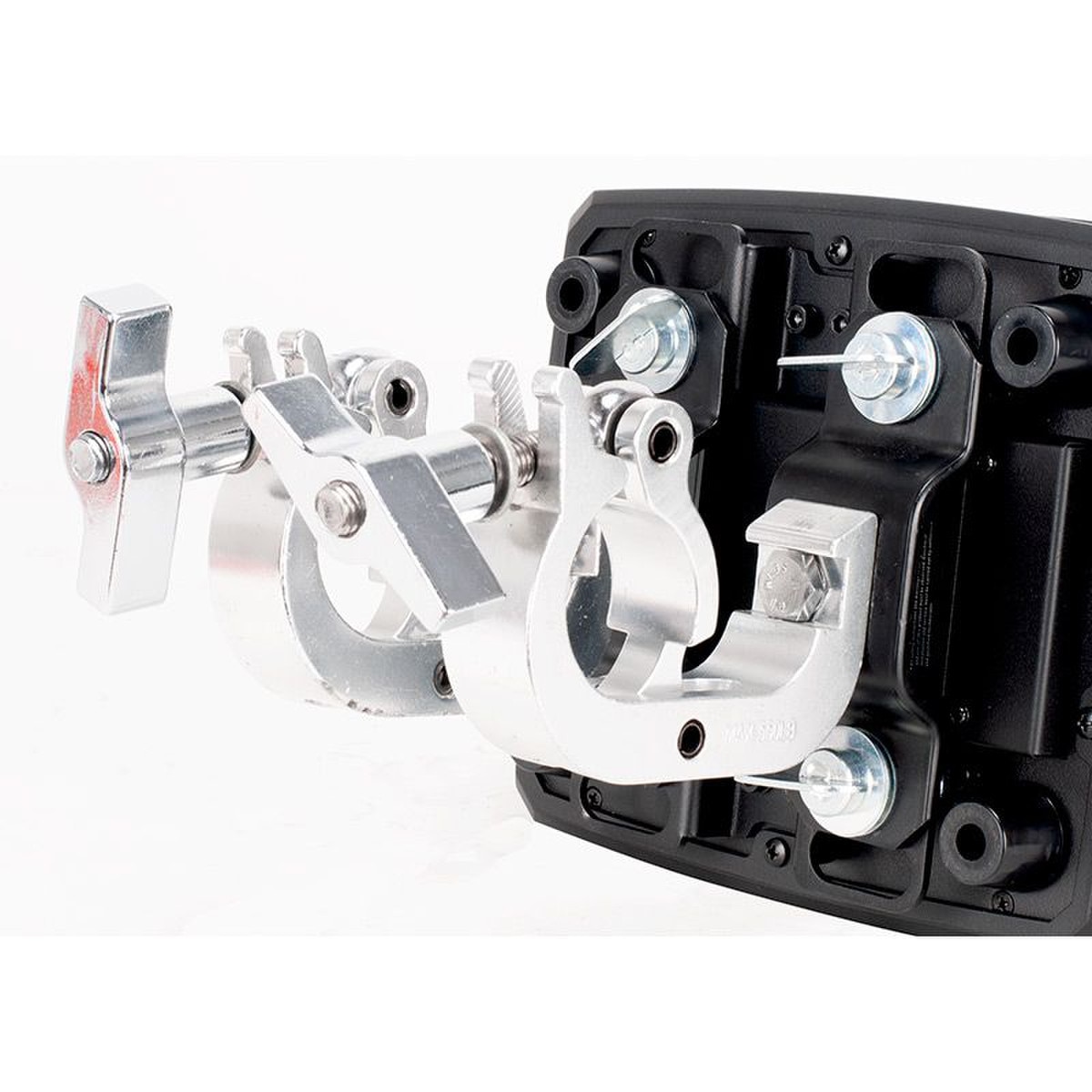

• Two Omega Brackets
• Twist lock power cable

Optional Road Cases:

• DRC MH: 2 Vizi Wash Z19 fit in the DRC MH Road Case
• QRC MH: 4 Vizi Wash Z19 fit in the QRC MH Road Case

Ratings / Approval:

• cETLus Approved (Control #4000358)
