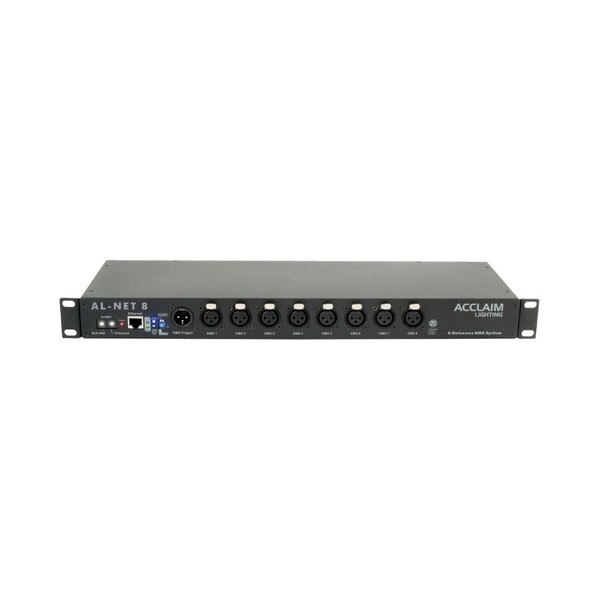

Acclaim AL-Net-8 Universal DMX System

This item is only available for sale with written estimate from the Stage Lighting Store. Please call for pricing.

AL Net 8 is an 8 universe ethernet to DMX interface. You can choose to run either Artnet or DMX -1000 control protocol. When using the DMX-1000 protocol and the X-Software package you can run up to 1800 DMX channels per universe making it an ideal interface for video display products.

Features:

• The newest Artnet 8 Universal DMX System
• Standard DMX-512 and High Speed DMX-1000K(1M) protocol compatible
• With network control supporting TCP/IP Artnet and CL100M protocol
• Fixed built-in 128 memory CHIP allows to hold DMX data files
• Up to 32 Shows can be created assigned and updated by configuring AL-Net-8 Configure Software on PC platform
• Astronomical time color schedule event table
• All output channels can be patched with any of input
• DMX trigger function available
• Supporting DMX-512 and DMX-1000K(1M) protocol
• DMX Output: 512 channels per output (DMX-512 protocol control)total 8 x 3 XLR DMX connector total 512 x 8 channels
• High Speed DMX-1000K(1M) protocol control with 2048 channels per output total 2048 x 8 channels
• 3 XLR DMX connector
• Fuse protection with F3.15A 250V 5x20mm

Specifications:

• Power Input: 100 ~ 240 Vac 50/60Hz
• Data Input: RJ45 socket for Ethernet and 3-pin XLR male socket for DMX Trigger
• Data Output: 8 pcs of 3-pin XLR female socket
• Housing: Sheet metal with powder painting
• Ingress Protection Rating: IP20
• Driver Output Signal: DMX-512 (1990) / DMX-1000K
• Ethernet Protocol: TCP/IP ArtNet
• Connection: 3-pin XLR female socket
• Listing: CE Certified
• Operating Temperature: -10 °C ~ +50 °C
• Storage Temperature: -20 °C ~ +70 °C
• Dimensions: 19"/1U (482 x 205 x 44 mm)
• Weight: 3.3 lbs (1.5kg)
