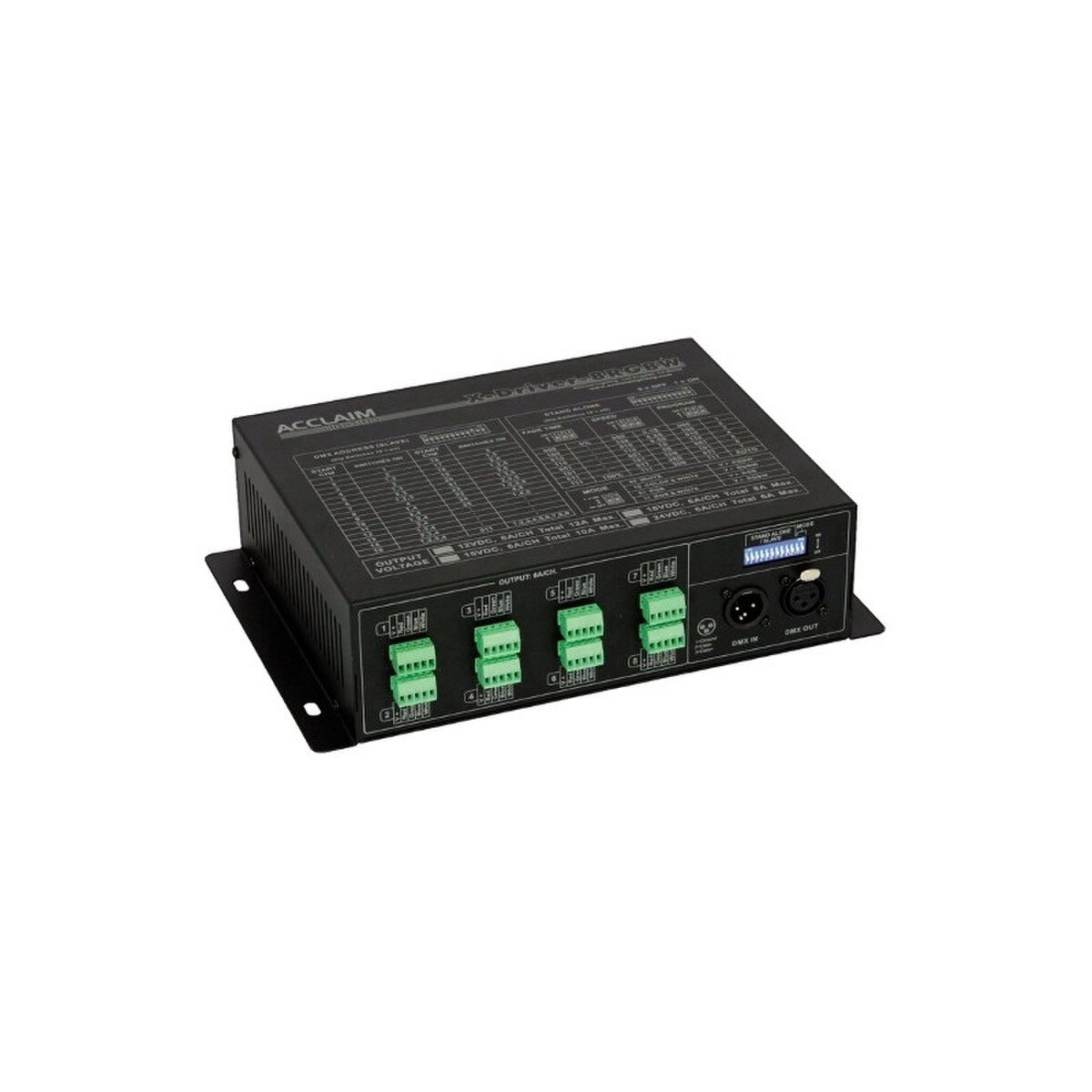

Acclaim Driver 8 RGBW 12V
Details
This item is only available for sale with written estimate from the Stage Lighting Store. Please call for pricing.
The AL Driver 8 RGBW is a high performance driver & power supply for 12V & 24V LED fixtures.It offers 8 ouput ports to connect directly to fixtures such as the Flex RGB as well as onboard DMX addressing.
Data_Sheet_81230_File_1.pdf
User_Manual_81230_File_2.pdf
The AL Driver 8 RGBW is a high performance driver & power supply for 12V & 24V LED fixtures.It offers 8 ouput ports to connect directly to fixtures such as the Flex RGB as well as onboard DMX addressing.
Features:
- System: 12 Vdc / PWM dimmer (4-Channel)
- Control Options: DMX-512 Stand Alone
- Output Modes: 32 CH (RGBW or RGBA) 24 CH (RGB) 8 CH (Single Color or White)
- Load: Max 150W connect to Driver Max 75W connect to 1 output
- Addressing DMX: Dipswitch
- Rating: IP20 Dry Location
- Power Requirement: 110 Vac (3.2A) / 240 Vac (1.6A)
- DMX Input: 3-pin XLR
- DMX Output: 3-pin XLR
- DMX Channels: Min. 24 (8 x RGB) Max. 32 (8 x RGBW)
- Listing: CE and cETLus certified
- Operating Temp.: 0 °C ~ +40 °C
- Storage Temp.: -20 °C ~ +70 °C
- Flicker Free Operation: For Use With HD Video or Film
- Housing: Sheet metal with powder painting
- Dimensions: W 11.25" x H 2.9" x D 7.5" (286 mm x 74 mm x 191 mm)
- Weight: 6.6 lbs. (3 Kg)
Data_Sheet_81230_File_1.pdf
User_Manual_81230_File_2.pdf
