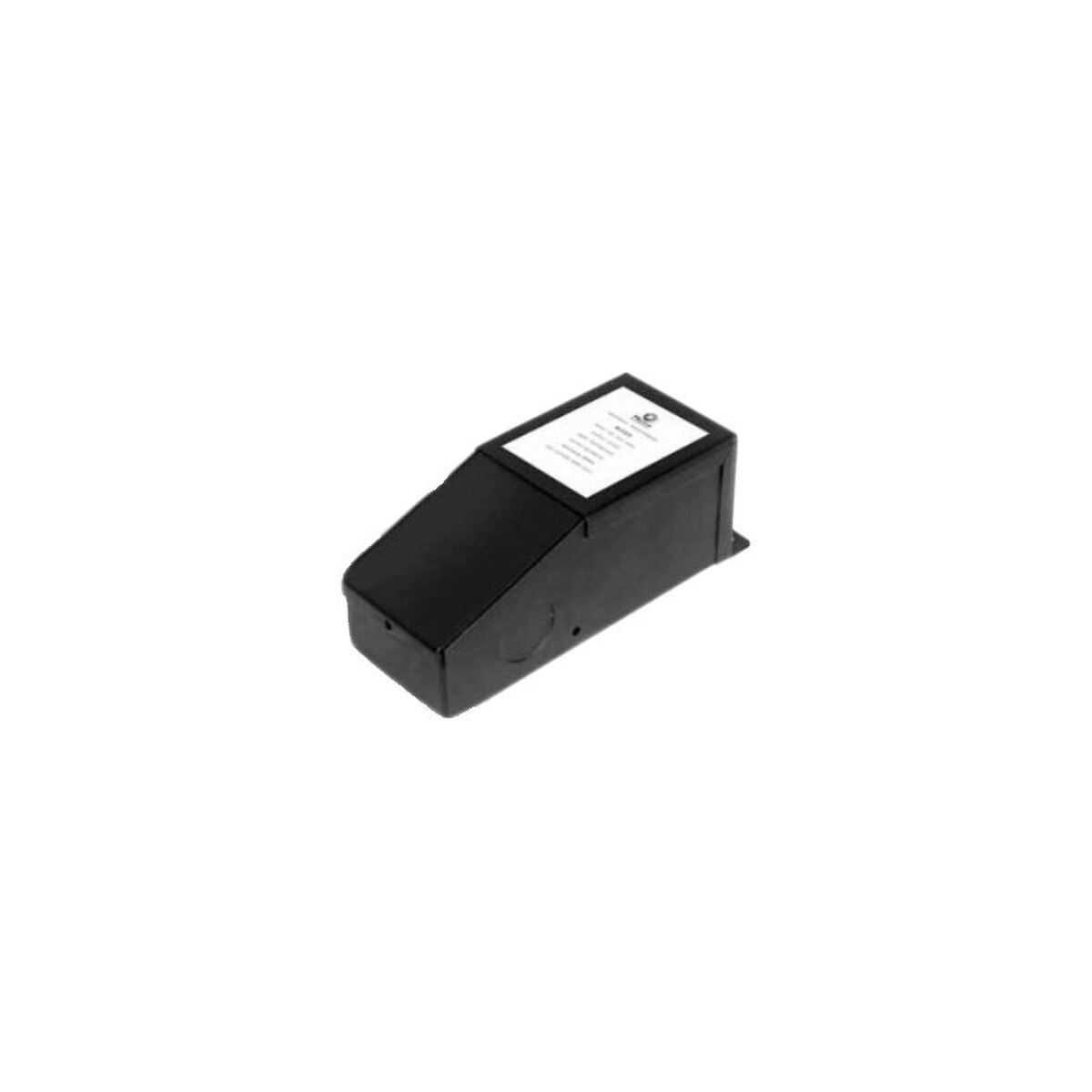

Acclaim M-Series 100W 24v DC Dimmable Transformer
Details
This item is only available for sale with written estimate from the Stage Lighting Store. Please call for pricing.
The M-Series transformers are a series of dimmable magnetic transformers designed for low voltage LED fixtures. The M-Series 24V dimmable transformers are available in the following configurations: 150W 100W 60W 40W.
Compatible_Dimmer_List_81243_File_2.pdf
Data_Sheet_81248_File_1.pdf
Wiring_Diagram_81243.pdf
The M-Series transformers are a series of dimmable magnetic transformers designed for low voltage LED fixtures. The M-Series 24V dimmable transformers are available in the following configurations: 150W 100W 60W 40W.
Features:
- Input leads are 20 AWG
- Output leads are 14 AWG
- Lead insulation is 105 °C
- The transformer uses a class B 130 °C insulation system
- Enclosure temperature will not exceed 70 °C @ 40 °C ambient
- Wiring compartment has 2 knockouts sized for 3/4 inch screw cable connectors
- The removable cover for the wiring compartment is secured in place by a screw
- The enclosure is black powder coated
- Manual reset thermal circuit breaker on the secondary side
- Controlled with a low-voltage dimmer
- ETL listed
- CSA listed
- UL standard 5085-1
- NEMA 3R enclosure
- Max Load: 100 W
- Input Voltage: 120 V 60 Hz
- Output Voltage: Full Load 23 VDC
- Input Current: Full Load 898 mA
- Open Circuit: Volts 25 VDC
- Output Current Full Load: 4 A
- Efficiency: 89.60%
- Coil Former: Double Section Bobbin
- Thermal Class: B 130 °C
- Leads Primary: PVC 600 V #2018
- Leads Secondary: PVC 300 V #14
